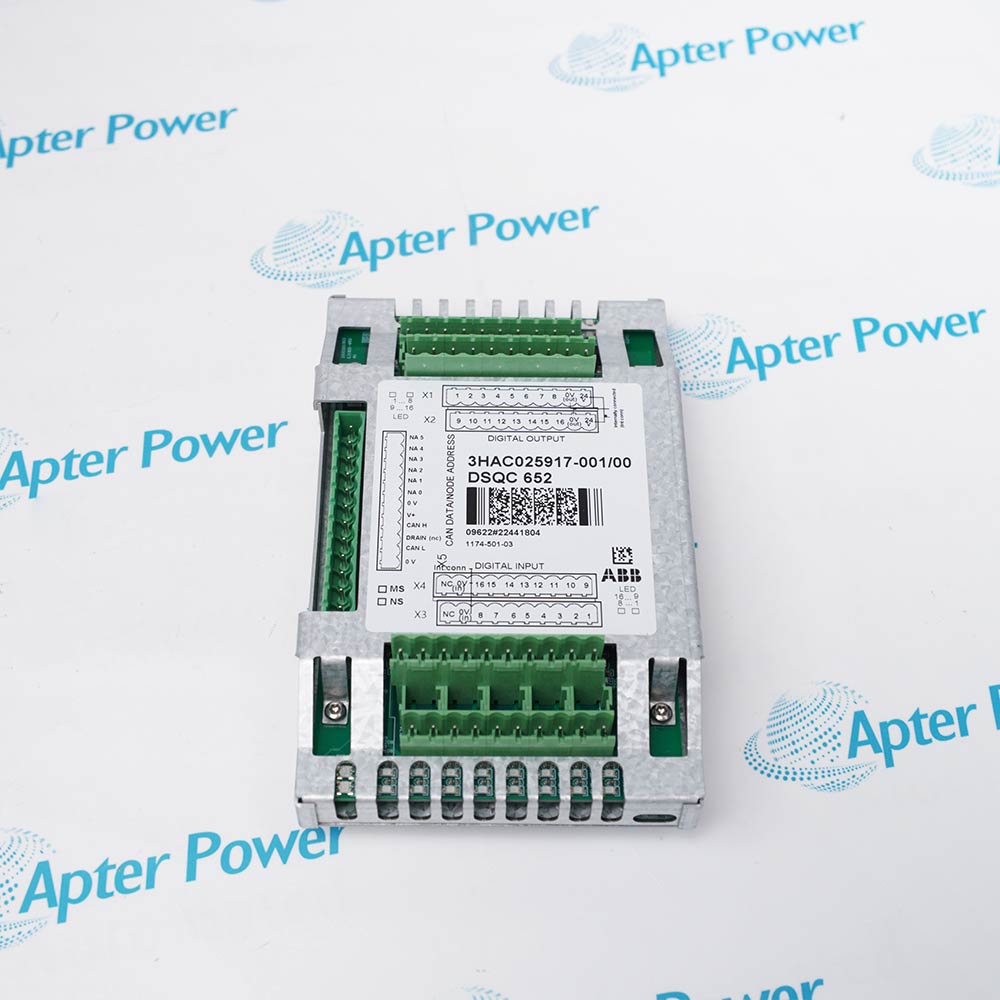

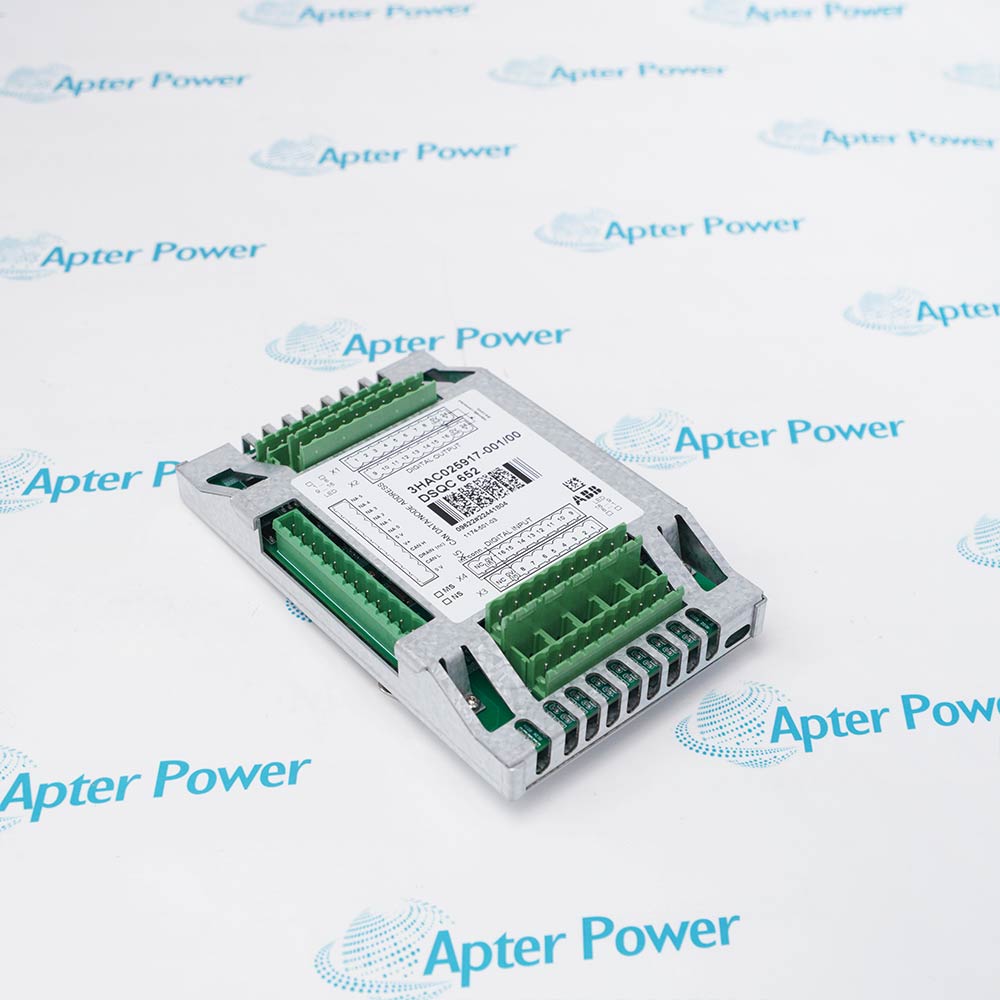

ABB DSQC 652 3HAC025917-001 is a DeviceNet digital I/O device with 16 protected outputs, 16 digital inputs and separate X1 through X5 connector roles.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSQC 652 3HAC025917-001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSQC 652 3HAC025917-001

  • Manufacturer:
    ABB
  • Part Number:
    DSQC 652 3HAC025917-001
  • Product Family:
    ABB Robots
  • Product Type:
    DeviceNet Digital I/O Device
  • Stock:
    1
  • Digital inputs:
    16
  • Digital outputs:
    16
  • Rated I/O voltage:
    24 VDC
  • Permitted supply range:
    19–35 VDC
  • Input ON range:
    15–35 VDC
  • Input OFF range:
    -35 to 5 VDC
  • Input switching level:
    approximately 12 V
  • Output current:
    500 mA per channel
  • Typical output current limit:
    1.4 A
  • Output voltage drop:
    maximum 0.5 V at 500 mA
  • Output leakage current:
    maximum 0.1 mA
  • Output delay:
    maximum 0.5 ms
  • Protection:
    short-circuit, current limiting, thermal overload and ±35 V miswiring protection
  • Connector map:
    X1/X2 outputs; X3/X4 inputs; X5 DeviceNet
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Commissioning DeviceNet Setup Connector Control Application
  • DeviceNet digital I/O device with 16 inputs and 16 protected outputs
  • X1 and X2 serve outputs, X3 and X4 serve inputs, and X5 carries DeviceNet
  • Supports a 24 VDC I/O supply with a documented permitted range of 19 to 35 VDC

DSQC 652 3HAC025917-001 is an ABB DeviceNet digital I/O device that exchanges signals between the robot controller and external equipment through 16 digital inputs and 16 protected digital outputs.

ABB assigns output connections to X1 and X2, input connections to X3 and X4, and the DeviceNet network connection to X5. The device can use the documented controller supply arrangement or an external 24 VDC I/O supply, and each output channel has a rated load limit of 500 mA.

Replacement and commissioning require verification of the DeviceNet address, baud-rate setting, X1 through X5 connector assignments, I/O supply and connected loads. After changing network settings, complete the ABB-specified restart or power-cycle procedure before checking communication and field signals.

Availability, condition, price, and shipping time for DSQC 652 3HAC025917-001 are confirmed during quotation.

ABB DSQC 652 3HAC025917-001 DeviceNet Digital I/O Device Datasheet, Manuals, and Support Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Confirm the external 24 VDC supply arrangement before energizing field loads.
  • Test input and output channels against the recorded robot I/O configuration.
  • Keep each connected load within the ABB-defined output limit and protection behavior.
  • Record node address and baud configuration before removing the existing device.
  • Reconnect the network at X5 and apply the ABB restart procedure after setting changes.
  • Verify Polled, Change-of-State or Cyclic operation required by the controller configuration.
  • Restore output plugs only to X1 and X2.
  • Restore input plugs only to X3 and X4.
  • Check X5 network seating and all supply bridges before controller diagnostics.
  • Robot-controller digital signal exchange with external equipment
  • DeviceNet field I/O installed inside the robot controller
  • External DeviceNet I/O-module installations using a separate 24 VDC field supply
Description
DSQC 652 3HAC025917-001 is ABB's DeviceNet-connected digital I/O device for exchanging signals between a robot controller and external equipment.

The device provides 16 digital inputs and 16 protected digital outputs, with external or controller-supplied 24 VDC I/O power and dedicated X1 through X5 connector functions.

Commissioning requires correct DeviceNet addressing, wiring and supply supervision; output protection does not replace verification of the connected load and field wiring.
Alternative Names
DSQC 652 3HAC025917-001 DSQC652 3HAC025917-001 3HAC025917-001 DSQC 652 3HAC025917-001 DSQC652 ABB DSQC 652 3HAC025917-001 ABB 3HAC025917-001 DSQC 652
Technical notes
DSQC 652 3HAC025917-001 requires verification of DeviceNet address, baud rate, X1–X5 wiring and the 24 VDC I/O supply before commissioning to avoid network or load mismatch.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be checked before selecting ABB DSQC 652 3HAC025917-001?
Confirm the required 16-input and 16-output DeviceNet function, the complete 3HAC025917-001 identity and the controller or external-module installation context.
Can ABB DSQC 652 3HAC025917-001 outputs be powered from an external supply?
Yes. ABB documents external 24 VDC I/O supply as an option; wiring and supply-supervision requirements in the DeviceNet manual must be followed.
Which connectors carry field I/O on ABB DSQC 652 3HAC025917-001?
X1 and X2 are used for outputs, X3 and X4 for inputs, and X5 for DeviceNet; record each plug position before replacement.
What should be checked if ABB DSQC 652 3HAC025917-001 reports no field signals?
Check DeviceNet address and baud settings, X5 network connection, the I/O supply and the relevant X1 through X4 field wiring before replacing the device.
Does protection on ABB DSQC 652 3HAC025917-001 permit unlimited output load?
No. The documented protection works with a 500 mA per-channel output rating; connected loads and wiring must remain within ABB's limits.
What must be done after changing DeviceNet settings on ABB DSQC 652 3HAC025917-001?
Apply the restart or power-cycle procedure specified by ABB so that the changed network settings are recognized, then confirm communication and I/O operation.
Can ABB DSQC 652 3HAC025917-001 be replaced by another DSQC I/O unit?
Do not assume compatibility. Verify the exact DeviceNet function, channel behavior, connector assignment and 3HAC025917-001 ordering identity.
