    Apter Power supports GE Fanuc A06B-0104-B111#7000 with documentation and configuration matching.

A06B-0104-B111#7000

/ 4.9
1001 reviews | Need a Specific Revision?

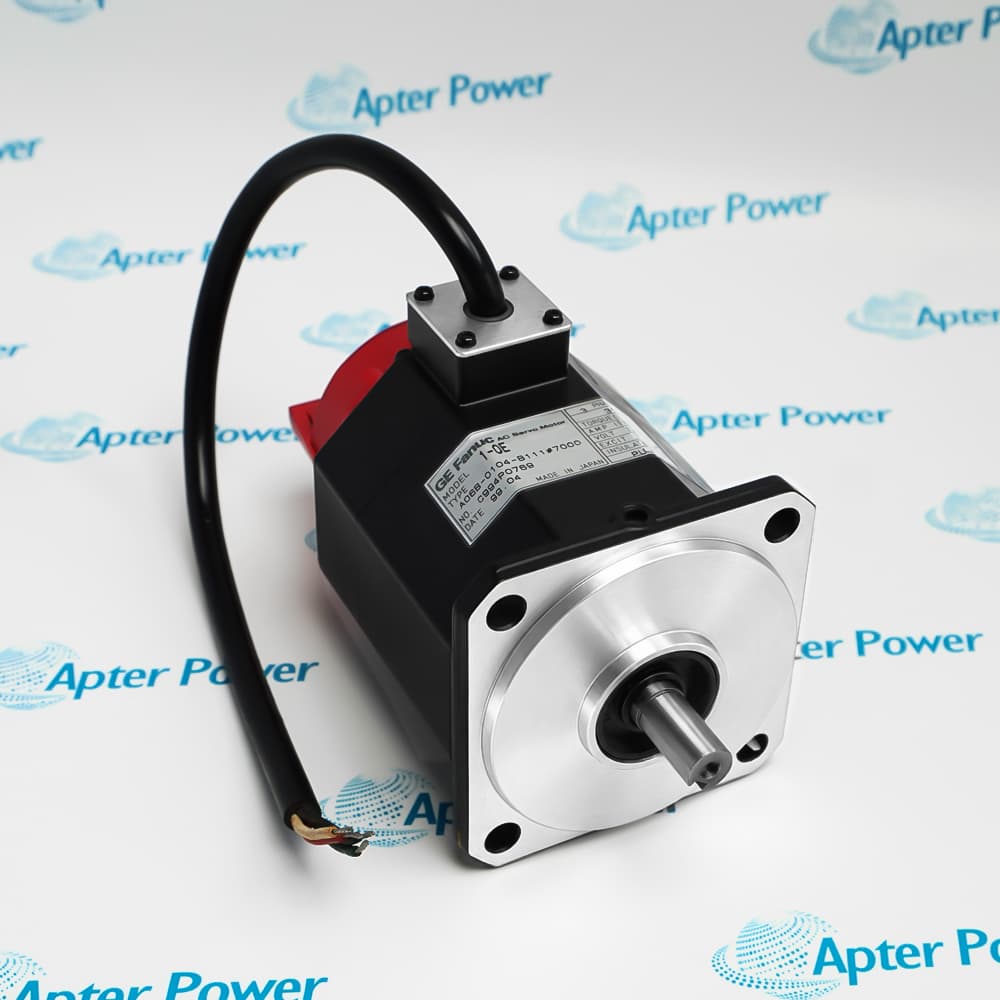

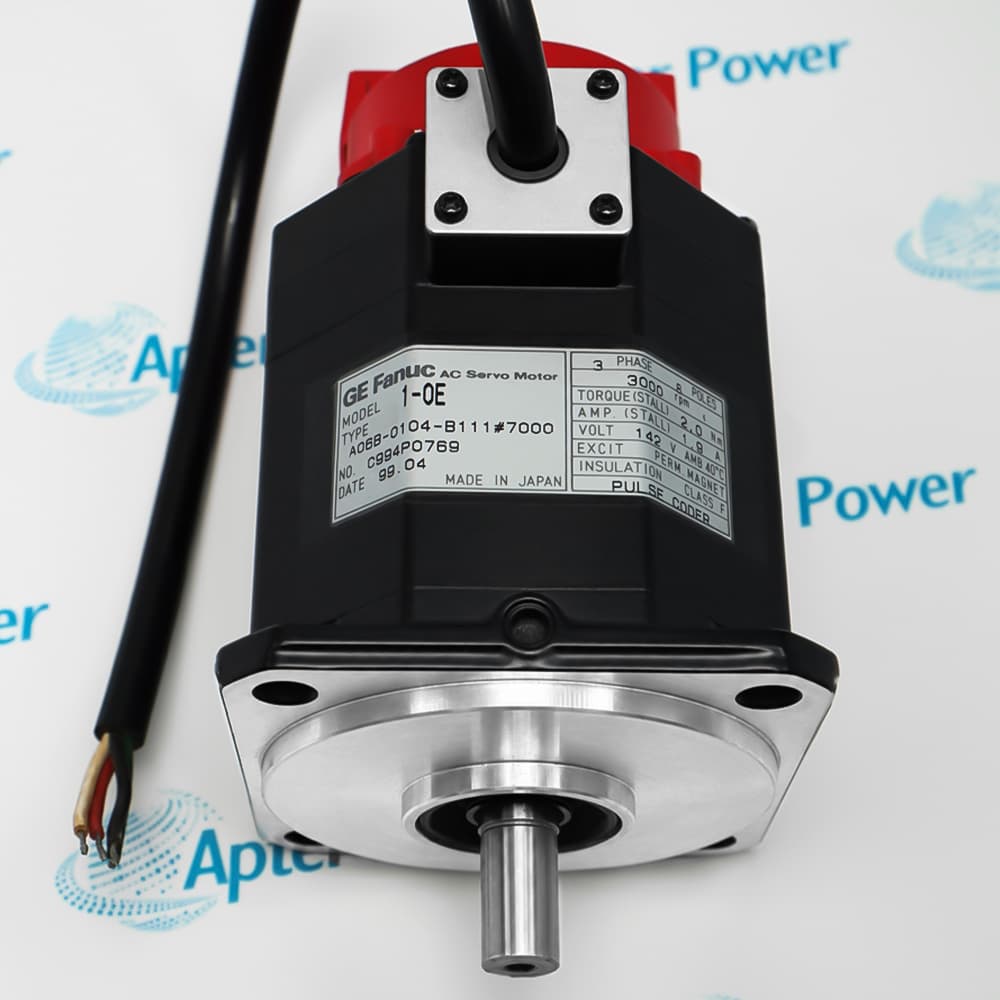

Serving a GE Fanuc CNC axis, A06B-0104-B111#7000 is a Model 1-0E AC servo motor that converts amplifier commands into controlled shaft motion.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for A06B-0104-B111#7000
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A06B-0104-B111#7000

  • Manufacturer:
    General Electric
  • Part Number:
    A06B-0104-B111#7000
  • Product Family:
    Fanuc CNC
  • Product Type:
    FANUC Model 1-0E AC Servo Motor
  • Stock:
    1
  • Motor Function:
    CNC axis servo motor
  • Shaft Form:
    Straight shaft with key
  • Motor Power Connection:
    Flying leads
  • Feedback Connection:
    Separate connector
  • Feedback Device:
    Pulse coder
  • Tariff Code:
    8501510090
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Shaft Interface Power Path Feedback Path Order Identity

Features:

  • Identified as a GE Fanuc Model 1-0E AC servo motor
  • Uses a straight keyed shaft to deliver controlled mechanical motion
  • Separates the flying motor-power leads from the pulse-coder feedback connection
The Model 1-0E designation defines the motor body within the legacy FANUC AC servo range.

Motor power and feedback follow separate paths, allowing the servo unit to energize the motor while receiving motion information.

The #7000 suffix remains part of the complete order identity and is not omitted during configuration matching.

The GE Fanuc A06B-0104-B111#7000 AC Servo Motor is listed as Active / Available from OEM.
GE Fanuc A06B-0104-B111#7000 AC Servo Motor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

How mechanical output leaves the motor

  • Shaft form: The Model 1-0E build uses a straight output shaft.
  • Torque transfer: A key establishes the positive mechanical connection to the mating coupling.
  • Motor boundary: The shaft is the controlled-motion output of the complete servo motor.
  • Identity check: Shaft form is verified together with the full #7000 order code.

Separation of the motor-power path

  • Electrical input: The servo unit supplies controlled power to the motor windings.
  • Connection form: Flying leads provide the documented motor-power connection.
  • Motion conversion: The energized motor converts the command into shaft torque and rotation.
  • Feedback boundary: Power conductors remain separate from the pulse-coder connection.

How the control receives motion information

  • Detector role: The motor-mounted pulse coder supplies motion feedback.
  • Connector route: Feedback leaves through its dedicated connector rather than the flying power leads.
  • Control relationship: The servo path compares returned motion information with the commanded movement.
  • Configuration boundary: The feedback arrangement is matched with the complete motor order code.

Why the complete code is retained

  • Base order: A06B-0104-B111 identifies the motor family and base configuration.
  • Suffix position: #7000 is recorded as part of the complete supplied identity.
  • Model designation: Model 1-0E provides the motor-size reference used with the order code.
  • Comparison rule: The full label is compared without dropping or interpreting unverified suffix details.
Description
GE Fanuc A06B-0104-B111#7000 is a Model 1-0E three-phase AC servo motor for CNC axis motion. The motor converts servo-unit power into controlled shaft movement while its pulse coder returns position and phase information to the control path.

The mechanical interface of A06B-0104-B111#7000 uses a straight keyed shaft, flying motor-power leads and a separate feedback connector. The 1-0 motor group uses the AB0598E0 SB-type oil seal and carries a 25kg permissible radial-load value at the shaft end, while axial loading of the shaft is excluded from normal operation.

For phase-relationship checks, A06B-0104-B111#7000 belongs to the 1-0/2-0 group with a 4A rated DC check current. Motor power is applied through the U, V and W lines, and the pulse-coder circuit provides the feedback signals used to confirm the motor-to-detector relationship.
Alternative Names
GE Fanuc A06B-0104-B111#7000 FANUC A06B-0104-B111#7000 A06B0104B111#7000 A06B 0104 B111 #7000 A06B-0104-B111 7000 A06B0104B1117000 A06B-O1O4-B111#7OOO Model 1-0E A06B-0104-B111#7000
Technical notes
GE Fanuc A06B-0104-B111#7000 combines a Model 1-0E motor body, keyed shaft, flying power leads and separate feedback connection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What identity should purchasing use for GE Fanuc A06B-0104-B111#7000?
Keep the entire GE Fanuc A06B-0104-B111#7000 order code, including #7000, because the unsuffixed base number is not the same recorded configuration.
How is GE Fanuc A06B-0104-B111#7000 connected to the driven mechanism?
Mechanical output from GE Fanuc A06B-0104-B111#7000 passes through its straight keyed shaft to the machine coupling.
Which part of GE Fanuc A06B-0104-B111#7000 carries the motor power connection?
Flying power leads provide the documented motor-power path for GE Fanuc A06B-0104-B111#7000.
Why is the feedback connector important on GE Fanuc A06B-0104-B111#7000?
The separate feedback connection on GE Fanuc A06B-0104-B111#7000 carries pulse-coder information back to the servo-control path.
Is GE Fanuc A06B-0104-B111#7000 an amplifier or a motor?
GE Fanuc A06B-0104-B111#7000 is the Model 1-0E AC servo motor; the matching servo unit is a separate component.
What should be compared when a machine label shows GE Fanuc A06B-0104-B111#7000?
For GE Fanuc A06B-0104-B111#7000, compare the full order code, Model 1-0E identity, shaft arrangement, power leads and feedback connection.
