          Apter Power offers IMSET01 quotations, product manuals, and system matching assistance.

        IMSET01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

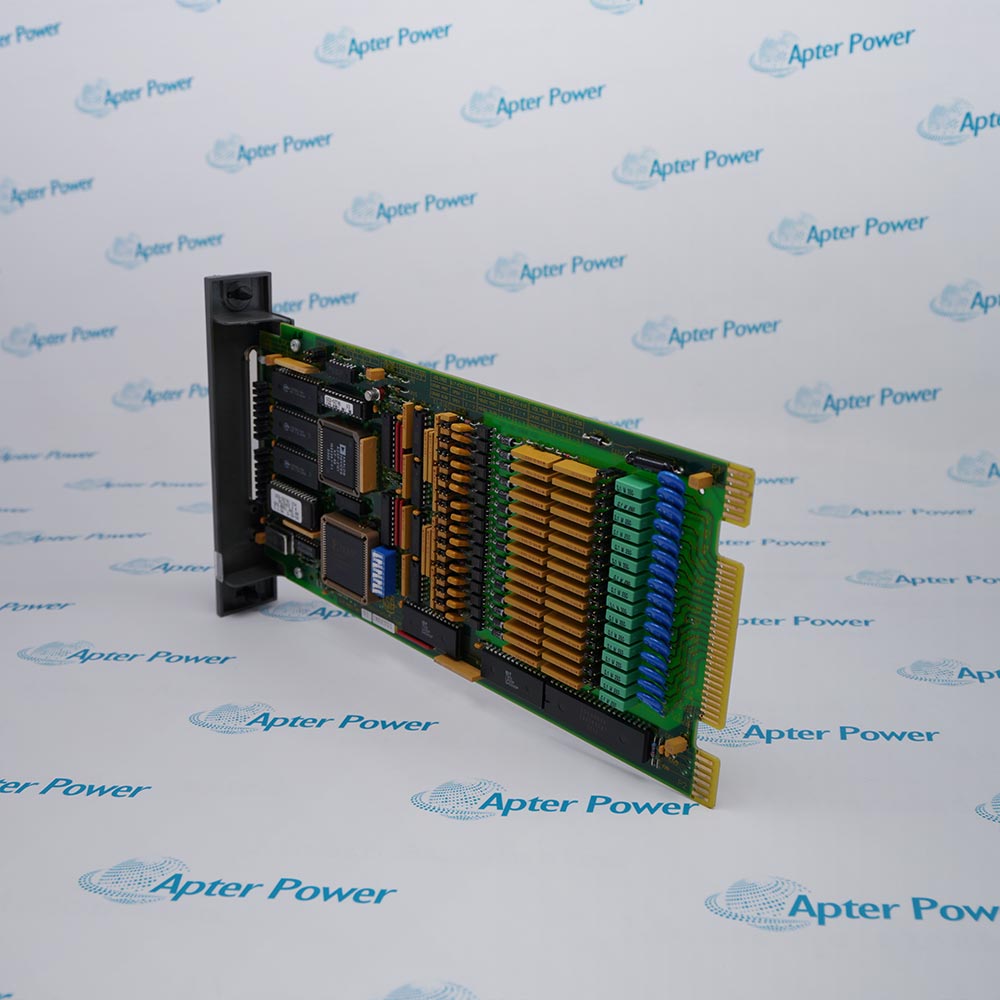

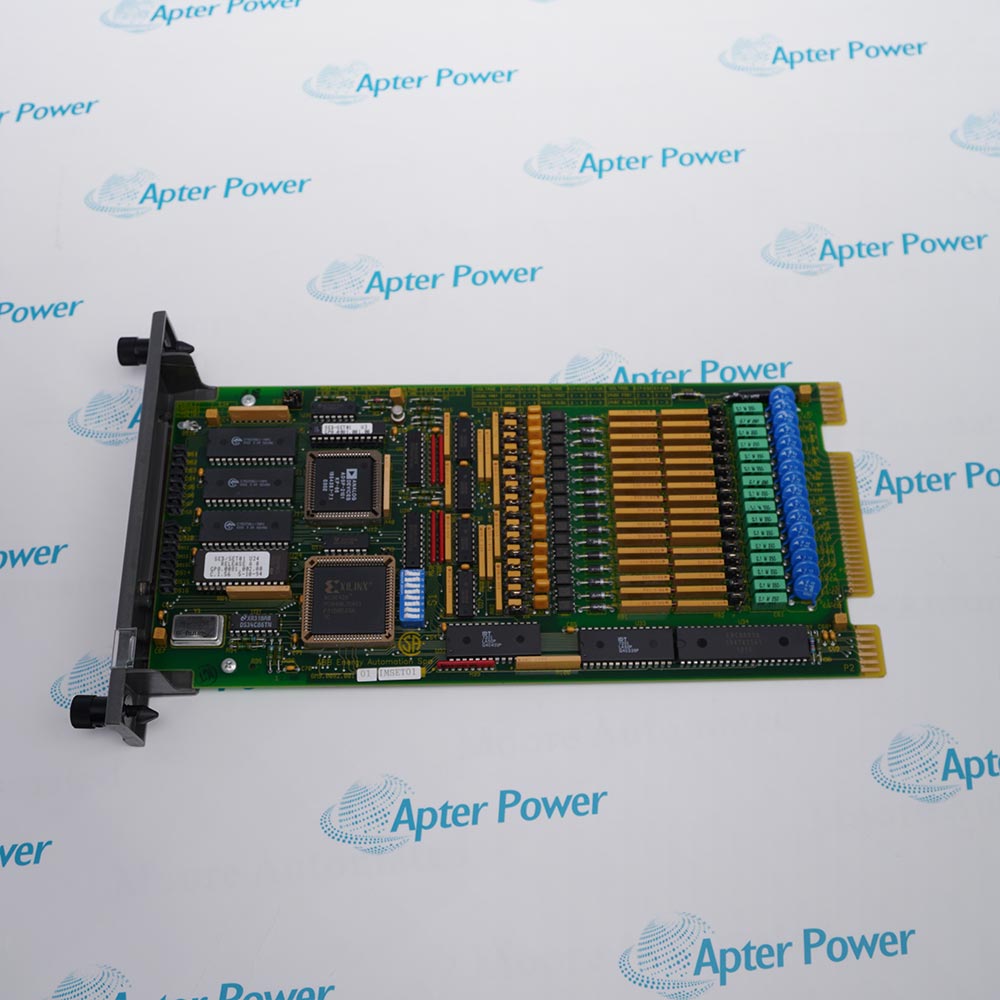

        ABB IMSET01 is a Harmony timing module that time-stamps transitions from up to sixteen isolated digital field inputs.
        In Stock
        Ships by Thursday, October 29
        Get a quick price for IMSET01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IMSET01

        • Manufacturer:
          ABB
        • Part Number:
          IMSET01
        • Product Family:
          ABB Symphony Plus SD
        • Product Type:
          16-Channel Sequence of Events Timing Module
        • Stock:
          1
        • Digital input channels:
          Up to 16
        • Channel isolation:
          Optical isolation per channel
        • Programmable input levels:
          24 V DC, 48 V DC, 125 V DC, or 120 V AC
        • Time synchronization source:
          INTKM01 through NTST01
        • Controller data function:
          Function code 241
        • Channel configuration function:
          Function code 242
        • Controller bus:
          Harmony I/O expander bus
        • Modules per bus segment:
          One IMSET01
        • Field termination:
          NTDI01
        • Time-link termination:
          NTST01
        • Module current:
          350 mA typical at +5 V DC
        • Module power:
          1.75 W typical
        • Processor:
          16-bit, 10 MHz
        • Memory:
          64 kB RAM and 64 kB ROM
        • Operating temperature:
          0 to 70 °C
        • Operating altitude:
          Sea level to 3 km
        • Weight:
          0.838 lbs (0.38 kg)
        • Estimated shipping dimensions:
          3.7x31.2x17.6cm
        • Tariff Code:
          85389091
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Event Timing Input Channels System Connections Environmental Limits

        Features:

        • Processes and time-stamps transitions from as many as sixteen digital field inputs.
        • Lets each optically isolated channel be programmed for one of four documented AC or DC input levels.
        • Separates time-link termination through NTST01 from field wiring termination through NTDI01.
        ABB IMSET01 links digital field transitions with the synchronized time reference used by the Harmony Sequence of Events system.

        INTKM01 supplies the time data, NTST01 terminates that link, and NTDI01 carries the sixteen field input circuits into the module.

        The Harmony controller uses one function code for SOE data transfer and another for channel configuration, while the I/O expander bus permits one timing module per segment.

        The ABB IMSET01 16-Channel Sequence of Events Timing Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB IMSET01 16-Channel Sequence of Events Timing Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Transition-to-Timestamp Path

        • Transition capture: Each on-to-off or off-to-on input change becomes an SOE event.
        • Time source: INTKM01 supplies the synchronized time information.
        • Time termination: NTST01 terminates the time synchronization link before it reaches the timing module.
        • Event transfer: Function code 241 moves timestamped SOE data toward INSEM01.

        Isolated Multi-Voltage Sensing

        • Channel count: The module processes up to sixteen digital field inputs.
        • Isolation: Every input channel is optically isolated.
        • DC choices: Channels can be programmed for 24 V, 48 V, or 125 V DC.
        • AC choice: A channel can instead be programmed for 120 V AC in the documented system-control configuration.

        Termination and Bus Boundaries

        • Field wiring: NTDI01 provides the termination point for the field input conductors.
        • Synchronization wiring: NTST01 provides the separate time-link termination.
        • Controller bus: The module exchanges data with the Harmony controller through the I/O expander bus.
        • Segment limit: Only one IMSET01 operates on an I/O expander-bus segment.

        Installed Module Conditions

        • Temperature: Operation is specified from 0 to 70 °C.
        • Humidity: The allowed noncondensing range changes from 5–95% through 55 °C to 5–45% at 70 °C.
        • Altitude: Operation is specified from sea level to 3 km.
        • Air quality: The installation requires noncorrosive air.
        Description
        ABB IMSET01 is a Harmony Sequence of Events timing module that processes up to sixteen digital field inputs. It detects each on-to-off or off-to-on transition, associates the transition with synchronized time information, and passes the event record toward the Symphony event-management path.

        Each channel on ABB IMSET01 is optically isolated and can be programmed for 24 V DC, 48 V DC, 125 V DC, or 120 V AC input. This arrangement lets one module monitor mixed field-voltage groups while keeping channel sensing separated from the controller electronics.

        Time information reaches ABB IMSET01 from INTKM01 through the NTST01 termination unit, while NTDI01 provides field wiring termination. The module communicates with its Harmony controller over the I/O expander bus, where only one IMSET01 can occupy a bus segment.

        Function code 241 transfers ABB IMSET01 event data toward INSEM01, and function code 242 configures and accesses the individual input channels. Those two paths separate timestamped event reporting from channel definition while preserving the relationship between each field transition and its recorded time.
        Alternative Names
        IMSET 01 IM SET01 ABB IMSET01 ABB Harmony IMSET01 IMSET01 SOE Timing Module IMSET01 16-Channel Module IMSETO1 1MSET01
        Technical notes
        ABB IMSET01 combines sixteen isolated input channels with INTKM01 time synchronization and Harmony I/O expander-bus communication.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why does ABB IMSET01 connect to both NTST01 and NTDI01?
        ABB IMSET01 uses NTST01 for the synchronized time link and NTDI01 for the sixteen field-input conductors, keeping timing and process wiring separate.
        How are mixed field voltages handled by ABB IMSET01?
        Each isolated channel on ABB IMSET01 can be programmed independently for 24 V DC, 48 V DC, 125 V DC, or 120 V AC.
        What is the bus-segment limit for ABB IMSET01?
        Only one ABB IMSET01 timing module can operate on a Harmony I/O expander-bus segment, so the segment design cannot assign a second timing module.
        Which controller functions use ABB IMSET01 data?
        ABB IMSET01 uses function code 241 for SOE data transfer and function code 242 for channel configuration and access.
        How does ABB IMSET01 preserve the order of rapid field changes?
        ABB IMSET01 associates each detected digital transition with decoded synchronization information before the SOE data is transferred to the event-management module.
