        • Lifecycle status

          Active / Available from OEM

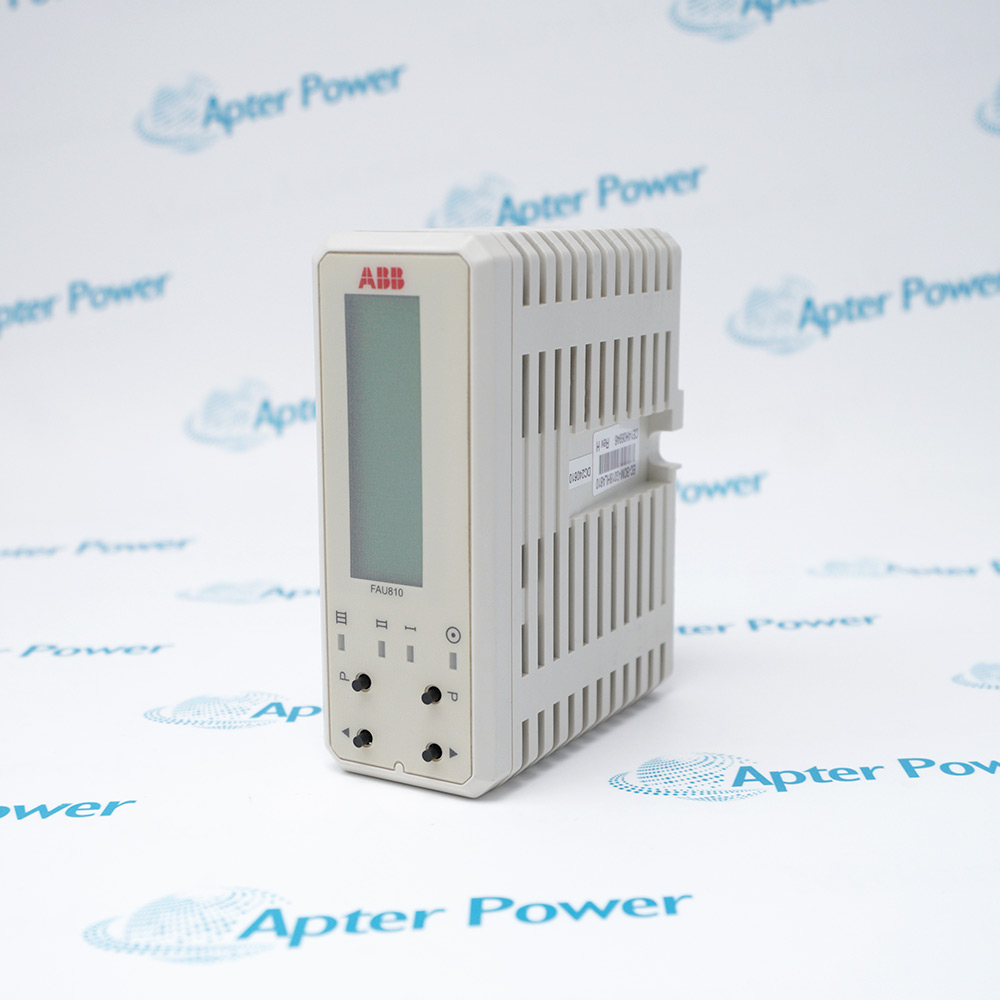

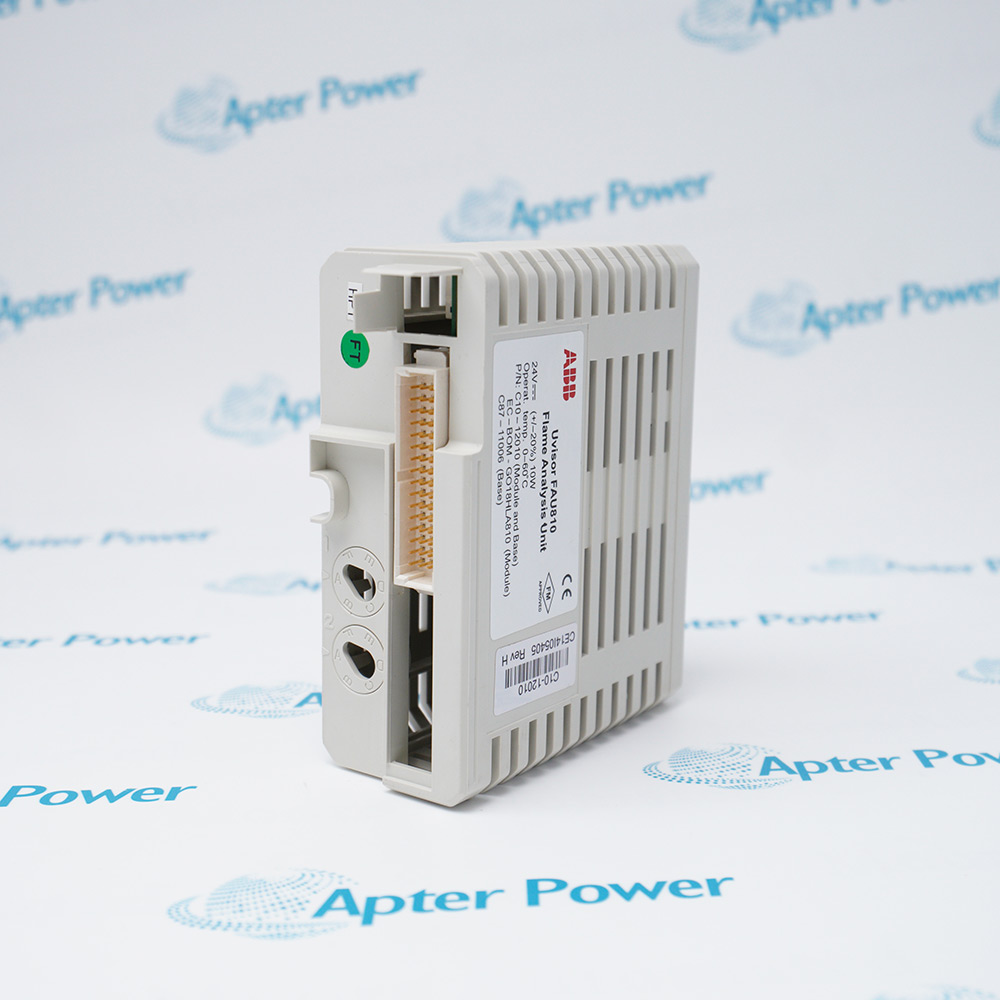

          FAU810 is ABB’s dual-channel Uvisor flame analysis unit for industrial combustion monitoring.

        FAU810

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        ABB FAU810 is a dual-channel Uvisor flame analysis unit for industrial burner supervision. It combines flame-quality evaluation, configurable trip timing, relay outputs, analog monitoring, and redundant serial communication.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for FAU810
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for FAU810

        • Manufacturer:
          ABB
        • Part Number:
          FAU810
        • Product Family:
          ABB Uvisor System
        • Product Type:
          Uvisor Flame Analysis Unit 810
        • Stock:
          1
        • Product Designation:
          Uvisor Flame Analysis Unit 810
        • Flame-Scanner Inputs:
          2 channels
        • Power Supply:
          24 VDC ±20%
        • Power Consumption:
          4 W minimum; 6 W typical; 10 W maximum
        • Flame-Failure Relay Dropout:
          Configurable from 0.2 to 2.5 s
        • Flame Relays:
          3 Form C contacts
        • Flame Relay Contact Rating:
          250 VAC, 3 A, 750 VA; 220 VDC, 300 mA, 66 W
        • Fault Relay Contact Rating:
          250 VAC, 3 A, 750 VA; 220 VDC, 300 mA, 66 W
        • Analog Outputs:
          2 independently assignable 4–20 mA channels
        • Analog Variables:
          Intensity, frequency, quality, or AC amplitude
        • Serial Interfaces:
          2 galvanically isolated RS-485 interfaces
        • Serial Protocol:
          Modbus default; PROFIBUS DP-V1 selectable
        • Self-Check Cycle:
          0.1 s
        • Ambient Temperature:
          0 to 60°C
        • Relative Humidity:
          Up to 95%, non-condensing
        • Remote Programming:
          RS-485 with Flame Explorer software
        • Tariff Code:
          8537101190
        • Country of origin:
          Switzerland
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Communication Configuration Performance

        Features:

        • Analyzes two independent flame-scanner channels for industrial burner supervision.
        • Evaluates intensity, frequency, quality, or AC amplitude and supplies two assignable analog outputs.
        • Performs an electronic self-check every 0.1 s and provides three Form C relay outputs.
        The current product is FAU810, the ABB Uvisor Flame Analysis Unit 810 for utility and industrial combustion systems.

        It processes flame-detector signals, trends flame quality, and communicates diagnostic and configuration data through redundant serial interfaces.

        Before commissioning, confirm detector type, channel limits, relay logic, analog-output mapping, serial protocol, supply voltage, and flame-failure timing.

        Availability is subject to Apter Power inventory and sourcing confirmation.

        Verified resources for ABB FAU810:

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Supervises burner flames in utility boilers, industrial furnaces, kilns, and other combustion equipment.
        • Supports flame analysis for natural gas, heavy oil, coal, lignite, biomass, and other compatible fuel applications.
        • Provides a modernization platform for established ABB flame-scanner installations when detector and wiring compatibility are verified.
        • Provides two galvanically isolated RS-485 interfaces that are fully independent for redundant communication.
        • Uses Modbus as the default serial format and supports selectable PROFIBUS DP-V1 integration.
        • Allows each RS-485 interface to access both flame-analysis channels for data exchange and tuning.
        • Sets the flame-failure relay dropout from 0.2 to 2.5 seconds for the approved burner-protection strategy.
        • Assigns each 4–20 mA output independently to intensity, frequency, quality, or AC amplitude.
        • Supports authorized remote setup and interrogation through the RS-485 link and Flame Explorer software.
        • Checks the electronics every 0.1 seconds to detect faults that could create an unsafe condition.
        • Consumes 4 W minimum, 6 W typical, and 10 W maximum from the 24 VDC supply.
        • Provides three Form C relay outputs for Flame 1, Flame 2, and either Flame 3 or fault duty.
        Description
        FAU810 is the ABB Uvisor Flame Analysis Unit 810, designed to interrogate and analyze two flame-scanner signals in utility and industrial combustion systems.

        It evaluates intensity, frequency, quality, or AC amplitude, provides three Form C relays and two assignable 4–20 mA outputs, and exchanges real-time data through two galvanically isolated RS-485 interfaces using Modbus or selectable PROFIBUS DP-V1.

        Continuous self-checking can drive a flame-out indication when an unsafe fault is detected. Verify detector compatibility, 24 VDC supply, relay loading, communication selection, flame limits, and dropout timing before commissioning.
        Alternative Names
        FAU810 FAU 810 FAU-810 ABB FAU810 ABB Uvisor FAU810 ABB Flame Analysis Unit 810
        Technical notes
        For FAU810, verify each detector type, channel setup, and flame-failure relay timing before commissioning; these settings directly affect loss-of-flame signaling.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Which combustion applications can use FAU810?
        ABB positions FAU810 for burner flame analysis in utility and industrial boilers using compatible ABB flame-sensing devices.
        Can FAU810 evaluate more than raw flame intensity?
        Yes. Its monitoring can use intensity, frequency, flame quality, or AC amplitude according to the configured channel function.
        How does FAU810 respond to an unsafe internal or detector fault?
        Continuous diagnostics can indicate flame-out to the boiler protection system so the predetermined loss-of-flame action can occur.
        Can FAU810 settings be adjusted remotely?
        Authorized personnel can use Flame Explorer over RS-485 to configure limits, dropout and pull-in behavior, and discrimination parameters.
        What should be preserved when replacing an FAU810 in an existing boiler?
        Preserve detector assignments, channel limits, relay logic, analog-output mapping, serial protocol, network address, and flame-failure timing.
        What information should be included in an FAU810 quotation request?
        Provide the FAU810 model, detector types, required protocol, quantity, destination, and documentation needs.
