UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005

/ 4.9
1001 reviews | Need a Specific Revision?

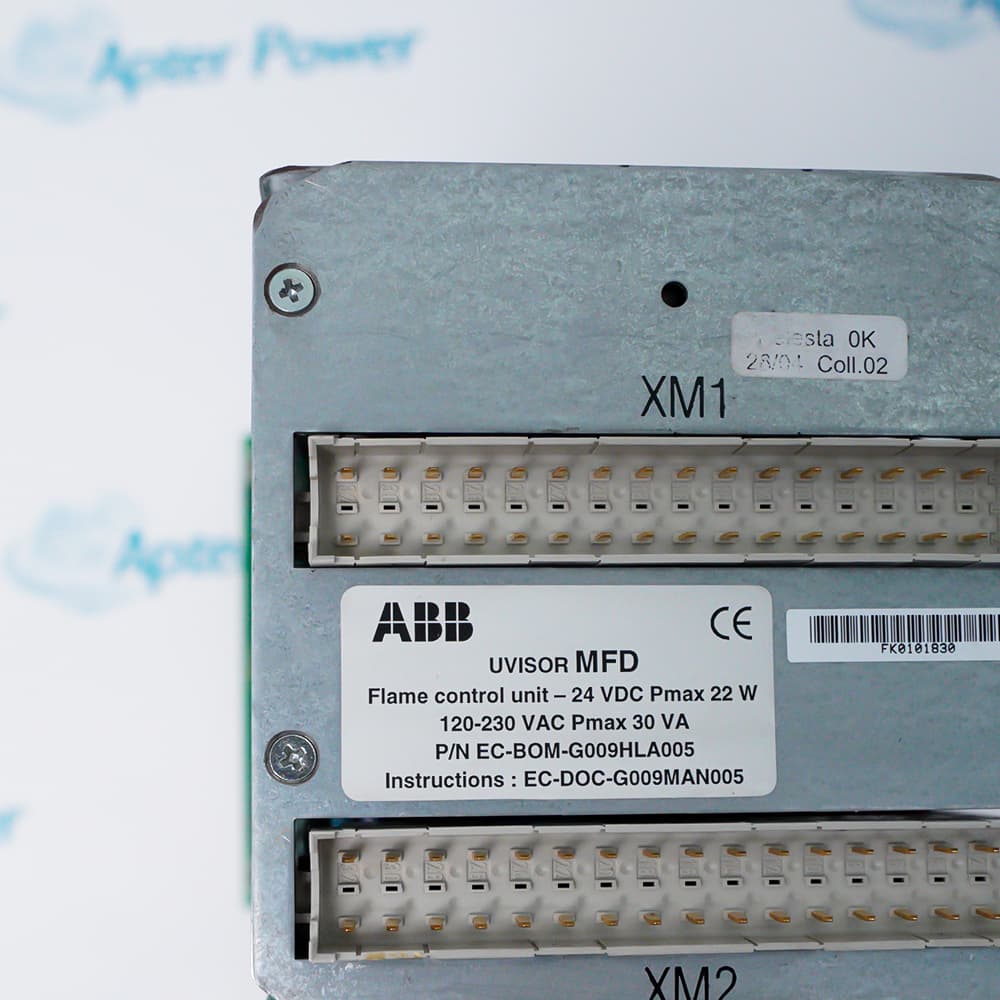

ABB UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 is a two-channel flame-detector control unit for Uvisor scanner signals, with pulse/flicker processing and serial communications in industrial combustion systems.
In Stock
Get a quick price for UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005

  • Manufacturer:
    ABB
  • Part Number:
    UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005
  • Product Family:
    ABB Uvisor System
  • Product Type:
    Multi-Flame Detector Control Unit
  • Stock:
    1
  • Product Type:
    Multi-flame detector control unit
  • Detector Channels:
    2 self-configuring channels
  • Signal Processing:
    Pulse and flicker
  • Supply:
    120–220 V AC ±20% or 24 V DC ±20%
  • Communications:
    RS-485, RS-232 and Modbus slave
  • Mounting:
    19-inch rack module
  • Ingress Protection:
    IP20
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    10.6 x 12.8 x 18.6 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Detector Channels Communications Installation Product Applications

Features:

  • Dual-channel control: two self-configuring flame-scanner channels.
  • Signal processing: compatible pulse and flicker detector inputs.
  • System access: graphic display plus isolated RS-485 and RS-232 communication.
Each detector channel can be isolated for maintenance while the control unit retains the second channel.

Programmable flame logic and continuous diagnostics support supervised burner-management operation.

Exact scanner compatibility, supply arrangement and retained configuration define the replacement boundary.

Apter Power supports exact-unit and application review for the ABB UVISOR-MFD control unit.
ABB UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Processes two compatible scanner channels simultaneously.
  • Accepts supported ultraviolet, infrared and dual-sensor Uvisor scanner arrangements.
  • Provides individual channel maintenance power-off and raw-signal outputs.
  • Provides one optically isolated RS-485 interface.
  • Provides one optically isolated RS-232 service interface.
  • Supports Modbus slave access for diagnostics and flame-monitoring data.
  • Mounts in the documented 19-inch rack arrangement.
  • Verify whether the installation uses the specified AC range or 24 V DC input.
  • Record scanner, relay, serial and channel settings before removing the installed unit.
  • Flame supervision on industrial and large utility boilers.
  • Burner systems using supported gas, oil or pulverized-coal scanner arrangements.
  • Maintenance replacement where the original Uvisor wiring and safety logic are documented.
Description
Built for industrial burner supervision, UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 processes two flame-scanner channels in one rack-mounted control unit. Each channel can be configured for compatible pulse or flicker signals used by the documented Uvisor scanner arrangement.

For maintenance visibility, UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 provides a multilingual graphic display, channel diagnostics and optically isolated serial communication. Its RS-485 interface supports Modbus slave operation, while RS-232 provides local service access.

Before replacement, UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 must be matched to the installed scanner types, power wiring, rack connectors and burner-management logic. Retain channel settings and verify all flame-safety interlocks under the approved commissioning procedure.
Alternative Names
ABB UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 UVISOR MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 U-VISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 UVISOR-MFD EC DOC G009MAN005 EC BOM G009HLA005 UVISOR-MFD EC-DOC-G009MANOO5 EC-BOM-G009HLAOO5 UVISORMFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 UVISOR MFD EC DOC G009MANOO5 EC BOM G009HLAOO5 UVISOR-MFD EC-DOC-GO09MAN005 EC-BOM-GO09HLA005
Technical notes
Before replacing UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005, record both channel configurations, scanner types, serial settings and supply arrangement. Verify the 19-inch rack position, RS-485 or RS-232 wiring and burner-management interlocks. Flame supervision is a safety function, so commissioning must follow the approved plant procedure and OEM documentation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can one scanner channel be taken out of service while UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 continues supervising the other channel?
The control unit provides two individually configurable channels and permits channel-level maintenance isolation. Follow the approved burner procedure so the remaining channel and the burner-management logic stay in their intended operating state.
A replacement scanner produces no stable flame value; how should UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 be configured for the signal type?
Match the channel to the supported scanner and its pulse or flicker processing method before tuning any thresholds. Stop commissioning if the scanner technology and selected processing mode cannot be reconciled with the approved burner design.
A plant historian cannot read flame data over Modbus; where should an engineer start on UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005?
Begin with the optically isolated RS-485 path, the Modbus slave settings, and the requested register map. The separate RS-232 interface is intended for local service, so moving the cable between ports does not preserve the same communications role.
Which interface should a service laptop use for local setup of UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005?
Use the documented RS-232 service connection with the approved cable and software. Keep the RS-485 wiring assigned to plant communications, and record existing serial settings before opening a local maintenance session.
A spare UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 must enter an existing 19-inch rack; what should mechanical planning establish?
Establish the installed cage, guide position, rear connector arrangement, and any required rack adapter before the outage. The control unit dimensions alone do not prove that the spare can engage the existing rack hardware correctly.
Does ordering UVISOR-MFD EC-DOC-G009MAN005 EC-BOM-G009HLA005 automatically include the monitoring software and PC serial cable?
No. Treat the MFD Monitor package and its serial cable as separate accessories unless the quotation lists them. Procurement should state whether local monitoring, archiving, or flame-frequency analysis is required so the accessory scope is explicit.
