FAU810 / C10-12010

/ 4.9
1001 reviews | Need a Specific Revision?

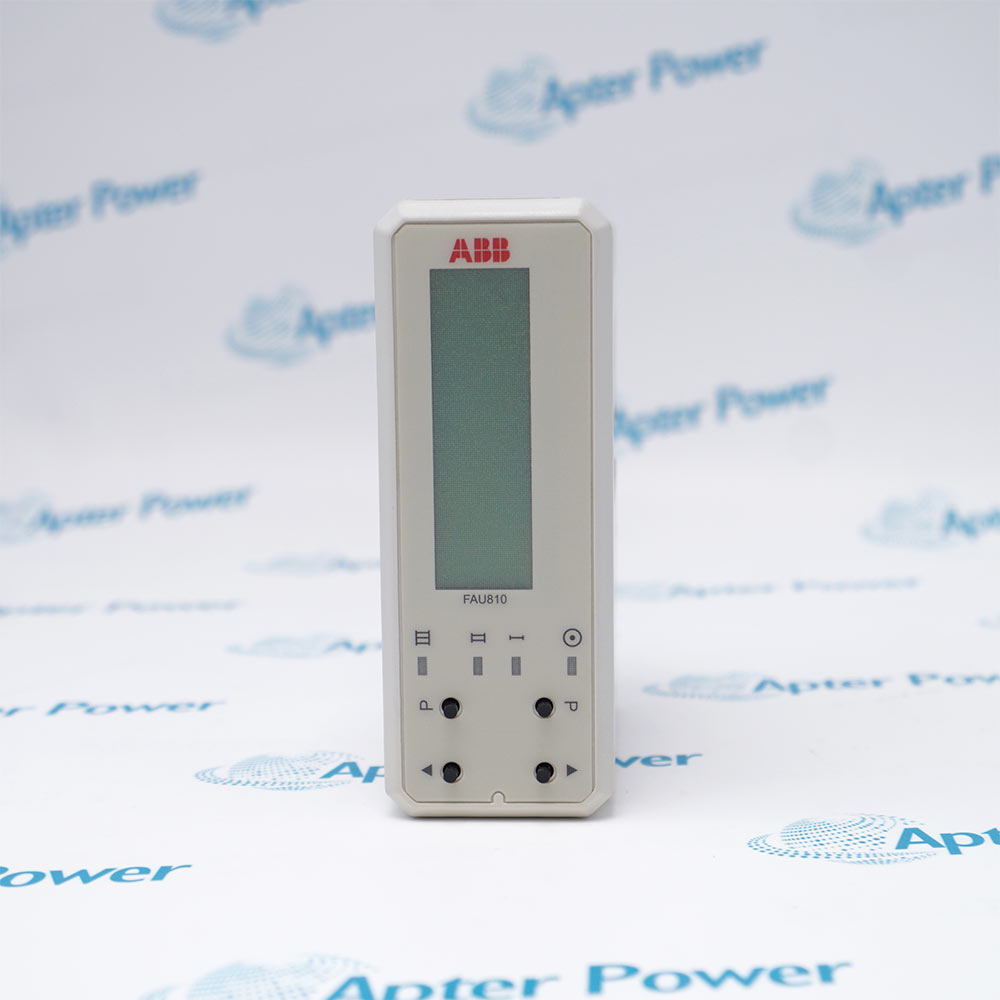

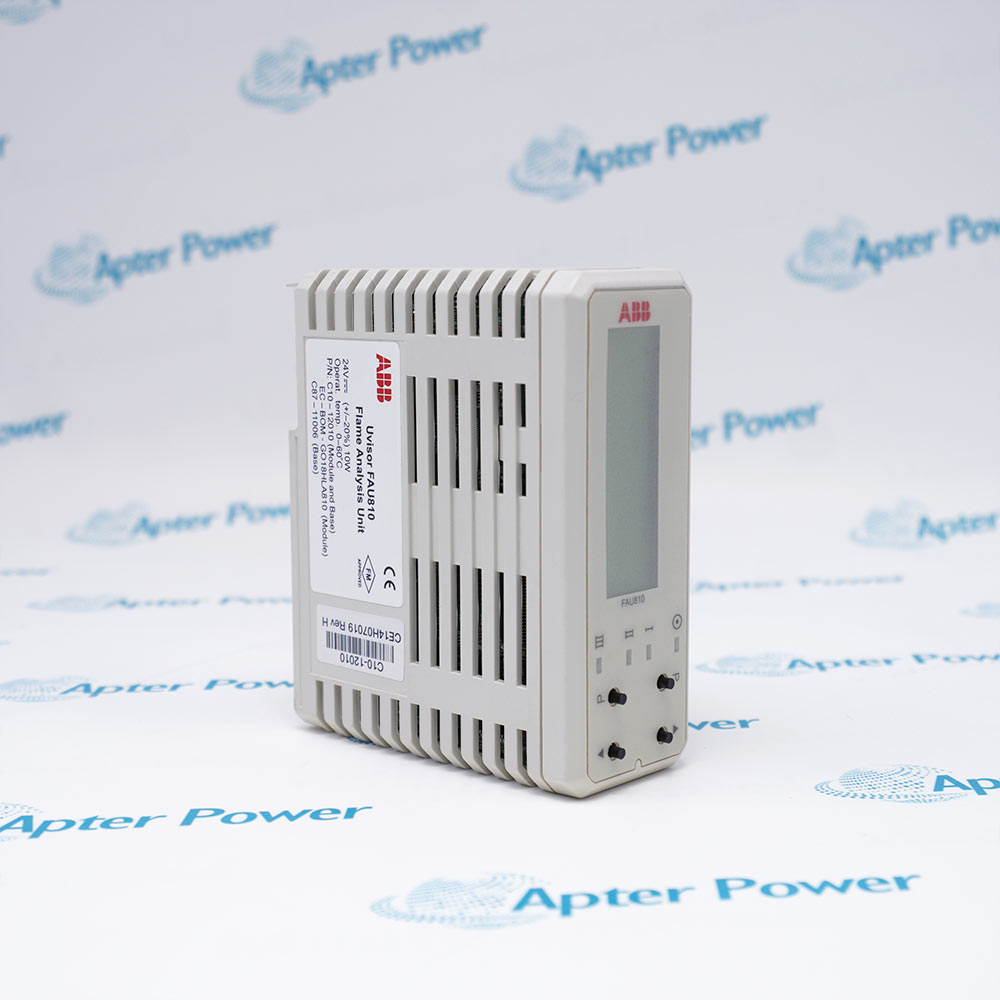

ABB FAU810 / C10-12010 is a dual-input flame analysis unit with relay, analog and serial interfaces for burner flame detection systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for FAU810 / C10-12010
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FAU810 / C10-12010

  • Manufacturer:
    ABB
  • Part Number:
    FAU810 / C10-12010
  • Product Family:
    ABB Uvisor System
  • Product Type:
    FAU810 Flame Analysis Unit C10-12010
  • Stock:
    1
  • Ordering Reference:
    C10-12010
  • Sensor Inputs:
    2 configurable channels
  • Supply:
    24 VDC ±20%
  • Relay Outputs:
    3 Form C
  • Analog Outputs:
    2 isolated 4–20 mA
  • Serial Ports:
    2 isolated RS-485
  • Default Protocol:
    Modbus
  • Optional Protocol:
    Profibus DP-V1
  • Configuration Software:
    Flame Explorer
  • Function:
    Continuous flame supervision
  • Manufacturer:
    ABB
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Monitoring Programming Safety

Features:

  • Accepts two configurable flame-sensor input channels.
  • Provides three changeover relays and two isolated 4–20 mA outputs.
  • Supports dual isolated RS-485 communication for burner monitoring.
The current ordering configuration is FAU810 / C10-12010, the FAU810 Flame Analysis Unit C10-12010 documented for ABB Uvisor Flame Scanner.

In the intended system role, it provides three Form C relays, two isolated 4–20 mA outputs and dual isolated RS-485 ports. Modbus is the default serial protocol, with Profibus DP-V1 available by configuration.

For selection and commissioning, verify detector type, channel programming, flame thresholds, relay cause-and-effect and boiler trip logic before replacement. Perform a witnessed flame-on and flame-off test before returning the burner to service.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for ABB FAU810 / C10-12010:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supervises burner flame presence in industrial combustion systems, for its documented operating duty.
  • Sends individual channel intensity to plant control through isolated analog outputs, through the intended receiving-system interface.
  • Operates flame-status relays used by a validated burner-management sequence, in the configured and commissioned installation.
  • Two sensor channels can be evaluated independently for flame status, within the documented monitoring function.
  • Isolated analog outputs report configured flame-intensity values to the control system, for the configured channel or system display.
  • Three changeover relays provide assigned status or trip contacts, during commissioning and routine operation.
  • Flame Explorer supports setup of sensor type, gain, thresholds and timing, through the documented engineering or controller workflow.
  • Each channel must be tuned using the installed burner and viewing geometry, for the installed channel or external device.
  • Saved configuration records support controlled restoration after replacement, before the restored configuration is returned to service.
  • The flame-off response must be proven with the burner secured before normal operation, before normal operation is permitted.
  • Relay assignments require validation against the burner-management cause-and-effect matrix, within a correctly protected installation.
  • Only trained personnel should alter thresholds, delays or fail-safe behavior, throughout configuration and maintenance work.
Description
FAU810 / C10-12010 identifies the FAU810 flame analysis unit and its C10-12010 ordering reference. The unit accepts two configurable flame-sensor inputs for continuous burner supervision.

It provides three Form C relays, two isolated 4–20 mA outputs and dual isolated RS-485 ports. Modbus is the default serial protocol, with Profibus DP-V1 available by configuration.

Verify detector type, channel programming, flame thresholds, relay cause-and-effect and boiler trip logic before replacement. Perform a witnessed flame-on and flame-off test before returning the burner to service.
Alternative Names
FAU810 / C10-12010 ABB FAU810 / C10-12010 FAU810 C10 12010 FAU810 - C10-12010 FAU810C1012010 ABB FAU810 Flame Analysis Unit C10-12010 ABB ABB Uvisor Flame Scanner FAU810 / C10-12010 FAU810 / C10-12010 FAU810 Flame Analysis Unit C10-12010
Technical notes
Never rely on simulated current alone when commissioning; prove real flame, flame loss, relay action and the burner-management interlock end to end.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many flame detector channels are available on FAU810 / C10-12010?
The FAU810 hardware provides two configurable sensor inputs for separate flame channels.
Which serial networks can interface with FAU810 / C10-12010?
It provides two isolated RS-485 ports using Modbus by default or configured Profibus DP-V1.
Where is FAU810 / C10-12010 normally applied in a combustion system?
It evaluates burner flame signals and supplies relay, analog and communication outputs to the management system.
What should a buyer provide when requesting FAU810 / C10-12010?
Include the C10-12010 reference, detector models, existing configuration, quantity and destination.
Does installing FAU810 / C10-12010 remove the need for a flame-failure proof test?
No. The real detector, analysis logic, relays and burner trip path must be tested together.
Which record is essential for an FAU810 / C10-12010 replacement quote?
Provide the ABB FAU810 data sheet plus the current Flame Explorer configuration and burner cause-and-effect drawing.
