    Apter Power supports AE-R03 KW-R03-1208365 identification, documentation review and quotation.

AE-R03 KW-R03-1208365

/ 4.9
1001 reviews | Need a Specific Revision?

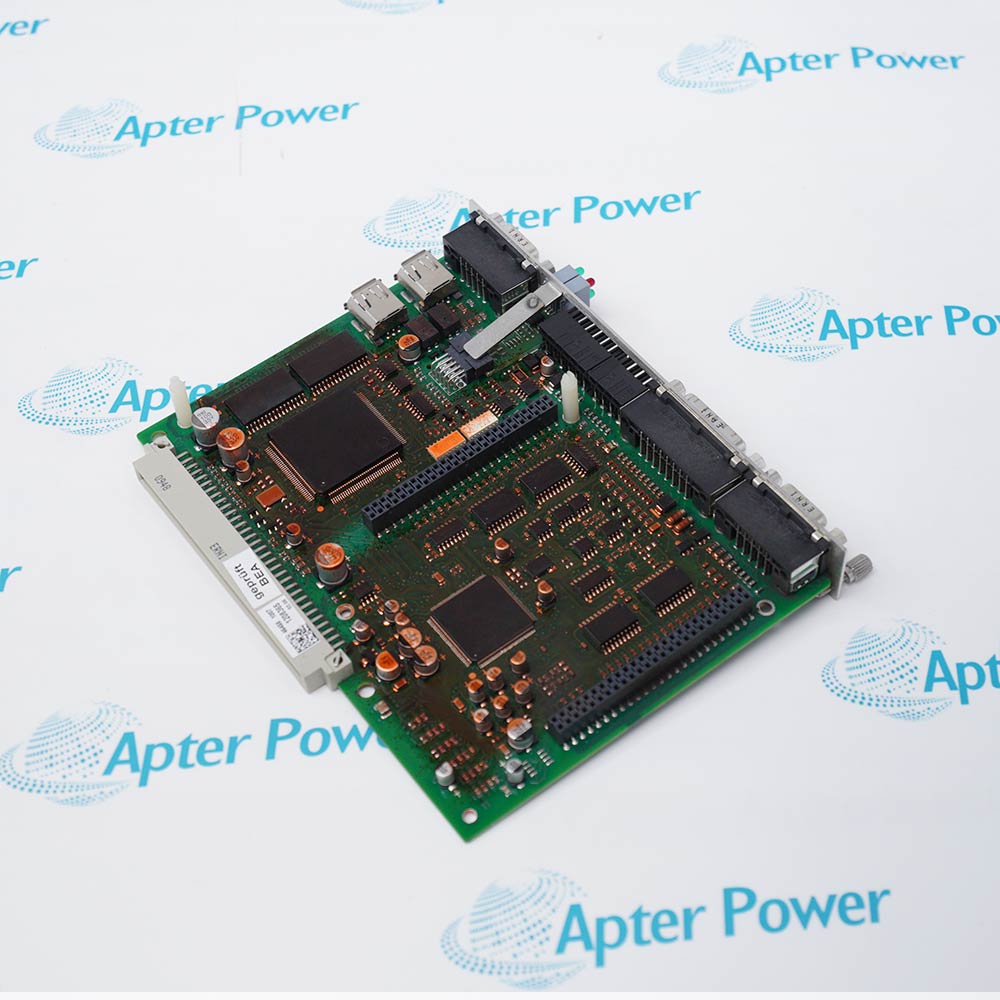

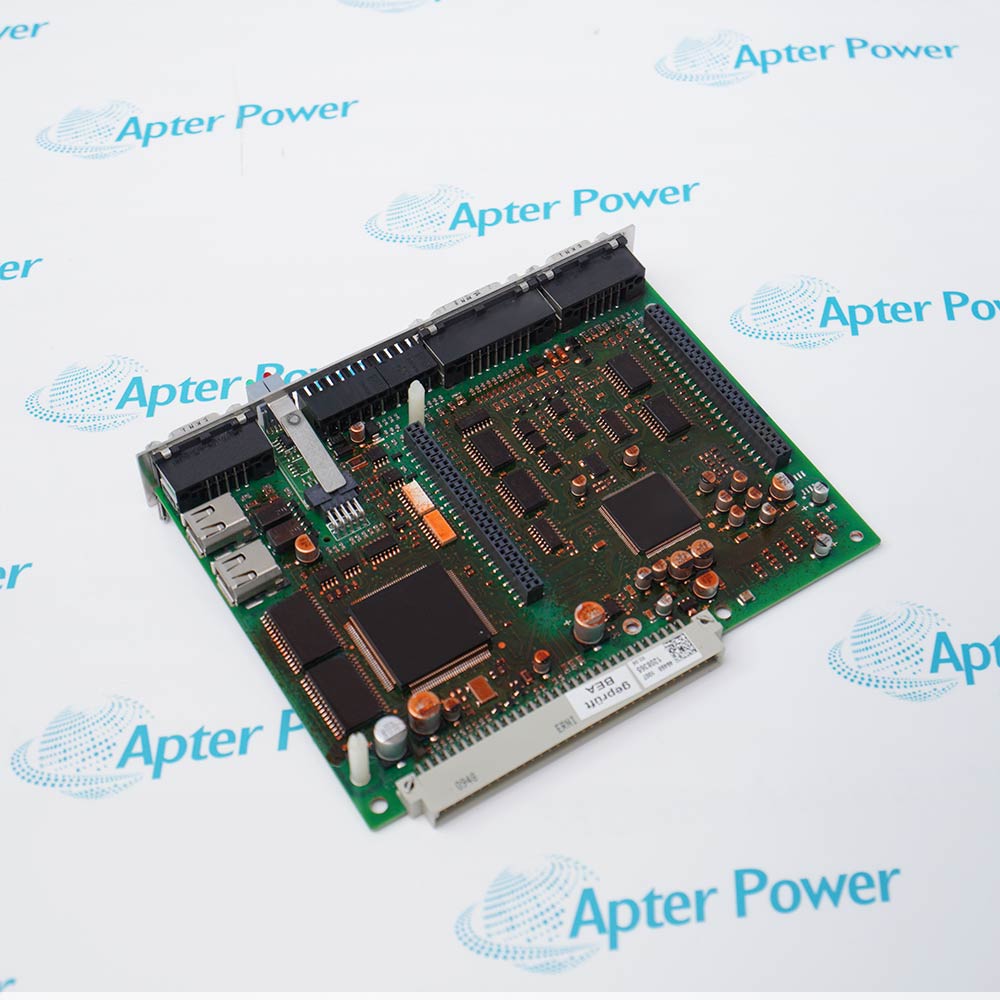

AMK AE-R03 KW-R03-1208365 is a KW-R03 controller-card configuration for AMKASYN KE/KW compact inverter systems. It executes drive regulation, parameter handling and ACC-bus coordination inside the compatible power module.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for AE-R03 KW-R03-1208365
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AE-R03 KW-R03-1208365

  • Manufacturer:
    AMK
  • Part Number:
    AE-R03 KW-R03-1208365
  • Product Family:
    AMKASYN KE/KW KW-R03 Controller Cards
  • Product Type:
    Inverter Controller Card
  • Stock:
    1
  • Controller card designation:
    KW-R03
  • Software family:
    AE-R03
  • System platform:
    AMKASYN KE/KW compact inverter
  • Order reference:
    O688
  • Controller-card part number:
    46458
  • Minimum documented hardware revision:
    2.00
  • Documented AE-R03 release:
    V3.04, 2003/41
  • Release part reference:
    200301
  • Later documented software line:
    AE-R03 A07 V3.21
  • Later release date:
    2014/31
  • Later software part reference:
    205307
  • System bus:
    AMK ACC bus
  • Drive function:
    Current, speed and position regulation
  • Parameter storage:
    Drive and motor data set
  • Supported inverter hardware:
    Compatible KW and KWD modules
  • Installation form:
    Internal controller card
  • Output-frequency capability in supported KW system:
    0 to 800 Hz
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    2.2x14x16.3cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Configuration & Programming Compatibility Firmware & Updates

Features:

  • Provides the regulation and parameter-processing layer inside compatible AMK compact inverters.
  • Coordinates drive data through the native ACC-bus architecture.
  • Uses the AE-R03 software family and a defined KW-R03 hardware revision.
The listed configuration combines the KW-R03 card identity with AE-R03 software and a unit identifier.

It determines the operating behavior of the associated motor and inverter power stage.

Controller revision and saved drive data must be matched before an exchanged card is allowed to enable torque.

Apter Power can review sourcing, documentation and system matching for AE-R03 KW-R03-1208365.
Verified resources for AMK AE-R03 KW-R03-1208365: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Coordinated machine axes use the card for speed or position control inside an AMKASYN inverter assembly.
  • Retrofit service can restore a failed regulator while retaining the mechanically sound KW power section.
  • Production equipment using ACC-bus synchronization relies on the board for deterministic exchange with neighbouring drive components.
  • Motor, encoder and control-loop parameters are stored in the drive dataset used by the controller card.
  • Commissioning software must recognise the installed KW-R03 hardware and AE-R03 release.
  • Parameter restoration should be completed before the inverter enable signal is accepted.
  • The controller card is intended for compatible AMKASYN KE/KW and KWD compact inverter assemblies.
  • Hardware revision and AE-R03 software level must support the surrounding power module and options.
  • The unit-specific identifier does not replace verification of the AMK controller-card part number and order reference.
  • AMK documented several AE-R03 releases, so an update path depends on the installed hardware baseline.
  • Firmware changes require retention of the validated motor and machine parameter set.
  • A replacement should use an approved release rather than loading a newer image solely because the file is available.
Description
AE-R03 KW-R03-1208365 identifies an AMK KW-R03 controller card carrying the AE-R03 software family and the unit-specific 1208365 identifier. KW-R03 is installed in supported KW or KWD compact inverter assemblies rather than used as a stand-alone drive.

The card closes the current, speed and position-control tasks assigned to the inverter and exchanges coordinated data over the AMK ACC bus. Stored motor and machine parameters determine how the surrounding power section behaves after startup.

A replacement must be checked against controller-card hardware revision, AE-R03 software level, motor data, parameter set and inverter power hardware. Transferring a board without the verified dataset can produce incorrect feedback scaling or motion response.
Alternative Names
AE-R03 KW-R03-1208365 AMK AE-R03 KW-R03-1208365 KW-R03 1208365 AMK KW R03 KW-R03 Controller Card AE-R03 Drive Software AMKASYN KW-R03 AMK 46458 KW-R03
Technical notes
Back up the complete AE-R03 parameter set before removing AE-R03 KW-R03-1208365; an uncommissioned card must not be used to run the axis.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does KW-R03 identify in AMK AE-R03 KW-R03-1208365?
KW-R03 is the controller-card type used inside compatible AMKASYN KE/KW compact inverter hardware.
Why is the AE-R03 level important for AMK AE-R03 KW-R03-1208365?
The software release controls feature support, parameter interpretation and compatibility with the card hardware.
Can AMK AE-R03 KW-R03-1208365 operate as an independent inverter?
No. It is an internal controller card that depends on a compatible KW or KWD power assembly.
Which archive is required before exchanging AMK AE-R03 KW-R03-1208365?
Save the complete motor, encoder, control-loop, communication and machine parameter set.
How should the 1208365 marking on AMK AE-R03 KW-R03-1208365 be treated?
Retain it as a unit-specific identifier, but verify the KW-R03 part number, hardware revision and AE-R03 software separately.
Which label and drive records are needed to source AMK AE-R03 KW-R03-1208365?
Include photographs of both labels, inverter type, hardware revision, software level, motor data and destination.
