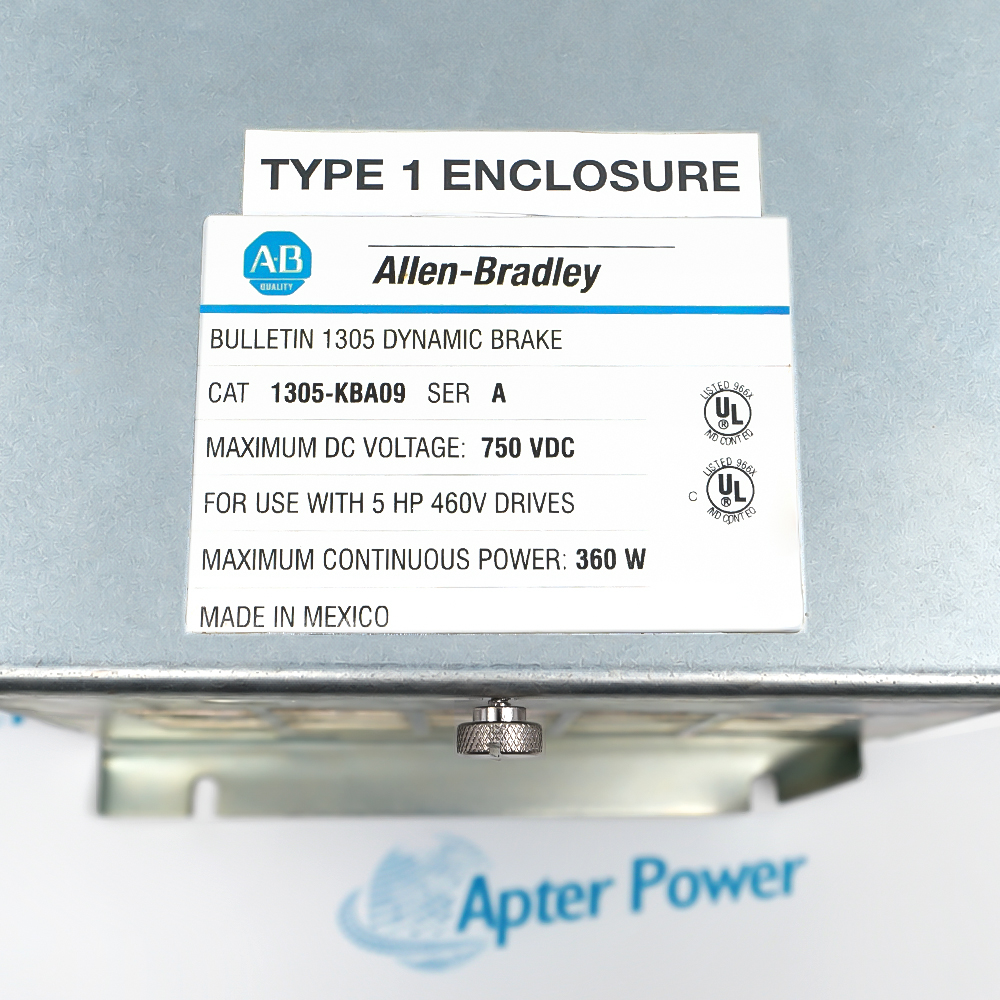

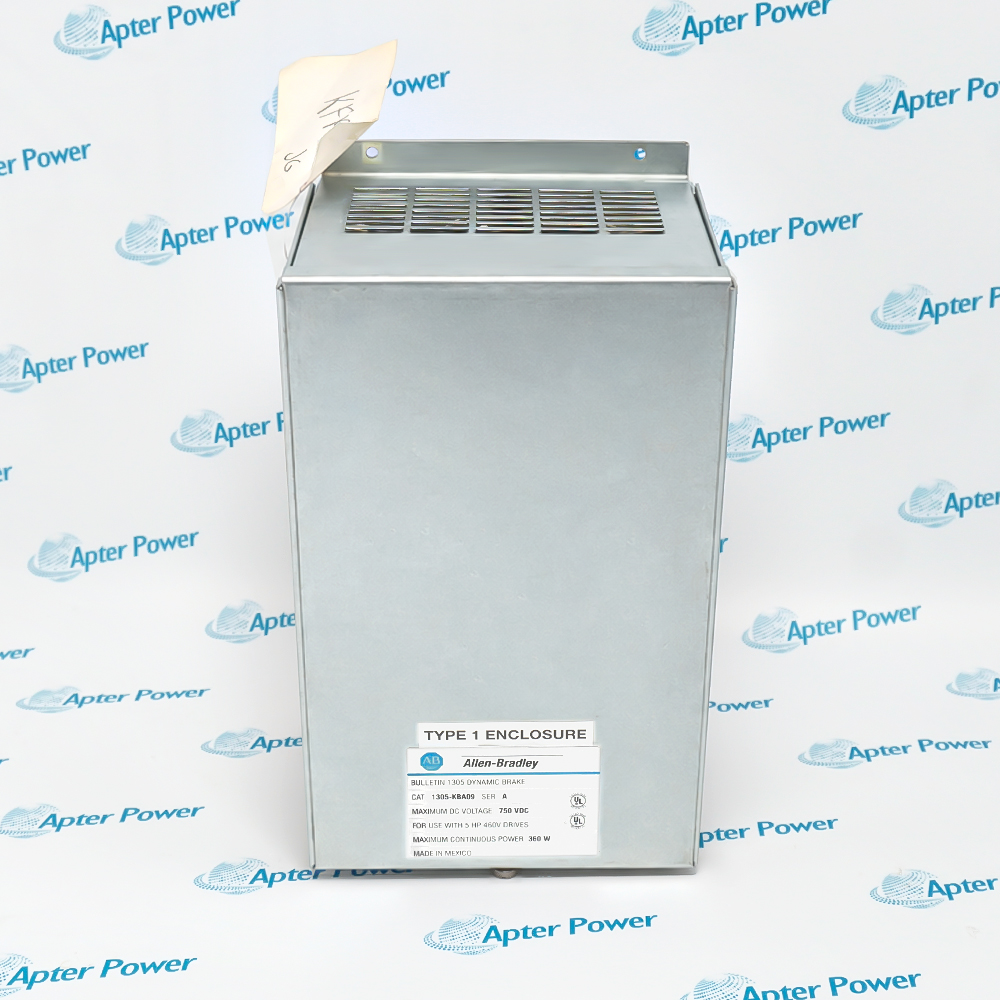

Allen-Bradley 1305-KBA09 is a dynamic brake assembly for compatible 460 V Bulletin 1305 Series B and later drives.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1305-KBA09
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1305-KBA09

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1305-KBA09
  • Product Family:
    1305 Drives
  • Product Type:
    Dynamic Brake Assembly
  • Stock:
    1
  • Applicable Drive Input:
    460 V AC
  • Applicable Drive Rating:
    5 hp / 4 kW
  • Peak Braking Power:
    3.4 kW
  • Braking Torque:
    100% for 20 seconds typical; 20% maximum duty
  • Operating Temperature:
    0 to 50 °C
  • Relative Humidity:
    0 to 95%, non-condensing
  • Maximum Altitude:
    1,000 m without derating
  • Enclosure:
    IP20
  • Mounting:
    Vertical; 304.8 mm minimum clearance above and below
  • Fuse:
    Gould Shawmut A60Q10-2, 10 A, 460 V
  • Dimensions:
    18.42 × 32.77 × 15.39 cm
  • Tariff Code:
    PENDING
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Brake Duty Protection Environment Application
  • Dynamic-brake hardware for documented 460 V Bulletin 1305 Series B and later drives
  • Internally fused assembly using energy from the host drive DC bus
  • Published for 5 hp / 4 kW host-drive applications with defined braking duty

Allen-Bradley 1305-KBA09 is a documented dynamic brake assembly for compatible 460 V Bulletin 1305 Series B and later drives.

It dissipates regenerated motor energy during deceleration through the drive DC bus. Correct selection depends on host-drive Series, machine inertia, deceleration profile, and the actual braking cycle.

Use the official mounting and environmental limits. Inspect the braking circuit and correct the underlying cause before replacing a repeatedly operated fuse or assembly.

Availability: Exact condition, stock, price, and shipping time for 1305-KBA09 are confirmed during quotation.

Allen-Bradley 1305-KBA09 Dynamic Brake Assembly Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Evaluate machine inertia and commanded deceleration against the published braking-duty limits
  • Use the brake only with the documented 460 V, 5 hp / 4 kW host-drive application
  • Do not treat dynamic braking as a source of ride-through power after loss of incoming supply
  • Verify the specified internal fuse type and rating before returning the drive to service
  • Investigate repeated fuse operation instead of replacing fuses without fault analysis
  • Confirm all brake-circuit wiring and host-drive compatibility before energization
  • Mount vertically with the manufacturer-required free space for heat dissipation
  • Use within the published temperature, humidity, and altitude limits
  • Do not install where corrosive or hazardous atmospheric exposure is present without approved engineering controls
  • Controlled deceleration of compatible 460 V Bulletin 1305 motor-drive applications
  • Machines with regenerative energy during programmed motor speed reduction
  • Industrial processes requiring documented dynamic-brake energy dissipation
Description
1305-KBA09 is an Allen-Bradley dynamic brake assembly for documented 460 V Bulletin 1305 Series B and later drives.

The manufacturer table associates 1305-KBA09 with 5 hp / 4 kW drives and identifies a 3.4 kW peak braking-power capability. The assembly uses drive DC-bus energy and is internally fused.

Use only with the specified drive Series and braking application. Verify deceleration duty, ambient conditions, fuse condition, mounting clearance, and host-drive catalog number before energization.
Alternative Names
1305-KBA09 1305 KBA09 1305KBA09 Allen-Bradley 1305-KBA09 Allen-Bradley 1305 KBA09 Rockwell Automation 1305-KBA09
Technical notes
Allen-Bradley 1305-KBA09 is Series B-or-later dynamic braking hardware; confirm host drive, deceleration duty, vertical clearance, and fuse condition before use.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is Allen-Bradley 1305-KBA09 restricted to Series B and later drives?
The manufacturer warns that use on a Series A drive can damage or disable the drive. Confirm the drive Series from its nameplate before selection.
Does Allen-Bradley 1305-KBA09 provide braking when the incoming supply fails?
It dissipates energy available on the drive DC bus. It is not a backup-power device and cannot maintain motor control after the drive loses usable bus energy.
Why might a 1305-KBA09 fuse operate repeatedly?
Repeated operation can indicate unsuitable deceleration duty, an incorrect brake assembly, a drive fault, or a braking circuit problem. Find the cause before fitting another fuse.
Can Allen-Bradley 1305-KBA09 be repaired in the field?
The manufacturer identifies the assembly as internally fused and not repairable. A failed assembly should be assessed and replaced as the documented service item.
Does Allen-Bradley 1305-KBA09 need unrestricted airflow?
Yes. Brake heat must be dissipated within the published mounting clearances; crowded mounting can shorten component life or cause thermal problems.
Can Allen-Bradley 1305-KBA09 be used in a corrosive or hazardous atmosphere?
No. The published environmental limits exclude corrosive and hazardous atmospheres unless a separately engineered enclosure and installation solution is approved.
Why is drive deceleration important when specifying Allen-Bradley 1305-KBA09?
Rapid deceleration returns more energy to the DC bus. The machine inertia, cycle rate, and commanded ramp determine whether the documented brake duty is suitable.
