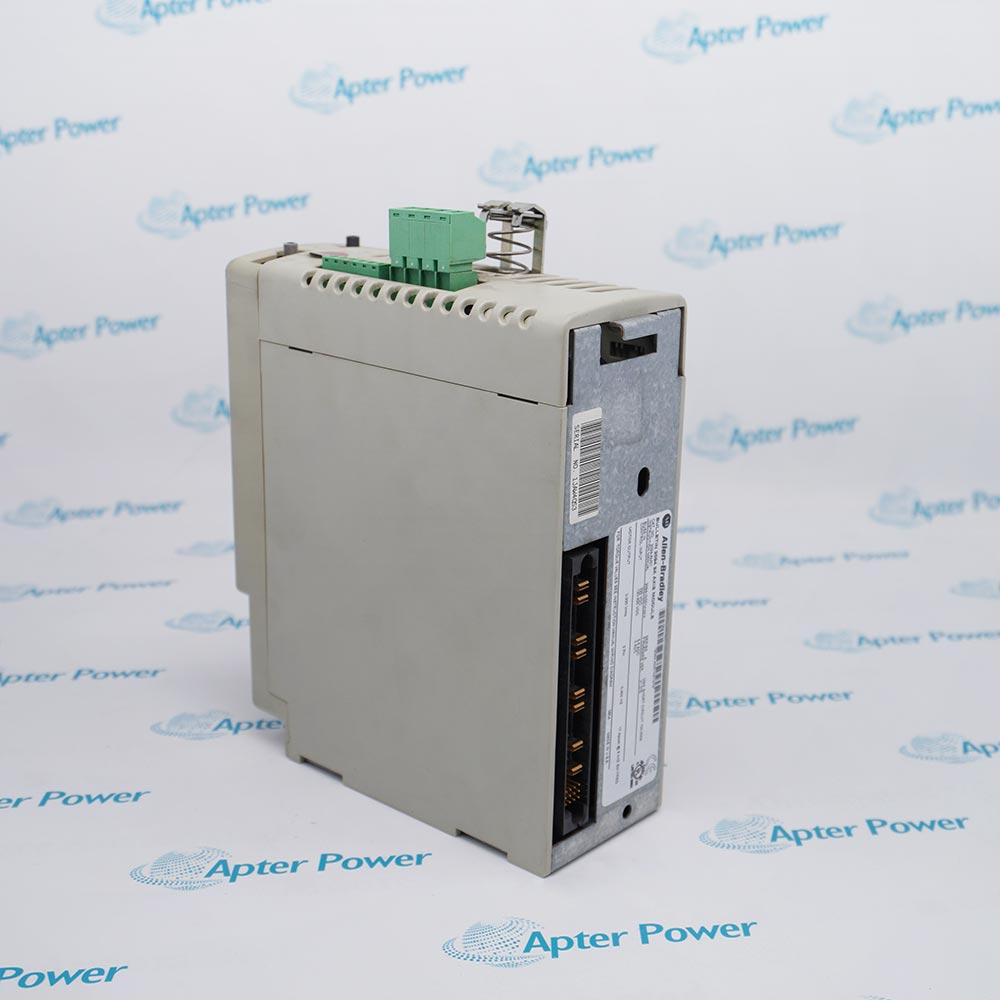

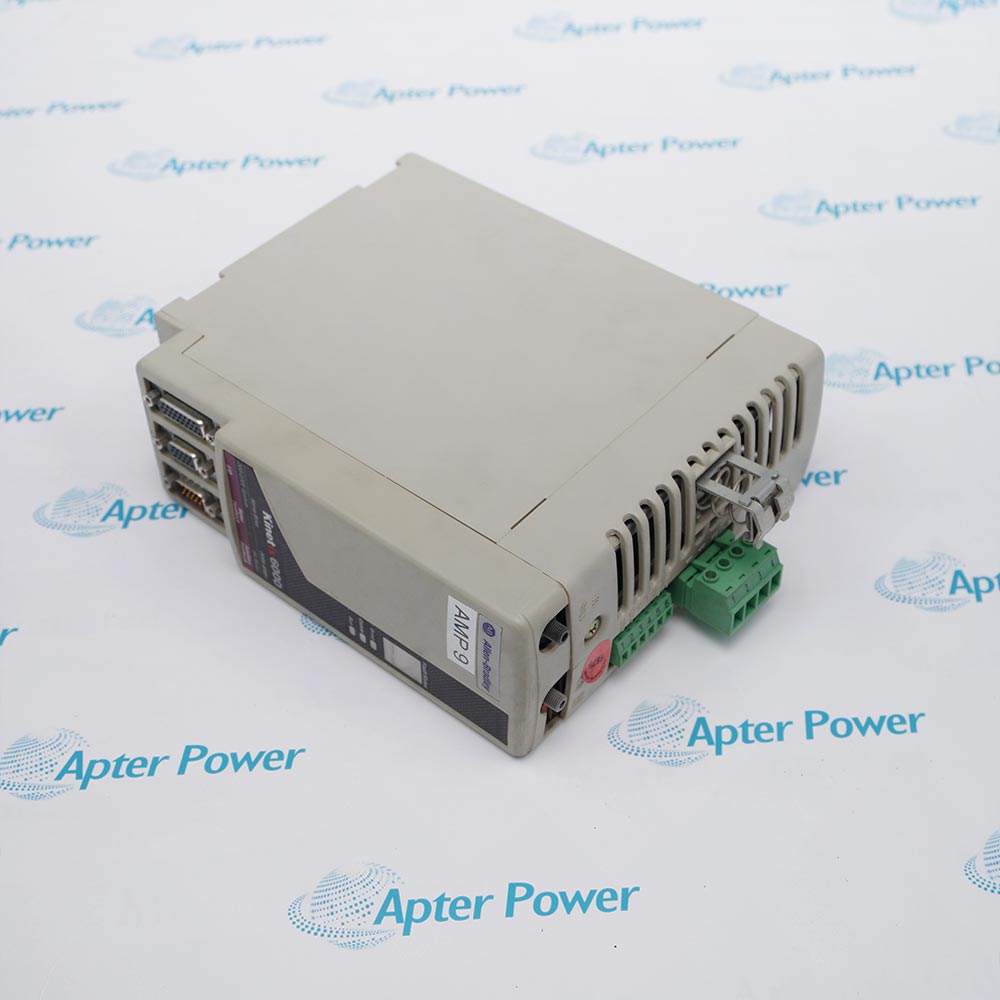

Allen-Bradley 2094-AM01 is a 230 V-class Kinetix 6000 axis module that supplies one servo axis from a Bulletin 2094 shared DC-bus power rail.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2094-AM01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2094-AM01

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2094-AM01
  • Product Family:
    Kinetix Servo Drive
  • Product Type:
    Kinetix 6000 230 V Axis Module without Safe Torque Off
  • Stock:
    1
  • Module Role:
    Axis inverter module
  • Voltage Class:
    230 V
  • Nominal DC-Bus Input:
    325 V DC
  • Continuous Output Current:
    6.0 A rms
  • Continuous Output Power:
    1.9 kW
  • Safety Function:
    No Safe Torque Off on base 2094-AM01
  • Motor-Power Conductor Range:
    6…1.5 mm²
  • Motor-Power Strip Length:
    10 mm
  • Motor-Power Terminal Torque:
    0.5…0.6 N·m
  • Internal Bus Capacitance:
    660 µF
  • Mounting:
    Bulletin 2094 power rail
  • Dimensions:
    7 × 18.2 × 23.2 cm
  • Weight:
    1.56 kg
  • Tariff Code:
    8503009090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Axis Integration Safety Identity Commissioning Application
  • 230 V axis inverter for modular Kinetix 6000 multi-axis systems
  • Operates from the nominal 325 V DC bus supplied by an integrated axis module
  • Supports one servo axis with separate motor power, feedback, brake, and control connections

2094-AM01 adds one medium-current 230 V servo inverter to a modular Kinetix 6000 multi-axis system.

It depends on an integrated axis module for the shared DC bus and on separately matched motor power, feedback, brake, and control connections.

The base model lacks the safety connector used by 2094-AM01-S, so suffix identity must be resolved before wiring or substitution.

Availability, condition, price, and shipping time for 2094-AM01 are confirmed during quotation.

Allen-Bradley 2094-AM01 Kinetix 6000 230 V Axis Module without Safe Torque Off Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The module supplies one inverter axis from the shared Bulletin 2094 DC bus.
  • A compatible IAM must provide adequate bus power for all rail-mounted axes.
  • Select the motor, feedback device, cables, and connector kits as one approved combination.
  • Base 2094-AM01 does not provide the Safe Torque Off interface.
  • Do not transfer safety claims from the different 2094-AM01-S catalog number.
  • Verify the complete nameplate suffix before reproducing any safety wiring.
  • Restore the correct motion project, firmware, motor data, feedback, and axis assignment.
  • Check bus, motor-power, feedback, brake, grounding, and communication connections before enable.
  • Validate direction, limits, homing, tuning, stopping behavior, and regenerative loading safely.
  • One 230 V-class servo axis in a compatible Kinetix 6000 multi-axis power-rail system.
  • Coordinated machine motion using a supported Logix controller, servo motor, and feedback combination.
  • Shared-DC-bus modular drive installations where the base non-STO axis configuration is specified.
Description
Allen-Bradley 2094-AM01 is a Kinetix 6000 axis inverter module for one 230 V-class servo axis on a compatible Bulletin 2094 power rail.

The base catalog number provides 6.0 A rms continuous output and 1.9 kW continuous power from the nominal 325 V DC bus and does not include Safe Torque Off.

Before selection or replacement, verify the exact non-S catalog number, hardware series, IAM and rail capacity, motor-feedback combination, connectors, cables, brake circuit, firmware, cooling, grounding, and saved motion project.
Revisions

Revision Part #

Also known as

2094-AM01 Ser A
2094-AM01/A, Series A, Rev A
Alternative Names
2094-AM01 2094AM01 2094 AM01 Allen-Bradley 2094-AM01 Allen Bradley 2094-AM01 AB 2094-AM01 Rockwell Automation 2094-AM01
Technical notes
2094-AM01 is the non-STO 230 V Kinetix 6000 axis module; confirm complete suffix, hardware series, IAM and rail capacity, motor-feedback pair, connectors, firmware, project, brake, and regeneration duty.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 2094-AM01 replace Allen-Bradley 2094-AM01-S?
Not as a suffix-neutral swap. The base 2094-AM01 lacks Safe Torque Off, while 2094-AM01-S includes it. Verify the complete safety circuit and required certification before substitution.
What system components are required to operate Allen-Bradley 2094-AM01?
Use a compatible Bulletin 2094 power rail and integrated axis module, plus an approved servo motor, feedback and power cables, connector hardware, controller, and any required shunt components.
How should a motor be matched to Allen-Bradley 2094-AM01?
Use Rockwell’s approved motor-and-drive combination tables for the exact motor, feedback type, voltage, current, duty cycle, cable length, hardware series, and firmware.
What should be backed up before replacing Allen-Bradley 2094-AM01?
Save the motion project, axis properties, motor catalog, feedback selection, tuning, limits, homing, brake timing, fault actions, firmware, and electronic gearing or cam data.
Why can Allen-Bradley 2094-AM01 fault immediately after installation?
Check DC-bus and control power, module order, motor and feedback connectors, grounding, motor selection, feedback polarity, firmware, axis assignment, and whether the protective rail covers were removed correctly.
How should regenerative duty be reviewed for Allen-Bradley 2094-AM01?
Calculate deceleration and vertical-load energy for the complete rail, include module and IAM bus capacitance, then verify the internal or external shunt capacity and repeated duty cycle.
What rail-placement check is important for Allen-Bradley 2094-AM01?
Axis modules are arranged to the right of the IAM in descending power utilization. Confirm available slot width, connector access, airflow, cable bend radius, and total rail loading.
