- Kinetix 6200/6500 axis power module for one servo motor-feedback channel
- Control module and power module pair form the complete controlled axis
- Bulletin 2094 power-rail mounting in a shared DC-bus architecture

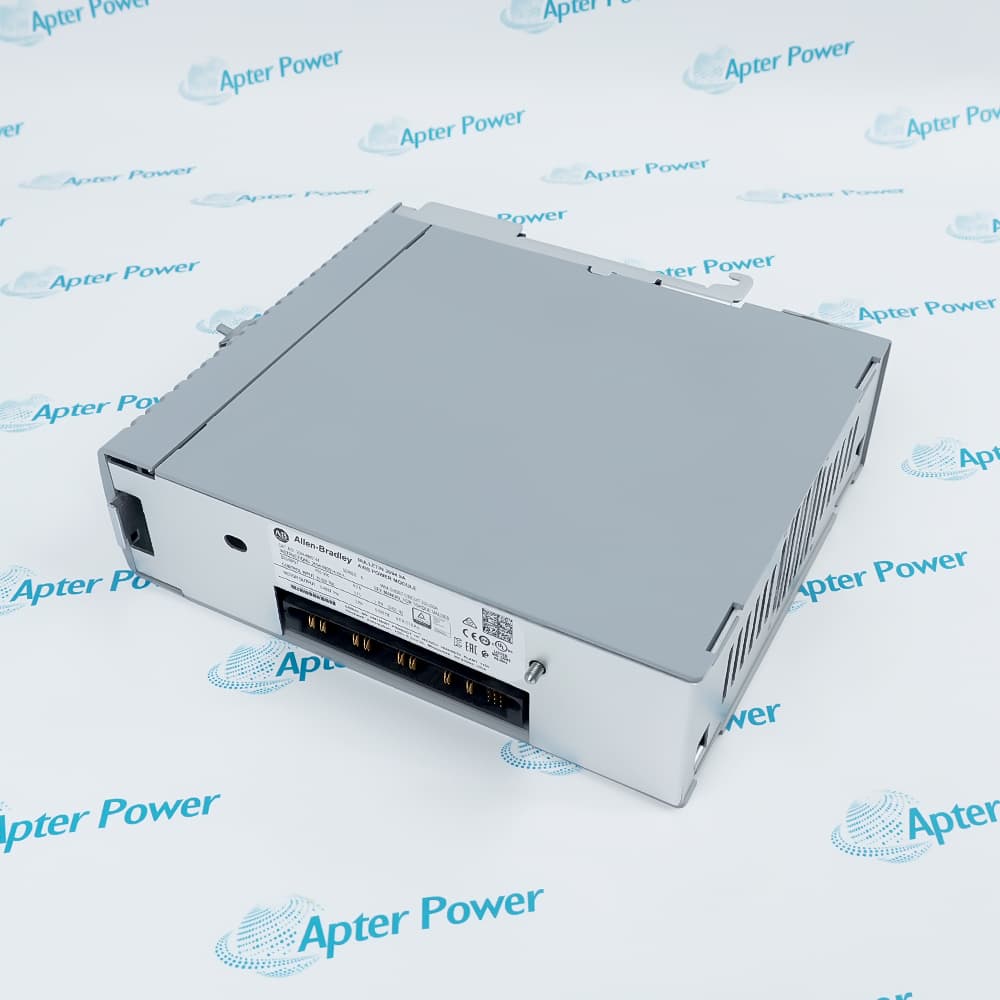

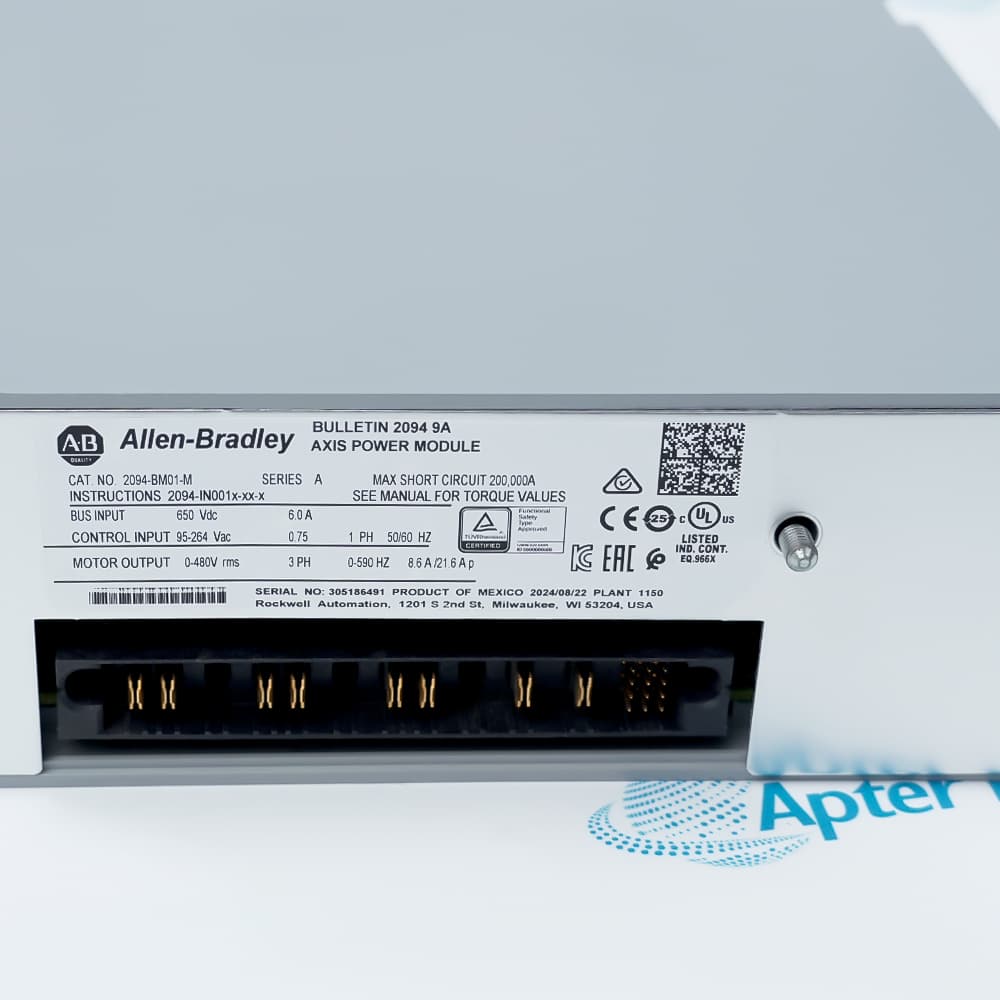

2094-BM01-M provides the axis power stage and is completed by a compatible Kinetix 6200 or Kinetix 6500 control module.
Selection must match the motor-feedback combination, control module, connector kits, cables, rail capacity, regeneration profile, enclosure cooling, and grounding.
Verify the installed hardware series, control-module firmware, safety architecture, and Engineering Replacement 2198-D012-ERS3 before migration.
Availability, condition, price, and shipping time for 2094-BM01-M are confirmed during quotation.
Allen-Bradley 2094-BM01-M Kinetix 6000 Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Install a compatible Kinetix 6200 or Kinetix 6500 control module on the axis power module
- Match the control module safety option and network architecture to the machine design
- Verify the control-module firmware and axis-power-module series as a supported combination
- IOD is a 26-pin female D-shell connector for digital input and output wiring
- MF is a 15-pin female connector for motor-feedback signals
- AF is a 15-pin male connector for auxiliary-feedback signals
- Rockwell Automation lists 2198-D012-ERS3 as the Engineering Replacement
- Treat migration as a system conversion because the replacement uses Kinetix 5700 architecture
- Recheck controller, motor feedback, cables, DC-bus design, enclosure layout, and safety functions
- One-axis Kinetix 6200 or Kinetix 6500 installations on a Bulletin 2094 power rail
- Systems requiring a separately selected control module and axis power module
- Migration studies where the complete controller, motor, feedback, bus, cabling, and safety design is evaluated
