1769-OF4VI

/ 4.9
1001 reviews | Need a Specific Revision?

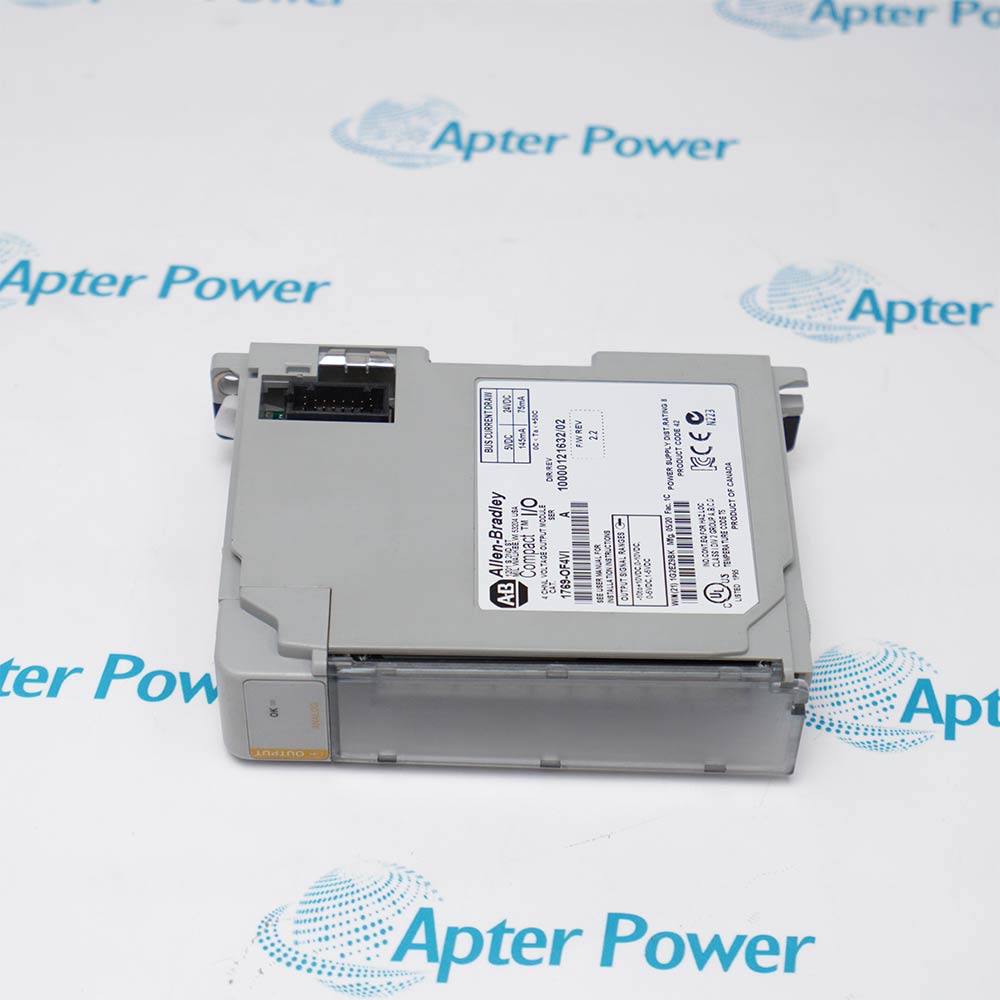

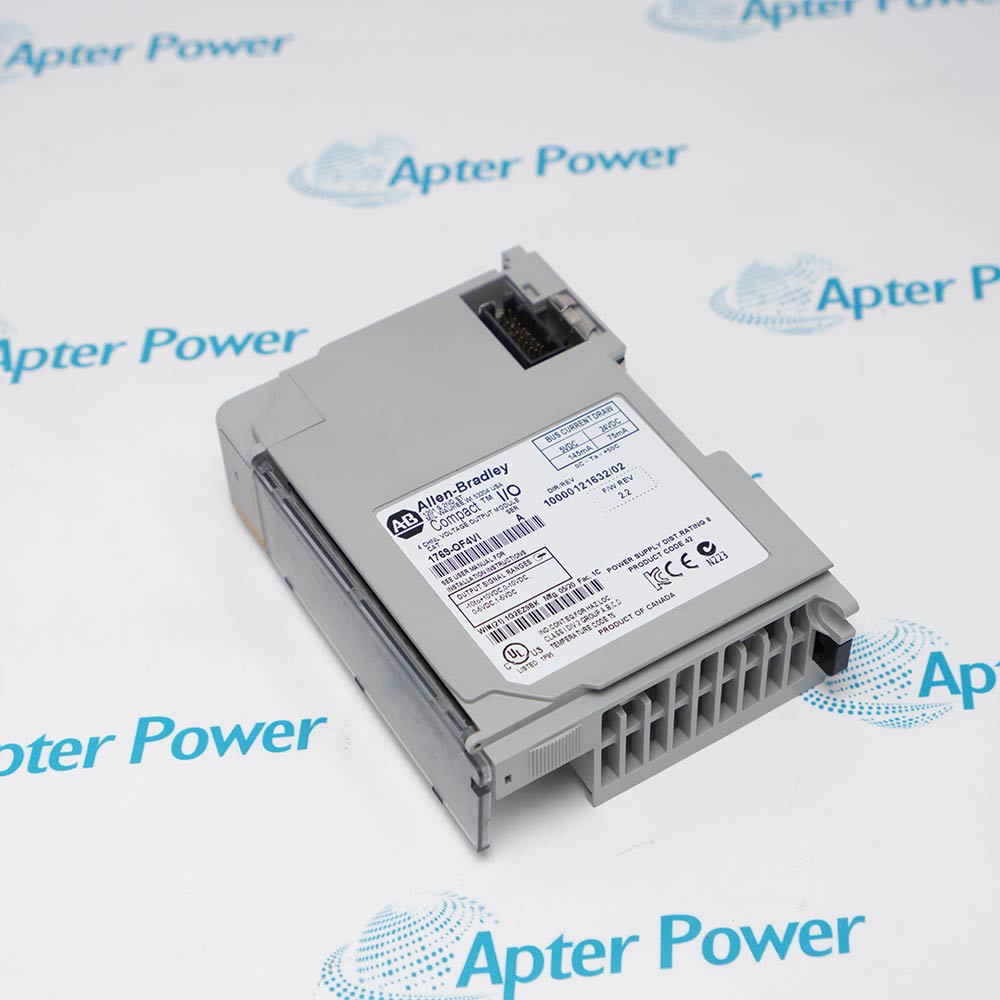

The Allen-Bradley 1769-OF4VI is a compact voltage output isolated module featuring four individually-isolated outputs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1769-OF4VI
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1769-OF4VI

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1769-OF4VI
  • Product Family:
    CompactLogix
  • Product Type:
    Isolated Analog Output Module
  • Stock:
    1
  • Accuracy Drift with Temperature:
    ±0.0086% FS per °C
  • Non-linearity (in percent full scale):
    ±0.05%
  • Output Impedance:
    <1 Ω
  • Open and Short-Circuit Protection:
    Yes
  • Short-Circuit Current:
    35 mA typical, 42 mA max.
  • Output Overvoltage Protection:
    Yes
  • Rated Working Voltage:
    30V ac/30V dc
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    11.81 x 3.51 x 8.71 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Performance & Efficiency Monitoring & Control

Features:

  • Serves as the isolated voltage output interface between the CompactLogix controller and field instrumentation
  • Integrates four independent 0-10V DC channels with 15-bit resolution and individual galvanic isolation
  • Functions within standard CompactLogix 1769 chassis configurations requiring no field calibration
The Allen-Bradley 1769-OF4VI operates as the isolated analog voltage output module in a CompactLogix system, providing four independent 0 to 10V DC channels to field devices within the rack. It continuously generates precise analog control signals across a full-scale range of 0 to 10.5V with 15-bit resolution at 330 μV per bit and delivers these outputs through individually isolated channels to support steady-state operation of proportional valves, variable frequency drives, and positioning actuators.

The 1769-OF4VI provides essential analog output functions for the CompactLogix control system, and is a critical component of the process control path, directly affecting the proper, normal operation of voltage-controlled field instrumentation. One or more 1769-OF4VI modules may be installed per chassis depending on the required output channel count.

For applications requiring robust output protection, the 1769-OF4VI incorporates internal short-circuit safeguarding across all four isolated channels. In addition to standard voltage output operation, the protective configuration also performs automatic current limiting. The 1769-OF4VI protection system executes fault response using the internal circuitry specified in the module design. Using this method, the isolated output system continually monitors the current level of each channel. If the module detects that an output channel has exceeded the maximum short-circuit threshold of 42mA, it will automatically limit the current to protect the internal circuitry and preserve the operational integrity of the remaining three channels.

The 1769-OF4VI Allen-Bradley Isolated Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1769-OF4VI Isolated Analog Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1769-OF4VI Isolated Analog Output Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1769-OF4VI
  • Condition New Original ready stock
  • Product Family 1769-OF4CI,1769-OV16,1769-OV32T
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Variable Speed Drives (VSDs): Sends isolated 0-10V speed reference signals to industrial motor controllers.
  • Control Valve Actuators: Positions modulating control valves in chemical, water, or oil processing facilities.
  • Isolated Sub-Panels: Connects instrumentation across long physical distances with varying electrical ground potentials.
  • Laboratory Automation: Commands programmable bench power supplies and automated testing equipment with clean signals.
  • Channel-to-Channel Isolation: Eliminates ground loop currents from corrupting neighboring analog signals.
  • 15-Bit Resolution: Delivers highly precise physical voltage steps from digital PLC data.
  • Fast Conversion Rates: Responds rapidly to dynamic real-time system changes in closed-loop control applications.
  • Compact Rackless Design: Mounts directly onto CompactLogix backplanes to minimize control cabinet footprint.
  • On-Board Diagnostics: Reports open-circuit faults and over-range errors to controller data tags.
  • LED Status Indicators: Displays module health and active channel status via front-panel hardware lights.
  • Selectable Clamping: Enforces safe output states like minimum, maximum, or hold last value during faults.
  • Studio 5000 Integration: Simplifies setup using standard Add-On Profiles without requiring complex scaling logic.
Description
The Allen-Bradley 1769-OF4VI is a compact isolated analog output module engineered for the CompactLogix control platform. As a four-channel isolated voltage output module, the 1769-OF4VI is specifically designed to deliver precise, independent 0 to 10V DC analog control signals across multiple output channels while maintaining complete electrical isolation between each channel. This product addresses the critical industrial challenge of ground loop interference and signal crosstalk that commonly plagues non-isolated analog output modules, solving the problem of channel-to-channel electrical noise contamination in multi-device control schemes. By providing four individually isolated outputs, the 1769-OF4VI ensures superior signal integrity and system reliability in environments where potential differences between field devices and control systems could otherwise compromise analog output accuracy and overall process stability.

The 1769-OF4VI isolated analog output module is ideally suited for applications requiring precise voltage control with galvanic isolation between control channels. Typical application domains include process control systems, variable frequency drive (VFD) speed reference control, proportional valve positioning, damper and actuator control, and automated machinery requiring synchronized multi-channel analog references. The 1769-OF4VI is particularly valuable in industries such as oil and gas, chemical processing, water and wastewater treatment, pharmaceutical manufacturing, and food and beverage automation, where isolated 0-10V signals are essential to prevent ground loop issues and ensure accurate analog control across distributed field instrumentation. The 30V DC operating voltage with IEC Class 2 reinforced insulation makes the 1769-OF4VI suitable for installations requiring enhanced safety margins and strict regulatory compliance.

The Allen-Bradley 1769-OF4VI supports an 8-module power supply distance rating and accepts solid wire connections ranging from 22 to 14 AWG, facilitating straightforward field wiring practices and reliable terminal connections. The 1769-OF4VI includes a replacement door kit to maintain proper terminal protection and labeling integrity over the module's service life. When integrating the 1769-OF4VI into a CompactLogix system, engineers should verify that the 5V DC backplane power budget adequately accommodates the 165mA bus current requirement and that proper heat dissipation is planned for the 2.0-watt thermal load, particularly in high-density I/O configurations where multiple modules are installed in close proximity.
Revisions

Revision Part #

Also known as

1769-OF4VI Ser A
1769-OF4VI/A, Series A, Rev A
Alternative Names
1769-0F4VI 1769-OF4V1 1769-OFAVI 17690F4VI 1769OF4V1 1769OF4VI 1769-OF4CI 1769-OV16 1769-OV32T
Technical notes
The Allen-Bradley 1769-OF4VI isolated analog output module is specifically designed to handle the critical problem of electrical noise, ground loops, and signal interference in complex industrial environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Allen-Bradley 1769-OF4VI module designed for?
The Allen-Bradley 1769-OF4VI is a CompactLogix analog output module designed to provide precise voltage output signals for industrial control applications. It is commonly used to control field devices such as variable frequency drives (VFDs), control valves, actuators, and other voltage-driven equipment requiring accurate analog commands.
How does the 1769-OF4VI integrate into CompactLogix systems?
The module is fully compatible with CompactLogix architectures and supports an 8-module power supply distance rating. Its compact design and flexible configuration options allow straightforward integration into existing 1769 I/O systems.
Is the 1769-OF4VI a good upgrade option for existing control systems?
Yes. The 1769-OF4VI is an excellent upgrade choice for facilities using older non-isolated analog output modules. By introducing channel-to-channel isolation and enhanced fault protection, the module improves system reliability and electrical resilience without requiring major controller or wiring modifications.
