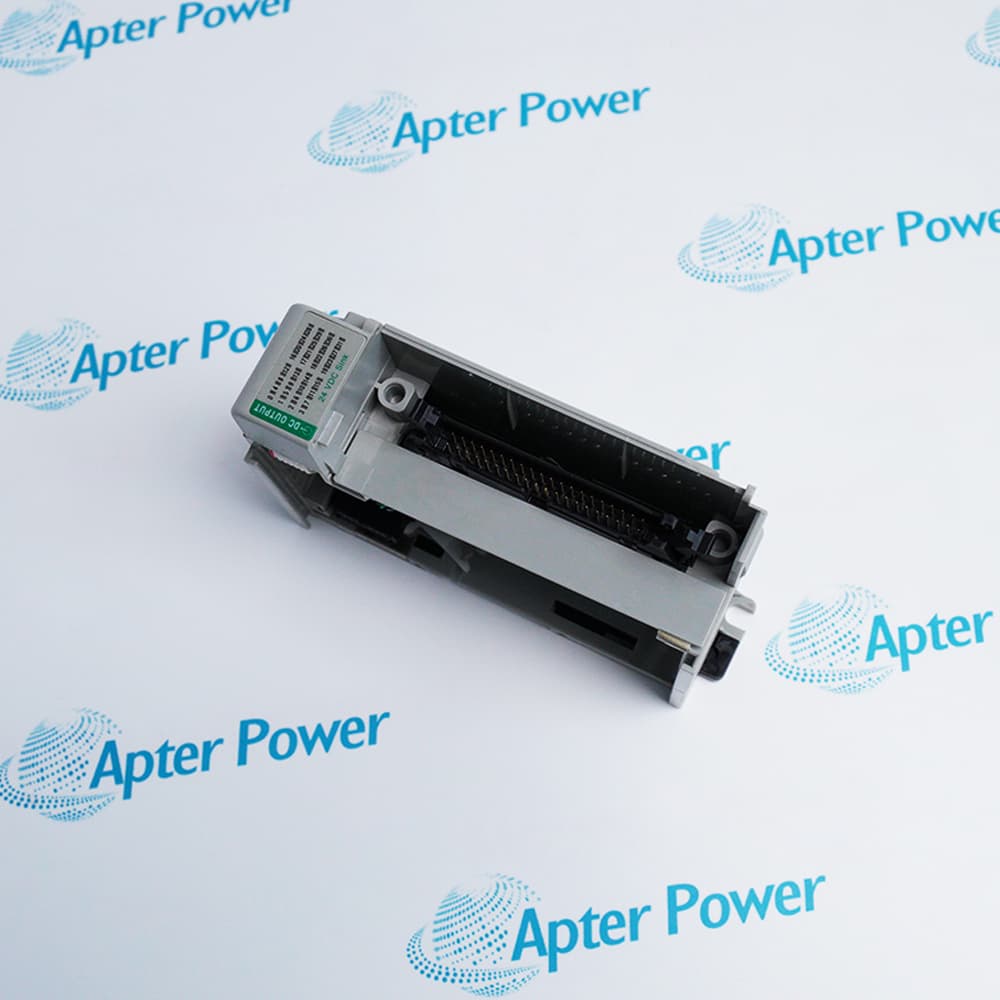

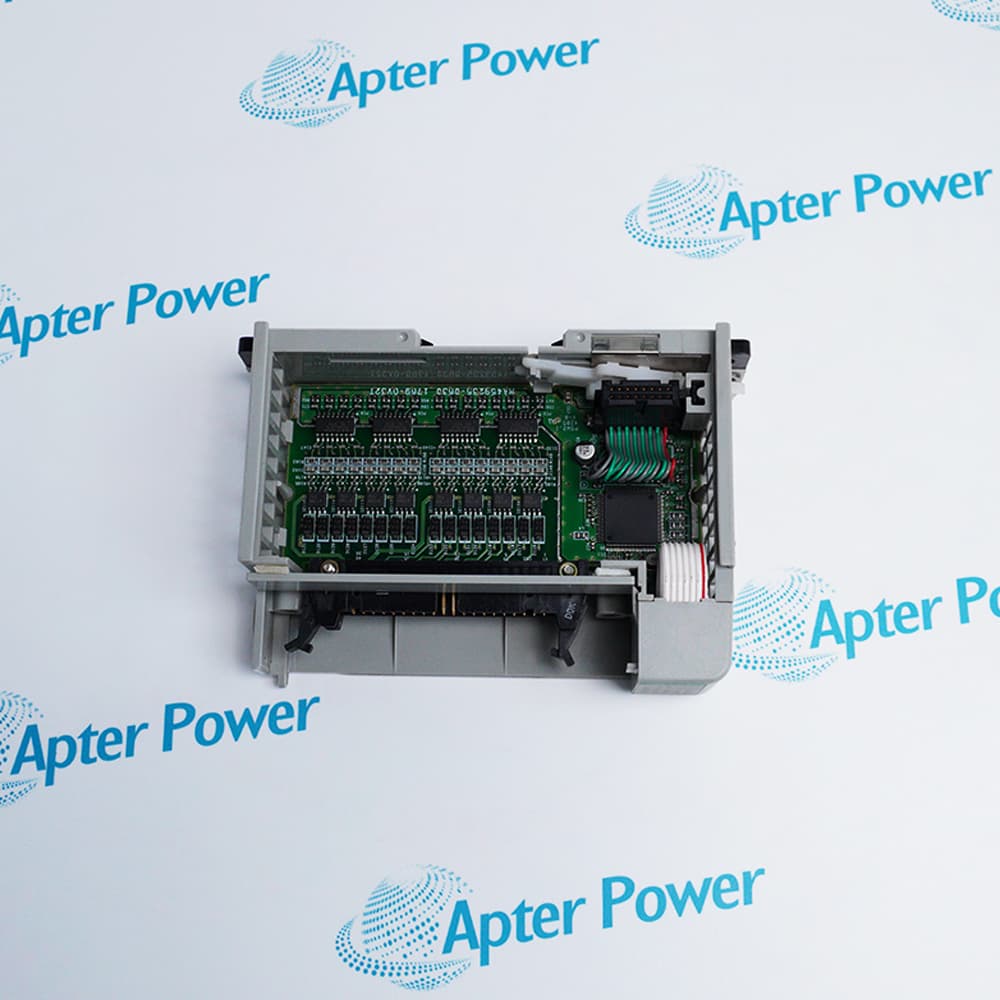

Allen-Bradley 1769-OV32T/A
Allen-Bradley 1769-OV32T/A
Allen-Bradley 1769-OV32T/A
Allen-Bradley 1769-OV32T/A
Allen-Bradley 1769-OV32T/A
Allen-Bradley 1769-OV32T/A
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

1769-OV32T/A

/ 4.9
1001 reviews | Need a Specific Revision?
The Allen-Bradley 1769-OV32T/A is a DC digital output module in the 1769 Compact I/O series, designed for industrial automation environments that require high-density, reliable switching functionality.
Get a quick price for 1769-OV32T/A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1769-OV32T/A

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1769-OV32T/A
  • Product Family:
    CompactLogix
  • Outputs:
    32 terminated (16 points/group)
  • Voltage category:
    24V DC sink
  • Operating voltage range:
    10.2…26.4V DC
  • Output delay, off:
    4.0 ms
  • Heat dissipation, max:
    4.5 W
  • Off-state leakage current, max:
    1.0 mA @ 26.4V DC
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    4x8.8x13.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Operating Environment Monitoring & Control

Features:

  • Interface Between the 24V DC Control System and Field Output Devices
  • Combines Capability of High-Density Digital Output Switching with Solid-State Reliability
  • Operates in Conjunction with MicroLogix 1500, CompactLogix Controllers and 1769 Series Adapters
The Allen-Bradley 1769-OV32T/A operates as a DC digital output module within the 1769 Compact I/O system, providing reliable switched outputs for industrial control applications. It continuously processes control signals from the controller and delivers solid-state switching capability across 32 terminated outputs arranged in two groups of 16. Seamless integration is standard with the 1769-OV32T/A, and its compact form factor allows high-density I/O configuration within limited panel space. The 1769-OV32T/A has made improvements in several areas over previous output module designs in addition to incorporating terminated output wiring capability within the 1769 series.

The 1769-OV32T/A provides essential output functions common to the entire control system, and is a critical component of the control path, directly affecting the proper, normal operation of field devices and actuators. One or multiple 1769-OV32T/A modules are required per system depending on the desired output point density. The 1769-OV32T/A occupies a single slot in the 1769 Compact I/O chassis and connects via tongue-and-groove connectors for easy mounting on panel or DIN rail.

For expanded I/O applications, the 1769 system requires additional 1769-OV32T/A modules installed in adjacent slots. In addition to standard single module operation, the modular configuration also performs seamless expansion. The 1769 series I/O system executes communication using the internal bus specified in the controller options. Using this method, the control system continually monitors the status of all outputs. If the system detects that a specific output channel requires activation based on programmed logic, it will automatically energize the corresponding field device and update the status in the controller data table.

The 1769-OV32T/A Allen-Bradley Compact I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1769-OV32T/A Compact I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1769-OV32T/A Compact I/O Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1769-OV32T/A
  • Condition New Original ready stock
  • Product Family 1769-OB32, 1769-OB32K, 1769-OB32T, 1769-OG16, 1769-OV16, 1769-OV32T
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Production Automation: Controlling a large array of low-power DC devices such as solenoid valves, indicators, and small relays in automated assembly lines.
  • Material Handling: Managing sorters, conveyors, and routing gates in warehouse and fulfillment centers.
  • Machine-Level Control: Ideal for standalone machines that require high-density digital control, such as packaging or food and beverage equipment.
  • System Expansion: Used as expansion I/O for MicroLogix 1500 or via adapters like the 1769-AENTR for distributed Ethernet/IP configurations.
  • Temperature: Operating range of 0°C to 60°C (32°F to 140°F).
  • Humidity: 5% to 95% non-condensing relative humidity.
  • Hazardous Locations: Rated for Class I, Division 2 (Groups A, B, C, D) environments.
  • Vibration/Shock: Built to withstand industrial vibrations (5g at 10–500 Hz) and operating shocks up to 30g when panel-mounted.
  • Isolation: Features optical isolation between the field-side wiring and the backplane to protect the controller from electrical noise.
  • Status Indicators: 32 individual green LEDs on the front panel provide real-time visual confirmation of each output's state.
  • Removable Terminal Block (RTB): Facilitates easy module replacement without the need to disconnect individual field wires.
  • Software Configuration: Fully integrated into Studio 5000 Logix Designer or RSLogix 500. Users can monitor "Module Fault" bits and force outputs for testing during commissioning.
  • Sinking Logic: As a sinking module, it provides a path to ground (0V DC) for the load; monitoring usually involves checking the voltage potential between the output point and the 24V supply.
Description
The Allen-Bradley 1769-OV32T/A is a DC digital output module within the 1769 Compact I/O series, engineered specifically for industrial automation environments requiring high-density, reliable switching capabilities. The 1769-OV32T/A is a compact solid-state 24V DC sink output module designed to handle demanding control applications where space efficiency and performance are critical. This 1769-OV32T/A module features 32 terminated outputs organized into two groups of 16, enabling flexible configuration for various machine control and process automation tasks. Operating within a voltage range of 10.2 to 26.4 volts DC, the 1769-OV32T/A delivers consistent and dependable output performance across diverse industrial conditions.

The 1769-OV32T/A is specifically designed for seamless integration into CompactLogix control systems, making it an ideal choice for manufacturers seeking to optimize their automation infrastructure. This 1769-OV32T/A module utilizes tongue-and-groove connectors that facilitate straightforward mounting on panels or DIN rails, while also enabling easy expansion by connecting to other modules in the Allen-Bradley 1769 series. The 1769-OV32T/A supports solid wire sizes from 14-22 AWG and stranded wire from 16-22 AWG, accommodating various installation requirements. Because the 1769-OV32T/A operates without an enclosure, it requires protection from debris, static discharge, and UV radiation during installation, operation, and storage to ensure long-term reliability.

This 1769-OV32T/A 1769 Compact I/O module is compatible with multiple controller platforms including MicroLogix 1500 controllers, 1769-ADN DeviceNet adapters, 1769-AENTR Ethernet adapters, and CompactLogix controllers, providing exceptional versatility for system architects and integrators. The 1769-OV32T/A is particularly well-suited for applications in material handling, packaging machinery, assembly lines, and process control systems where precise digital output control is essential. By incorporating the 1769-OV32T/A into their automation solutions, engineers can achieve streamlined panel designs, reduced wiring complexity, and enhanced system scalability. The 1769-OV32T/A represents a robust solution for modern industrial applications requiring high-density digital output capabilities within the proven Allen-Bradley 1769 Compact I/O ecosystem.
Revisions

Revision Part #

Also known as

1769-OV32T Ser A
1769-OV32T/A, Series A, Rev A
Alternative Names
1769-OB32 1769-OB32K 1769-OB32T 1769-OG16 1769-OV16
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Allen-Bradley 1769-OV32T/A module?
The Allen-Bradley 1769-OV32T/A is a DC digital output module from the 1769 Compact I/O series, designed for industrial automation systems that require high-density and reliable switching performance. It is a solid-state 24V DC sink output module optimized for space-efficient control applications.
How is the 1769-OV32T/A installed and expanded?
The module uses tongue-and-groove connectors for easy mounting on DIN rails or panels. This design also allows simple expansion by connecting additional modules within the 1769 Compact I/O series.
Are there any installation precautions for the 1769-OV32T/A?
Yes, since the module does not have an enclosure, it must be protected from dust, debris, electrostatic discharge, and UV exposure during installation, operation, and storage to ensure long-term reliability.
