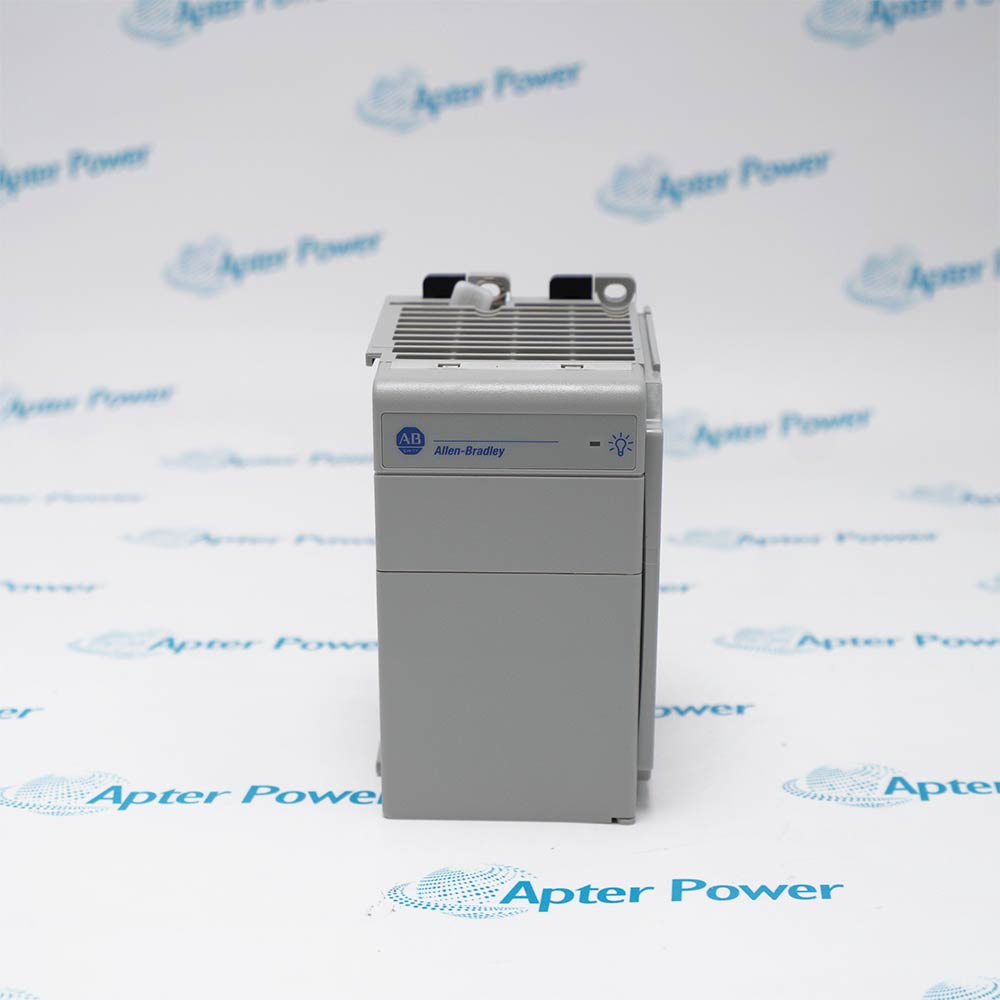

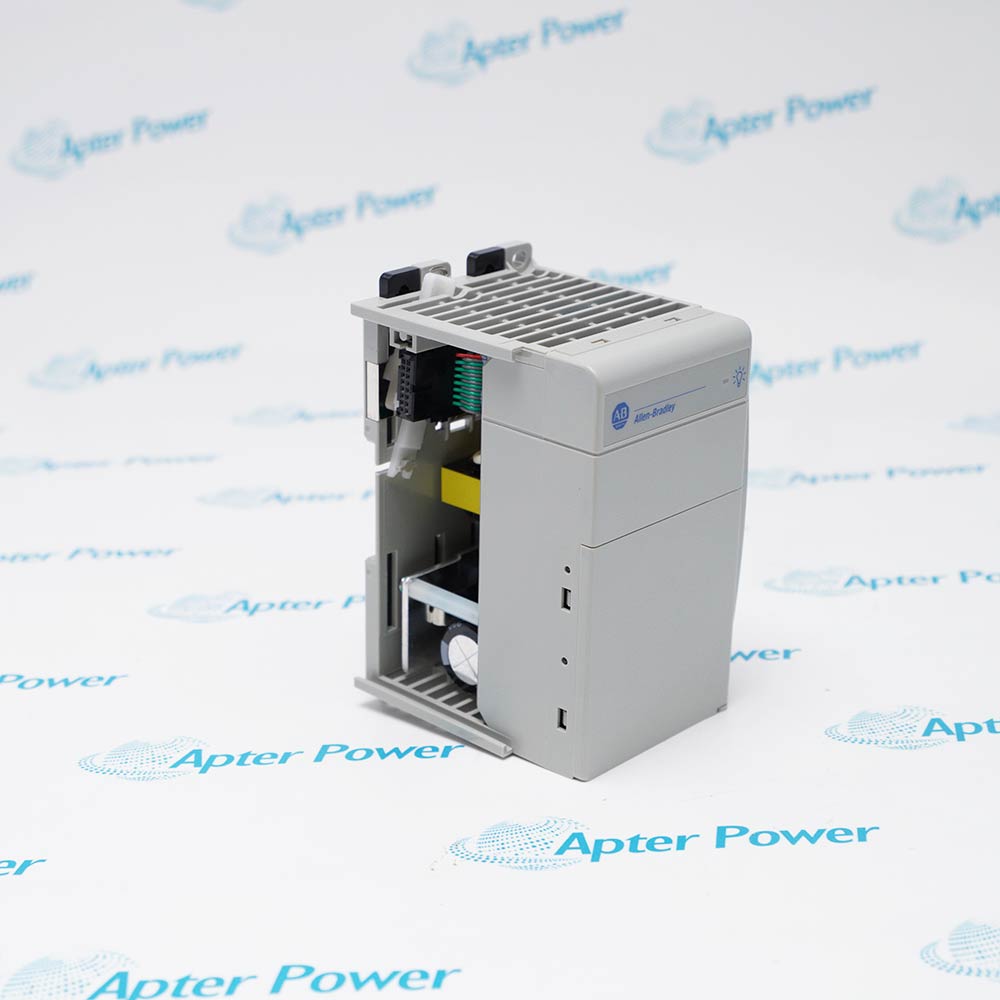

Allen-Bradley 1769-PA2 is a CompactLogix AC power supply that converts 85...265V AC input power into regulated 5V DC and 24V DC outputs for Compact I/O systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1769-PA2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1769-PA2

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1769-PA2
  • Product Family:
    CompactLogix
  • Product Type:
    CompactLogix AC 2A/0.8A Power Supply
  • Stock:
    1
  • Input voltage range:
    85…265V AC
  • Input voltage, nom:
    120V/220V AC
  • Power consumption:
    100VA @ 120V AC, 130VA @ 240V AC
  • Power dissipation:
    8 W @ 60° C (140° F)
  • Current capacity @ 5V:
    2.0 A
  • Current capacity @ 24V:
    0.8 A
  • Inrush current, max:
    25 A @ 132V AC
  • Isolation voltage:
    265V (continuous)
  • Fuse type:
    Wickmann 19195-3.15A, Littelfuse 02183.15MXP
  • Module location:
    DIN rail or panel mount
  • Mounting screw torque:
    1.16 N•m (10 lb•in) - use M4 or #8 screws
  • Power supply distance rating:
    8
  • Wire category:
    1 - on power ports
  • Wire size:
    14 AWG (2.5 mm2) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max
  • North American temperature code:
    T3C
  • Temperature, operating:
    0 °C < Ta < 60 °C (32 °F < Ta < 140 °F)
  • Temperature, nonoperating:
    -40 < Ta < +85 °C (-40 < Ta < +185 °F)
  • Relative humidity:
    5…95% noncondensing
  • Vibration:
    5 g @ 10…500 Hz
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    7.3x8.6x13cm
  • Tariff Code:
    8452909900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Standards Compatibility

Features:

  • Ensures reliable power distribution for CompactLogix controllers and Compact I/O modules.
  • Supports flexible system design and simplifies integration within industrial control architectures.
  • Provides dependable operation in demanding industrial environments with strong environmental durability.
Allen-Bradley 1769-PA2 is an essential component within CompactLogix and Compact I/O architectures where reliable power distribution is required. Industrial control systems depend on stable low-voltage power for controllers and field I/O, and the power supply fulfills that requirement through regulated 5V DC and 24V DC outputs. The broad AC input range allows deployment in a variety of manufacturing facilities without requiring separate power supply models.

Power management is a key function of Allen-Bradley 1769-PA2. With output capacities of 2.0 A at 5V and 0.8 A at 24V, the unit supports controller operation and expansion modules while maintaining efficient energy usage. Support for multiple I/O modules on both sides of the power supply helps simplify system layout and cabinet design in automation projects.

Allen-Bradley 1769-PA2 is also built to withstand industrial operating conditions. Resistance to vibration, wide operating and storage temperature ranges, and high humidity tolerance contribute to dependable long-term performance. As a result, the power supply is commonly used in machine automation, material handling systems, process control installations, and factory production environments where continuous operation is critical.

The 1769-PA2 Allen-Bradley CompactLogix AC 2A/0.8A Power Supply may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1769-PA2 CompactLogix AC 2A/0.8A Power Supply Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1769-PA2 CompactLogix AC 2A/0.8A Power Supply Specs

General

  • Manufacturer Allen-Bradley
  • Model 1769-PA2
  • Condition New Original ready stock
  • Product Family 1769-PA2K,1769-PB2,1769-PB2K
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controller Benches: Providing primary logic power to CompactLogix L3 controllers in assembly line cells.
  • Remote I/O Banks: Energizing isolated rows of digital and analog modules across vast field networks.
  • Panel Consolidation: Simplifying control cabinets by eliminating standard standalone step-down transformers.
  • Legacy Upgrades: Replacing older modular power components within aging MicroLogix infrastructure safely.
  • Wide Input Voltage Specification: Complies with a global universal voltage input range of 85V-265V.
  • Industrial Environment Vibration Resistance: Certified for industrial-grade vibration and shock resistance according to IEC 60068-2-6.
  • Electrical Isolation Rating: Provides continuous enhanced insulation protection up to 265V.
  • Power Loss Retention Requirements: Supports a minimum of 5 ms of full-power voltage sustainment during input surges.
  • Backplane Bus Interconnection: Directly provides 5V DV and 24V DC system power to the CompactLogix frame.
  • Processor Compatibility: Natively compatible with 1769-L3x series controllers and distributed repeater expansion systems.
  • Maximum Number of Modules Allowed: A maximum of 8 1769 I/O modules can be directly added to a single power supply side.
  • Legacy System Upgrade: Backward compatible with MicroLogix 1500 controllers (Series A, Rev C or later required).
Description
Allen-Bradley 1769-PA2 serves as the primary power source for CompactLogix and Compact I/O installations, supplying stable operating power to controllers and distributed I/O modules. The unit accepts a wide AC input voltage range from 85 to 265V AC, making it suitable for industrial facilities operating with either 120V AC or 220V AC power systems. Its flexible input capability simplifies system integration across different regions and plant environments.

The power supply delivers up to 2.0 A at 5V DC and 0.8 A at 24V DC, supporting the electrical requirements of CompactLogix controllers and associated I/O modules. Power consumption is rated at 100 VA when operating from 120V AC and 130 VA at 240V AC. Even under elevated ambient temperatures up to 60°C, Allen-Bradley 1769-PA2 maintains efficient operation with a power dissipation rating of 8 W.

Installation flexibility is another advantage of Allen-Bradley 1769-PA2. The module can be mounted on either a DIN rail or a control panel using M4 or #8 mounting screws with a recommended torque of 1.16 N•m. For wiring, the unit supports 14 AWG solid copper conductors rated at 90°C or higher, helping ensure reliable electrical connections in demanding industrial environments.

In Compact I/O architectures, Allen-Bradley 1769-PA2 supplies power to modules positioned on either side of the power supply. Up to eight I/O modules may be installed on each side, provided individual module distance ratings are observed. This arrangement offers flexibility when designing control systems while maintaining proper power distribution throughout the assembly.

Allen-Bradley 1769-PA2 is engineered for dependable operation in industrial conditions. The unit provides continuous isolation voltage protection of 265V and withstands vibration levels up to 5 g across a frequency range of 10 to 500 Hz. Operating temperatures range from 0°C to 60°C, while storage temperatures extend from -40°C to +85°C. Combined with a humidity tolerance of 5% to 95% noncondensing, these specifications support long-term performance in manufacturing, processing, and machine control applications.
Revisions

Revision Part #

Also known as

1769-PA2 Ser A
1769-PA2/A, Series A, Rev A
Alternative Names
1769PA2 I769-PA2 I769PA2 1769-PA2K 1769-PB2 1769-PB2K 1769-PA4 1769-PA4K
Technical notes
Optimized for resilient control infrastructure, the Allen-Bradley 1769-PA2 delivers stable backplane currents of 2A at 5V DC and 0.8A at 24V DC from a versatile AC input.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which environmental conditions are supported by Allen-Bradley 1769-PA2?
Allen-Bradley 1769-PA2 operates between 0°C and 60°C, withstands storage temperatures from -40°C to +85°C, and supports noncondensing humidity levels from 5% to 95%.
Does Allen-Bradley 1769-PA2 provide electrical isolation?
Continuous isolation voltage protection of 265V is incorporated into Allen-Bradley 1769-PA2 to help maintain safe system operation.
How many I/O modules can be installed around Allen-Bradley 1769-PA2?
Up to eight Compact I/O modules may be positioned on each side of Allen-Bradley 1769-PA2, provided the distance ratings of individual modules are respected.
Can Allen-Bradley 1769-PA2 be mounted in different ways?
Yes. Allen-Bradley 1769-PA2 supports both DIN rail mounting and panel mounting, offering flexibility for control cabinet layouts.
