1794-OM8

/ 4.9
1001 reviews | Need a Specific Revision?

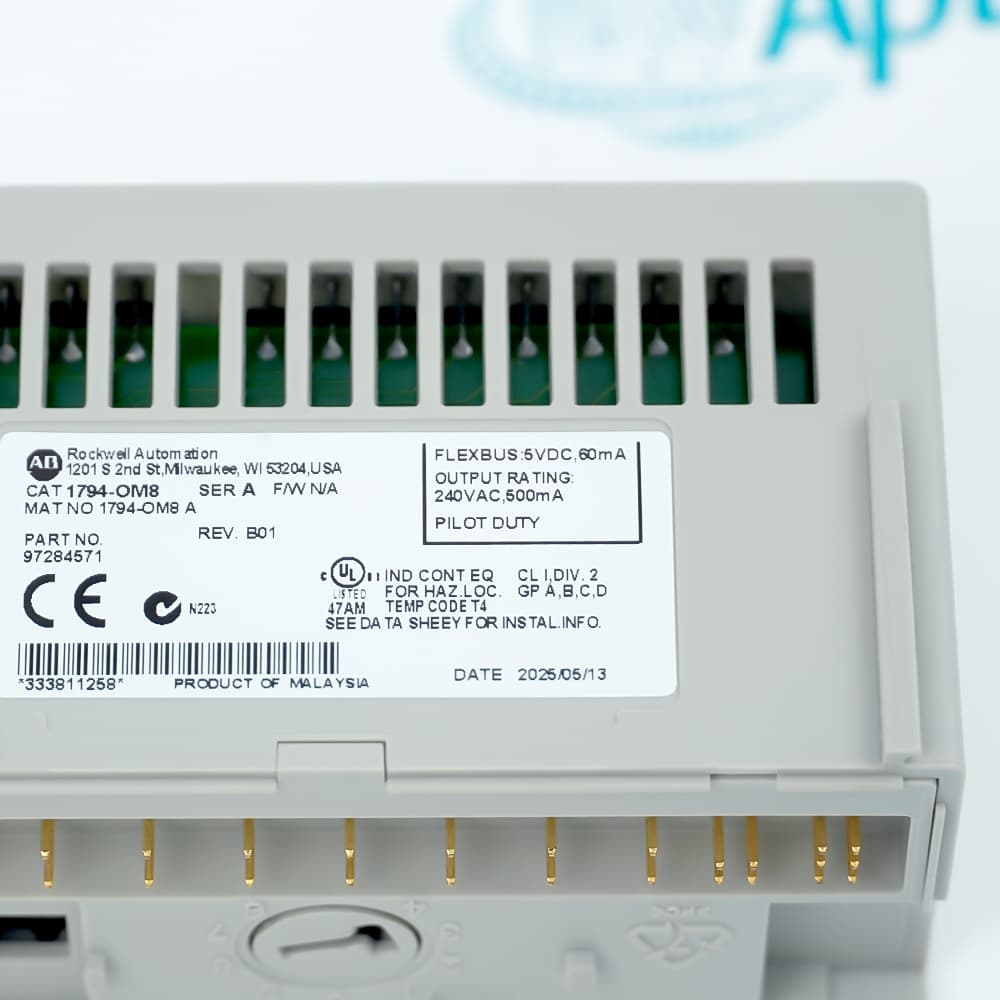

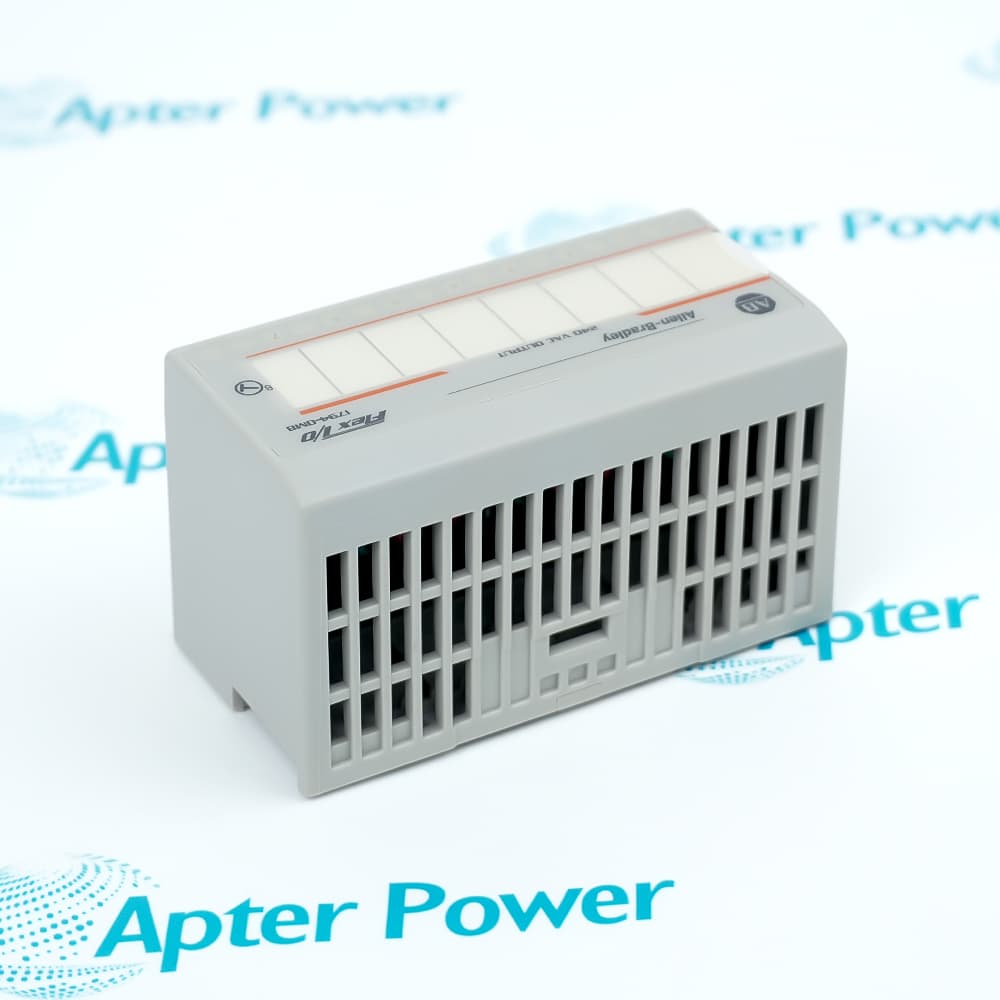

The 1794-OM8 is a Rockwell Automation Allen-Bradley FLEX I/O digital output module with 8 triac outputs, 220V AC, 50 Hz, rated for 0-55°C operation and 95% humidity.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1794-OM8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-OM8

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-OM8
  • Product Family:
    Flex I/O
  • Product Type:
    I/O Digital Output Module
  • Stock:
    1
  • Number of Outputs:
    8
  • Supply Voltage (nominal):
    220V AC, 50 Hz
  • Operating Temperature:
    0...55°C (32...131°F)
  • Storage Temperature:
    -40...85°C (-40...185°F)
  • Max Ambient Humidity (non-condensing):
    95%
  • Weight:
    0.64 kg
  • Estimated shipping dimensions:
    2.8x15.2x25.9cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Certifications and Standards Compatibility

Features:

  • Directly switches industrial AC loads (contactors, solenoids, pilot lights) without external interposing relays; silent, wear‑free switching.
  • This compact footprint is achieved by the FLEX I/O system’s modular design, which separates the I/O module from the terminal base.
  • Operating temperature 0-55°C, storage -40-85°C, humidity 95% non-condensing; suitable for demanding factory environments.
The 1794-OM8 provides eight triac-based outputs specifically designed for switching 220V AC loads at 50 Hz. Triacs are semiconductor devices that turn on and off with zero-crossing detection, reducing electrical noise and contact wear. Unlike mechanical relays, triacs have no moving parts, making them ideal for applications requiring frequent switching – such as controlling solenoid valves in packaging machines, cycling pilot lights on control panels, or operating small contactors motor starters.

This compact footprint is achieved by the FLEX I/O system’s modular design, which separates the I/O module from the terminal base. The module itself contains only the electronics; the field wiring connections are made on the terminal base (ordered separately). This allows the 1794-OM8 to be replaced without disconnecting field wires, reducing downtime during maintenance. The low profile (45.7 mm) allows mounting in shallow enclosures. The FLEX I/O system supports up to eight modules per I/O rack, providing dense I/O count in a small area.

The 1794-OM8 is built to withstand typical industrial conditions. It operates reliably in ambient temperatures from 0°C to 55°C (32°F to 131°F), covering most unairconditioned control rooms and factory floors. For storage or transportation, it withstands -40°C to 85°C (-40°F to 185°F), allowing the module to be kept in warehouses or shipped without damage. The humidity rating is 95% non-condensing, meaning the module can be installed in high-moisture environments such as pulp and paper mills, food processing plants, or outdoor enclosures – as long as condensation does not occur. The module has an open-style enclosure (IP20) and must be installed inside a suitable cabinet. The 1794-OM8 is not suitable for safety functions (no SIL/PL rating) and should not be used in emergency stop circuits or safety interlocks.

The 1794-OM8 Allen-Bradley I/O Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).
Allen-Bradley 1794-OM8 I/O Digital Output Module Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Allen-Bradley 1794-OM8 I/O Digital Output Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1794-OM8
  • Condition New Original ready stock
  • Product Family 1794-OM16,1794-OB8,1794-OB16
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • AC Load Control: Directly drives small AC motor starters, AC solenoid valves, contactor coils, and various AC indicator lights.
  • Power and Facility Automation: Commonly used in building automation or power distribution systems to handle discrete control signals up to 120V AC.
  • Remote I/O Stations: Provides localized AC power output capabilities remotely from the main control cabinet via the FLEX I/O platform, reducing the need for long-distance high-power AC cable laying.
  • Safety Certifications: UL Listed (USA) and CSA Certified (Canada) certified.
  • Electromagnetic Compatibility and Compliance: CE marked, compliant with the EU Electromagnetic Compatibility (EMC) Directive and Low Voltage Directive; also C-Tick (Australia) certified.
  • Environmental Compliance: RoHS compliant, restricting the use of hazardous substances.
  • Hazardous Locations: Approved for use in Class I, Division 2, Groups A, B, C, and D hazardous environments.
  • Dock Compatibility: Requires specific FLEX I/O terminal blocks. A three-wire dock (e.g., 1794-TBN or 1794-TB3) is recommended to simplify L2/Neutral wiring.
  • System Compatibility: Fully compatible with Allen-Bradley's full range of controllers (e.g., ControlLogix, CompactLogix, PLC-5, and SLC 500) and easily configured in Studio 5000 or RSLogix 500 software.
  • Hot-swappable (RIUP): Supports replacement without interrupting system operation, which is consistent with other FLEX I/O modules.
Description
The 1794-OM8 is a FLEX I/O digital output module from Rockwell Automation. It provides 8 triac outputs for switching AC loads at 220V, 50 Hz. The module is part of the FLEX I/O system, which offers a flexible, modular, and cost‑effective solution for industrial automation.

When using the 1794-OM8, engineers can control AC devices such as contactors, solenoids, pilot lights, and small motors directly from the I/O system. The triac outputs are suitable for applications requiring frequent switching with no mechanical wear. The module has no internal isolation between channels and is not suitable for safety functions. Operating temperature is 0 to 55°C, with storage from -40 to 85°C.

The 1794-OM8 has a non-condensing humidity rating of 95% maximum. It is designed for use with the FLEX I/O backplane and requires a compatible terminal base (sold separately). The module does not have built-in short-circuit protection; external fusing is recommended. The module is classified as existing product status and is widely available as a spare part.

For legacy FLEX I/O system expansions or repairs, the 1794-OM8 provides a reliable 8-point AC output solution. It is part of a modular I/O family that includes digital, analog, HART, and specialty I/O with 4 to 32 points per module. The space-saving design supports up to eight modules per system. Always verify that the AC supply matches the module’s 220V, 50 Hz specification before use.
Revisions

Revision Part #

Also known as

1794-OM8 Ser A
1794-OM8/A, Series A, Rev A
Alternative Names
1794-OM16 1794-OB8 1794-OB16
Technical notes
The 1794-OM8 uses triac outputs, which are ideal for switching AC loads but have a leakage current when “off.” Ensure that the connected load draws enough current (typically >10 mA) to prevent false activation due to this leakage. For very high-impedance loads, a bleeder resistor may be required.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What type of outputs does the 1794-OM8 have?
The 1794-OM8 has 8 triac outputs rated for 220V AC, 50 Hz. Triacs are ideal for switching AC loads such as contactors, solenoids, and pilot lights directly, eliminating the need for interposing relays. They provide silent, wear‑free operation.
Can the 1794-OM8 be used for safety applications?
No. The 1794-OM8 is marked as not suitable for safety functions. For safety-related outputs (e.g., emergency stop, guard monitoring), use dedicated safety output modules that comply with SIL or PL ratings.
What is the humidity rating of the 1794-OM8?
The 1794-OM8 operates at up to 95% non-condensing humidity. It has an operating temperature range of 0 to 55°C and storage from -40 to 85°C. It is suitable for industrial environments but must be installed in an enclosure.
Is the 1794-OM8 compatible with my FLEX I/O system?
Yes. The 1794-OM8 is a standard FLEX I/O digital output module. It mounts on any FLEX I/O terminal base and communicates via the FLEX I/O backplane. It supports up to 8 modules per system and is compatible with FLEX I/O adapters and controllers.
