  • Lifecycle status

    Discontinued
    Discontinued date: 2017-05-31
    Replacement category: Engineering Replacement

1771-NIS/B

/ 4.9
1001 reviews | Need a Specific Revision?

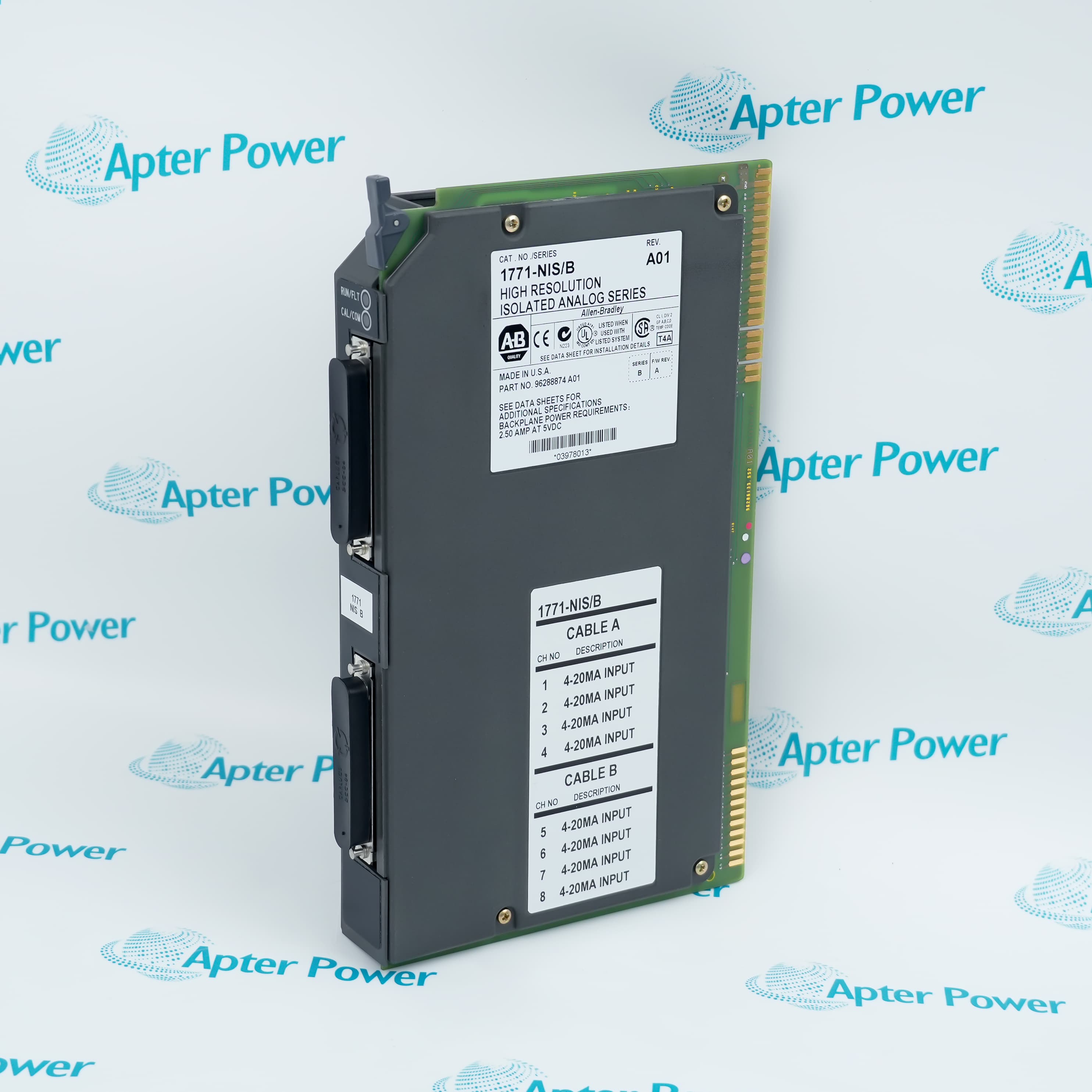

Allen-Bradley 1771-NIS/B is a listing for the documented 1771-NIS eight-channel 4...20 mA isolated analog input function.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-NIS/B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-NIS/B

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-NIS/B
  • Product Family:
    PLC-5
  • Product Type:
    High Resolution Isolated Analog Input Module
  • Stock:
    1
  • Number of inputs:
    8
  • Input signal:
    4...20 mA
  • Resolution:
    0.34 microampere per bit
  • Loop power:
    Module supplies loop power
  • Backplane Current:
    2.5 A at 5 V DC
  • Maximum I/O circuit power dissipation:
    5.12 W
  • Remote termination panel:
    1771-RTP4 documented for the base module
  • Chassis compatibility:
    1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, 1771-A4B or later; 1771-AM1, 1771-AM2
  • Module placement:
    Any I/O module slot except the extreme left slot
  • Equipment type:
    Open type
  • Environment category:
    Pollution Degree 2; Overvoltage Category II
  • Altitude:
    Up to 2000 m without derating
  • Input mode:
    Sourcing or sinking 4...20 mA inputs
  • Tariff Code:
    8443999090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signals Installation Termination Application
  • Eight current-input channels are documented for the 1771-NIS base module
  • The module supplies loop power for the documented 4...20 mA input arrangement
  • Field wiring is routed through a compatible remote termination panel and N-series cable

1771-NIS/B is the requested listing identity for an Allen-Bradley 1771-NIS high-resolution isolated analog input module.

Official documentation for the base module specifies eight 4...20 mA inputs, module-supplied loop power, and remote termination through the N-series cable and panel architecture.

Before installation or replacement, verify the physical product label, complete catalog number, hardware series, PLC-5 chassis compatibility, RTP type, cable, field wiring, and channel configuration.

Availability, condition, price, and shipping time for 1771-NIS/B are confirmed during quotation.

Allen-Bradley 1771-NIS/B High Resolution Isolated Analog Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The documented 1771-NIS base module provides eight 4...20 mA current-input channels
  • Each input can be configured for sourcing or sinking operation
  • The module supplies loop power for sourcing inputs; external loop power is used for sinking inputs, with no external resistors required
  • Compatible chassis include 1771-A1B, A2B, A3B, A3B1, A4B or later, plus 1771-AM1 and 1771-AM2
  • Install the module in any I/O module slot except the extreme left slot reserved for the processor or adapter
  • Keep the analog module away from AC or high-voltage DC modules and do not share an I/O group with high-density discrete I/O when using 2-slot addressing
  • The official selection data identifies 1771-RTP4 for the base module
  • 1771-NC6 provides the documented 6 ft N-series cable option
  • 1771-NC15 provides the separately documented 15 ft cable option
  • Eight-channel 4...20 mA process-signal acquisition in a compatible PLC-5 I/O system
  • Isolated current-input installations using module-supplied loop power
  • Remote field termination through a compatible 1771 N-series panel and cable
Description
1771-NIS/B is the requested listing for an Allen-Bradley 1771-NIS high-resolution isolated analog input module in the PLC-5 I/O platform.

Official base-catalog data specifies eight 4...20 mA inputs, 0.34 microampere-per-bit resolution, module-supplied loop power, and remote termination through the N-series interface.

Before installation or replacement, confirm the complete nameplate catalog number, hardware series, chassis, remote termination panel, cable, field-power arrangement, and saved channel configuration.
Revisions

Revision Part #

Also known as

1771-NIS Series B
1771-NIS/B, Series B
Alternative Names
1771-NIS/B 1771NISB 1771 NIS B Allen-Bradley 1771-NIS/B AB 1771-NIS/B
Technical notes
Allen-Bradley 1771-NIS/B Series B requires two 1771-NC6 or 1771-NC15 interconnect cables to an applicable remote termination panel. Verify 2.5 A at 5 V DC backplane capacity and the saved block-transfer configuration before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What label details should a buyer verify for Allen-Bradley 1771-NIS/B?

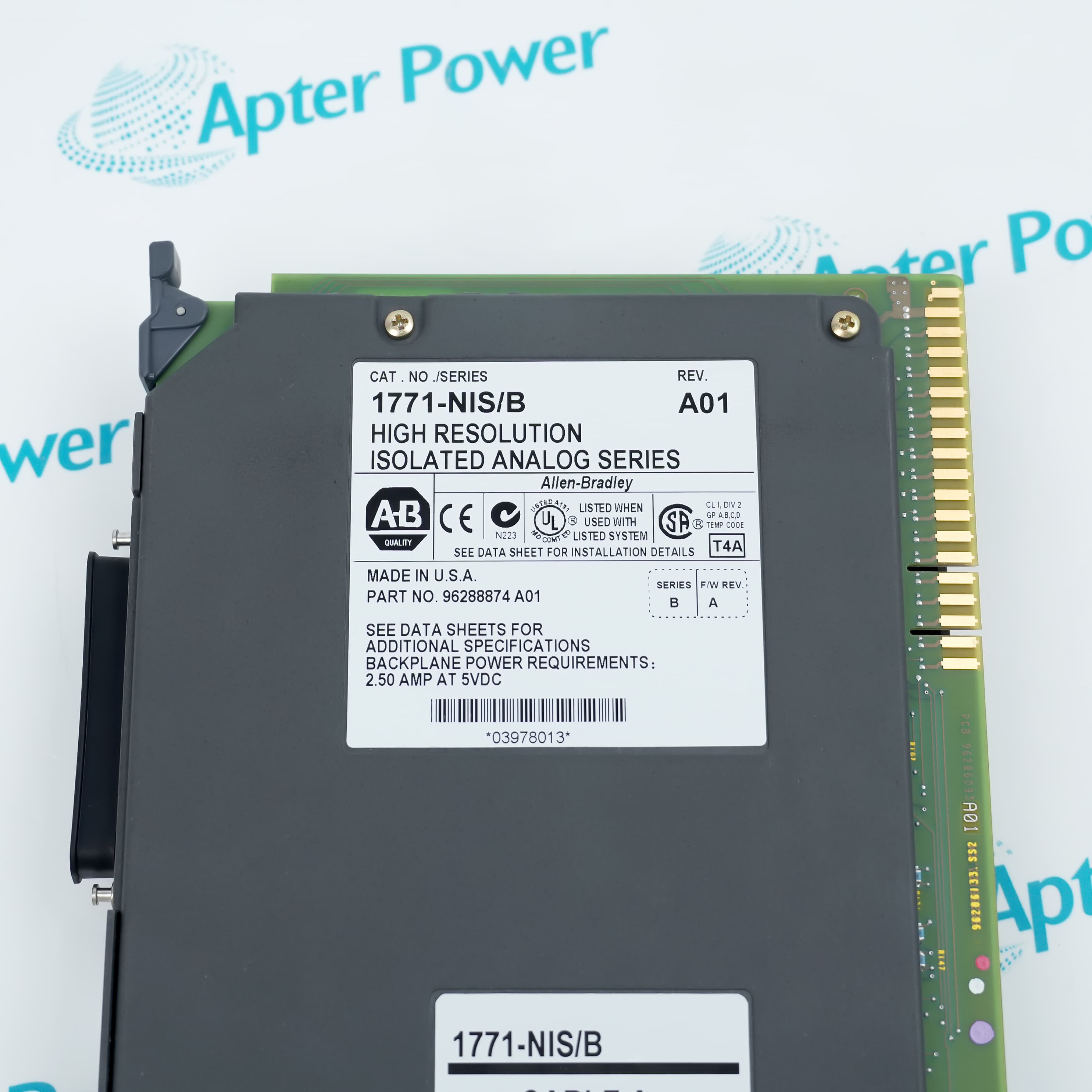

Verify that the physical label shows the complete catalog identity and any hardware Series; the official material used here independently confirms only the base catalog 1771-NIS.
How many current inputs are documented for Allen-Bradley 1771-NIS/B base hardware?
The official 1771-NIS base-module data specifies eight 4...20 mA input channels.
Does Allen-Bradley 1771-NIS/B base hardware supply loop power?
Yes. The official selection data states that the 1771-NIS base module supplies loop power.
Which termination panel is documented for Allen-Bradley 1771-NIS/B base hardware?
The official selection data identifies 1771-RTP4 for the 1771-NIS base module; verify the installed panel before ordering.
Which cable lengths are available for Allen-Bradley 1771-NIS/B base hardware?
Rockwell Automation documents 1771-NC6 at 6 ft and 1771-NC15 at 15 ft for the N-series termination architecture.
How should Allen-Bradley 1771-NIS/B Series B be connected to a remote termination panel?
Allen-Bradley 1771-NIS/B Series B uses two 1771-NC6 or 1771-NC15 interconnect cables. Secure both cable connectors with their locking bars and verify the applicable remote termination panel before commissioning.
What should be checked before ordering Allen-Bradley 1771-NIS/B?
Confirm the product label, complete suffix, visible hardware series, PLC-5 chassis, RTP number, cable length, and 4...20 mA field wiring.
