1746-OBP16

/ 4.9
1001 reviews | Need a Specific Revision?

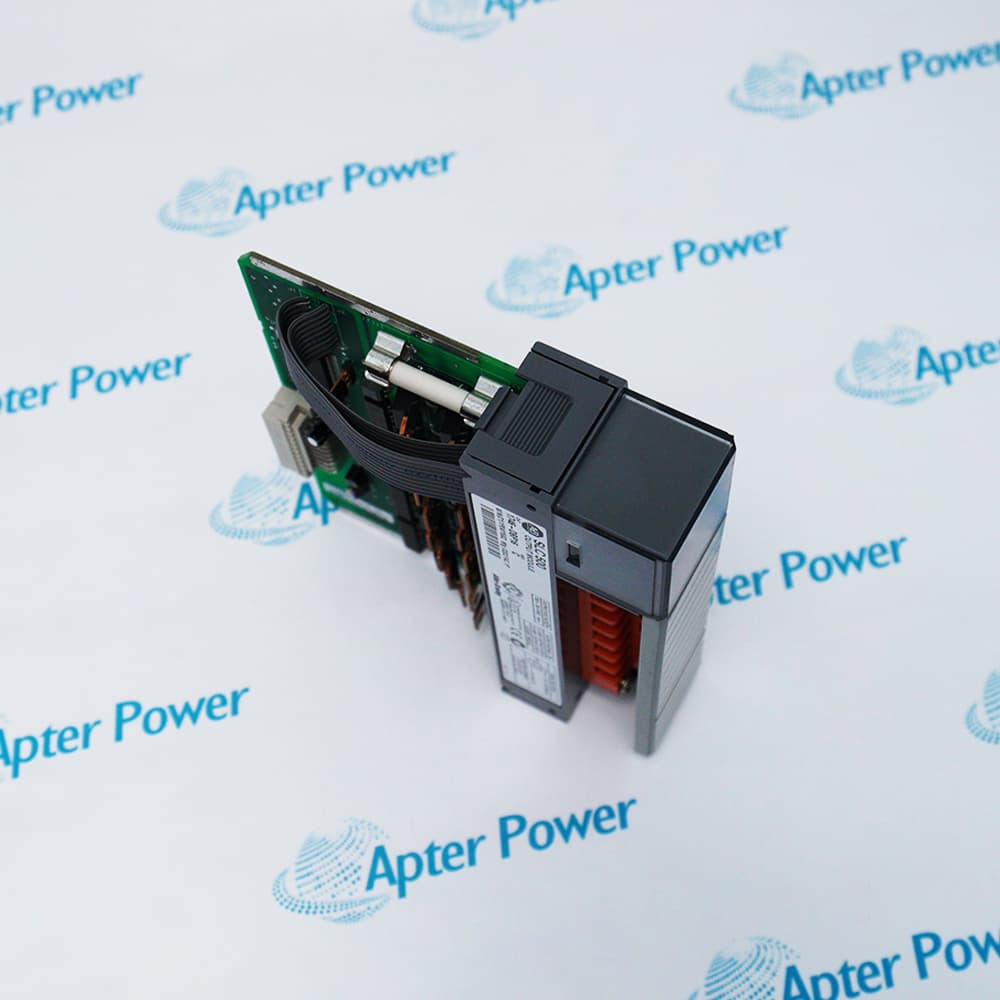

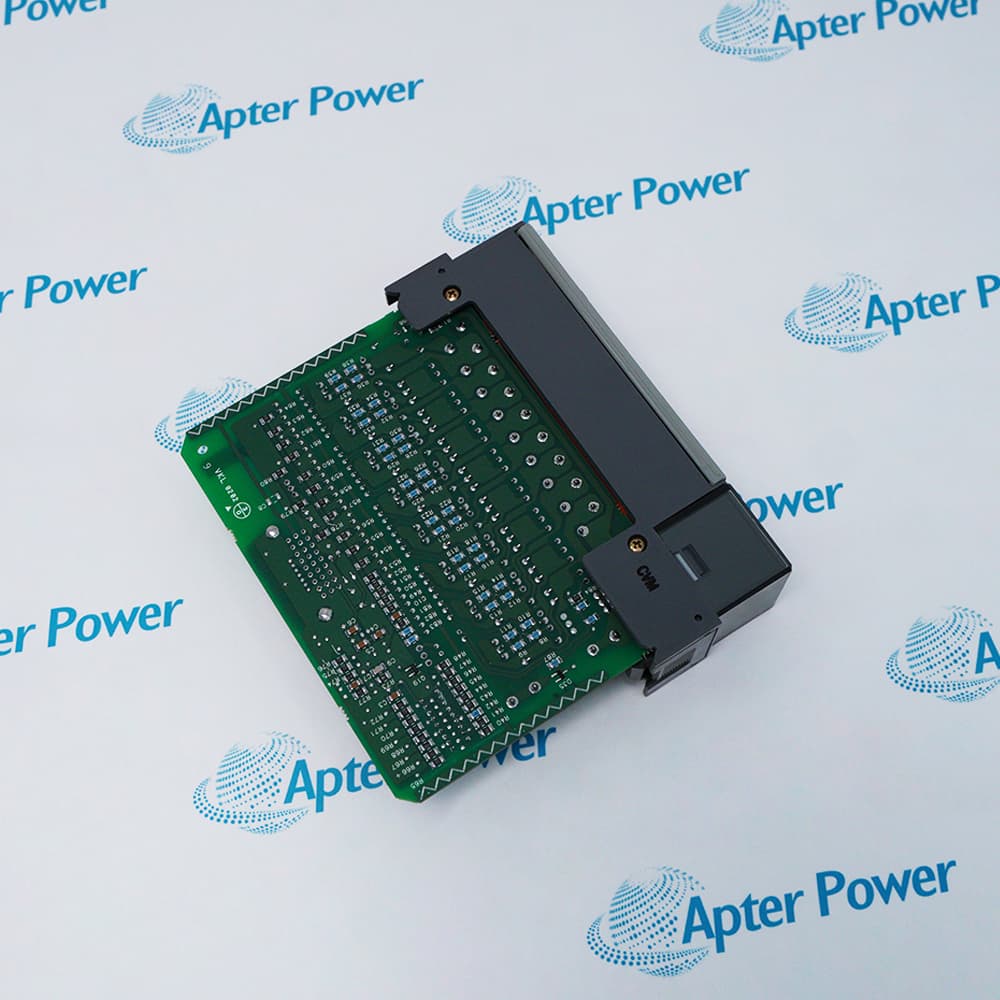

Allen-Bradley 1746-OBP16 is a 16-point high-current 24 V DC sourcing output module with fast turn-off and fused-common indication.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1746-OBP16
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-OBP16

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-OBP16
  • Product Family:
    SLC 500
  • Product Type:
    Sixteen-Point High-Current DC Sourcing Output Module
  • Stock:
    1
  • Outputs:
    16 sourcing; one common
  • Operating Voltage:
    20.4–26.4 V DC
  • Backplane Current:
    250 mA at 5 V DC; 0 mA at 24 V DC
  • Signal Delay:
    1 ms on; 2 ms off, maximum
  • Off-State Leakage:
    1 mA maximum
  • Minimum Load Current:
    1 mA
  • Current per Point:
    1.5 A at 30 °C; 1 A at 60 °C
  • Current per Module:
    6.4 A from 0–60 °C
  • On-State Voltage Drop:
    1 V maximum at 2 A
  • Surge Current:
    4 A for 10 ms per point; 32 A for 10 ms per module
  • Fuse:
    1746-F8 or Littelfuse 322010
  • Weight:
    0.3 kg
  • Tariff Code:
    8471609000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Fuse Service Load Behavior Migration Application
  • Sixteen high-current 24 V DC sourcing outputs on one fused common
  • Fast output turn-off for supported industrial DC loads
  • Blown-fuse indication with replaceable module common fuse

1746-OBP16 is an Allen-Bradley sixteen-point high-current dc sourcing output module for SLC 500 chassis.

The module switches high-current DC loads from a single protected field-power group and provides faster turn-off than standard sourcing output modules.

Before installation or replacement, verify field polarity, combined current, point inrush, fuse type, suppression, temperature derating, terminal wiring, and output-image assignment.

Availability, condition, price, and shipping time for 1746-OBP16 are confirmed during quotation.

Allen-Bradley 1746-OBP16 Sixteen-Point High-Current DC Sourcing Output Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • De-energize field power and identify the faulted load before fuse removal
  • Install only the specified fuse type and rating in the module holder
  • Confirm insulation, polarity, and inrush before restoring the common supply
  • Account for fast turn-off when selecting coil suppression
  • Keep steady and surge currents within both point and module limits
  • Evaluate off-state leakage when switching sensitive solid-state loads
  • Plan two eight-point modules when following the published platform migration path
  • Remap the single sixteen-point image to the destination output structure
  • Revalidate fused-common behavior, field protection, and machine stop response
  • High-current 24 V DC solenoid and contactor-coil control
  • Fast-release DC actuator circuits where output turn-off time matters
  • SLC 500 machine outputs requiring one fused sixteen-point sourcing group
Description
1746-OBP16 is a sixteen-point high-current dc sourcing output module for the SLC 500 control platform.

The module switches high-current DC loads from a single protected field-power group and provides faster turn-off than standard sourcing output modules.

Before installation or replacement, verify field polarity, combined current, point inrush, fuse type, suppression, temperature derating, terminal wiring, and output-image assignment.
Revisions

Revision Part #

Also known as

1746-OBP16 Ser A
1746-OBP16/A, Series A, Rev A
1746-OBP16 Ser B
1746-OBP16/B, Series B, Rev B
1746-OBP16 Ser C
1746-OBP16/C, Series C, Rev C
Alternative Names
1746-OBP16 1746OBP16 AB 1746-OBP16 Allen-Bradley 1746-OBP16 Rockwell Automation 1746-OBP16
Technical notes
1746-OBP16 is a single fused high-current sourcing group; verify field faults, total thermal load, coil suppression, and fast-turn-off behavior before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the fuse indicator on 1746-OBP16 illuminate?
It indicates an open common fuse while field power is present. Check for a shorted load, reversed wiring, or excessive inrush before replacing the fuse.
What does fast turn-off change when 1746-OBP16 drives a solenoid?
The load releases quickly, but inductive energy must still be controlled with compatible suppression so the output and adjacent electronics are not overstressed.
Can 1746-OBP16 split its outputs across two independent supplies?
No. Its sixteen points share one fused common field-power section, so use one compatible supply and keep the complete module within combined-current limits.
Why can a replacement fuse open immediately on 1746-OBP16?
A persistent field short, incorrect polarity, damaged suppression device, or load inrush above the allowed duty can retrigger the fault. Isolate loads before retrying.
Can 1746-OBP16 operate a very small electronic load?
Only if the load remains stable with the module’s published leakage and minimum-load behavior. Measure the off-state circuit and add an approved bleeder only when required.
What suppression is appropriate for 1746-OBP16 loads?
Use suppression recommended for the DC coil and compatible with the required release time; a diode slows release, while other networks may switch faster but raise voltage.
What changes when migrating 1746-OBP16 to a newer platform?
Rockwell’s migration mapping uses two eight-point output modules, so field grouping, overcurrent behavior, output addressing, wiring conversion, and fault logic must be redesigned.
