2711P-T10C22D9P provides a larger touchscreen operator interface for a PanelView Plus 7 Performance HMI application.
Replacement planning must preserve the FactoryTalk View ME project, communication path, terminal settings, user files, and supported firmware environment.
Confirm the exact catalog number, hardware series, panel cutout, mounting hardware, gasket, DC power, Ethernet topology, and connected peripherals before installation.
Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

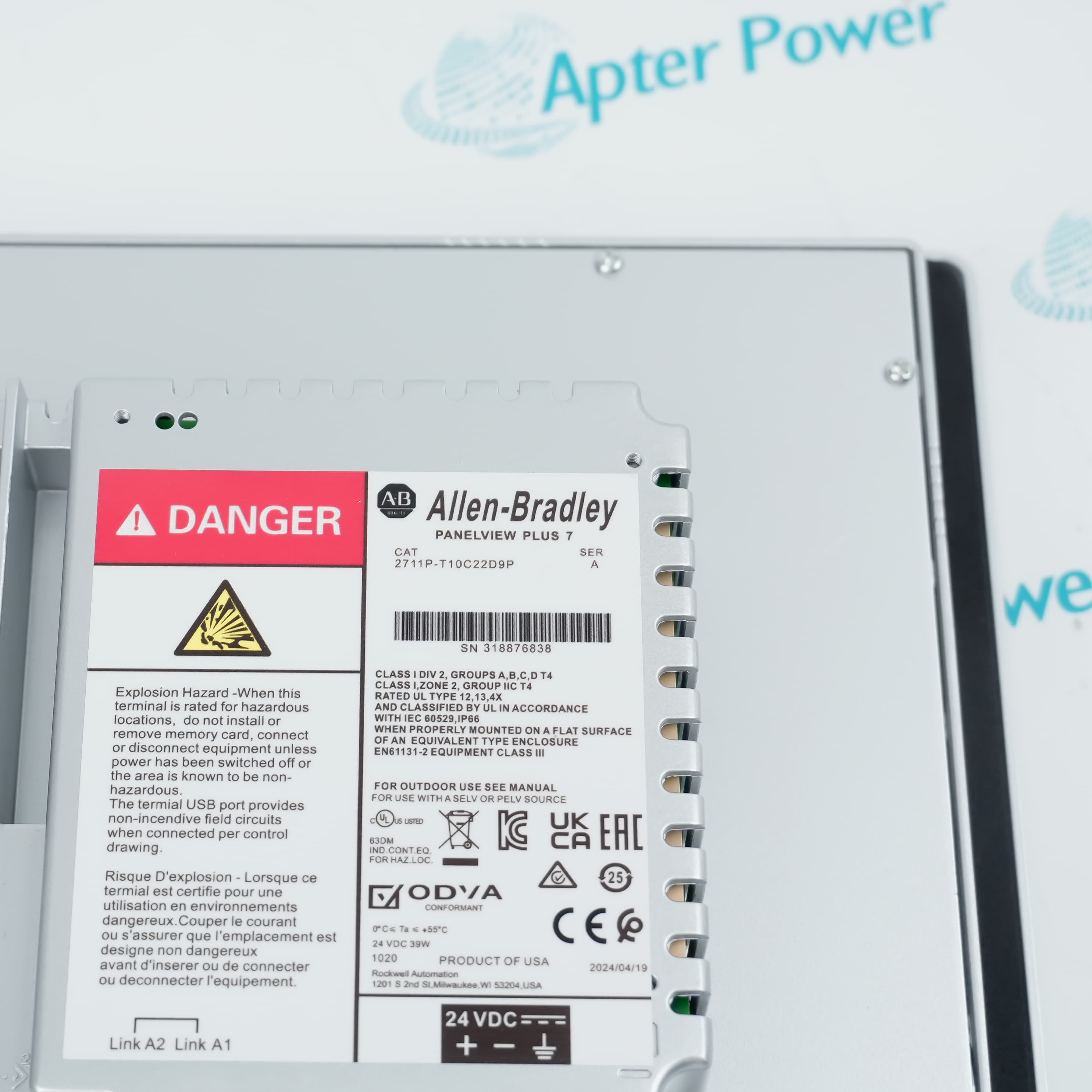

2711P-T10C22D9P is an Allen-Bradley PanelView Plus 7 Performance graphic terminal with a 10.4-inch color TFT display, 800 × 600 resolution, and analog resistive touch input.
The terminal operates from 18…30 V DC and provides two 10/100Base-T Ethernet ports with Device Level Ring support. Series A provides two USB 2.0 host ports and uses Windows CE 6.0; Series B provides one USB 3.0 host port plus one USB 2.0 host port and uses Windows 10 IoT Core. Both series include one USB 2.0 device port identified in Rockwell Automation technical data as reserved for future functionality.
Before installation or replacement, back up the FactoryTalk View ME application and terminal settings, then verify the hardware series, firmware, panel cutout, gasket, DC supply, Ethernet topology, USB devices, and peripheral compatibility.
