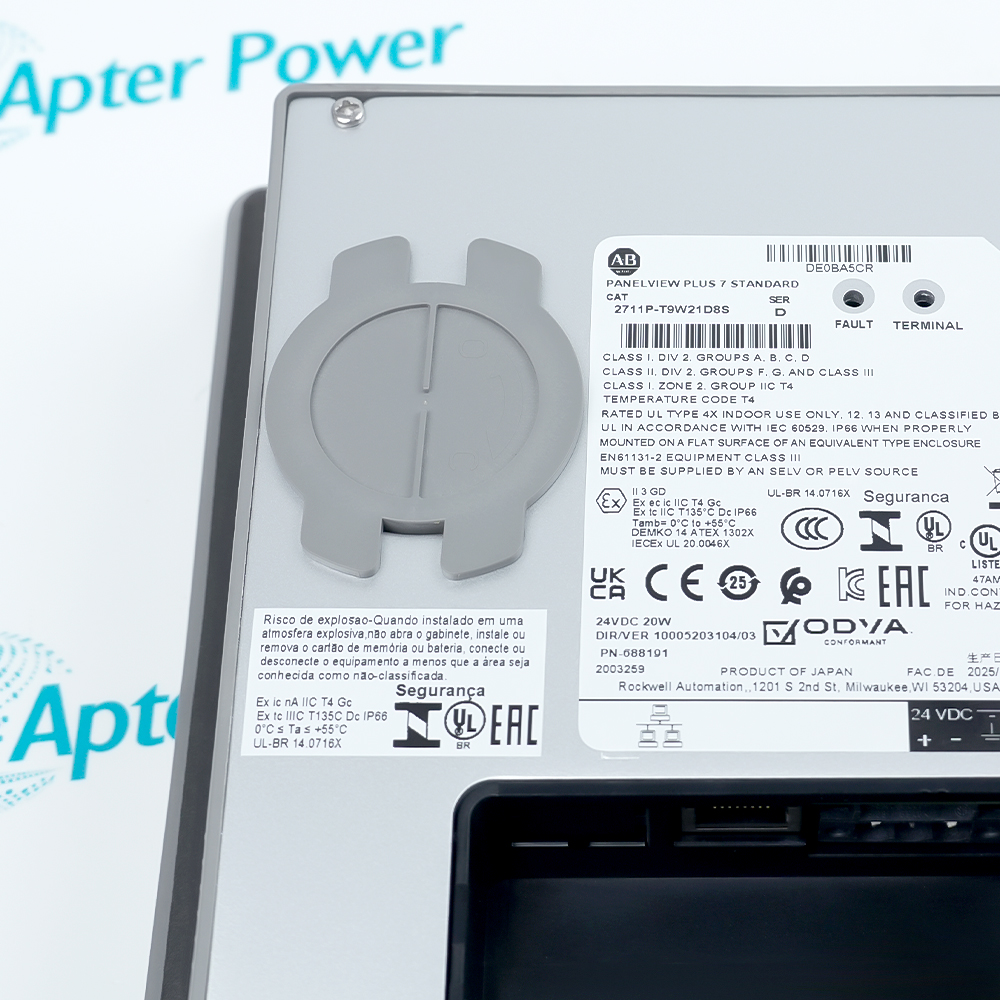

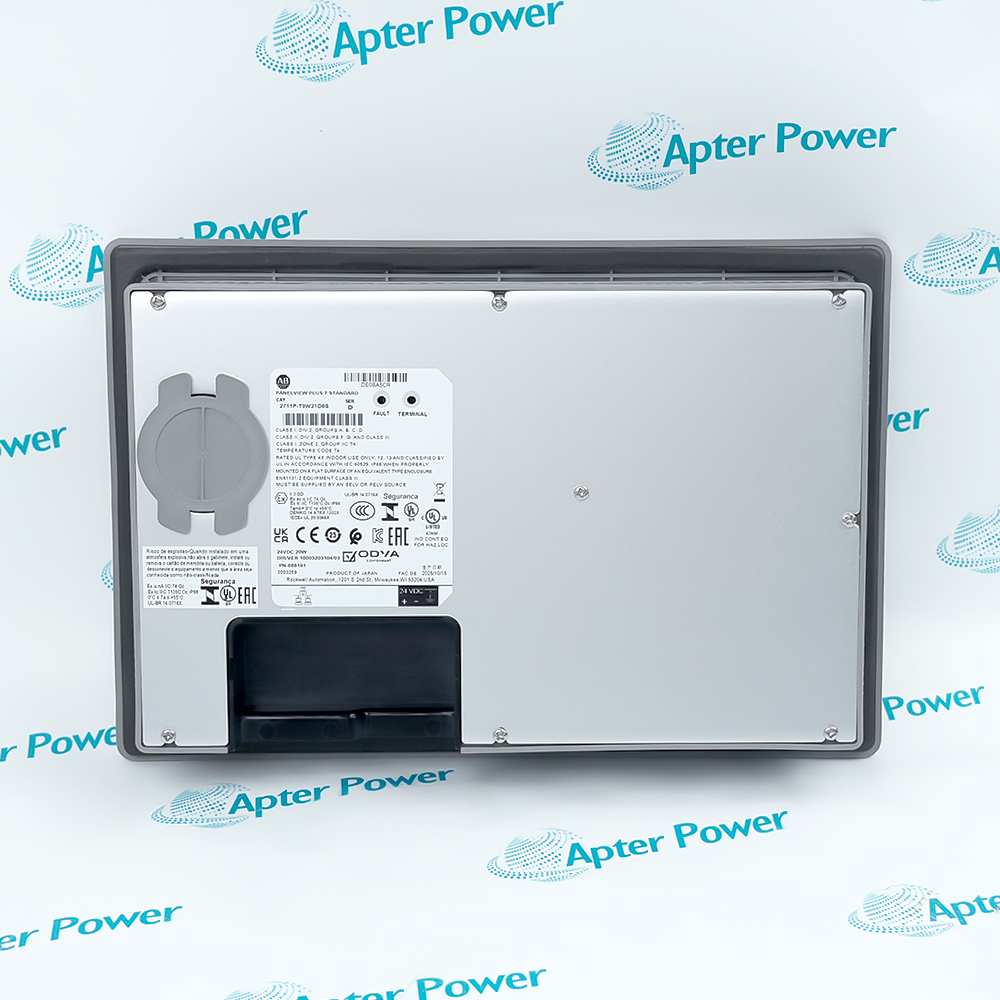

2711P-T9W21D8S

/ 4.9
1001 reviews | Need a Specific Revision?
Machine visualization and touch control are provided by Allen-Bradley 2711P-T9W21D8S, a 9-inch PanelView Plus 7 Standard HMI with one Ethernet endpoint.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2711P-T9W21D8S
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2711P-T9W21D8S

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2711P-T9W21D8S
  • Product Family:
    Panelview Plus
  • Product Type:
    9-Inch Widescreen Single-Ethernet Touch Terminal
  • Stock:
    1
  • Display size:
    9 in. widescreen
  • Display technology:
    Color TFT LCD
  • Viewing area:
    196 x 118 mm
  • Resolution:
    800 x 480 WVGA, 18-bit color
  • Aspect ratio:
    5:3
  • Typical brightness:
    300 nits
  • Backlight life:
    50,000 h minimum at 40 °C to half brightness
  • Touch technology:
    Analog resistive
  • Touch actuation rating:
    1 million presses
  • Ethernet port:
    One 10/100Base-T Auto MDI/MDI-X with IEEE 1588 support
  • Supported network topology:
    Star endpoint
  • System memory:
    512 MB RAM and 512 MB storage
  • Application storage:
    80 MB nonvolatile
  • Removable storage:
    One SD card slot
  • USB interfaces:
    One USB 2.0 host and one USB 1.0 device port
  • Input voltage:
    24 V DC nominal, 18–30 V DC
  • Maximum power consumption:
    50 W, 2.1 A at 24 V DC
  • Operating system:
    Windows CE
  • Application software:
    FactoryTalk View Studio Machine Edition 8.0 or later
  • Operating limits:
    One controller, up to 100 screens, and up to 500 alarms
  • Operating temperature:
    0 to 55 °C
  • Enclosure ratings:
    NEMA/UL Type 12, 13, 4X indoor; IP54 or IP66
  • Weight:
    2.84 lbs (1.29 kg)
  • Estimated shipping dimensions:
    19x28x5.65cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Wide Display Single Ethernet Memory Flow Application Scope

Features:

  • Presents machine information on a 9-inch 800 x 480 color resistive touch interface.
  • Connects as a single-port 10/100Base-T Ethernet endpoint with IEEE 1588 support.
  • Runs the Machine Edition application locally with internal, SD, and USB file-storage paths.
Allen-Bradley 2711P-T9W21D8S gives the operator a 5:3 widescreen workspace for one-controller machine applications with up to 100 screens and 500 alarms.

The single Ethernet port links the HMI to a star network as an endpoint, leaving network transit and ring switching to external infrastructure.

Machine Edition Station runs from internal memory, while the SD slot and two different USB roles separate removable storage from host-computer access.
Allen-Bradley 2711P-T9W21D8S 9-Inch Widescreen Single-Ethernet Touch Terminal Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Screen and Touch Operation

  • Image area: The 196 x 118 mm viewing area presents an 800 x 480 WVGA image.
  • Color depth: Eighteen-bit color graphics provide the local Machine Edition display surface.
  • Touch sensing: The analog resistive layer accepts pressure from the operator at the displayed control location.
  • Backlight boundary: The fixed backlight is rated to half brightness after the documented operating interval.

Endpoint Communication Path

  • Port count: The 21 ordering code provides one 10/100Base-T Ethernet interface.
  • Cable detection: Auto MDI/MDI-X adapts the endpoint connection without a crossover-cable requirement.
  • Time support: The Ethernet interface includes IEEE 1588 support.
  • Topology limit: The single-port terminal cannot relay a linear or DLR path through a second HMI port.

Runtime and Removable Files

  • Runtime memory: The terminal combines 512 MB RAM with 512 MB system storage.
  • Application space: Eighty megabytes of nonvolatile memory hold the HMI application.
  • Card transfer: The SD slot provides a removable path for supported application files.
  • USB roles: Separate host and device ports divide removable storage from computer connection.

Controller and Project Boundaries

  • Controller link: The Standard runtime connects the HMI project to one controller.
  • Screen capacity: The project can contain as many as 100 screens.
  • Alarm capacity: The runtime handles up to 500 alarms.
  • Remote view: The included ViewPoint license supports one client connection to the terminal.
Description
Allen-Bradley 2711P-T9W21D8S is a 9-inch widescreen PanelView Plus 7 Standard operator terminal for machine-level display and touch control. Its 800 x 480 color panel presents FactoryTalk View Machine Edition graphics, while the analog resistive surface converts operator presses into application input.

A single 10/100Base-T port on Allen-Bradley 2711P-T9W21D8S connects the terminal as an Ethernet endpoint with IEEE 1588 support. Because the 21 ordering code provides one Ethernet port, this configuration does not form a linear transit path or Device Level Ring connection through the HMI.

System memory and nonvolatile application storage in Allen-Bradley 2711P-T9W21D8S support the local Machine Edition runtime. An SD slot and USB host port provide removable-file routes, while the USB device port connects a host computer for supported engineering access.

Power for Allen-Bradley 2711P-T9W21D8S enters through an 18–30 V DC nonisolated supply. The terminal mounts through a panel cutout so the sealed front remains available to the operator while Ethernet, USB, storage, and power connections remain behind the enclosure.
Revisions

Revision Part #

Also known as

2711P-T9W21D8S Ser A
2711P-T9W21D8S/A, Series A, Rev A
2711P-T9W21D8S Ser B
2711P-T9W21D8S/B, Series B, Rev B
2711P-T9W21D8S Ser C
2711P-T9W21D8S/C, Series C, Rev C
2711P-T9W21D8S Ser D
2711P-T9W21D8S/D, Series D, Rev D
Alternative Names
2711P T9W21D8S 2711PT9W21D8S Allen-Bradley 2711P-T9W21D8S 2711P-T9W21D8S/D 2711P-T9W21D8S Series D 2711P-T9W21D8S Rev D 2711P-T9W21D8S Touch Terminal 271IP-T9W21D8S
Technical notes
Allen-Bradley 2711P-T9W21D8S uses a 9-inch resistive widescreen and one IEEE 1588-capable 10/100Base-T endpoint connection.
