2711P-T15C22D9P

/ 4.9
1001 reviews | Need a Specific Revision?

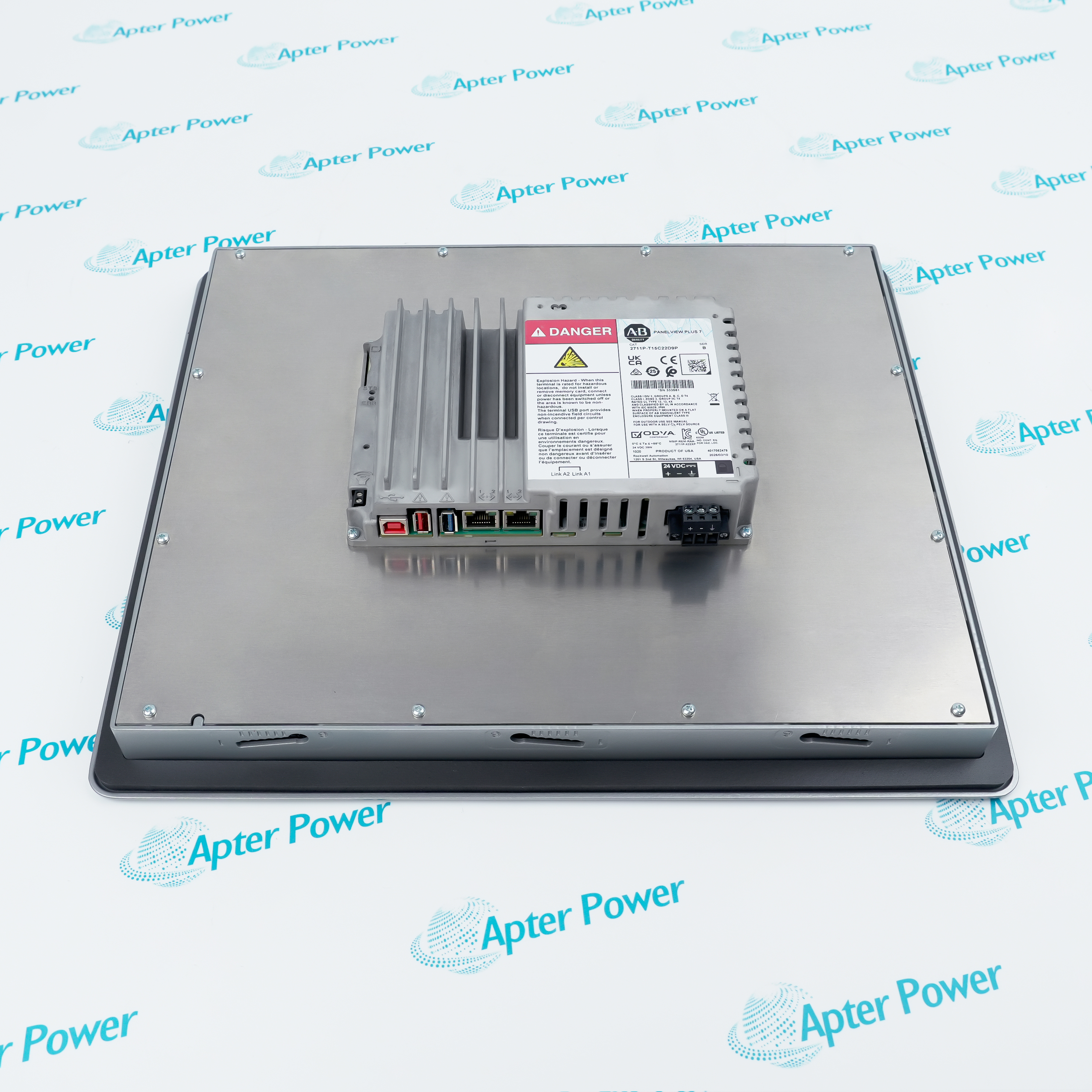

Allen-Bradley 2711P-T15C22D9P is a 15-inch PanelView Plus 7 Performance touch terminal.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2711P-T15C22D9P
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2711P-T15C22D9P

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2711P-T15C22D9P
  • Product Family:
    Panelview Plus
  • Product Type:
    PanelView Plus 7 Performance 15-inch Color Touch DC Terminal
  • Stock:
    1
  • Operator Input:
    Analog-resistive touch
  • Display Type:
    TFT color
  • Display Size:
    15 in. diagonal
  • Viewing Area:
    30.4 × 22.8 cm
  • Display Resolution:
    1024 × 768 XGA
  • Aspect Ratio:
    4:3
  • Color Depth:
    Series A 18-bit; Series B 24-bit
  • Brightness:
    300 cd/m² typical or more
  • Backlight Life:
    50,000 h minimum at 40 °C to half-brightness
  • Touch Actuation Rating:
    1 million presses
  • Touch Operating Force:
    100 g
  • Real-Time Clock Accuracy:
    ±2 min/month
  • RTC Battery:
    CR2032; 4-year minimum life at 25 °C
  • Series A Memory:
    512 MB RAM; 512 MB storage; approximately 80 MB user nonvolatile storage
  • Series B Memory:
    4 GB RAM; 19.87 GB storage; approximately 2 GB user nonvolatile storage
  • SD Card Slot:
    One; supports 1784-SDx and 1784-SDHCx cards
  • Ethernet Ports:
    Two 10/100Base-T Auto MDI/MDIX ports
  • Network Topologies:
    Device Level Ring, linear, or star
  • Input Voltage:
    24 V DC nominal; 18–30 V DC
  • Maximum Power:
    Series A 50 W; Series B 39 W
  • Power Supply Type:
    SELV/PELV 24 V DC
  • Dimensions:
    38.1 × 31.8 × 6.96 cm
  • Weight:
    3.69 kg
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Series compatibility Network and media Installation Application
  • 15-inch 4:3 TFT color display with 1024 × 768 XGA resolution
  • Analog-resistive touch input with two EtherNet/IP ports supporting DLR, linear, or star topologies
  • 24 V DC nominal input, SD-card slot, USB host ports, and FactoryTalk View Machine Edition support

2711P-T15C22D9P is an Allen-Bradley PanelView Plus 7 Performance terminal for 15-inch color-touch operator-interface applications.

The terminal provides a 304 × 228 mm viewing area, 4:3 aspect ratio, solid-state LED backlight, real-time clock backup, removable storage, and two network ports for DLR, linear, or star topologies.

Before replacement, identify the terminal series and preserve the FactoryTalk View ME project, firmware, network settings, storage-media contents, 24 V DC source, cutout, clips, grounding, and enclosure sealing.

Availability, condition, price, and shipping time for 2711P-T15C22D9P are confirmed during quotation.

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Terminal Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

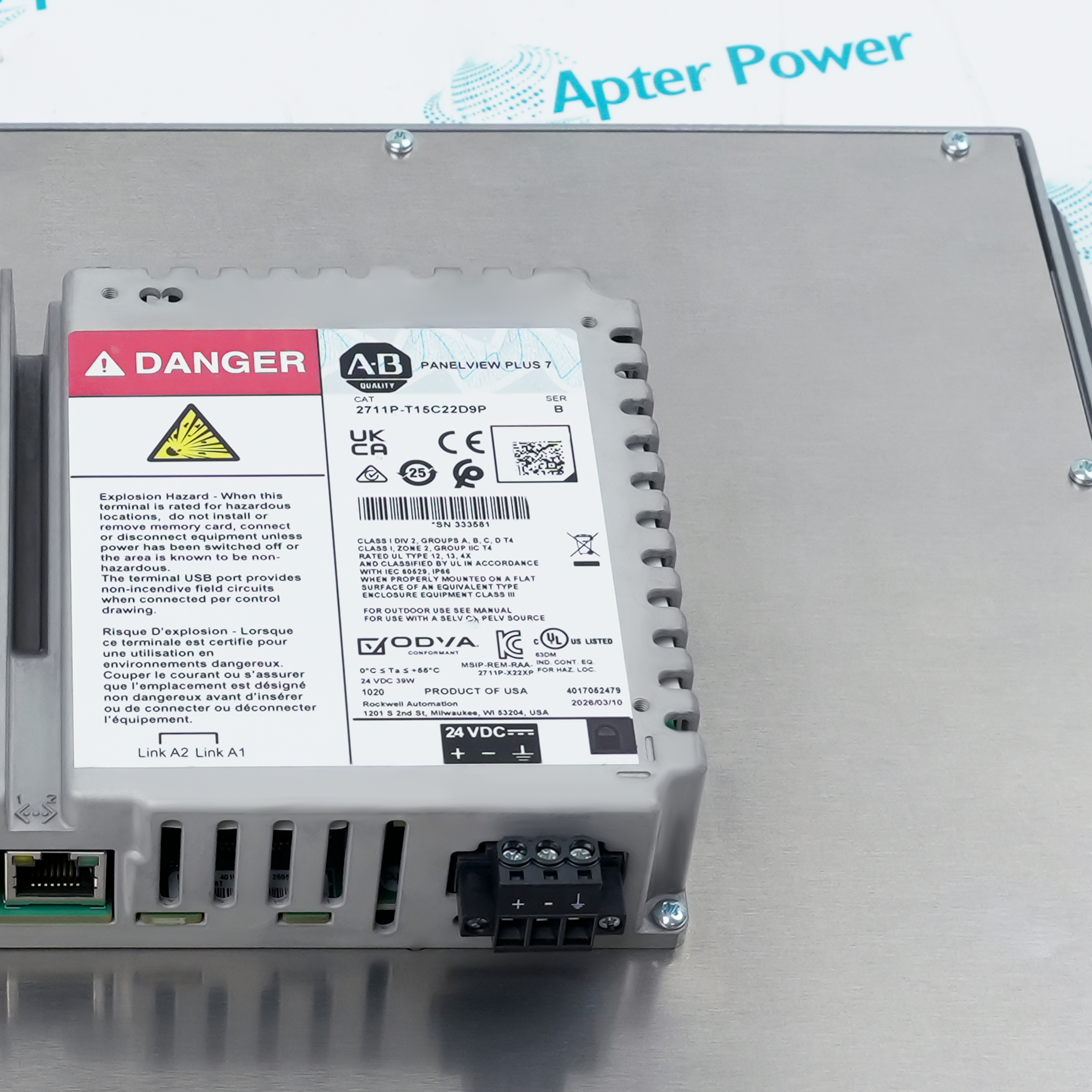

  • Identify the installed terminal series from the nameplate
  • Series A and Series B use different memory, USB and operating-system resources
  • Validate project and firmware compatibility before migration
  • Two EtherNet/IP ports support DLR, linear and star topologies
  • The SD-card slot supports the documented removable-storage media
  • USB-port availability depends on the installed terminal series
  • Verify enclosure opening, rear clearance and mounting-clip engagement
  • Use a suitable SELV or PELV 24 V DC source and confirm grounding
  • Inspect the gasket seal, cable access and panel condition before commissioning
  • FactoryTalk View Machine Edition operator-interface applications
  • EtherNet/IP machine and process visualization
  • PanelView Plus 7 Performance terminal replacement
Description
2711P-T15C22D9P is an Allen-Bradley PanelView Plus 7 Performance terminal with a 15-inch color display and analog-resistive touch input.

The terminal provides 1024 × 768 XGA resolution, two EtherNet/IP ports, removable storage, USB connectivity and 24 V DC operation for FactoryTalk View Machine Edition applications.

Before replacement, confirm the installed series and retain the application, firmware, network settings and storage contents, then verify the power source, enclosure fit, mounting clips, gasket, grounding and cable access.
Revisions

Revision Part #

Also known as

2711P-T15C22D9P Ser A
2711P-T15C22D9P/A, Series A, Rev A
2711P-T15C22D9P Ser B
2711P-T15C22D9P/B, Series B, Rev B
Alternative Names
2711P-T15C22D9P 2711P T15C22D9P 2711PT15C22D9P Allen-Bradley 2711P-T15C22D9P Allen Bradley 2711P T15C22D9P AB 2711P-T15C22D9P PanelView Plus 7 2711P-T15C22D9P 2711P T15 C22 D9P
Technical notes
Allen-Bradley 2711P-T15C22D9P requires the correct series, 24 V DC supply, saved FactoryTalk View ME project, firmware, Ethernet topology, storage media, panel cutout, mounting clips, and enclosure seal.
