        Bently Nevada 330104-08-13-10-01-05
        Bently Nevada 330104-08-13-10-01-05
        Bently Nevada 330104-08-13-10-01-05
        Bently Nevada 330104-08-13-10-01-05
        Bently Nevada 330104-08-13-10-01-05
        Bently Nevada 330104-08-13-10-01-05
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports quotation preparation, sourcing coordination, and matching of the associated measurement loop.

        330104-08-13-10-01-05

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

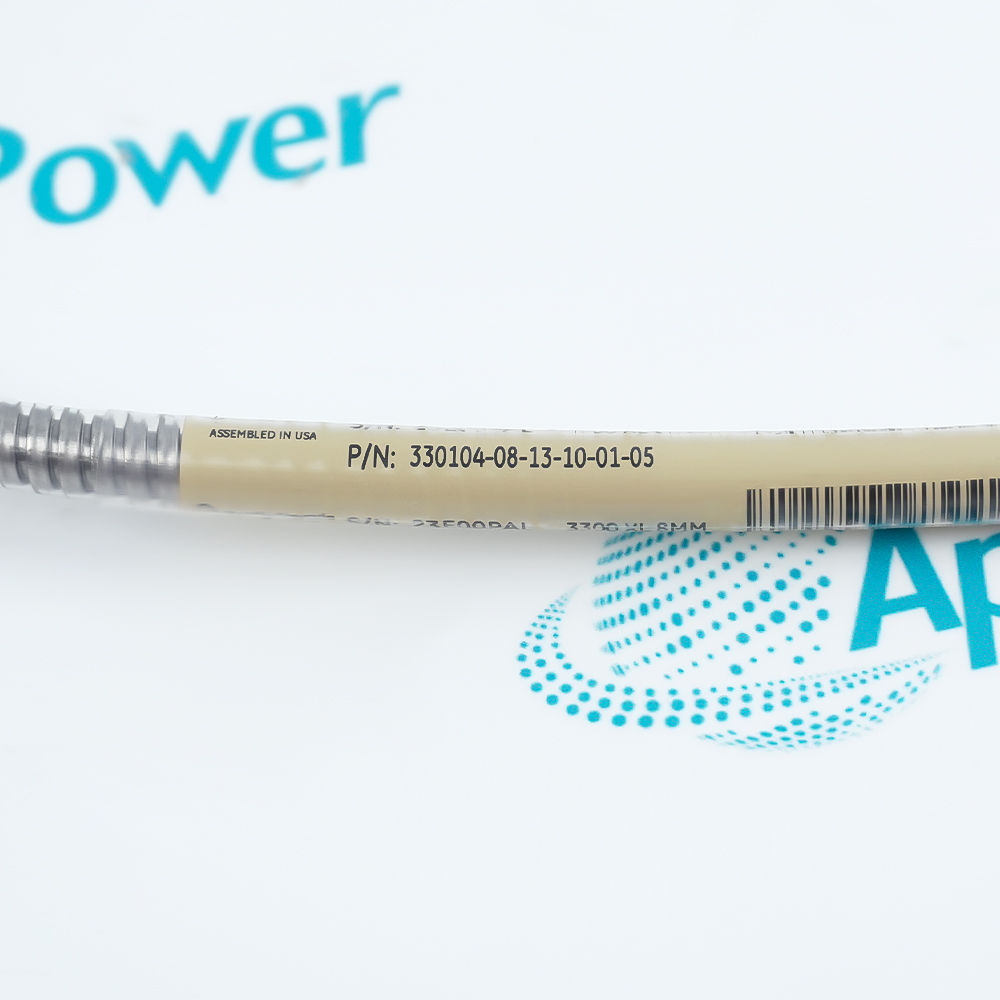

        Bently Nevada 330104-08-13-10-01-05 is a 3300 xl 8 mm proximity probe configured for armored metric probe with m10 x 1 case thread.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 330104-08-13-10-01-05
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330104-08-13-10-01-05

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330104-08-13-10-01-05
        • Product Family:
          3300 XL 8 mm Probe
        • Product Type:
          3300 XL 8 mm Proximity Probe
        • Stock:
          1
        • Probe construction:
          Armored metric probe
        • Case thread:
          M10 x 1
        • Unthreaded length:
          80 mm
        • Overall case length:
          130 mm
        • Total probe length:
          1.0 m
        • Cable and connector:
          ClickLoc connector with protector and standard cable
        • Approval option:
          05, CSA/ATEX/IECEx multiple approvals
        • Sensing method:
          Eddy-current, non-contacting
        • Cable Armor:
          Flexible AISI 302 or 304 stainless steel
        • Armor Outer Jacket:
          FEP
        • Probe Cable Construction:
          75 Ω triaxial, FEP-insulated cable
        • Probe Case Material:
          AISI 303 or 304 stainless steel
        • Probe Tip Material:
          Polyphenylene sulfide (PPS)
        • Nominal Probe DC Resistance:
          7.59 ± 0.50 Ω
        • Maximum Case-to-Lead Tensile Strength:
          330 N (75 lbf)
        • Recommended Probe Case Torque:
          11.2 N·m (100 in·lbf)
        • Maximum Rated Probe Case Torque:
          33.9 N·m (300 in·lbf)
        • Operating and Storage Temperature:
          -52°C to +177°C (-62°F to +350°F)
        • Incremental Scale Factor:
          7.87 V/mm (200 mV/mil) ±5%
        • Deviation from Best-Fit Straight Line:
          Less than ±0.025 mm (±1 mil)
        • Weight:
          0.15 kg
        • Estimated shipping dimensions:
          1.7x1.5x116cm
        • Tariff Code:
          9031809090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Ordering Code Compatibility Performance Environment

        Features:

        • The extended unthreaded section provides additional smooth-case reach through a suitable metric mounting arrangement.
        • Flexible stainless-steel armor protects the integral signal lead against mechanical damage during routing and service.
        • The supplied connector protector adds environmental and mechanical protection around the ClickLoc cable connection.
        This configuration combines an M10 × 1 metric case, 80 mm unthreaded section, 130 mm overall case and 1 m armored standard cable. The order includes approval option 05.

        The sensing coil responds to a conductive target without physical contact. The associated Proximitor Sensor converts changes in the probe gap into a proportional voltage signal.

        Verify the insertion depth, threaded mounting position and armored-cable clearance before installation. The one-meter lead connects directly to a matching one-meter 3300 XL Proximitor Sensor.

        Availability is subject to exact configuration and certification confirmation.
        Verified resources for Bently Nevada 330104-08-13-10-01-05: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Continuous radial-vibration measurement on critical rotating machinery fitted with fluid-film bearings.
        • Non-contacting shaft-position supervision where mechanical contact with the monitored surface is unsuitable.
        • Phase-reference and rotational-speed sensing when incorporated into an engineered Keyphasor monitoring channel.
        • Components within the matching 3300 XL 8 mm family may be exchanged without individually bench-calibrating each component.
        • Specified earlier 3300-series 5 mm and 8 mm components retain electrical and physical interoperability with the XL family.
        • Combining XL and non-XL components restricts the completed loop to the performance limits of the earlier non-XL system.
        • Maintain approximately 40 mm axial or 38 mm radial probe-tip separation to limit interaction between adjacent channels.
        • Shaft diameters below the recommended minimum can alter the system scale factor and require application-specific verification.
        • Long field-wiring runs increase high-frequency signal roll-off and should be checked against the published response curves.
        • Exposure below -34°C may cause premature deterioration of the pressure seal even though the electrical probe has a wider temperature rating.
        • Process media with unusually high or low pH can erode the sensing-tip assembly and create a leakage path.
        • The installation must safely contain process liquids and gases if leakage develops around the probe assembly.
        Description
        Bently Nevada 330104-08-13-10-01-05 3300 XL 8 mm Proximity Probe is a armored metric probe for non-contacting shaft vibration and position measurement. Its M10 x 1 case, 80 mm unthreaded length and 130 mm overall case length define the mechanical fit.

        The probe has a 1.0 m total length and uses ClickLoc connector with protector and standard cable. The supplied approval field is 05, CSA/ATEX/IECEx multiple approvals, so the ordered assembly and site documentation must be checked together.

        Match the probe with a compatible extension cable that completes a 5 m or 9 m 3300 XL system. Confirm target material, mounting clearance, probe gap, cable routing and channel response before commissioning.
        Alternative Names
        330104-08-13-10-01-05 330104 08 13 10 01 05 3301040813100105 Bently Nevada 330104-08-13-10-01-05 Baker Hughes 330104-08-13-10-01-05 330104-08-13-10-01-05 3300 XL 8 mm Proximity Probe Bently Nevada 330104 08 13 10 01 05 Bently Nevada 330104-08-13-10-01-05 3300 XL 8 mm Proximity Probe
        Technical notes
        330104-08-13-10-01-05 is a armored metric probe with 1.0 m total probe length and ClickLoc connector with protector and standard cable. Use it only in a matched 3300 XL 8 mm transducer system.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Which configuration is supplied for 330104-08-13-10-01-05?
        The supplied build is armored metric probe, M10 x 1, 80 mm unthreaded, 130 mm case length and 1.0 m total length.
        How is it connected or matched for 330104-08-13-10-01-05?
        Use a compatible extension cable that completes a 5 m or 9 m 3300 XL system; the calibrated total electrical length and connector style must agree.
        Where is it normally applied for 330104-08-13-10-01-05?
        It is commonly used for radial vibration, shaft position, eccentricity and machine protection measurements.
        What must be checked before replacement for 330104-08-13-10-01-05?
        Match the complete order code, thread, case dimensions, cable length, connector option, approvals and system calibration.
        What should be verified during installation for 330104-08-13-10-01-05?
        Check M10 x 1 thread engagement and the 80 mm exposed length, cable bend radius, connector seating, initial gap voltage and channel response.
        What is needed for a quotation for 330104-08-13-10-01-05?
        Provide the full nameplate code, probe and extension lengths, Proximitor Sensor model, approvals, quantity and destination.
