Features:
- Interface Between the 3300 XL 8mm Proximity Probe and 3300 XL Proximitor® Sensor
- Combines Capability of Signal Extension with Environmental Protection
- Operates in Conjunction with the 3300 XL 8mm Transducer System and Standard 3500 Monitoring System

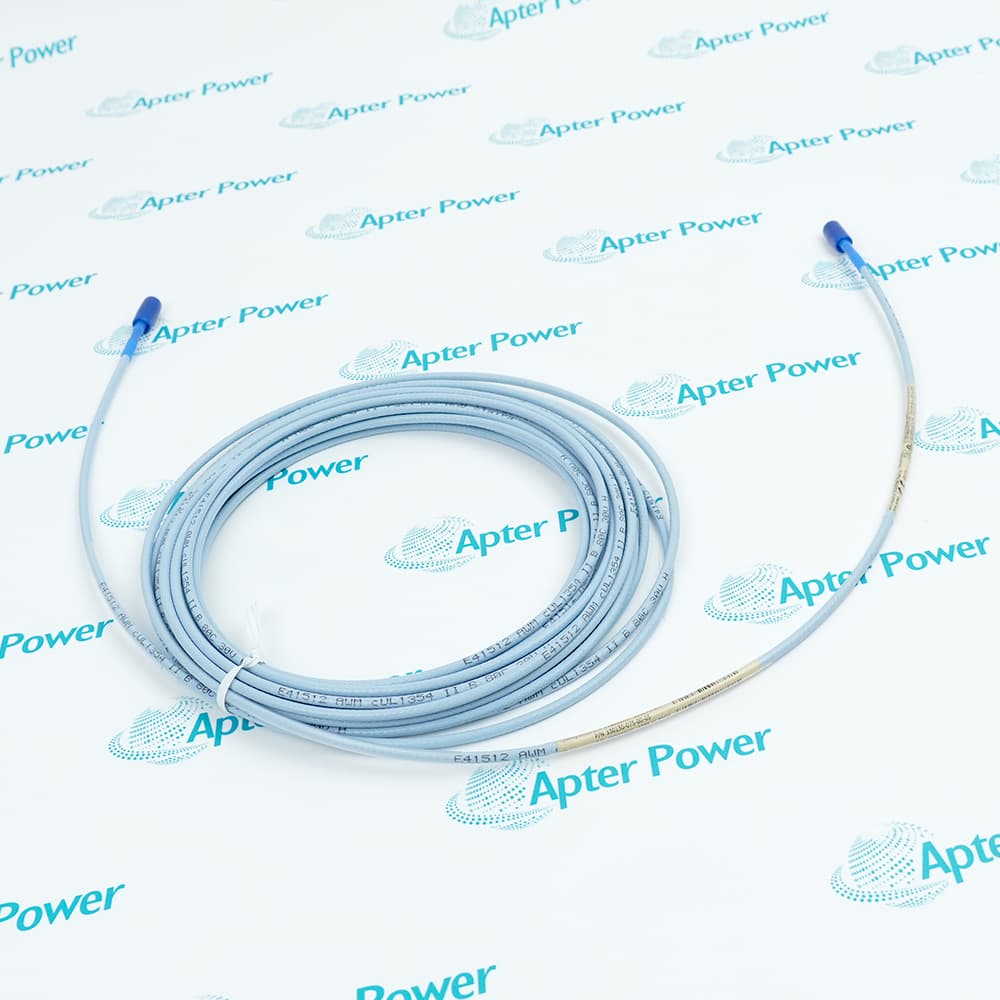

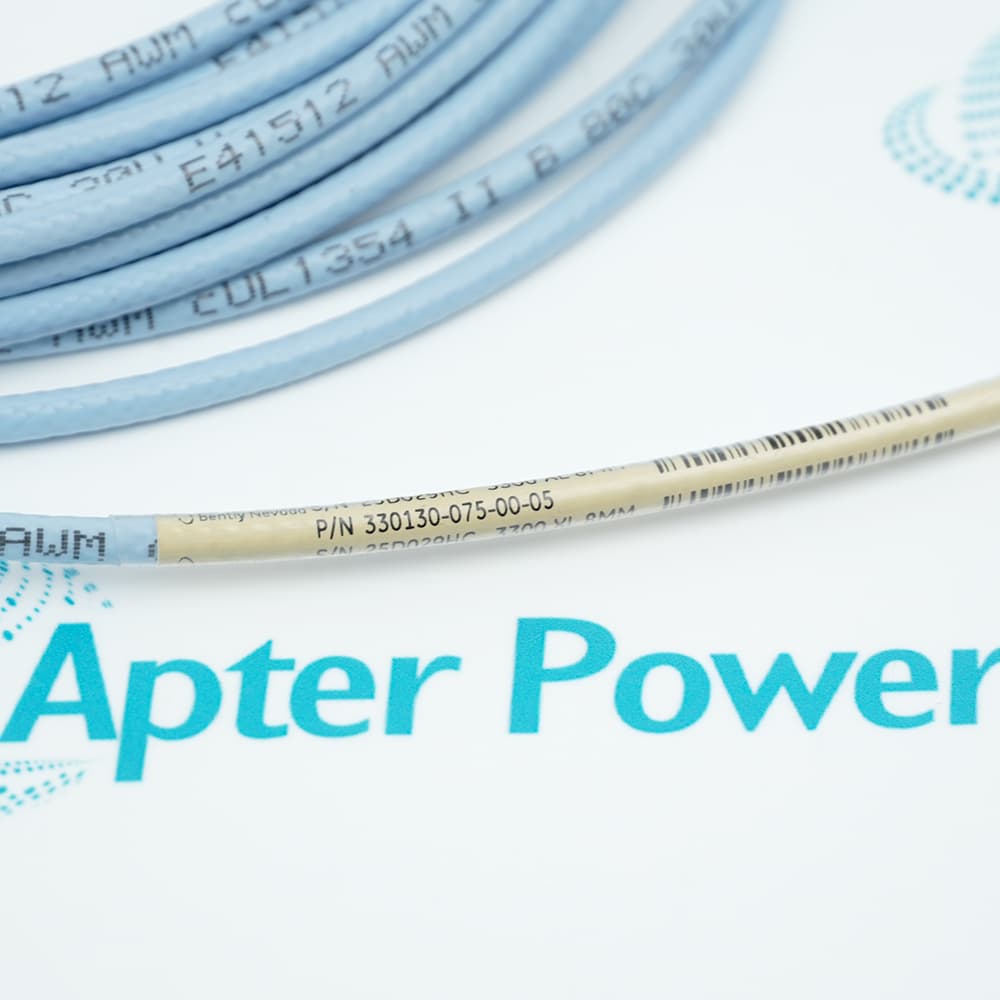

The 330130-075-00-05 operates as the Standard Extension Cable in a 3300 XL 8mm proximity sensor system, providing reliable electrical connection between the probe and the Proximitor® sensor. It continuously transmits the modulated RF signal across 7.5 meters (24.6 feet) of cable length while maintaining signal integrity through FEP-insulated conductors and triple-coaxial shielding. Seamless integration is standard with the 330130-075-00-05, however using an optional CableLoc™ connector design will ensure superior pull strength at the connection point in demanding industrial environments. The 330130-075-00-05 has made improvements in several areas over previous extension cable designs in addition to incorporating ClickLoc™ gold-plated connector technology within the 3300 XL system.
The 330130-075-00-05 provides essential signal extension functions common to the entire transducer system, and is a critical component of the measurement path, directly affecting the accuracy and reliability of the overall vibration monitoring system. One 330130-075-00-05 extension cable is required per transducer channel depending on the physical distance between probe and Proximitor®. The 330130-075-00-05 occupies no rack slots and is always located between the probe (mounted on the machine) and the Proximitor® sensor (typically installed in a junction box or monitor rack).
For complete system operation, the 3300 XL 8mm system requires the 330130-075-00-05 extension cable to bridge the gap between probe and signal conditioner. In addition to standard signal transmission, the 330130-075-00-05 configuration also performs environmental sealing. The 330130-075-00-05 cable assembly executes protection using the FEP armored jacket specified in the cable specifications. Using this method, the extension cable continually guards against oil, moisture, and electromagnetic interference. If the system detects that the cable integrity is compromised (outside specified capacitance of 69.9 pF/m or resistance tolerances), it will indicate a fault condition in the monitoring system and require cable replacement.
The 330130-075-00-05 Bently Nevada Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-075-00-05 Extension Cable Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-075-00-05 Extension Cable Specs
General
- Manufacturer Bently Nevada
- Model 330130-075-00-05
- Condition New Original ready stock
- Product Family 330130-075-00-00,330130-075-00-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Vibration Monitoring: Measuring dynamic vibration on fluid-film bearing machines.
- Position Measurement: Tracking static displacement, such as axial thrust position or differential expansion.
- Speed & Reference: Serving as a Keyphasor reference for speed measurements and phase triggering.
- Harsh Environments: Designed for use in chemical plants and manufacturing facilities requiring high-temperature durability (standard rating up to 177°C / 350°F).
- Early Failure Detection: Provides high-accuracy measurements to identify early signs of component failure.
- Environmental Protection: The "00" option in the part number indicates standard connector protectors are included to shield the gold-plated ClickLoc connectors from moisture and physical damage.
- Hazardous Area Compliance: The "-05" suffix denotes Multiple Approvals, certifying the cable for use in hazardous areas under CSA, ATEX, and IECEx standards.
- System Matching: The electrical length of the probe plus this 7.5m extension cable must match the required total length of the Proximitor Sensor (typically a 9.0m system if used with a 1.5m probe).
- ClickLoc Connectors: Features gold-plated brass connectors that "click" when secure, preventing them from loosening during operation.
- Mounting Flexibility: The 7.5m length provides flexibility for sensor placement in large or complex machinery setups.
- Integration: Seamlessly integrates with Bently Nevada monitoring systems like the 3500 Series or the 1900/65A General Purpose Equipment Monitor.
