    Apter Power sources current-production Bently Nevada interface linkages for seamless proximity instrumentation tracking.

330130-080-00-00

/ 4.9
1001 reviews | Need a Specific Revision?
With a cable length of 8.0 meters (26.2 feet), the 330130-080-00-00 offers extended reach for flexible installation without compromising performance.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-080-00-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-080-00-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-080-00-00
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Standard Extension Cable
  • Stock:
    3
  • Cable Length:
    8.0 meters (26.2 feet)
  • Connector Protector and Cable:
    Standard cable
  • Agency Approval:
    Not required
  • Maximum Connector Torque:
    0.565 N•m (5 in•lbf)
  • Extension Cable Capacitance:
    69.9 pF
  • Application:
    Designed for use within 3300 XL 8 mm systems, including Proximitor Sensor and 8 mm probe.
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    22x22x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Performance & Efficiency

Features:

  • Extended Reach for flexible system installation.
  • Robust Connectivity ensures secure and reliable electrical connections in industrial environments.
  • Enhanced Environmental Protection offers improved durability against moisture and contaminants.
With a length of 8.0 meters (26.2 feet), it allows flexible placement of the Proximitor Sensor far from the probe location while maintaining system integrity.

Equipped with corrosion-resistant, gold-plated ClickLoc connectors, this model requires only finger-tight torque for a secure, locking connection that will not loosen.

The inclusion of a connector protector provides increased defense against moisture and contaminants, making it suitable for harsh industrial operating environments.

The 330130-080-00-00 Bently Nevadastandard extension cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-080-00-00 standard extension cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-080-00-00 standard extension cable

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-080-00-00
  • Condition New Original ready stock
  • Product Family 330130-030-00-00,330130-035-00-00,330130-080-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Extends the distance between a 3300 XL 8 mm probe and its Proximitor Sensor.
  • Suitable for vibration and position measurements on fluid-film bearing machines./span>
  • Used for keyphasor reference and speed measurements.
  • Compatible with both standard and extended temperature range (ETR) probes to form a complete 5 or 9-meter system.
  • Standard operating temperature range for the cable is -52°C to +177°C (-62°F to +350°F).
  • It can be installed in fiberglass housings due to high RFI/EMI immunity.
  • The FEP insulation provides resistance to harsh industrial environments.
  • Not recommended for use with silicone tape on connections exposed to turbine oil.
  • Nominal DC resistance from center conductor to center conductor is 1.76 Ω ± 0.26 Ω.
  • Nominal capacitance is 69.9 pF/m (21.3 pF/ft) typical.
  • When combined with a probe and sensor, the system provides a standard Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil).
  • The system supports complete interchangeability with other 3300 XL components, eliminating the need for individual component matching.
Description

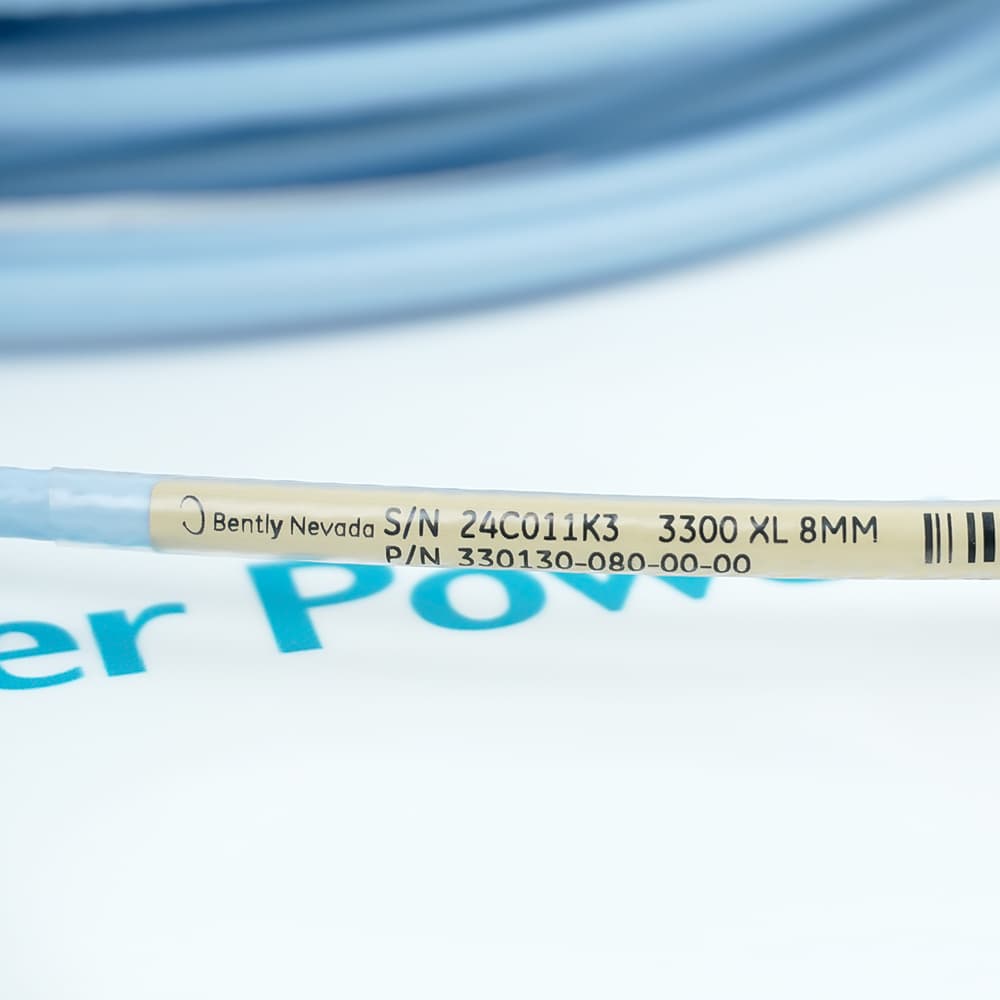

The 330130-080-00-00 is a standard extension cable designed for the 3300 XL series, providing reliable connectivity for industrial applications.

With a cable length of 8.0 meters (26.2 feet), the 330130-080-00-00 offers extended reach for flexible installation without compromising performance.

330130-080-00-00 features a connector protector and a standard cable, ensuring basic durability and secure connections in typical operating environments.

The 330130-080-00-00 does not require agency approvals, making it suitable for applications where formal certifications are not necessary.
Alternative Names
33O13O-O8O-OO-OO 330I30-080-00-00 330130 080 00 00 330130-080-00-05 330130-080-00-CN 330130-080-00-RU 330130-080-00-BR 330130-040-00-00
Technical notes
The Bently Nevada 330130-080-00-00 is a standard extension cable with a connector protector, designed for the 3300 XL 8 mm Proximity Transducer System. It has a 75Ω triaxial FEP insulation, a temperature range of –52°C to +177°C, and requires no hazardous area agency approvals (Option "00").
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the minimum bend radius for the 330130-080-00-00 cable?
The cable should not be bent tighter than 25.4 mm (1.0 in) to avoid damage and maintain signal integrity.
What metals are used for the 330130-080-00-00 connector contacts?
The connector contacts are made from either gold-plated brass or gold-plated beryllium-copper, providing excellent conductivity and corrosion resistance.
What is the primary function of the 330130-080-00-00?
The 330130-080-00-00 is an 8.0‑meter standard extension cable that connects a 3300 XL proximity probe to its Proximitor sensor for reliable signal transmission.
What is the cable construction of the 330130-080-00-00?
The 330130-080-00-00 features standard cable construction (no armor) with FEP insulation, double‑shielded 75Ω triaxial design, and low capacitance of 69.9 pF/m.
