330901-00-55-05-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

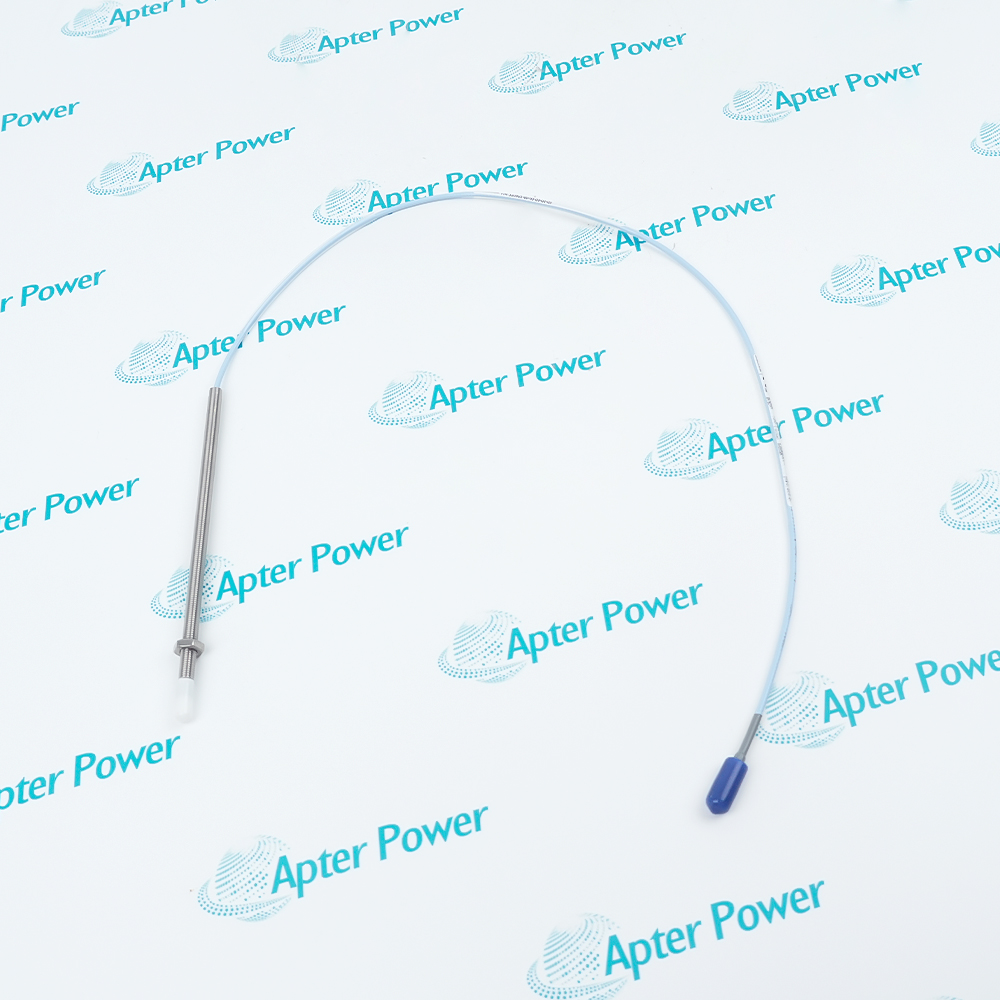

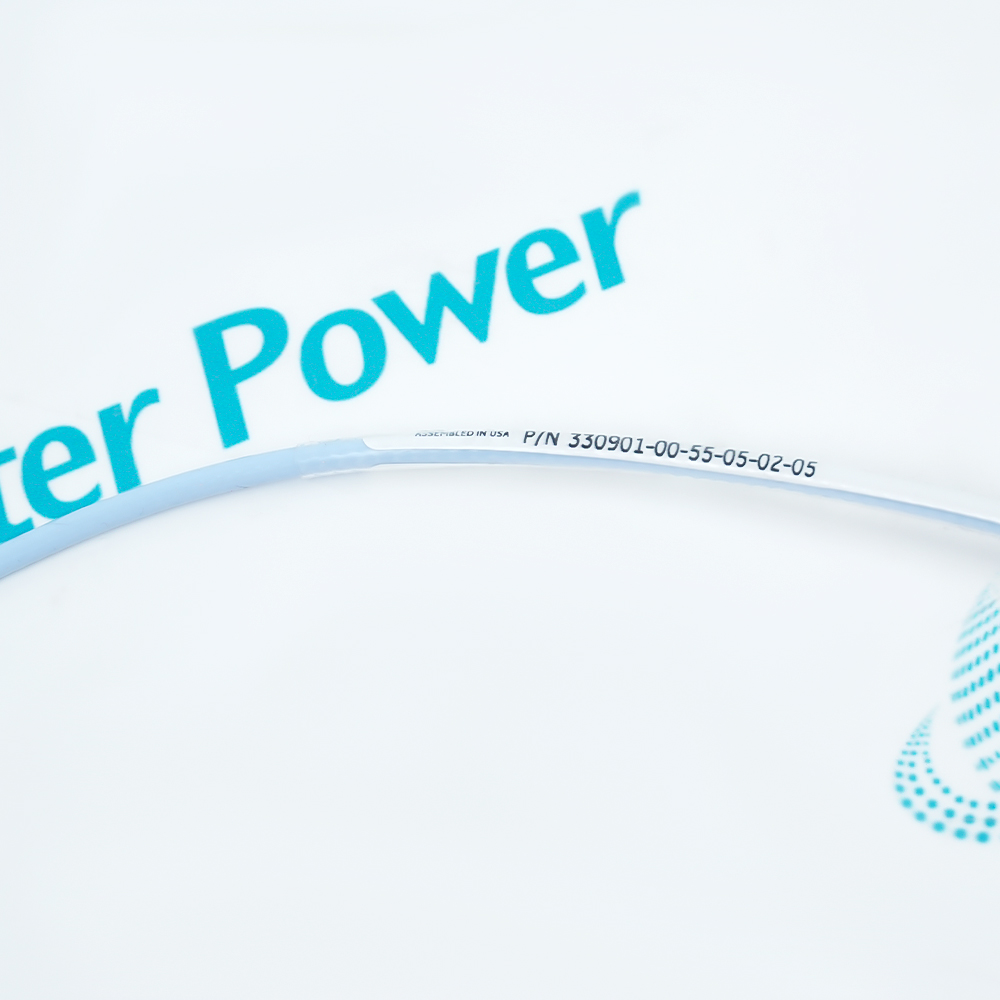

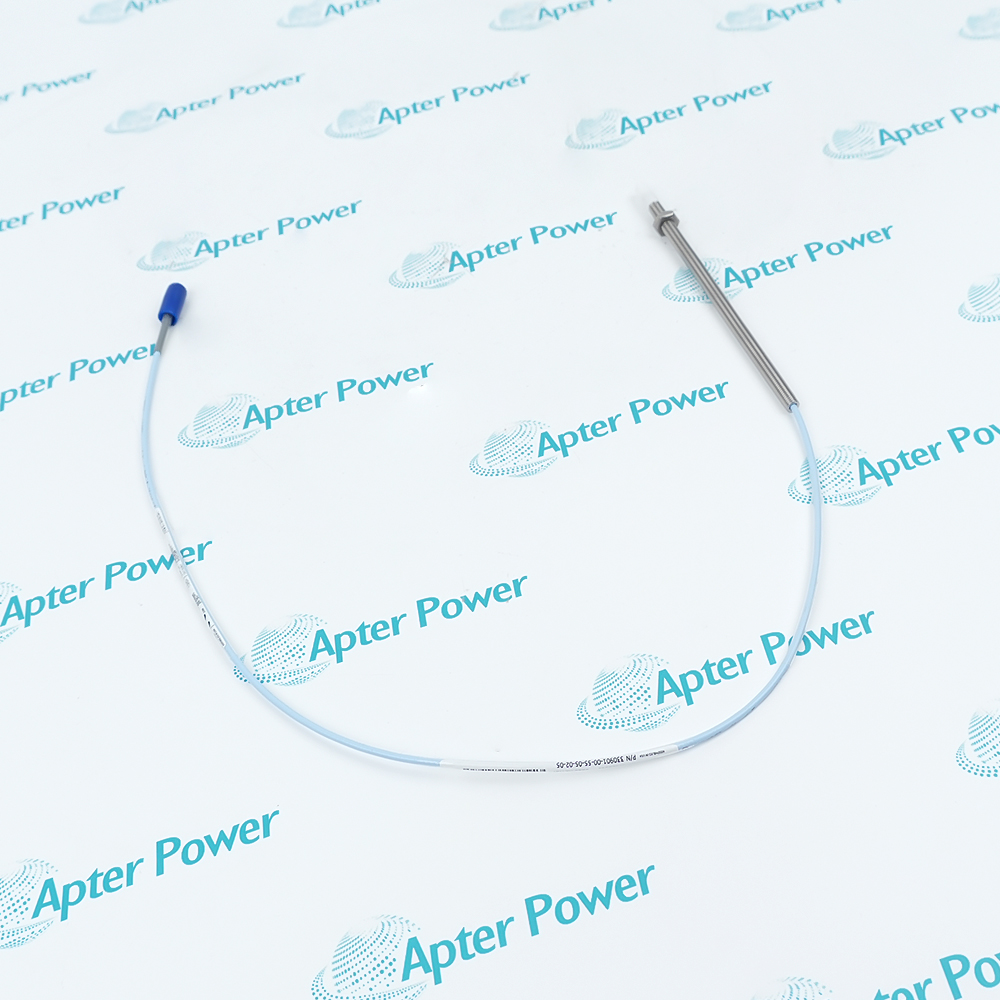

Bently Nevada 330901-00-55-05-02-05 is a 3300 NSv proximity probe for non-contact measurements where shaft targets and installation clearances are limited.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 330901-00-55-05-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330901-00-55-05-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330901-00-55-05-02-05
  • Product Family:
    NSV Probe
  • Product Type:
    3300 XL NSv Proximity Probe
  • Stock:
    1
  • Probe thread:
    1/4-28 UNF
  • Cable armor:
    Without armor
  • Unthreaded length:
    0.0 in
  • Overall case length:
    5.5 in
  • Probe lead length:
    0.5 m
  • Connector option:
    Miniature coaxial ClickLoc connector without protector
  • Cable construction:
    Standard 75-ohm coaxial cable with FEP insulation
  • Approval option:
    Multiple approvals
  • System linear range:
    1.5 mm (60 mils), from 0.25 to 1.75 mm
  • Recommended gap:
    1.0 mm (40 mils)
  • Incremental scale factor:
    7.87 V/mm (200 mV/mil), typical
  • Frequency response:
    0 to 10 kHz, +0/-3 dB
  • Minimum flat target:
    8.9 mm (0.35 in) diameter
  • Minimum cable bend radius:
    25.4 mm (1.0 in)
  • Probe temperature range:
    -52 to +177 °C (-62 to +351 °F)
  • Weight:
    0.11 lbs (0.05 kg)
  • Estimated shipping dimensions:
    1.1x1x70cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals NSv Design Small Targets Probe Layout Environment

Features:

  • Long 5.5-inch 1/4-28 UNF case with no unthreaded section
  • Half-metre standard coaxial lead for the NSv transducer chain
  • Miniature ClickLoc connector supplied without a protector
The 330901-00-55-05-02-05 belongs to the 3300 XL NSv system, whose probe geometry addresses smaller shaft targets and restricted mounting locations.

Its order blocks combine extended threaded reach with a short attached lead, placing the detachable connection near the probe while allowing the tip to reach through a deeper bracket.

The multiple-approval configuration uses standard FEP-insulated coaxial cable and must be paired with the correct NSv extension cable and Proximitor Sensor length.

The Bently Nevada 330901-00-55-05-02-05 3300 NSv Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-55-05-02-05 3300 NSv Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Small-Target Measurement Chain

  • Probe tip: The NSv geometry creates the field used to observe a nearby conductive shaft without contact.
  • Attached lead: The 0.5 m coaxial cable transfers the probe response to the detachable connection.
  • Extension path: A matched NSv extension cable completes the required distance to the sensor electronics.
  • Signal conversion: The Proximitor Sensor converts gap changes into the displacement output used by the monitoring channel.

Target and Gap Setup

  • Target face: The documented minimum flat target is 8.9 mm in diameter.
  • Reference gap: A 1.0 mm starting gap places the target near the center of the linear region.
  • Linear span: Expected movement must remain between 0.25 and 1.75 mm from the probe tip.
  • Shaft selection: Target diameter and probe arrangement must satisfy the NSv spacing guidance together.

Case and Cable Positioning

  • Threaded reach: The 5.5-inch case has 1/4-28 UNF thread and no plain section.
  • Cable exit: The standard coaxial lead leaves the rear of the long threaded body.
  • Connector form: Option 02 specifies a miniature ClickLoc connector without a protector.
  • Field separation: Adjacent probes need the documented spacing or axial offset to prevent cross-talk.

Material and Temperature Limits

  • Sensing tip: Polyphenylene sulfide forms the probe tip around the sensing element.
  • Case: AISI 304 stainless steel provides the threaded probe body.
  • Lead insulation: FEP insulation protects the 75-ohm standard coaxial cable.
  • Temperature range: The probe assembly is rated from -52 to +177 °C.
Description
Bently Nevada 330901-00-55-05-02-05 is a 3300 NSv proximity probe designed for non-contact shaft measurements where a smaller target or restricted probe location governs the installation. It works with a matched NSv extension cable and Proximitor Sensor to translate shaft-to-tip distance into the monitoring signal.

The slender field geometry of 330901-00-55-05-02-05 supports a flat target as small as 8.9 mm in diameter. A 1.0 mm nominal gap centers expected motion within the 0.25 to 1.75 mm linear interval, letting the probe follow displacement without touching the rotating surface.

For mechanical positioning, 330901-00-55-05-02-05 provides a 5.5-inch case threaded 1/4-28 UNF over the configured length, with no unthreaded section. This long, narrow mounting form can place the tip near a confined shaft while the cable exit remains accessible outside the bracket.

A 0.5 m standard coaxial lead carries the response from 330901-00-55-05-02-05 to a miniature ClickLoc connector supplied without a protector. The cable route must maintain a 25.4 mm bend radius, and the extension cable must complete the system length required by the connected NSv electronics.

Where two probes observe the same shaft, 330901-00-55-05-02-05 must be positioned with the documented separation or axial offset so the electromagnetic fields do not interfere. The shaft diameter and probe spacing therefore have to be evaluated together rather than treating each mounting hole independently.
Alternative Names
3309010055050205 330901 00 55 05 02 05 330901-0055050205 Bently Nevada 330901-00-55-05-02-05 330901-00-55-05-02-05 3300 NSv Probe Bently Nevada 330901 00 55 05 02 05 3300 NSv Probe 330901-00-55-05-02-05 33090I-00-55-05-02-05
Technical notes
Bently Nevada 330901-00-55-05-02-05 uses a 5.5-inch fully threaded case and 0.5 m standard coaxial lead. Its ClickLoc connector is supplied without a protector.
