    Apter Power delivers factory-original Bently Nevada sensors to guarantee high-precision eddy current vibration analysis.

330910-14-19-10-02-00

/ 4.9
1001 reviews | Need a Specific Revision?

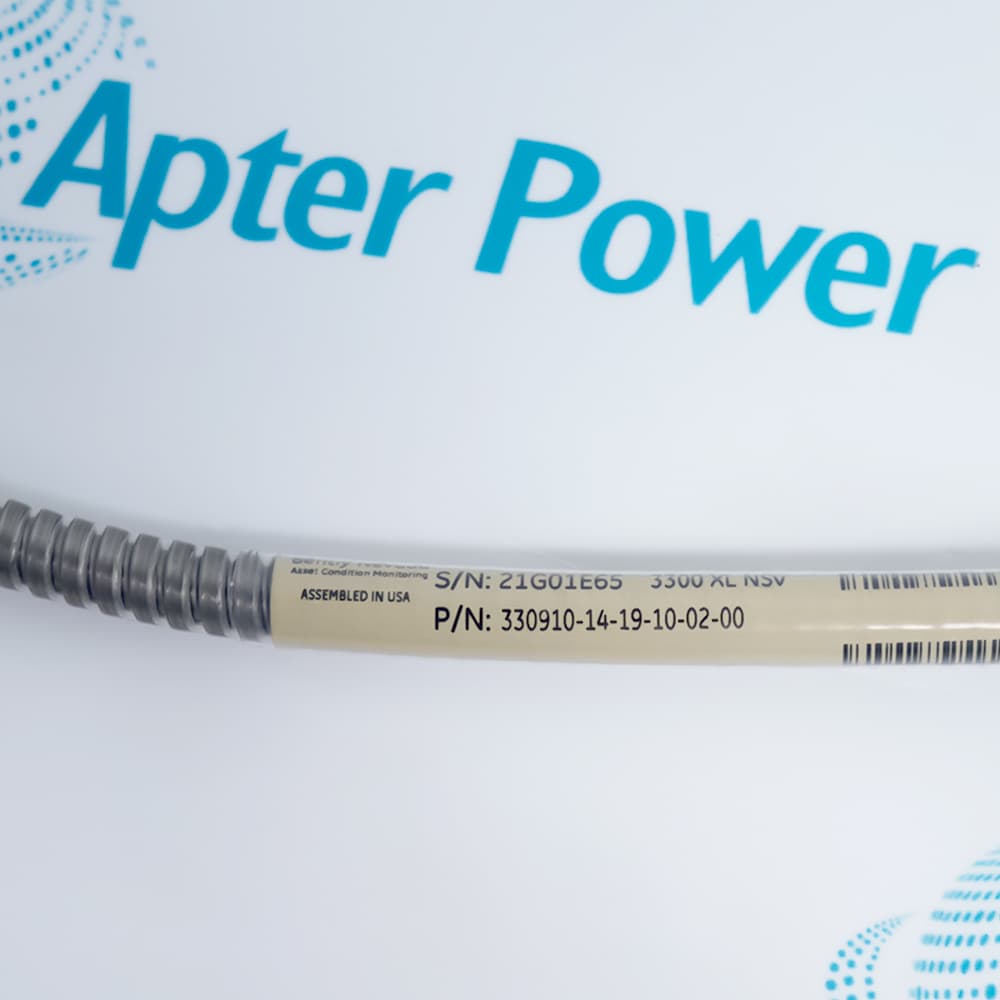

Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe with 1.0 meter cable, AISI 304 stainless steel case, designed for precision vibration and position monitoring in tight installation applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330910-14-19-10-02-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330910-14-19-10-02-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330910-14-19-10-02-00
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv Proximity Probe
  • Stock:
    1
  • Unthreaded Length Option:
    14=140 mm
  • Overall Case Length Option:
    19=190 mm
  • Total Length Option:
    10=1.0 meter (39 in)
  • Connector and Cable-Type Option:
    02=Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval Option:
    00=Not required
  • Probe dc Resistance:
    4.2 ± 0.5 ohms
  • Operating Temperature:
    -52°C to +177°C (-62°F to +351°F)
  • Weight:
    0.14 kg
  • Estimated shipping dimensions:
    1.8x1.6x110cm
  • Tariff Code:
    8411999000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostic Protection Installation & Upgrades

Features:

  • M10×1 metric threads with armored cable for tight‑clearance applications.
  • 140 mm unthreaded with 190 mm case for deep mounting.
  • Patented TiLoc and CableLoc technologies for robust mechanical durability.
The 330910-14-19-10-02-00 is an NSv (narrow sideview) proximity probe specifically designed for applications where standard 5mm and 8mm probes cannot fit due to counter bore, sideview, or rearview restrictions. The armored cable provides enhanced mechanical protection against physical damage, making the 330910-14-19-10-02-00 suitable for applications in centrifugal compressors, refrigeration compressors, and process gas compressors where cable routing may be challenging. With a 140 mm unthreaded length and 190 mm overall case length, the 330910-14-19-10-02-00 offers extended reach for deep mounting applications while maintaining robust mechanical protection.

The 330910-14-19-10-02-00 is specifically engineered for applications with tight installation clearances, excelling in measuring radial vibration on shafts smaller than 51 mm (2 inches) and axial position on flat targets smaller than 15 mm (0.6 inches). The 330910-14-19-10-02-00 delivers an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the industry standard for eddy current transducers, with a linear range of 1.5 mm (60 mils) exceeding the linear range of older 3000‑series 190 Transducer Systems. The 330910-14-19-10-02-00 incorporates patented TiLoc molding and CableLoc technology providing 220 N (50 lbf) pull strength.

The 330910-14-19-10-02-00 has the "00" suffix indicating no agency approvals (CSA, ATEX, IECEx not included), making it suitable for installations where hazardous area approvals are not required. When hazardous area approvals are needed, a variant with the "05" suffix should be selected. The 330910-14-19-10-02-00 is fully interchangeable with Bently Nevada's previous 3300 RAM proximity probes and extension cables, eliminating the need for bench calibration. The 330910-14-19-10-02-00 is factory calibrated to AISI 4140 steel by default, with other target material calibrations available upon request.

The 330910-14-19-10-02-00 Bently Nevada 3300 NSv Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330910-14-19-10-02-00
  • Condition New Original ready stock
  • Product Family 330910-14-19-10-02-05,330910-14-19-10-02-CN,330910-14-19-10-02-RU
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Compact Rotating Machinery: Extensively used in centrifugal air compressors, refrigeration compressors, and process gas compressors.
  • Small Shaft Measurements: Ideal for measuring radial vibration or radial position on shafts smaller than 51 mm (2 inches).
  • Small Axial Targets: Ideal for monitoring axial (thrust) position on flat targets smaller than 15 mm (0.6 inches).
  • Restricted Spaces: Used in installations with severe counterbore, side-view, or rear-view restrictions, preventing the probe's side magnetic fields from interacting erroneously with surrounding metal.
  • Machine Protection & Alarm Interlocking: When connected to Bently Nevada monitors (e.g., 3500 series), it provides continuous, real-time vibration data to trigger Alert and Danger (Trip) alarms, preventing catastrophic machinery failure.
  • IChemical & Environment Durability: Features high chemical resistance due to a special polyphenylene sulfide (PPS) tip molding material and an internal pressure seal. This allows safe deployment in environments rich in process chemicals or turbine oil.
  • Signal Integrity (RFI/EMI Immunity): The companion 3300 XL NSv Proximitor Sensor features enhanced immunity against radio frequency and electromagnetic interference, preventing nearby high-frequency radio signals from creating false vibration spikes.
  • Linear Range Setup: The probe has a linear range of 1.5 mm (60 mils) with an Average Scale Factor of 7.87 V/mm (200 mV/mil). The typical gap setup voltage is between -1Vdc and -13Vdc.
  • Strict Torque Limits: During installation, the probe should be tightened only finger-tight, never exceeding 0.56 N·m (5 in·lb) of torque to prevent crushing the internal electronics.
  • Connector Protection: Use connector protectors (such as silicone sleeves or kits) on the probe-to-extension cable joint to prevent turbine oil or water from infiltrating the electrical connection.
  • Cable Bend Radius: Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to protect the 75Ω coaxial/triaxial cable structure.
Description
The Bently Nevada 330910-14-19-10-02-00 is a precision 3300 NSv proximity probe designed for use in centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with restricted installation space. Its compact design, including a 140 mm unthreaded length and 190 mm overall case length, allows for reliable monitoring even in areas with tight clearance.

The 330910-14-19-10-02-00 features a durable AISI 304 stainless steel case and a polyphenylene sulfide (PPS) tip, providing long-lasting performance under harsh industrial conditions. It connects via a Miniature coaxial ClickLoc connector to a standard 1.0 meter 75 Ω coaxial FEP-insulated cable, ensuring stable and precise signal transmission.

Engineered for extreme conditions, the 330910-14-19-10-02-00 operates over a wide temperature range from -52°C to +177°C (-62°F to +351°F) and can be stored safely at the same temperature extremes. It functions with a -24 Vdc power supply and a 10 kΩ load, maintaining a 1.0 mm (40 mils) probe gap to Bently Nevada supplied AISI 4140 steel targets for accurate radial and axial position measurements.

The 330910-14-19-10-02-00 is part of the 3300 XL NSv Transducer System, which includes the 3300 NSv extension cable and 3300 XL NSv Proximitor Sensor, providing a fully integrated solution for vibration, axial position, and Keyphasor signal monitoring. It is ideal for upgrades from older 3300 RAM or 3000/7000-series systems, offering compatibility and seamless integration with existing monitoring equipment.
Alternative Names
33O91O-14-19-1O-O2-OO 3309I0-I4-I9-I0-02-00 330910 14 19 10 02 00 330910-14-19-10-02-05 330910-14-19-10-02-CN 330910-14-19-10-02-RU 330910-14-19-10-02-BR 330910-05-10-02-00
Technical notes
The Bently Nevada 330910-14-19-10-02-00 is a 3300 XL NSv proximity probe with M10×1 metric threads, with armor, designed for vibration and position measurement on fluid‑film bearing machines where tight installation clearances are required.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the 330910-14-19-10-02-00 unthreaded and overall case length?
Unthreaded length is 140 mm, overall case length is 190 mm.
What is the 330910-14-19-10-02-00 total probe length and cable type?
The total length is 1.0 meter (39 in) with a Miniature coaxial ClickLoc connector and standard 75 Ω FEP-insulated cable.
What is the DC resistance of the 330910-14-19-10-02-00 probe?
The probe DC resistance is 4.2 ± 0.5 ohms.
