        Bently Nevada 114M5335-01 3500/15 Low Voltage DC Power Input Module, overall view

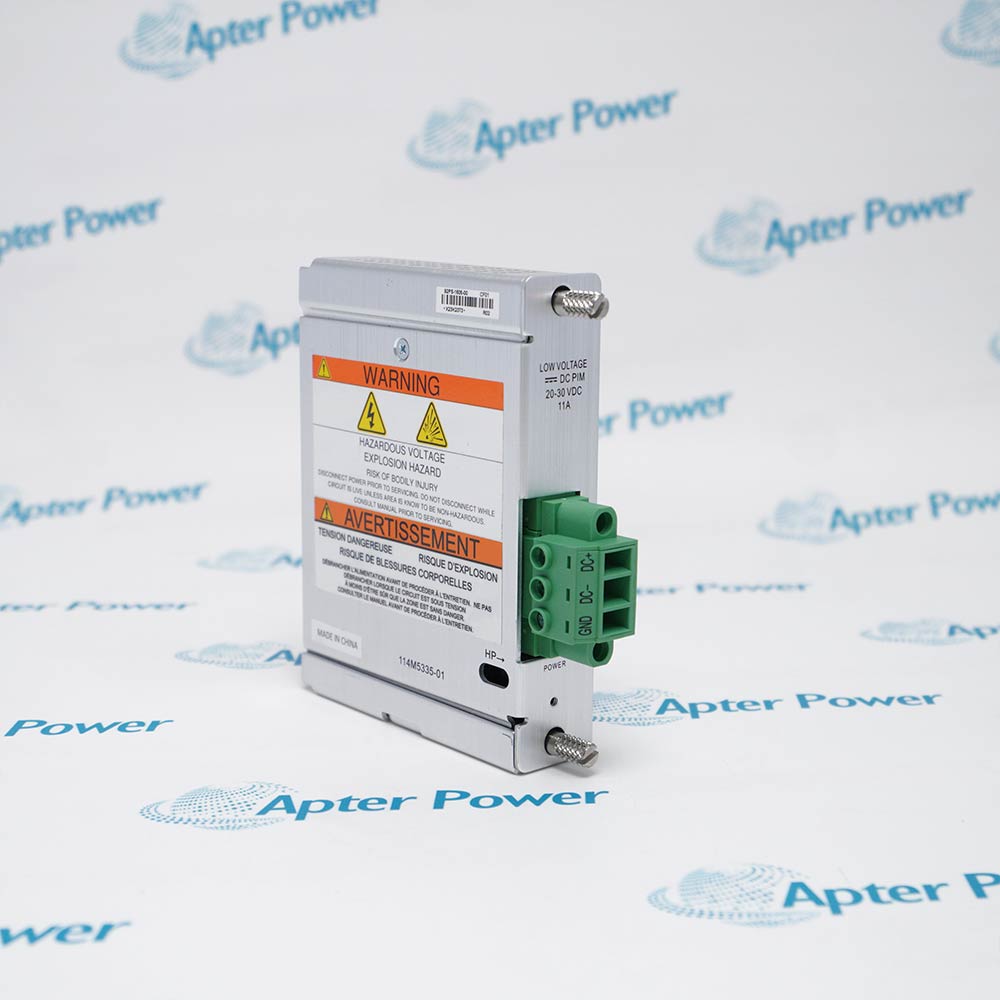

        Bently Nevada 114M5335-01 Low Voltage DC Power Input Module, label and housing

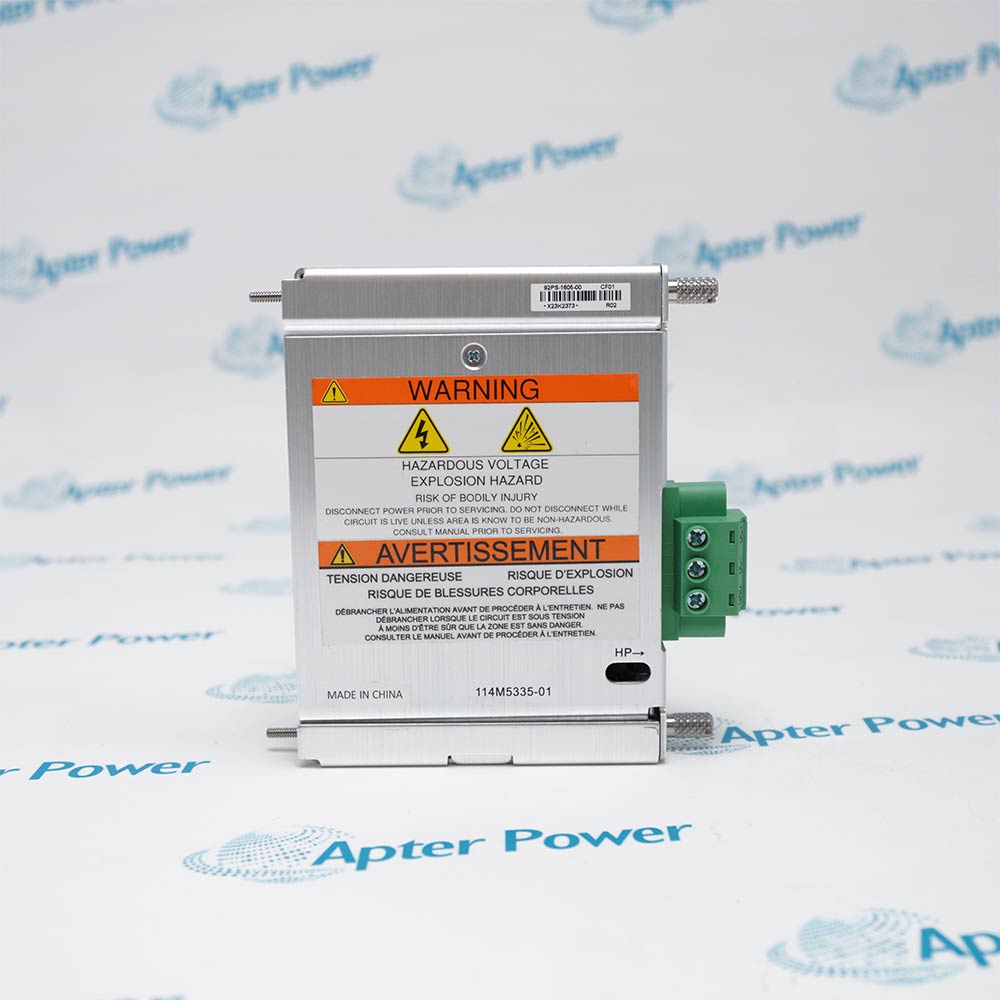

        Bently Nevada 114M5335-01 Low Voltage DC Power Input Module, terminal connector view
        Bently Nevada 114M5335-01 3500/15 Low Voltage DC Power Input Module, overall view
        Bently Nevada 114M5335-01 Low Voltage DC Power Input Module, label and housing
        Bently Nevada 114M5335-01 Low Voltage DC Power Input Module, terminal connector view
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        114M5335-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Bently Nevada 114M5335-01 is a Low Voltage DC Power Input Module (PIM) designed for the 3500/15 rack, enabling secure 24 V DC power integration for continuous machinery protection system operation.
        Get a quick price for 114M5335-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 114M5335-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          114M5335-01
        • Product Family:
          3500 System
        • Product Type:
          Low Voltage DC Power Input Module
        • Description:
          This option uses the Low Voltage DC Power Supply and the Low Voltage DC Power Supply Input Module (PIM).
        • Input voltage:
          20 to 30 Vdc
        • Full Rack Current Draw:
          11.0 A (maximum)
        • Operating temperature:
          -30 °C to +65 °C-22 °F to +150 °F
        • Storage temperature:
          -40 °C to +85 °C-40 °F to +185 °F
        • Humidity:
          95%, non-condensing
        • Weight:
          0.32 kg
        • Estimated shipping dimensions:
          2.5x12x12cm
        • Tariff Code:
          8423900090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Standards Interoperability Application

        Features:

        • Provides Stable Low Voltage DC Input For Continuous Rack Operation.
        • Supports Hot-Swappable Installation Without Interrupting System Performance.
        • Operates Reliably Across A Wide Temperature And Humidity Range.
        The 114M5335-01 Low Voltage DC Power Input Module is designed to interface external 24 V DC power with the 3500/15 rack. Installed at the rear left side of the rack, it ensures secure and consistent power delivery to all modules, supporting a maximum rack current of 11.0 A. Its half-height form factor makes installation and access straightforward while saving valuable rack space.

        This module is engineered for demanding industrial environments, functioning reliably from -30 °C to +65 °C (-22 °F to +150 °F) and storing safely between -40 °C and +85 °C (-40 °F to +185 °F). It can withstand high humidity levels up to 95% non-condensing, ensuring stable performance even under harsh conditions.

        Designed to work in conjunction with the 114M5330-01 front power module, the 114M5335-01 allows maintenance or replacement without disrupting rack operation, as long as a second power supply is installed. Its robust design supports operational continuity and simplifies routine maintenance, helping ensure that machinery protection systems remain functional at all times.

        The 114M5335-01 Bently Nevada Low Voltage DC PIM may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 114M5335-01 Low Voltage DC PIM Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 114M5335-01 Low Voltage DC PIM Specs

        General

        • Manufacturer GE / Bently Nevada
        • Model 114M5335-01
        • Condition New Original ready stock
        • Product Family 3500/15,140719-01,133292-01
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • API 670 Standard: Fully compliant with the American Petroleum Institute's industry standards for mechanical protection systems, ensuring power supply isolation and high reliability.
        • Hazardous Area Certification: ATEX/IECEx Zone 2 and North American (CSA) Class I, Div 2 certified, allowing safe operation in flammable and explosive gas environments.
        • Electromagnetic Compatibility (EMC): Complies with international EMC standards such as EN 61000-6-2/4, effectively resisting electromagnetic interference from high-power motors or frequency converters.
        • Module Pairing Restrictions: Must be paired with the front-mounted 114M5330-01 (low-voltage DC power supply module); cannot be directly connected to an AC power supply module.
        • Redundant System Compatibility: Supports the installation of two PIM modules within the same 3500 frame, achieving redundant input of dual DC power supplies and ensuring uninterrupted power supply in the event of a single power supply failure.
        • Frame Versatility: Designed for all standard 3500 series frames (e.g., 3500/05), distributing power to all monitoring cards (e.g., vibration, displacement, key phase cards) via a backplane bus.
        • 24V Instrument Power Integration: Widely used in automated factories or containerized cabinets that uniformly employ a 24Vdc bus power supply.
        • Remote Oil and Gas Stations: In remote pumping stations or offshore platforms with unstable power supplies, connecting to battery banks or solar power systems as the main power source ensures the protection system is always online.
        • High Reliability Redundancy Switching: In operating conditions requiring extremely high availability (e.g., critical compressor units), it serves as a second backup power interface, working in conjunction with the AC main power supply to achieve an AC+DC hybrid redundancy solution.
        View as PDF
        Description
        The Bently Nevada 114M5335-01 Low Voltage DC Power Input Module (PIM) functions as the rear-left interface for external 24 V DC power to enter the 3500/15 rack. Operating within a wide input voltage range of 20–30 Vdc, it ensures reliable power delivery while supporting a maximum full-rack current draw of 11.0 A. The module operates effectively in harsh industrial environments, with an operating temperature from -30 °C to +65 °C (-22 °F to +150 °F) and storage tolerance from -40 °C to +85 °C (-40 °F to +185 °F), with up to 95% non-condensing humidity.

        Installed in conjunction with the 114M5330-01 Low Voltage DC Power Supply on the front of the rack, the 114M5335-01 enables the 3500/15 system to maintain uninterrupted power. The design supports full redundancy: if a second power module is installed, it acts as a backup to the primary module, allowing insertion or removal without disrupting rack operation.

        Compared to the 114M5334-01 High Voltage DC PIM, the 114M5335-01 offers lower voltage compatibility with standard 24 V DC systems, reducing the need for additional conversion hardware and enabling safer installation in environments with sensitive low-voltage equipment. Its half-height form factor allows flexible installation alongside AC and other DC supplies in the 3500 rack while maximizing space efficiency.

        This module is part of the Bently Nevada 3500/15 series, which accommodates one or two power supplies per rack, either AC or DC, and automatically designates the lower slot module as the primary supply and the upper as backup. The universal AC, high-voltage DC, and low-voltage DC options provide versatile power solutions for machinery protection applications, ensuring consistent performance across industrial setups.
        Alternative Names
        114M5330-01 114M5329-01 115M7750-01 106M1081-01
        Technical notes
        The 114M5335-01 is a terminal block / barrier strip accessory used in Bently Nevada 3300 XL proximity transducer systems, specifically for connecting the Proximitor® sensor to the monitoring system when using external termination. It typically contains screw terminals for field wiring (power, signal, and common) and is mounted on a DIN rail or inside a junction box.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the main purpose of the 114M5335-01 Low Voltage DC PIM?
        The 114M5335-01 serves as the rear-left interface for external 24 V DC power, delivering up to 11.0 A to the 3500/15 rack. It works in tandem with the front-mounted 114M5330-01 Low Voltage DC Power Supply to ensure full-rack operation without interruptions.
        How does it maintain continuous operation during module changes?
        When a backup power module is installed in the upper slot, removing or inserting the 114M5335-01 or its associated supply does not disrupt rack function. This redundancy ensures the machinery protection system stays online during maintenance.
        How does the 114M5335-01 handle environmental extremes?
        The module operates from -30 °C to +65 °C (-22 °F to +150 °F) and can be stored between -40 °C and +85 °C (-40 °F to +185 °F), supporting up to 95% non-condensing humidity.
