        Bently Nevada 115M7750-01 3500/15 High Voltage DC Power Input Module, overall view

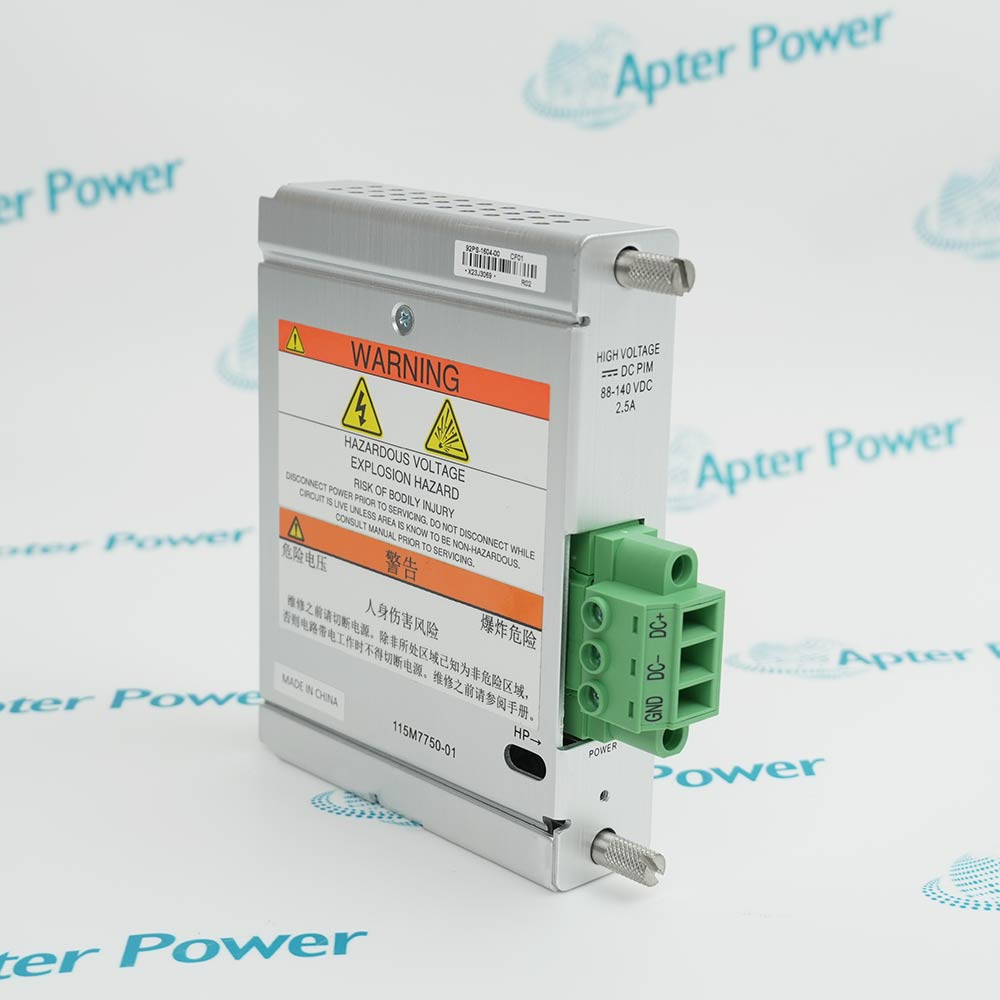

        Bently Nevada 115M7750-01 High Voltage DC Power Input Module, label and housing

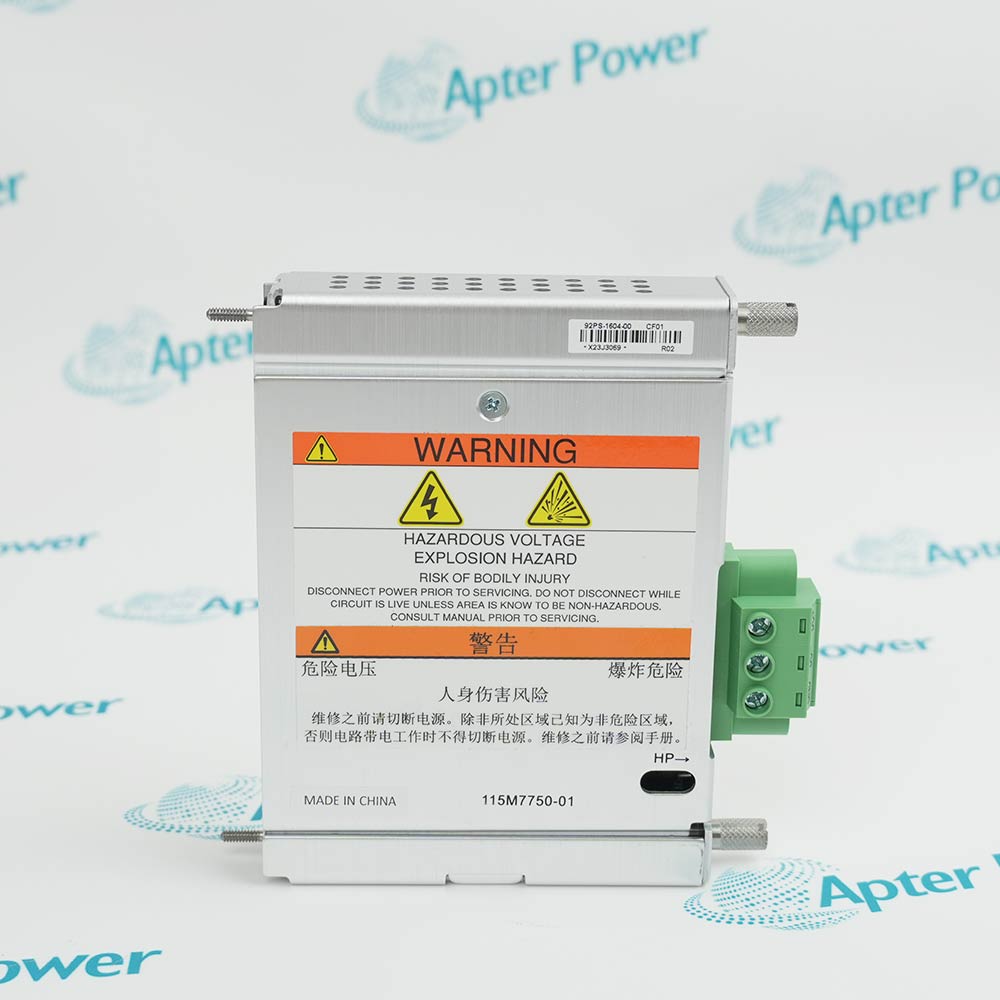

        Bently Nevada 115M7750-01 High Voltage DC Power Input Module, terminal connector view
        Bently Nevada 115M7750-01 3500/15 High Voltage DC Power Input Module, overall view
        Bently Nevada 115M7750-01 High Voltage DC Power Input Module, label and housing
        Bently Nevada 115M7750-01 High Voltage DC Power Input Module, terminal connector view
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power stocks authentic Bently Nevada hardware to secure continuous machinery protection uptime.

        115M7750-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Bently Nevada 115M7750-01 High Voltage DC PIM is a power input module for the 3500/15 series rack, responsible for receiving external high-voltage DC and delivering stable internal power for system modules.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 115M7750-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 115M7750-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          115M7750-01
        • Product Family:
          3500 System
        • Product Type:
          Power Input Module
        • Stock:
          1
        • Description:
          This option uses the High Voltage DC Power Supply and the High Voltage DC Power Input Module (PIM).
        • Input voltage:
          88 to 140 Vdc
        • Full Rack Current Draw:
          2.5 A (maximum)
        • Operating temperature:
          -30 °C to +65 °C-22 °F to +150 °F
        • Storage temperature:
          -40 °C to +85 °C-40 °F to +185 °F
        • Humidity:
          95%, non-condensing
        • Weight:
          0.35 kg
        • Estimated shipping dimensions:
          2.5x11.8x12cm
        • Tariff Code:
          9027900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Performance Environmental Rating Application

        Features:

        • Receives External High-Voltage DC Power And Feeds Internal Modules
        • Supports Primary And Backup Power Supply Configurations
        • Ensures Continuous Rack Operation During Module Replacement
        The Bently Nevada 115M7750-01 High Voltage DC PIM is designed to interface external high-voltage DC sources with the 3500/15 series mechanical protection system. Installed on the left rear side of the 3500 rack, it safely channels incoming DC power to the internal power modules for system distribution.

        This module works in conjunction with the 3500/15 AC and DC power supplies, which can be installed in one or two slots on the left side of the rack. When two modules are present, one serves as the primary supply while the other functions as a backup, allowing the system to maintain full rack operation without interruption.

        The 115M7750-01 provides flexible power handling by accepting a wide range of DC input voltages and converting them for use by other 3500 modules. Its integration ensures that critical monitoring and protection systems receive stable and reliable power under all operating conditions, supporting both AC and DC supply configurations within the rack.

        The 115M7750-01 Bently Nevada High Voltage DC PIM may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 115M7750-01 High Voltage DC PIM Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 115M7750-01 High Voltage DC PIM Specs

        General

        • Manufacturer GE / Bently Nevada
        • Model 115M7750-01
        • Condition New Original ready stock
        • Product Family 3500/15,149992-01,140719-01
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Wide Voltage Adaptability: Supports high-voltage DC input from 88 to 140 Vdc, capable of stably coping with voltage fluctuations in industrial power grids.
        • Redundancy Switching Support: Supports hot standby redundancy when used with a dual-power rack. When the main power input fails, the system can seamlessly switch to the backup power supply, ensuring uninterrupted monitoring.
        • High-Efficiency Filtering: Built-in electromagnetic interference (EMI) suppression circuit effectively prevents external power grid noise from entering the 3500 monitoring system, ensuring the accuracy of signal measurement.
        • Hot-Swap Capability: Supports module maintenance and replacement while the system is powered on (subject to safe operating procedures), reducing downtime risks.
        • Wide Temperature Range: Standard operating temperature range is -30°C to +65°C (-22°F to +149°F), suitable for various harsh industrial environments.
        • High Humidity Tolerance: Can withstand up to 95% non-condensing relative humidity at temperatures up to +45°C.
        • Vibration and Shock Resistance: Designed to meet industrial-grade vibration resistance standards (5g peak acceleration), allowing installation in control cabinets adjacent to large rotating machinery.
        • Power Generation: Widely used in steam turbine generator sets, utilizing reliable 110V/125V DC battery banks within the power plant as backup or main power to prevent protection failure due to AC grid flashover.
        • Oil & Gas Extraction and Refining: In compressor stations or offshore platforms in remote areas, connected to DC power distribution systems to provide continuous power for critical axial displacement and vibration monitoring.
        • Critical Protection: Used in automatic interlocking shutdown systems that must comply with API 670 standards, serving as the power backup at the very beginning of the entire protection chain.
        Description
        The Bently Nevada 115M7750-01 High Voltage DC Power Input Module (PIM) provides a reliable interface between external high-voltage DC sources and the 3500/15 series mechanical protection system. Mounted on the left rear side of the 3500 rack, it ensures that incoming DC power is safely and efficiently routed to the internal power modules for processing.

        Designed to handle input voltages from 88 to 140 Vdc, the 115M7750-01 supports a full rack current draw of up to 2.5 A. It operates reliably in harsh industrial environments, with an operating temperature range of -30°C to +65°C and storage capability from -40°C to +85°C, while tolerating up to 95% non-condensing humidity.

        When integrated into a rack with other 3500/15 AC or DC power supplies, the module ensures uninterrupted operation. The system allows for a primary and backup configuration, where the lower-slot supply acts as primary and the upper-slot supply as backup. This hot-swappable design ensures that removing or installing a module does not disrupt system operation as long as a second supply is installed.

        Compared to the Bently Nevada 115M7740-01 Low Voltage DC PIM, the 115M7750-01 supports a higher input voltage range, making it ideal for applications requiring direct high-voltage DC integration. Its robust construction and precise power conditioning make it the preferred choice for high-reliability machinery protection environments.

        By converting incoming high-voltage DC into suitable voltages for use by other 3500 modules, the 115M7750-01 enables consistent performance across the rack. It supports multiple configurations of AC and DC power supplies within a single rack, providing flexibility, redundancy, and reliable power delivery for critical industrial monitoring systems.
        Alternative Names
        115M775O-O1 II5M7750-0I 115M7750 01 114M5335-01 106M1081-01 129478-01 133300-01 114M5329-01
        Technical notes
        The Bently Nevada 115M7750-01 is a High Voltage DC Power Input Module (PIM) designed for the 3500 Series Machinery Protection System, providing the interface between an external high-voltage DC power source and the 3500/15 High Voltage DC Power Supply . It accepts an input voltage of 88-140 Vdc and is a half-height module installed directly behind the associated power supply in the 3500 rack.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How does 115M7750-01 maintain reliable power delivery in critical systems?
        The module supports full rack current draw up to 2.5 A and integrates with primary/backup configurations, allowing continuous operation even during hot-swapping or partial power interruptions.
        Why is the 115M7750-01 preferred over low-voltage DC PIMs like 115M7740-01?
        The 115M7750-01 supports a higher input voltage range (88–140 Vdc), making it suitable for high-voltage DC applications that require direct integration with industrial power sources.
        In what scenarios would a 115M7750-01 be insufficient?
        Applications with high-voltage supply systems or extended rack setups require the 115M7750-01 to avoid additional voltage conversion steps and maintain optimal power efficiency.
        What is the benefit of 115M7750-01 integration?
        When installed alongside a second power supply, the 115M7750-01 can be removed or inserted without disrupting rack operation.
