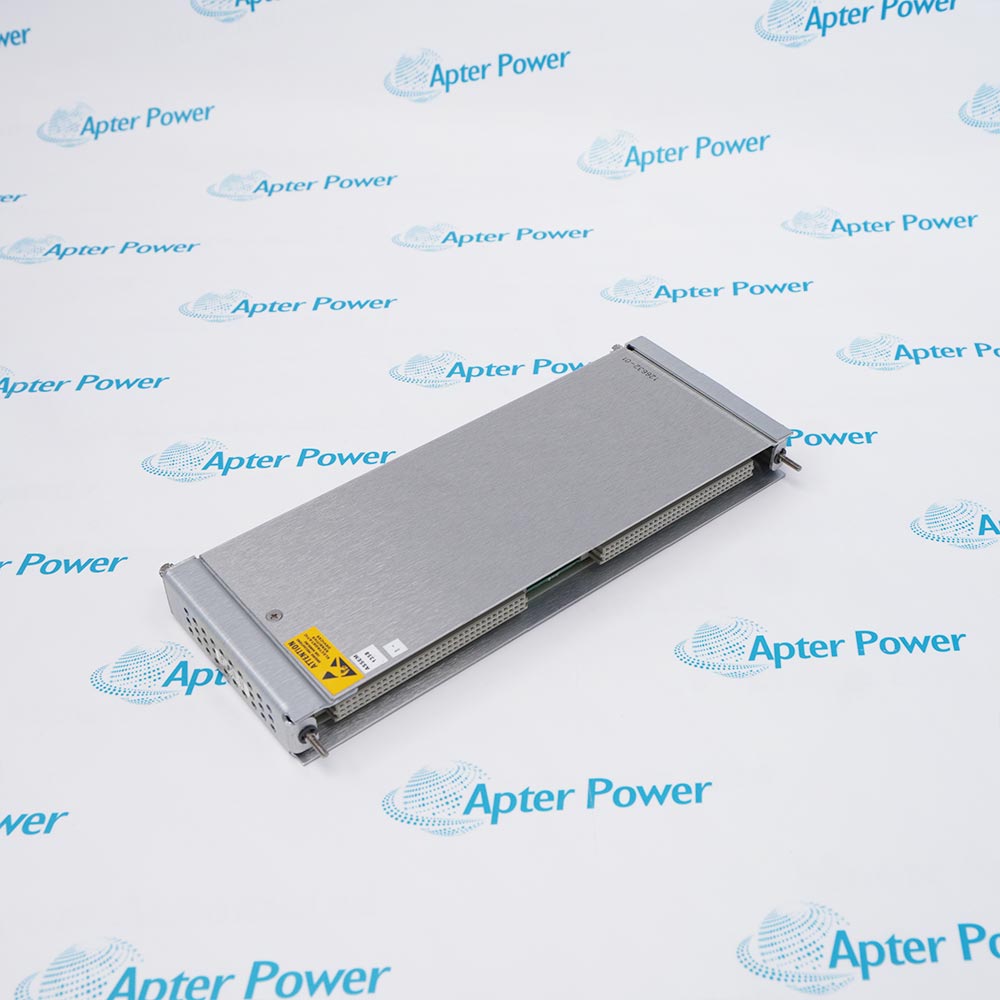

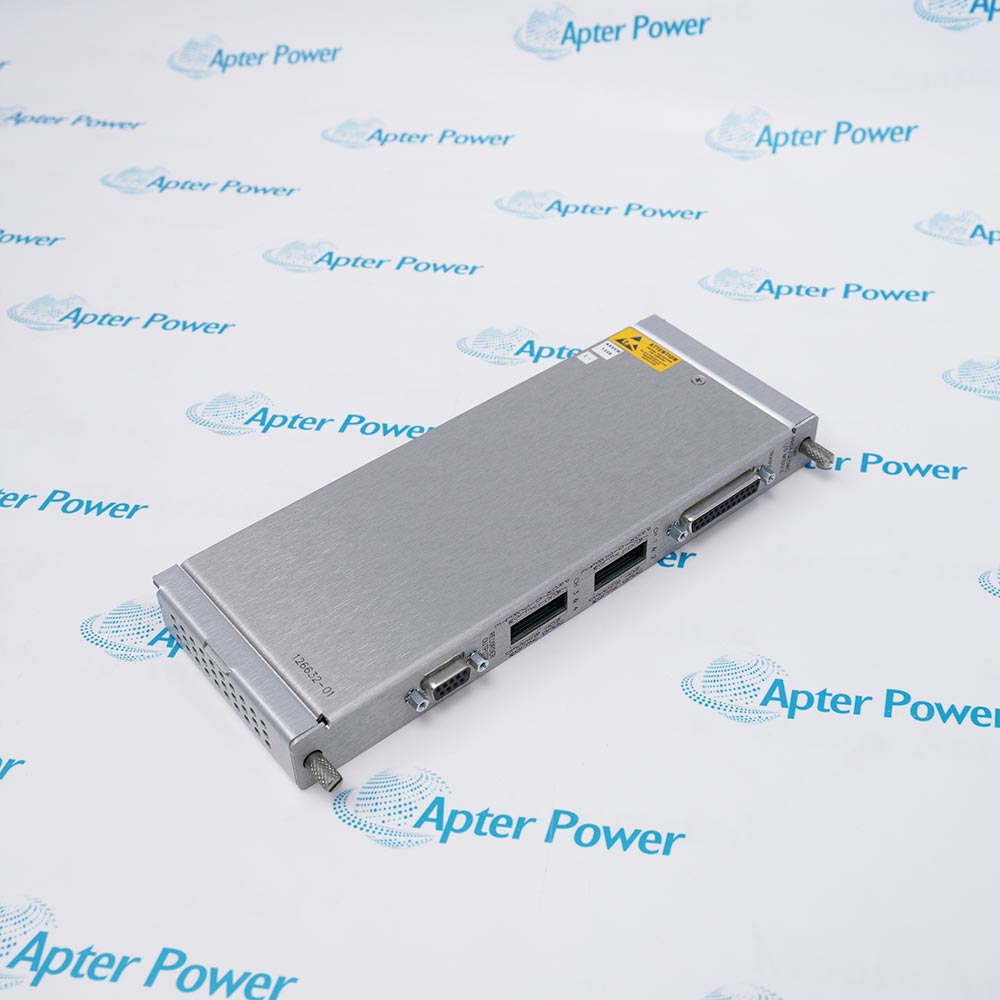

The Bently Nevada 126632-01 is a 3500/42M TMR Proximitor/Seismic I/O module with external terminations, offering high-reliability vibration and displacement monitoring for critical machinery.
Get a quick price for 126632-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 126632-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    126632-01
  • Product Family:
    3500 System
  • Signal:
    Accepts from 1 to 4 proximity, velocity or acceleration transducer signals
  • Power consumption:
    7.7 watts, typical
  • Standard I/O Input Impedance:
    10 kΩ (Proximitor and acceleration inputs).
  • Output Impedance:
    550 Ω
  • Transducer Power Supply:
    -24 Vdc
  • Operating Temperature:
    -30°C to +65°C (-22°F to +150°F)
  • Storage Temperature:
    -40 °C to +85 °C (-40 °F to +185 °F).
  • Humidity:
    95%, noncondensing.
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    2.4x11x24cm
  • Tariff Code:
    3902100090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Safety and Compliance Performance Application

Features:

  • Provides High-Reliability Vibration And Position Monitoring For Critical Machinery
  • Converts Signals From Proximity, Velocity, And Acceleration Transducers Into Digital Outputs
  • Features External Terminations For Easy Installation And Maintenance
The Bently Nevada 126632-01 TMR I/O Module is a half-height module designed to deliver precise vibration and displacement measurements for the 3500 Series Mechanical Protection System. It receives signals from proximity, velocity, or acceleration transducers and processes them into digital outputs for accurate monitoring and fault detection.

This module is engineered for demanding industrial environments, with a wide operating temperature range, robust power supply, and high input/output impedance to ensure stable and reliable signal performance. Its typical power consumption is minimal, making it suitable for continuous operation in critical machinery monitoring applications.

Installation is simplified through external terminations, which allow easy access for wiring and maintenance. The module supports configurable monitoring functions, including vibration, displacement, and other key machinery parameters, enabling flexible setup to meet specific operational needs.

The 126632-01 Bently Nevada TMR I/O Module with External Terminations may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 126632-01 TMR I/O Module with External Terminations Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 126632-01 TMR I/O Module with External Terminations Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 126632-01
  • Condition New Original ready stock
  • Product Family 133396-01,133323-01,126648-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High Reliability Redundancy Design: Employs Triple Modular Redundancy (TMR) technology, ensuring continuous system operation through three independent processing paths, effectively eliminating the risk of single points of failure.
  • International Safety Certifications: Compliant with CE and UL standards, suitable for harsh industrial environments.
  • Hazardous Area Applicability: Supports operation in hazardous environments such as Class I, Div 2, or Zone 2 (depending on whether it is used with internal barriers).
  • API 670 Compliance: Designed to comply with the American Petroleum Institute (API) 670 standard, meeting global industry standards for the protection of large rotating machinery.
  • External Terminal Connection: Supports the use of external terminal blocks (ET blocks), allowing field cabling to be completed in more easily accessible locations such as cabinet walls, reducing the clutter of wiring behind the monitor and improving maintenance efficiency.
  • Multi-Channel Signal Processing: Provides 4 channels, capable of simultaneously receiving and processing signals from proximitors or seismic sensors.
  • Precise Signal Conditioning: Typical accuracy is within ±0.33% of full scale, ensuring extremely high accuracy in static and dynamic measurements such as vibration and displacement.
  • Wide Operating Temperature Range: Stable operation within a temperature range of -30°C to +65°C, adapting to various industrial site climate conditions.
  • Large Rotating Machinery Protection: Widely used in automatic shutdown protection systems for critical equipment such as steam turbines, compressors, pumps, and fans to prevent catastrophic failures.
  • Condition Monitoring and Predictive Maintenance: Integrated with System 1 software, it acquires real-time machine health data, assisting factories in proactive maintenance.
  • High Availability System (TMR): Designed for production environments where downtime is not permitted, the system maintains monitoring and protection functions even if one module fails.
  • Complex Industrial Integration: As a communication gateway, it transmits alarm and measurement data to DCS or SCADA systems, enabling plant-wide automated monitoring.
Description
The Bently Nevada 126632-01 TMR I/O Module is a core component of the 3500 Series Mechanical Protection System, designed for high-reliability monitoring of bearings and rotating machinery. As part of the 3500/42M Triple Modular Redundancy (TMR) monitor, it accepts signals from 1 to 4 proximity, velocity, or acceleration transducers and converts them into precise data for machinery protection. Typical power consumption is 7.7 watts, and the module provides robust input and output impedance (10 kΩ input, 550 Ω output) with a dedicated -24 Vdc transducer power supply.

Unlike the standard 3500/42 module, the 126632-01 employs TMR architecture, offering extremely high fault tolerance and reliability for applications where downtime is unacceptable. It features external terminations and requires an External Termination Block (ET Block), allowing easier wiring management and simplified installation compared to internal termination versions. This setup enhances maintainability while ensuring consistent signal integrity.

The Bently Nevada 126632-01 supports a wide range of monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, REBAM*, acceleration, velocity, shaft absolute, and circular acceptance region. Each of the four channels can be individually programmed via 3500 Rack Configuration Software to meet specific measurement and alarm requirements, providing flexibility for complex machinery monitoring tasks.

Engineered for industrial environments, the 126632-01 operates over a wide temperature range (-30°C to +65°C / -22°F to +150°F) and can be stored safely from -40°C to +85°C (-40°F to +185°F), withstanding up to 95% non-condensing humidity. Its external terminations and TMR architecture make the 126632-01 TMR I/O Module particularly advantageous for critical machinery protection where maximum reliability and ease of maintenance are essential.
