        125760-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

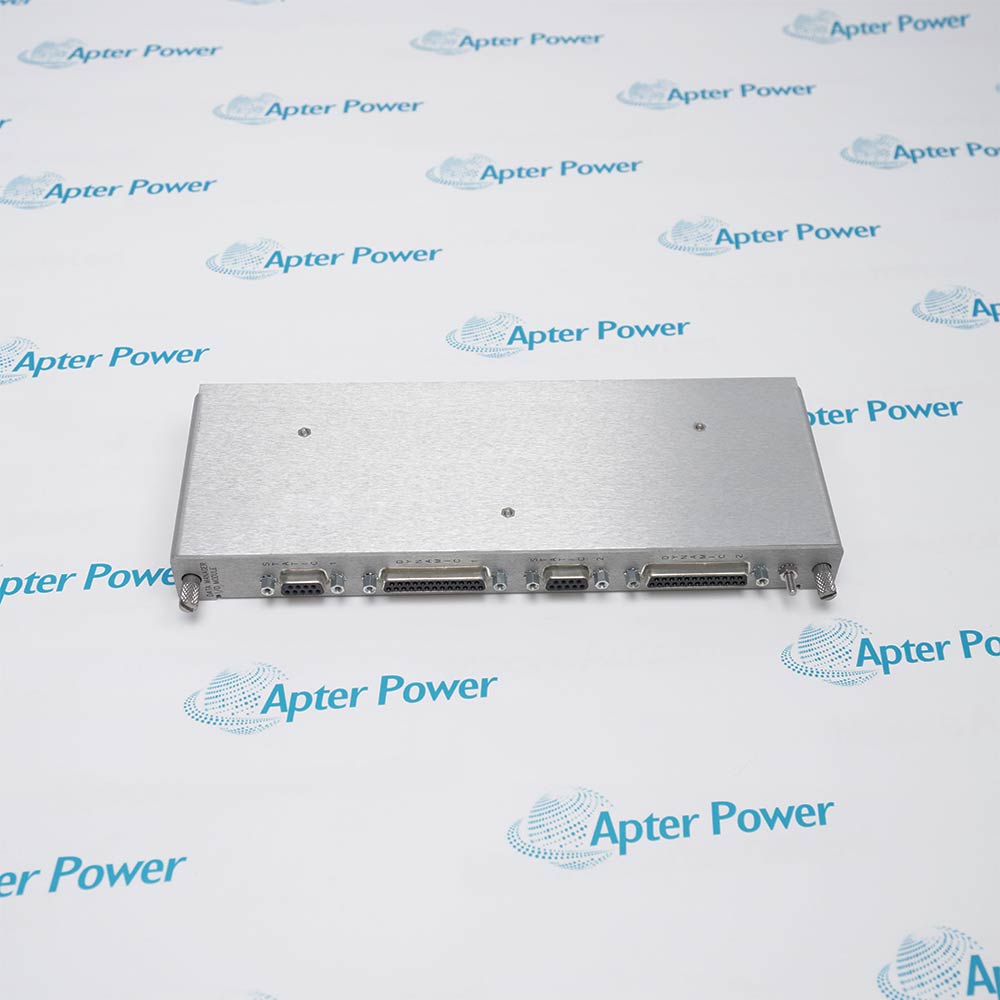

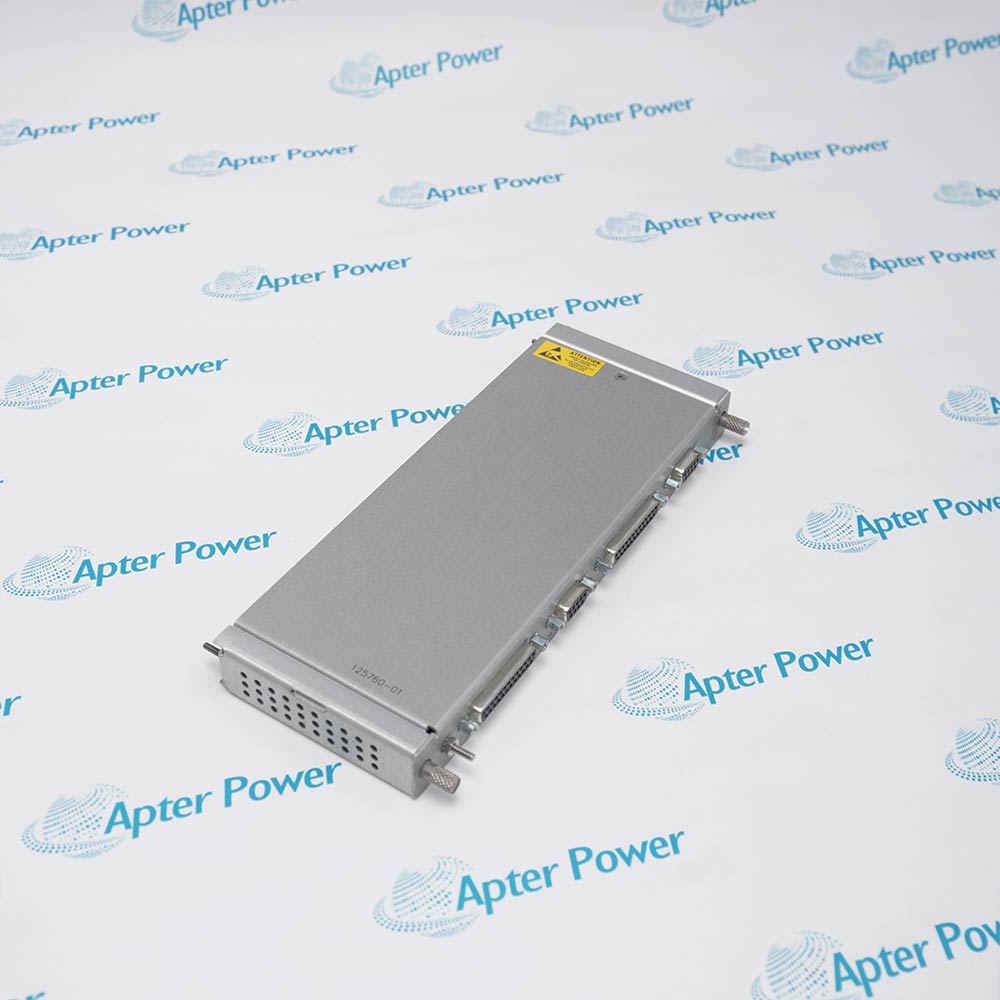

        Bently Nevada 125760-01 is a half-height Data Manager I/O module that provides a dedicated interface for transmitting dynamic and static machinery data from the 3500/20 system to external processors.
        Get a quick price for 125760-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 125760-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          125760-01
        • Product Family:
          3500 System
        • Communications/Protocol:
          Bently Nevada proprietary
        • Baud Rate:
          9600 baud fixed
        • Purpose:
          Permits static and dynamic data collection by Bently Nevada Transient Data Interface External or Dynamic Data Interface External Communication Processors
        • Cable Length:
          3 metres (10 feet) maximum
        • Operating Temperature:
          0°C to +50°C (+32°F to +122°F).
        • Storage Temperature:
          -40°C to +85°C (-40°F to +185°F).
        • Humidity:
          95%, non-condensing.
        • Rack Space Requirements:
          1 full-height rear slot.
        • Weight:
          0.4 kg
        • Estimated shipping dimensions:
          2.4x11x24cm
        • Tariff Code:
          3902100090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Diagnostic Protection Upgrade

        Features:

        • Dedicated Data Manager Module Enables Communication With 3500 Rack Systems.
        • Supports Proprietary Protocol For Configuring Racks And Retrieving Machinery Information.
        • Compact Half-Height Design Fits Seamlessly Into 3500 Frame Slot For Reliable Installation.
        The Bently Nevada 125760-01 Data Manager I/O Module acts as a dedicated interface for the 3500/20 system, providing a secure connection point for transmitting both static and dynamic machinery data to external communication processors or host software. Installed on the back of the rack, it allows operators to access critical mechanical performance metrics while maintaining stable electrical and mechanical connections through built-in internal terminations.

        This module operates within an industrial temperature range of 0°C to +50°C (+32°F to +122°F) and can be stored from -40°C to +85°C (-40°F to +185°F), tolerating high humidity up to 95% non-condensing. The short cable design, up to 3 meters (10 feet), ensures reliable local connectivity for the 3500/20 frame while simplifying field wiring and maintenance tasks.

        When installed, the 125760-01 works in conjunction with the Rack Interface Module (RIM), which resides in slot 1 of the 3500 rack. While the RIM handles general rack configuration and communication protocol management, the 125760-01 focuses on providing the dedicated data bridge from the 3500/20 Data Manager, enabling continuous access to machinery information for analysis and monitoring without interfering with critical system operation.

        The 125760-01 Bently Nevada Data Manager I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 125760-01 Data Manager I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 125760-01 Data Manager I/O Module Specs

        General

        • Manufacturer GE / Bently Nevada
        • Model 125760-01
        • Condition New Original ready stock
        • Product Family 125720-02,125720-01,125840-01
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Dynamic Data Acquisition and Transmission: This module was the core channel for transmitting dynamic waveform signals (such as vibration waveforms and spectra) in early versions of the 3500 system, primarily used to connect to dedicated communication processors or computers.
        • Predictive Maintenance (PDM) System Access: This interface uploads real-time operating data of the unit to System 1 or earlier DDI software, helping engineers identify early signs of faults such as bearing wear and rotor imbalance.
        • Monitoring of Large and Medium-Sized Rotating Machinery: Widely used in steam turbines, generators, and large pump sets, serving as a key physical interface for obtaining the "health records" of rotating machinery.
        • Offline Analysis Data Export: When equipment malfunctions, high-resolution data exported through this module allows for in-depth analysis using Bode plots, polar plots, and orbit plots.
        • Module Self-Check and Status Feedback: 125760-01 monitors the operating status of the 3500/20 main module in real time. In the event of a communication link or hardware failure, an alarm will be issued via an OK LED and system log.
        • Write Protection Mechanism: Equipped with hardware write protection terminals. By shorting specific terminals, the frame configuration can be locked to prevent unauthorized remote modification of mechanical protection settings.
        • Event Sequence Recording (SOE): Supports the extraction of alarm and trip events with precise timestamps from the frame, providing reliable evidence for root cause analysis after an incident.
        • Communication Conflict Mitigation: Built-in dedicated circuitry handles large volumes of dynamic data streams, ensuring that the basic mechanical protection logic of the 3500 frame is not interfered with during the transmission of large amounts of diagnostic data.
        • Migration to 3500/22 RIM: As the 3500/20 and its accompanying 125760-01 are gradually becoming obsolete, the current standard practice is to upgrade to the 3500/22 Frame Interface Module (RIM), which integrates data management and frame interface functions.
        • Firmware Update Notes: When replacing or upgrading the 125760-01 spare part, ensure that its corresponding 3500/20 main module firmware version is compatible; otherwise, communication interruption or data packet loss may occur.
        • Communication Protocol Modernization: During the upgrade process, the original dedicated communication cable is usually replaced with a standard Ethernet physical link to improve data transmission rate and ease of remote access.
        • Software Environment Adaptation: Upgrading this module often involves synchronous updates to the host computer software (such as migrating from the earlier Data Manager software to the latest System 1 version) to utilize more powerful data analysis algorithms.
        View as PDF
        Description
        The Bently Nevada 125760-01 Data Manager I/O Module is a core interface for the 3500/20 monitoring system, serving as the primary conduit for both dynamic waveform and static trend data. Installed on the back of the 3500 frame, it outputs critical machinery performance metrics such as shaft centerline trajectories, vibration spectra, and system status to dedicated communication processors or host software like early DDI or System 1. The 125760-01 relies on a Bently Nevada proprietary communication protocol with a fixed baud rate of 9600, ensuring data integrity and compatibility with early generation external processors.

        Featuring built-in internal terminations, the 125760-01 allows direct crimped sensor and signal cable connections, providing a secure mechanical and electrical interface. Its half-height design allows installation in the lower portion of the 3500 frame slot, optimizing rack space without interfering with other I/O modules. Typical cable runs are limited to 3 meters (10 feet), reflecting its role as a local interface for high-speed dynamic data collection.

        Operating reliably in industrial environments, the 125760-01 functions between 0°C and +50°C (32°F to +122°F) and can be stored safely from -40°C to +85°C (-40°F to +185°F), withstanding up to 95% non-condensing humidity. Power requirements are minimal, making it suitable for continuous operation in demanding monitoring applications.

        This module is specifically dedicated to the 3500/20 Data Manager module and is not compatible with later 3500/22 RIM modules or other I/O modules like the 125768-01. For TMR configurations, it works in combination with a TMR version of the RIM to perform monitor channel comparisons and voting, ensuring that data from redundant monitors is continuously validated for system reliability.
