Features:
- Reserved Slot Design For Future System Expansion
- Dust Protection And Airflow Optimization For Rack Integrity
- Wide Environmental Tolerance For Industrial Applications

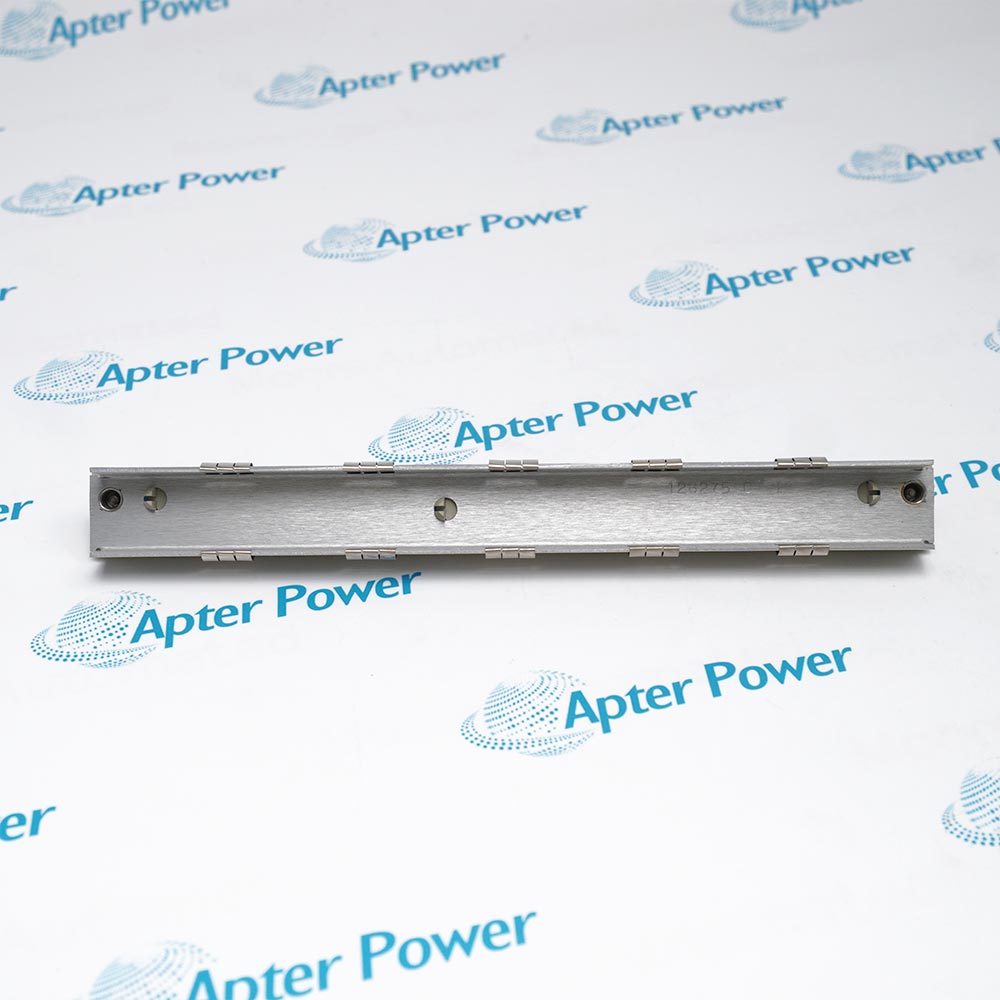

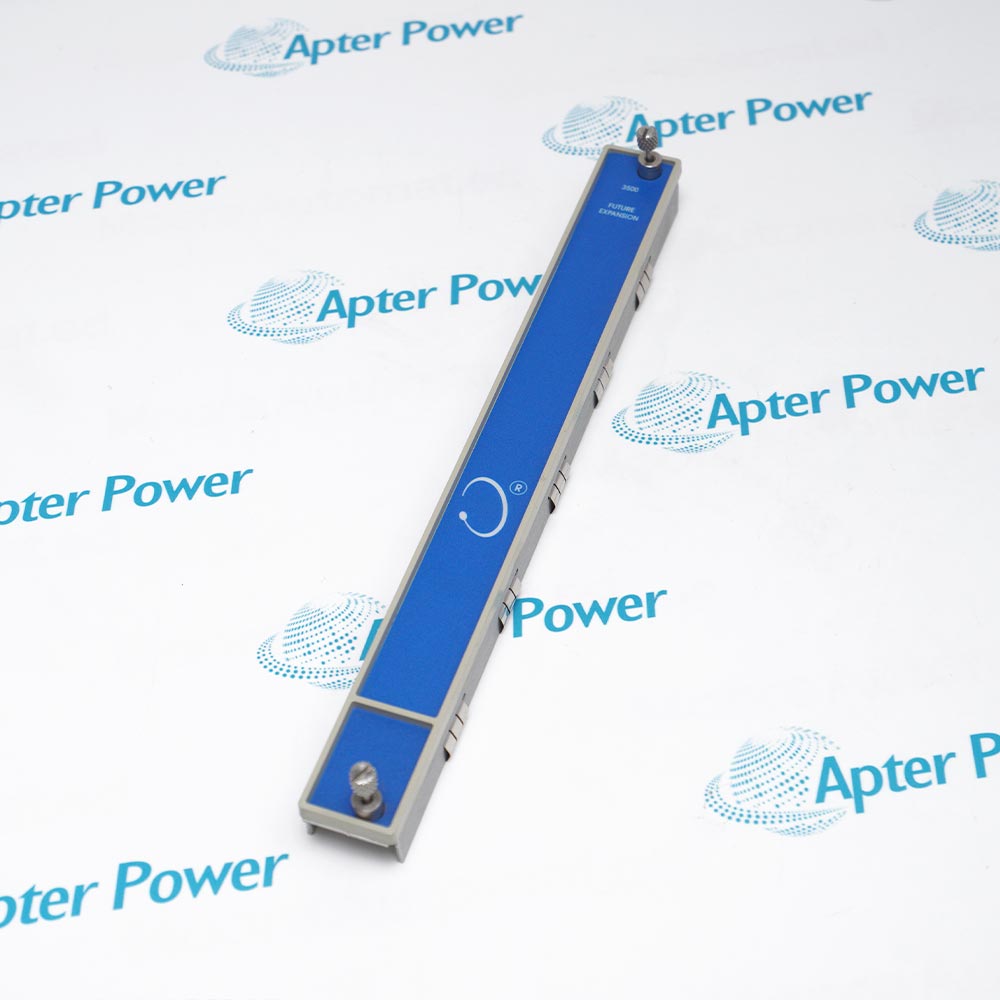

The Bently Nevada 128275-01E is an essential accessory within the 3500 monitoring system, designed to ensure that unused rack slots are properly managed. By acting as a protective barrier, the 128275-01E prevents contaminants from entering the system while maintaining a clean and organized rack structure. Its role may appear simple, but it is critical for preserving the reliability of sensitive monitoring equipment. The 128275-01E also supports efficient airflow, which is vital for temperature control inside the rack. Without proper airflow management, system performance could degrade over time. This makes the 128275-01E a necessary component even in partially populated racks. The 128275-01E ensures both protection and preparedness.
From a system planning perspective, the 128275-01E offers significant advantages by enabling future expansion without disruption. Industrial monitoring systems often evolve as operational requirements change, and the 128275-01E allows users to prepare for this growth in advance. By reserving space for modules such as vibration monitoring units, the 128275-01E reduces the need for system redesign. It allows engineers to scale their systems efficiently while minimizing downtime. The 128275-01E also simplifies maintenance and upgrade processes. Its presence ensures that expansion can be carried out smoothly when needed. This forward compatibility enhances the long-term value of the monitoring system.
The Bently Nevada 128275-01E is built to perform reliably in challenging environments. With support for extreme temperatures and high humidity levels, it is suitable for deployment in industries such as power generation and heavy manufacturing. The 128275-01E maintains its structural integrity and protective function even under demanding conditions. Its simple installation process allows for quick deployment in existing systems. Additionally, the 128275-01E integrates seamlessly with other components of the 3500 system. By combining protection, flexibility, and durability, the 128275-01E plays a key role in maintaining system efficiency. It remains a practical and reliable solution for industrial monitoring setups.
The 128275-01E Bently Nevada Future Expansion Faceplate may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 128275-01E Future Expansion Faceplate Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 128275-01E Future Expansion Faceplate Specs
General
- Manufacturer GE / Bently Nevada
- Model 128275-01E
- Condition New Original ready stock
- Product Family 131150-01,128085-01,130768-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Physical Protection Safety (IP Protection): The panel prevents conductive dust, metal shavings, or tools from accidentally falling into the 3500 frame, avoiding contact with the live backplane and preventing short circuits or system trips.
- Thermal Management Compliance: Complies with system thermal design specifications. By sealing the empty slots, airflow is forced to the energized monitoring modules (such as 3500/22M or 3500/42M), preventing overheating of the core module due to airflow short circuits and triggering safety interlocks.
- Electromagnetic Compatibility (EMC/EMI) Compliance: As part of the overall frame shielding, this panel helps maintain the rack's EMC integrity, preventing high-frequency industrial interference from affecting the accuracy of vibration monitoring signals, and complies with CE or relevant industrial electromagnetic standards.
- Explosion-proof and Environmental Certification: This component is typically certified for hazardous areas as part of the 3500 system, such as Class I, Div 2, or ATEX/IECEx. Using the original panel ensures the frame's sealing and protective integrity in flammable and explosive environments.
- Space Reservation Management: Reserve space for future monitoring channels (such as vibration, displacement, temperature, etc.) during the initial system design phase.
- Module Maintenance: Temporarily install this panel to protect the slot when a functional module (e.g., 3500/42M) is removed for inspection or replacement.
- System Downsizing: Seal off unnecessary unused spaces after reducing the number of monitoring points according to actual process requirements.
- Frame Expansion Preparation: Reserve hardware interface space for subsequent second and third phase monitoring point access during the phased construction of large rotating machinery (e.g., steam turbines, compressors).
- Frame Architecture Compatibility: Fully compatible with the Bently Nevada 3500/05 standard frame. Its physical holes precisely match the mounting rails on the top of the frame, ensuring a secure installation.
- Slot Versatility: Featuring a full-height design, it can be installed in any standard monitoring module slot (Slots 1-15) within the 3500 frame, except for the power module and frame interface module (RIM) slots.
- Passive Hardware Characteristics: This panel is a passive mechanical component, containing no electronic components. This means it has no electronic conflicts with any version of the frame backplane (PWA) and does not occupy system node addresses or bus bandwidth.
- Future Expansion and Replacement: Its design logic is to "reserve space" for future active modules (such as vibration monitoring, reciprocating machine monitoring, etc.). When system upgrades are needed, it can be directly disassembled and replaced in situ with any standard 3500 series functional module without altering the frame's physical structure.
