        Bently Nevada 3500/33 149992-01
        Bently Nevada 3500/33 149992-01
        Bently Nevada 3500/33 149992-01
        Bently Nevada 3500/33 149992-01
        Bently Nevada 3500/33 149992-01
        Bently Nevada 3500/33 149992-01
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        3500/33 149992-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

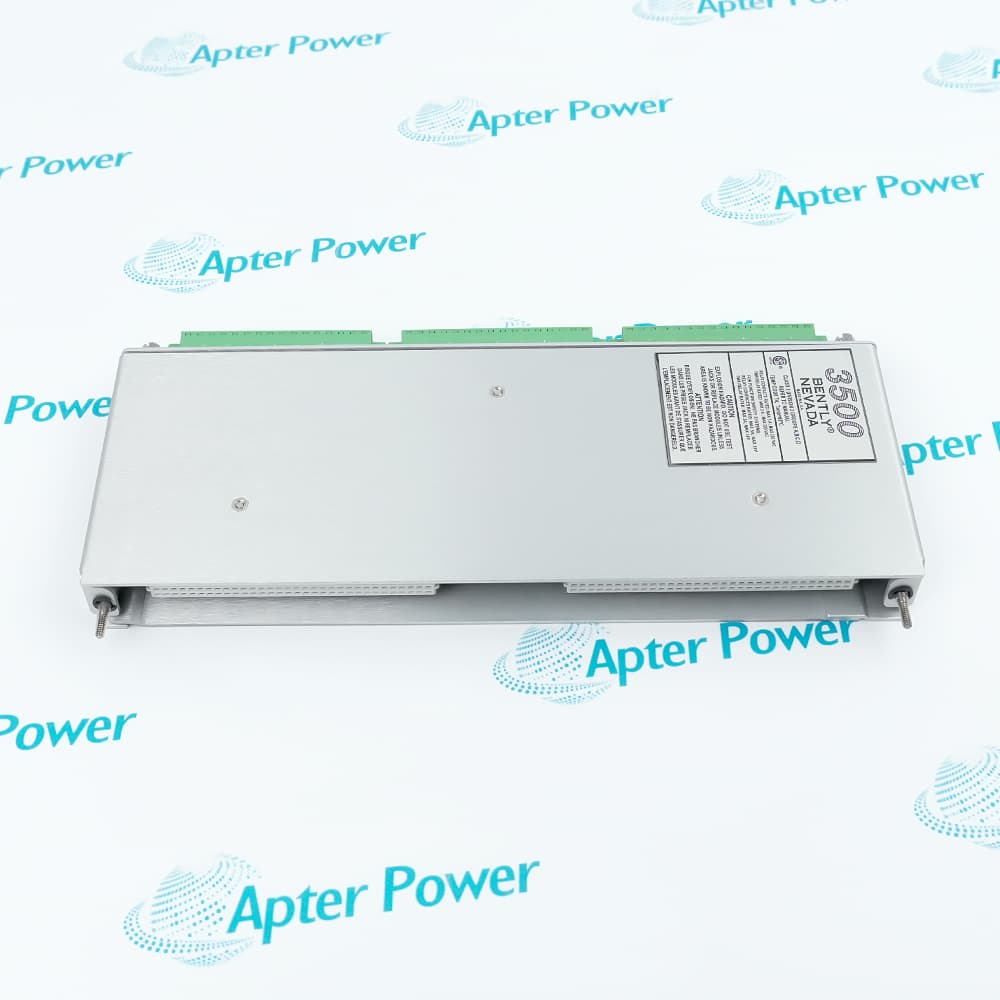

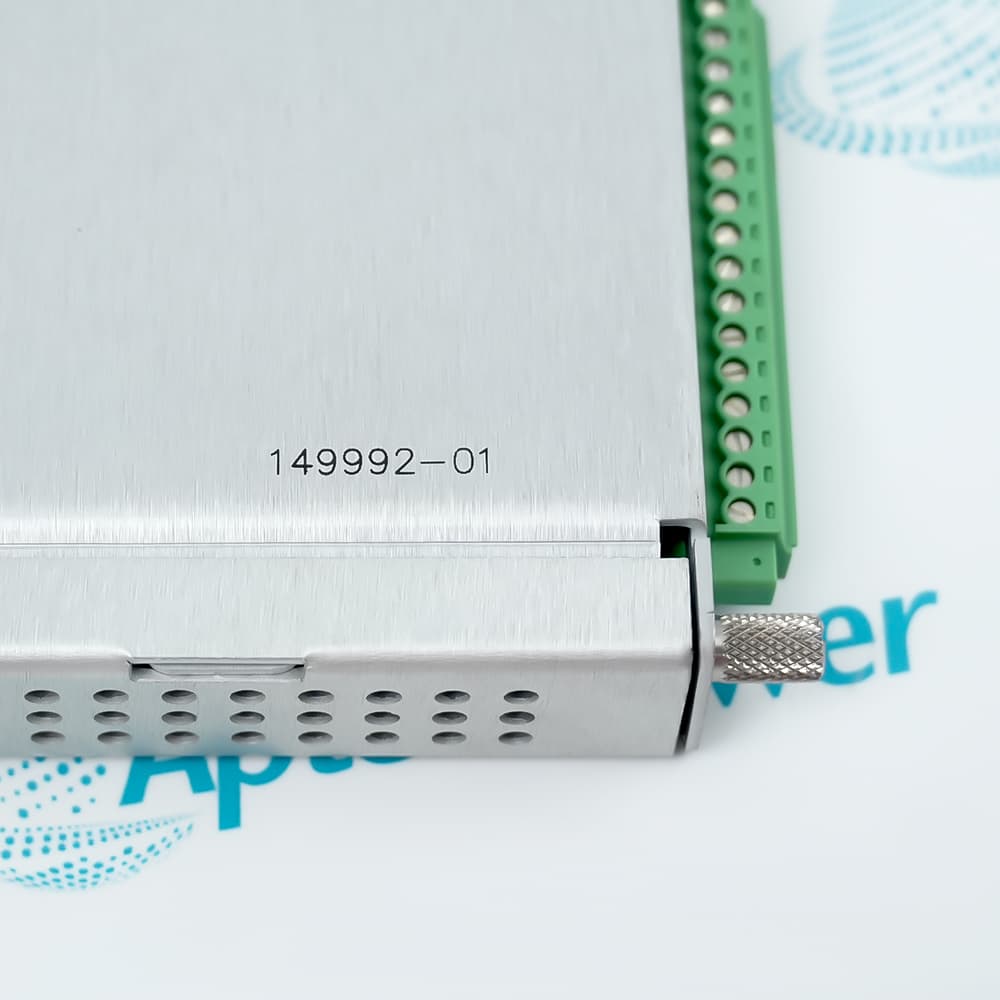

        Bently Nevada 3500/33 149992-01 is the standard rear I/O relay output module that provides 16 field relay channels for a compatible 3500/33 control module.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 3500/33 149992-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 3500/33 149992-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          3500/33 149992-01
        • Product Family:
          3500 System
        • Product Type:
          Spare 16-Channel Relay Output Module
        • Stock:
          1
        • Module Function:
          Standard rear I/O relay output module for the 3500/33
        • Associated Control Module:
          149986-01, ordered separately
        • Number of Relay Outputs:
          16
        • Relay Type:
          Single-pole double-throw (SPDT)
        • Relay Contact Material:
          Silver, standard output module
        • Relay Environmental Sealing:
          Epoxy-sealed
        • Relay Arc Suppressor:
          250 Vrms, installed as standard
        • Relay Contact Life:
          10,000 cycles
        • Minimum Switched Current:
          100 mA at 5 V DC
        • Maximum DC Switched Current:
          5 A, resistive load
        • Maximum DC Switched Power:
          70 W at 24 V DC; 10 W at 48 V DC; 9 W at 60 V DC
        • Maximum DC Switched Voltage:
          125 V DC for standard systems
        • Maximum AC Switched Current:
          5 A, resistive load
        • Maximum AC Switched Power:
          1200 VA
        • Maximum AC Switched Voltage:
          250 V AC
        • Dimensions:
          2.44 × 24.1 × 9.91 cm
        • Weight:
          0.4 kg
        • Tariff Code:
          8537109090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Relay Selection Wiring & Safety Installation Application
        • Provides the standard rear I/O assembly for 16 relay outputs in a compatible 3500/33 module
        • Uses epoxy-sealed SPDT silver-contact relays with a standard 250 Vrms arc suppressor
        • Organizes the channels into four switch-selectable groups for normally de-energized or normally energized operation

        Bently Nevada 3500/33 149992-01 is a spare 16-channel relay output module designed for the Bently Nevada 3500 machinery protection system.

        It occupies the full-height rear I/O position and works with the separate 149986-01 front relay control module to connect programmable Alarm Drive Logic to field relay contacts.

        Before installation or replacement, verify the installed output variant, front control module, ND/NE switch pattern, contact load, field wiring, and hazardous-area or functional-safety restrictions.

        Availability, condition, price, and shipping time for Bently Nevada 3500/33 149992-01 are confirmed during quotation.

        Bently Nevada 3500/33 149992-01 Relay Output Module Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Part 149992-01 is the standard silver-contact output module; failsafe and low-current versions use different spare numbers
        • The standard contacts require a minimum load of 100 mA at 5 V DC and are rated for resistive AC or DC loads
        • Each group of four relay channels is switch-selectable for normally de-energized or normally energized operation
        • Disconnect power before servicing because field conductors may expose hazardous voltage
        • A 250 Vrms relay arc suppressor is installed as standard on the output module
        • Hazardous-area, failsafe, and functional-safety installations can impose lower allowable switched-voltage limits
        • The 149992-01 output module occupies one full-height rear slot behind a compatible 3500/33 control module
        • The completed 3500/33 can be installed in rack slots to the right of the Transient Data Interface module
        • 3500 Rack Config version 3.3 or later is required to program the associated Alarm Drive Logic
        • Relay actuation from Alert and Danger states in 3500 machinery protection racks
        • Protective interlocks driven by the Not-OK state of monitored channels
        • Voting logic using selected measured variables from one or more rack monitor channels
        Description
        Bently Nevada 3500/33 149992-01 is a spare 16-channel relay output module for the Bently Nevada 3500 System.

        The rear I/O module provides 16 epoxy-sealed SPDT standard relays with silver contacts, a 250 Vrms arc suppressor, and four switch-selectable groups for normally de-energized or normally energized operation.

        Before installation or replacement, confirm the separate 149986-01 relay control module, standard-versus-failsafe and standard-versus-low-current selection, rear-slot wiring, switch positions, contact load, and hazardous-area approval requirements.
        Alternative Names
        3500/33 149992-01 Bently Nevada 149992-01 Bently Nevada 3500/33 149992-01 3500-33 149992-01 Bently Nevada 3500-33 149992-01
        Technical notes
        Bently Nevada 3500/33 149992-01 is the standard rear relay output module paired with 149986-01. Match relay type, switch positions, wiring, and approvals before replacement.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Does Bently Nevada 3500/33 149992-01 replace the front relay control module?
        No. Bently Nevada 3500/33 149992-01 is the rear 16-channel relay output/I/O module. The separate front relay control module is spare part 149986-01. A replacement order must identify which half of the 3500/33 assembly is required.
        Is Bently Nevada 3500/33 149992-01 interchangeable with 149992-02, 149992-03, or 149992-04?
        Not automatically. Part 149992-01 is the standard relay output module; 149992-02 is failsafe, 149992-03 is low-current, and 149992-04 combines low-current and failsafe behavior. Match the installed output type and safety design before substitution.
        When should a low-current alternative be selected instead of Bently Nevada 3500/33 149992-01?
        The standard silver contacts in 149992-01 require at least 100 mA at 5 V DC. For loads in the low-current region, Bently Nevada directs users to the gold-plated low-current output options. Confirm the actual field load before choosing the replacement.
        Why must the relay mode switches be recorded before replacing Bently Nevada 3500/33 149992-01?
        Its 16 channels are divided into four groups of four, with each group switch-selectable for normally de-energized or normally energized operation. Copying the original switch pattern prevents unintended reversal of alarm or trip behavior.
        Can Bently Nevada 3500/33 149992-01 be commissioned without a compatible front module and rack configuration?
        No. The rear output module supplies the physical relay contacts, while the compatible 149986-01 front control module executes the programmed Alarm Drive Logic. The completed 3500/33 also requires 3500 Rack Config version 3.3 or later.
        What hazardous-voltage precautions apply when wiring Bently Nevada 3500/33 149992-01?
        Field conductors can expose hazardous voltage. Disconnect power before servicing and never disconnect a live circuit unless the area is known to be non-hazardous. Observe the lower 30 V limit where failsafe, hazardous-area, or functional-safety restrictions apply.
        What should be investigated if a relay connected through Bently Nevada 3500/33 149992-01 does not change state?
        Check the paired 149986-01 module, Alarm Drive Logic, rack communication, ND/NE group switch, field supply, contact load, and NO/NC/ARM wiring. Also verify that the replacement is the standard 149992-01 rather than a different failsafe or low-current output variant.
