        WD3-007

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

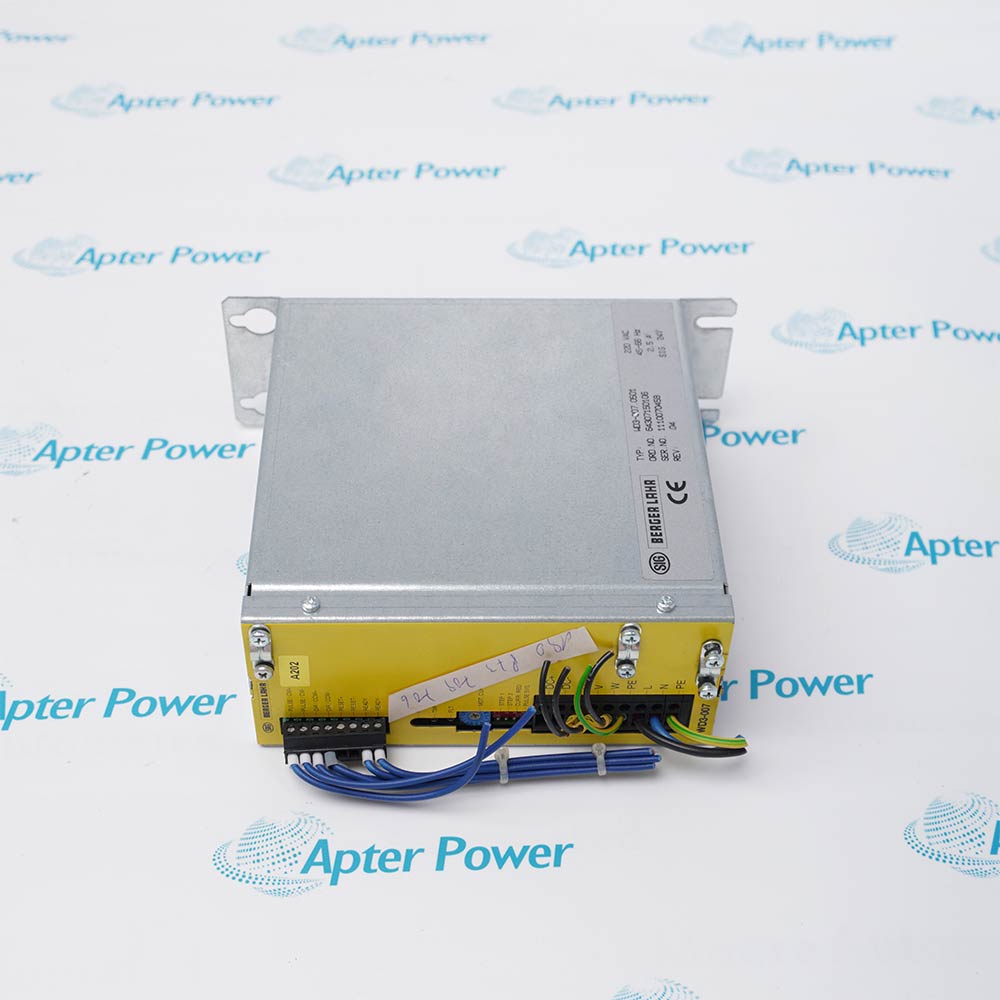

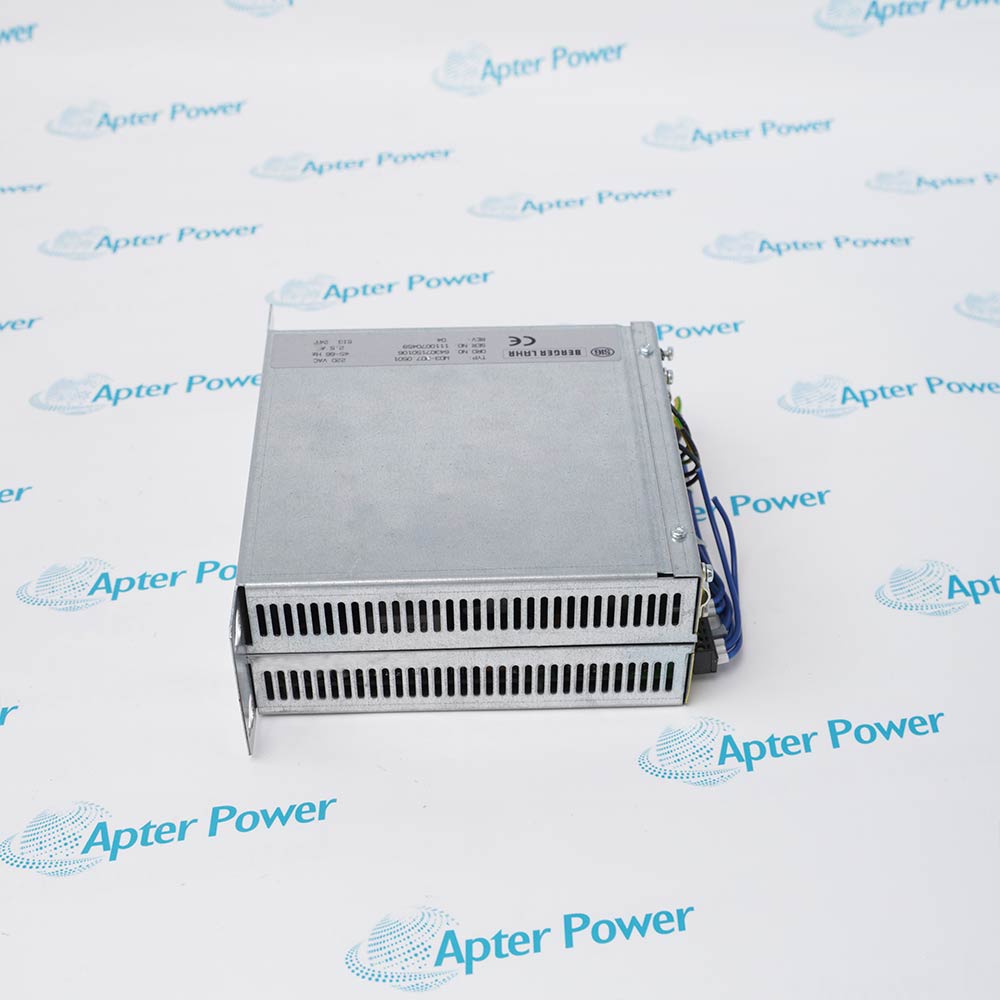

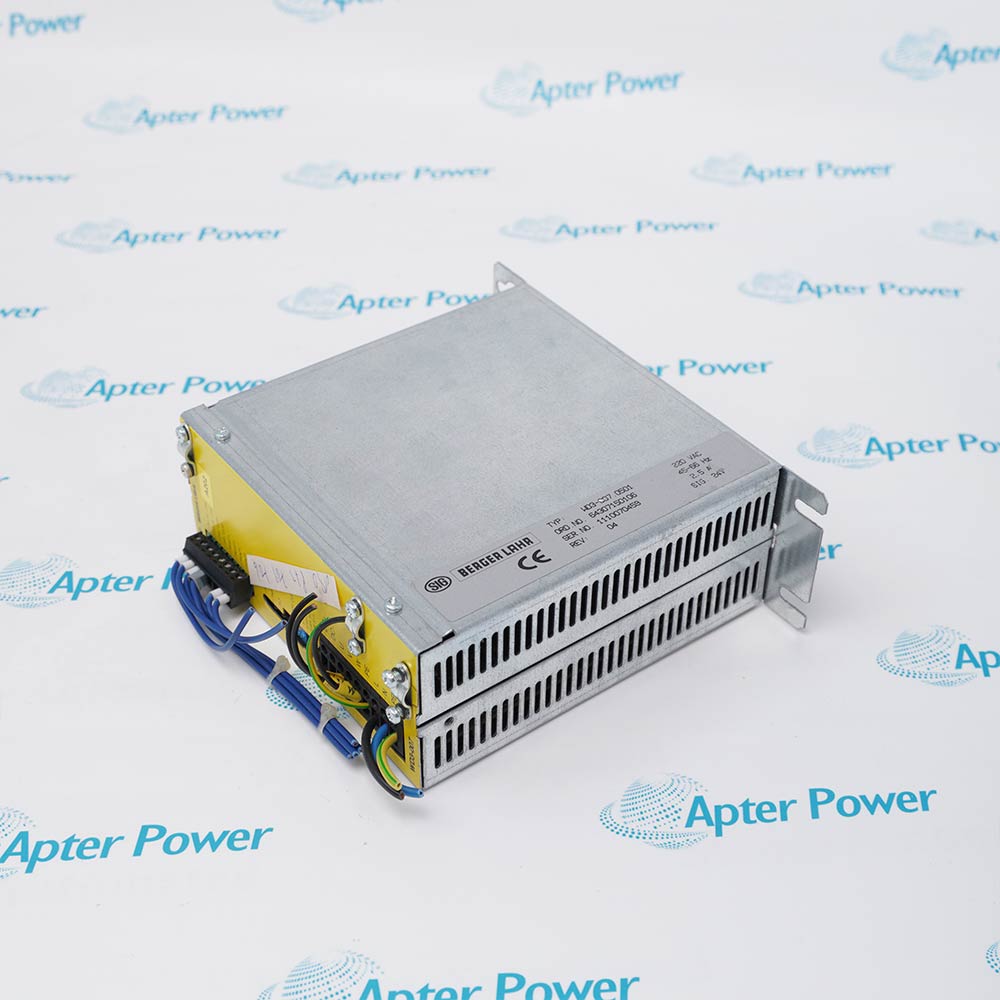

        The Berger Lahr WD3-007 is a three-phase stepping-motor power controller with selectable pulse-input modes, current reduction, fault monitoring and model variants for 110 or 230 VAC and 5 or 24 V control signals.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for WD3-007
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for WD3-007

        • Manufacturer:
          Berger Lahr
        • Part Number:
          WD3-007
        • Product Family:
          Berger Lahr
        • Product Type:
          3-Phase Stepper-Motor Power Controller
        • Stock:
          1
        • Mains Voltage:
          110 or 230 VAC depending on variant
        • Mains Tolerance:
          minus 30 percent to plus 20 percent
        • Frequency:
          45 to 66 Hz
        • Internal Fuse:
          6.3 A
        • Maximum Input Current:
          5 A at 110 V type; 2.5 A at 230 V type
        • Pulse Interface:
          PULSE/CW, DIR/CCW, RESET and RDY
        • Step Settings:
          500, 1,000, 5,000 or 10,000 steps per revolution
        • Standstill Current Reduction:
          60 percent
        • Dimensions:
          6.6 × 14.5 × 15.5 cm
        • Operating Temperature:
          0 to 50 °C
        • Storage and Transport Temperature:
          minus 40 to plus 70 °C
        • Weight:
          1.1 kg
        • Tariff Code:
          8537109090
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Variants Control Protection Application
        • Three-phase stepping-motor power controller
        • Selectable resolution and current-reduction functions
        • Four suffix variants define mains and signal levels

        WD3-007 converts pulse commands into controlled three-phase stepping-motor current while monitoring drive readiness and power-stage faults.

        The controller provides selectable stepping resolution, motor-current adjustment and automatic current reduction. The complete WD3-007 suffix must be used to identify the applicable mains-voltage and control-signal configuration.

        Before installation or replacement, confirm the complete model suffix, supply voltage, signal level, motor phase current, motor wiring, mounting arrangement and cooling requirements.

        Availability, condition, price, and shipping time for WD3-007 are confirmed during quotation.

        Berger Lahr WD3-007 3-Phase Power Controller Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, connectors, motors, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • .0401 combines 110 VAC with 24 V signal inputs
        • .0501 combines 230 VAC with 24 V signal inputs
        • .1401 and .1501 use 5 V signal inputs at 110 and 230 VAC respectively
        • Supports one-pulse PULSE and DIR control
        • Supports two-pulse CW and CCW control
        • Provides RESET input and RDY relay output
        • Monitors phase short circuit and supply overvoltage or undervoltage
        • Reports power-controller overtemperature
        • Requires clear fan airflow above and below the enclosure
        • Pulse-controlled three-phase stepper positioning axes
        • Machine motion systems using a PLC or positioning controller
        • Legacy installations requiring selectable step resolution and stored counter position
        Description
        WD3-007 is a Berger Lahr three-phase stepping-motor power controller for pulse-and-direction or clockwise-and-counterclockwise command systems.

        It provides selectable motor phase current, 500 to 10,000 steps per revolution, standstill current reduction, an internal position counter, readiness output, forced-air cooling and protection monitoring.

        The base designation is incomplete for electrical ordering. Confirm one of the .0401, .0501, .1401 or .1501 variants before purchase because mains voltage and signal level differ.
        Alternative Names
        WD3-007 Berger Lahr WD3-007 WD3-007 3-Phase Power Controller Berger Lahr WD3-007 3-Phase Power Controller
        Technical notes
        Do not order only by the WD3-007 base name. Read the full suffix from the installed label and match both mains voltage and input-signal level. Preserve airflow, grounding, motor phase sequence and pulse-interface polarity.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What information must be matched before replacing a Berger Lahr WD3-007 in an existing machine?
        Match the complete suffix, mains voltage, signal level, motor current, step-resolution setting, connector pinout and installed braking or interlock wiring; the WD3-007 base number alone is not sufficient.
        What should be recorded before removing a working Berger Lahr WD3-007 for repair or exchange?
        Photograph every switch and connector position, record the current and step-resolution settings, label all cables, capture the RDY interlock wiring and note the motor nameplate so the replacement can be commissioned from a known baseline.
        Why might a replacement Berger Lahr WD3-007 power up but fail to release the machine interlock?
        Check the RDY relay state, supply-voltage variant, input-signal level, emergency-stop chain, motor wiring and active fault LEDs; a suffix or wiring mismatch can leave the drive powered but not ready.
        How can nuisance overtemperature trips on a Berger Lahr WD3-007 be reduced?
        Restore unobstructed fan airflow, maintain the required space above and below the drive, clean the cabinet filters, verify ambient temperature and confirm that motor current has not been set above the motor rating.
        What can cause incorrect travel distance after fitting a replacement Berger Lahr WD3-007?
        A different steps-per-revolution setting, reversed phase sequence, changed controller pulse scaling or incorrect direction logic can alter motion; compare all four items with the removed drive before production use.
        Can a different Berger Lahr WD3-007 suffix be installed as a temporary substitute?
        Only after an engineering review confirms mains compatibility, command-signal voltage, connector wiring and safety-chain behavior; fitting a visually identical suffix without those checks can damage the drive or controller.
        What evidence should a customer request when buying a stored or refurbished Berger Lahr WD3-007?
        Request clear nameplate and connector photographs, the full suffix, power-up and RDY evidence, fault-history information, cooling-fan condition and confirmation that the unit was tested with a compatible motor and signal level.
