HCD2-FBPS-1.500

/ 4.9
1001 reviews | Need a Specific Revision?

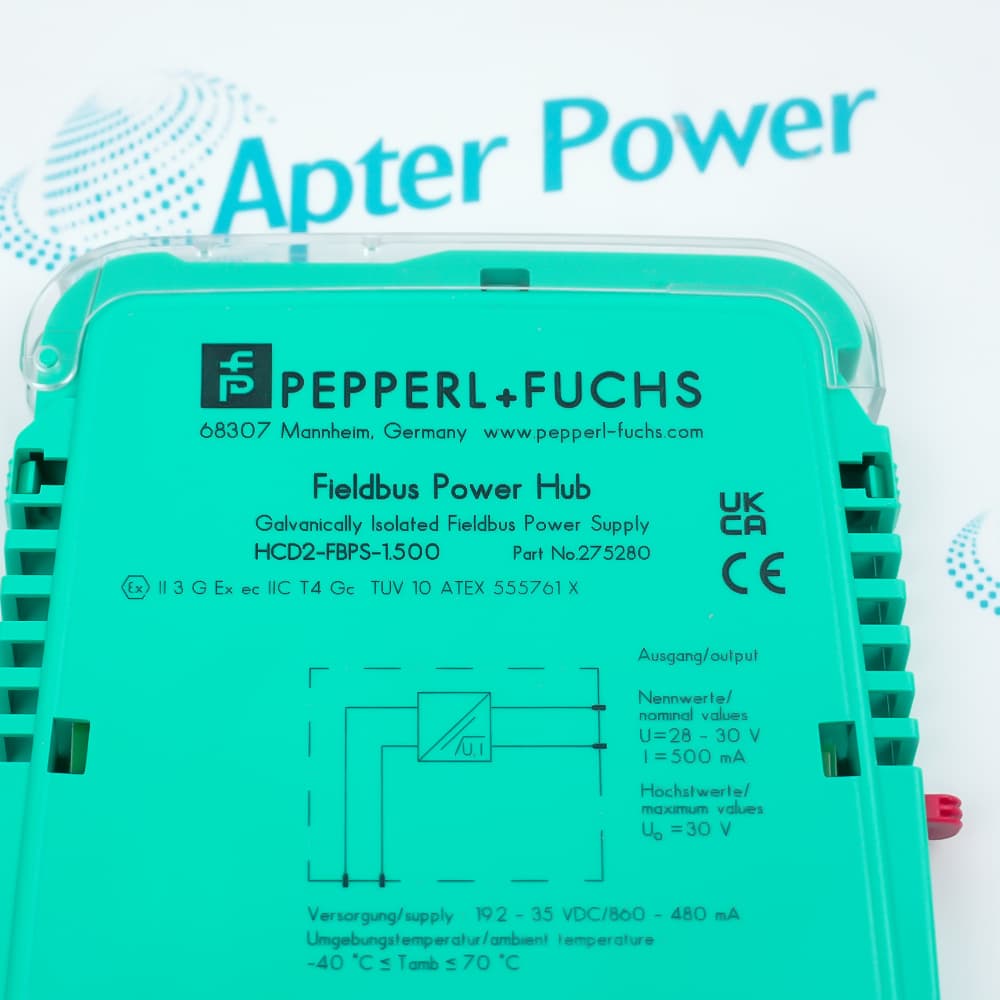

Pepperl+Fuchs HCD2-FBPS-1.500 is a FieldConnex fieldbus power-supply module that mounts on a Power Hub motherboard and delivers an isolated 500 mA segment supply.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for HCD2-FBPS-1.500
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for HCD2-FBPS-1.500

  • Manufacturer:
    Pepperl + Fuchs
  • Part Number:
    HCD2-FBPS-1.500
  • Product Family:
    Pepperl + Fuchs
  • Product Type:
    Fieldbus Power Supply
  • Stock:
    1
  • Design:
    Motherboard based
  • Hazardous-area installation:
    Zone 2 / Division 2
  • Supply voltage:
    19.2...35 V DC
  • Power dissipation:
    1.6 W typical
  • Fieldbus output voltage:
    28...29.5 V
  • Rated output current:
    500 mA
  • Short-circuit current:
    550 mA
  • ERR indication:
    Red flashing for short circuit or undervoltage
  • PWR indication:
    Green when output exceeds 28 V
  • Isolation:
    Segment-to-supply functional insulation, 250 V AC
  • Fieldbus standard:
    IEC 61158-2
  • Operating temperature:
    -40...70 °C
  • Storage temperature:
    -40...85 °C
  • Relative humidity:
    <95%, non-condensing
  • Housing:
    Polycarbonate, IP20
  • Mounting:
    Fieldbus Power Hub motherboard
  • Weight:
    0.3307 lbs (0.15 kg)
  • Estimated shipping dimensions:
    12.8x1.25x10.6cm
  • Tariff Code:
    8504401400
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Power Path Redundancy Status LEDs Hazardous Area

Features:

  • The module supplies a high-power trunk from a FieldConnex Power Hub motherboard.
  • Segment-to-supply galvanic isolation separates fieldbus power from the bulk input.
  • Redundant operation permits module exchange while the paired supply remains in service.
The conditioned output of HCD2-FBPS-1.500 feeds the host and trunk connections defined by its Power Hub motherboard.

A red fault LED covers output short-circuit or undervoltage conditions, while the green LED confirms the required output-voltage threshold.

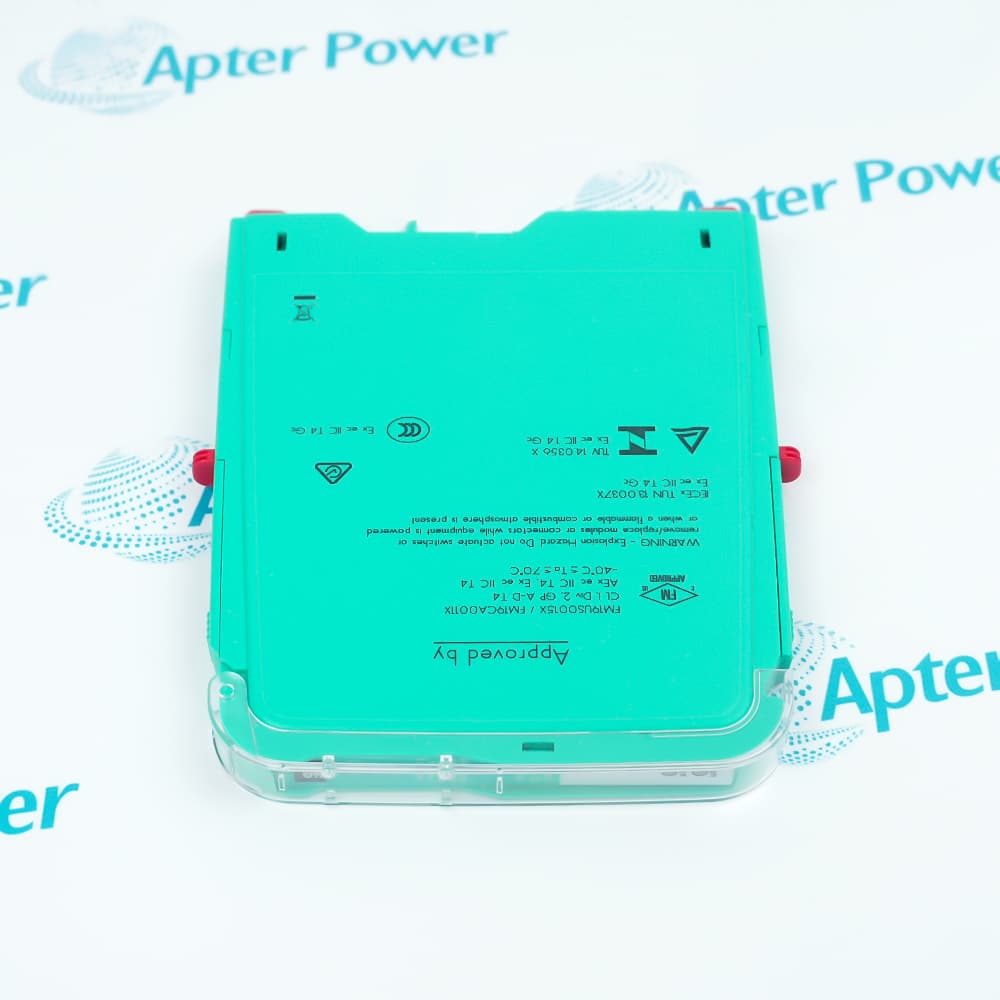

The slim polycarbonate module mounts on the motherboard and is approved for the documented Zone 2 or Class I, Division 2 arrangement.

The Pepperl+Fuchs HCD2-FBPS-1.500 Fieldbus Power Supply may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Pepperl+Fuchs HCD2-FBPS-1.500 Fieldbus Power Supply Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

From bulk input to fieldbus trunk

  • Bulk connection: the motherboard presents the external DC supply to the plug-in module.
  • Conditioning stage: HCD2-FBPS-1.500 regulates the energy for the connected fieldbus segment.
  • Host side: the Power Hub routes communication toward the host connection.
  • Trunk side: the isolated output supplies devices along the high-power trunk.

Paired supply operation

  • Parallel modules: two power supplies share the segment load through the motherboard circuits.
  • Live exchange: one HCD2-FBPS-1.500 can be removed while its redundant partner continues supplying the segment.
  • Tool-free action: the plug-in form allows module exchange without disconnecting field wiring.
  • Pair verification: both positions are checked for the same complete supply-module designation.

Interpreting output condition

  • Green PWR: an output above 28 V confirms that the segment-voltage threshold is present.
  • Red ERR: a flashing indication identifies output undervoltage or short circuit.
  • No PWR: the bulk input, motherboard contact and module output are traced in that order.
  • Separate diagnosis: a healthy supply indication does not by itself verify every downstream device.

Installation-rating boundaries

  • Location: the documented arrangement covers Zone 2 or Class I, Division 2 installation.
  • Protection level: the IP20 housing depends on the surrounding cabinet and approved system assembly.
  • Ambient limit: the installation maintains the specified operating-temperature range.
  • Approvals: the module is used with the listed ATEX, IECEx and FM conditions for the complete system.
Description
Pepperl+Fuchs HCD2-FBPS-1.500 is a FieldConnex fieldbus power supply that plugs into a Power Hub motherboard. It converts the bulk DC input into an isolated segment supply for FOUNDATION Fieldbus H1 or PROFIBUS PA wiring.

Within a redundant Power Hub arrangement, two HCD2-FBPS-1.500 modules operate in parallel so one unit can be exchanged without removing segment power. The motherboard provides the terminating and connection arrangement while each module contributes its own conditioned output.

The status path on HCD2-FBPS-1.500 separates normal voltage from a supply fault: the green indicator confirms an output above 28 V, and the red indicator flashes for output undervoltage or a short circuit. Galvanic isolation keeps the fieldbus segment functionally separated from the bulk supply.
Alternative Names
HCD2FBPS1500 HCD2 FBPS 1 500 HCD2-FBPS-1 500 Pepperl+Fuchs HCD2-FBPS-1.500 P+F HCD2-FBPS-1.500 FieldConnex HCD2-FBPS-1.500 HCD2-FBPS-1.500 Fieldbus Power Supply HCD2-F8PS-1.500
Technical notes
Pepperl+Fuchs HCD2-FBPS-1.500 accepts 19.2–35 V DC and produces a 28–29.5 V high-power fieldbus trunk with a 550 mA short-circuit limit.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why should Pepperl+Fuchs HCD2-FBPS-1.500 not be treated as a generic cabinet power supply?
Pepperl+Fuchs HCD2-FBPS-1.500 is a plug-in FieldConnex Power Hub module that conditions bulk DC specifically for an IEC 61158-2 fieldbus segment.
What does a flashing red ERR LED mean on HCD2-FBPS-1.500?
A flashing red ERR LED on HCD2-FBPS-1.500 indicates output undervoltage or a short circuit, so the segment output should be checked before downstream devices.
Can one HCD2-FBPS-1.500 be exchanged without shutting down a redundant segment?
Yes. In the documented redundant arrangement, one HCD2-FBPS-1.500 is hot swappable while the paired module continues supplying the segment.
Which fieldbus networks are served by Pepperl+Fuchs HCD2-FBPS-1.500?
Pepperl+Fuchs HCD2-FBPS-1.500 supplies IEC 61158-2 segments used by FOUNDATION Fieldbus H1 and PROFIBUS PA.
How does HCD2-FBPS-1.500 separate the fieldbus trunk from the bulk supply?
HCD2-FBPS-1.500 provides functional galvanic insulation between its fieldbus segment and supply, with a rated insulation voltage of 250 V AC.
What must be matched before installing HCD2-FBPS-1.500 in a hazardous-area Power Hub?
Confirm the complete HCD2-FBPS-1.500 model, compatible motherboard position, Zone 2 or Class I Division 2 system conditions, and documented ambient limits.
