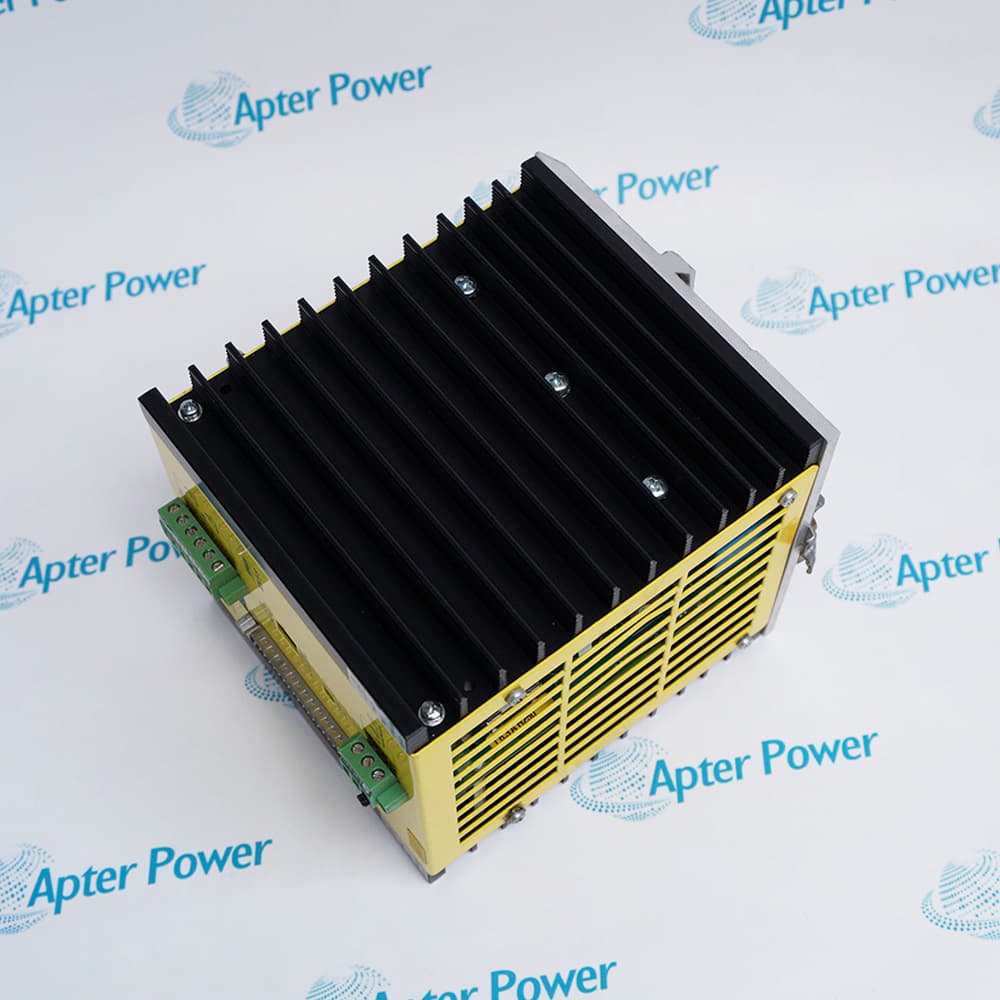

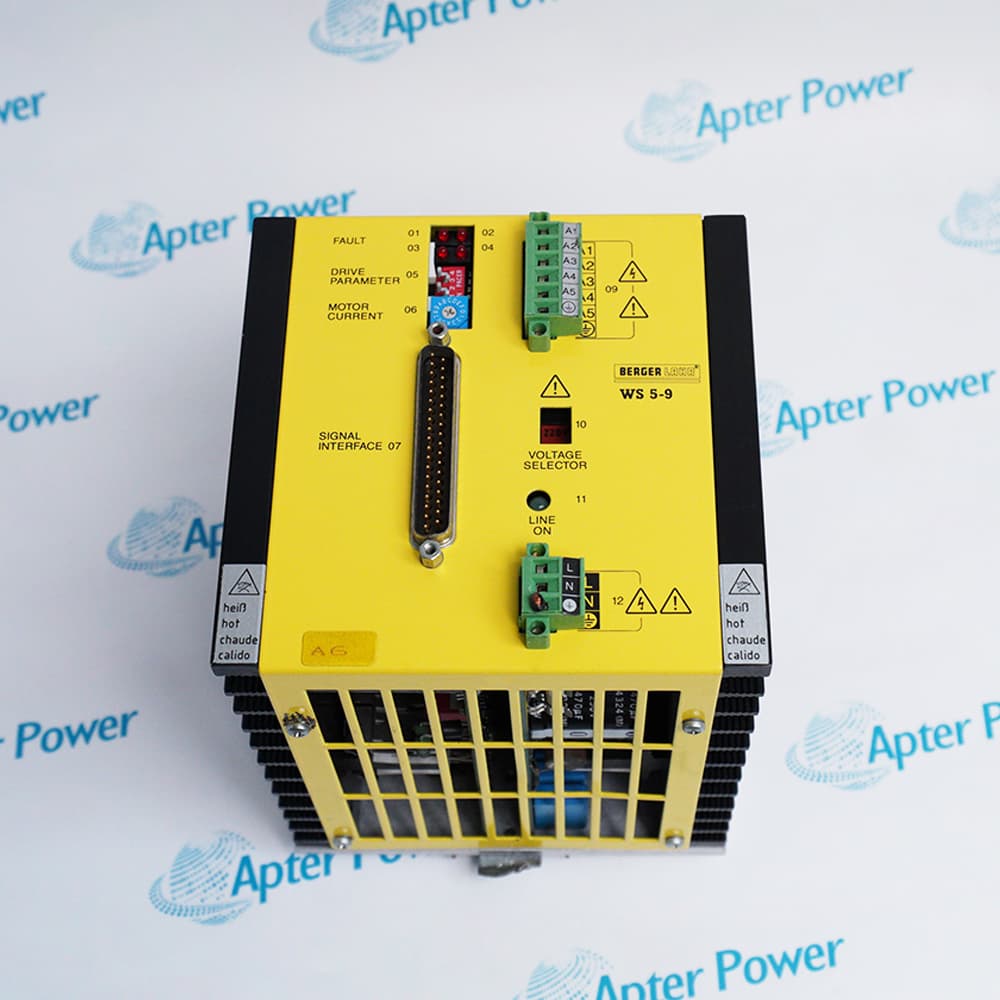

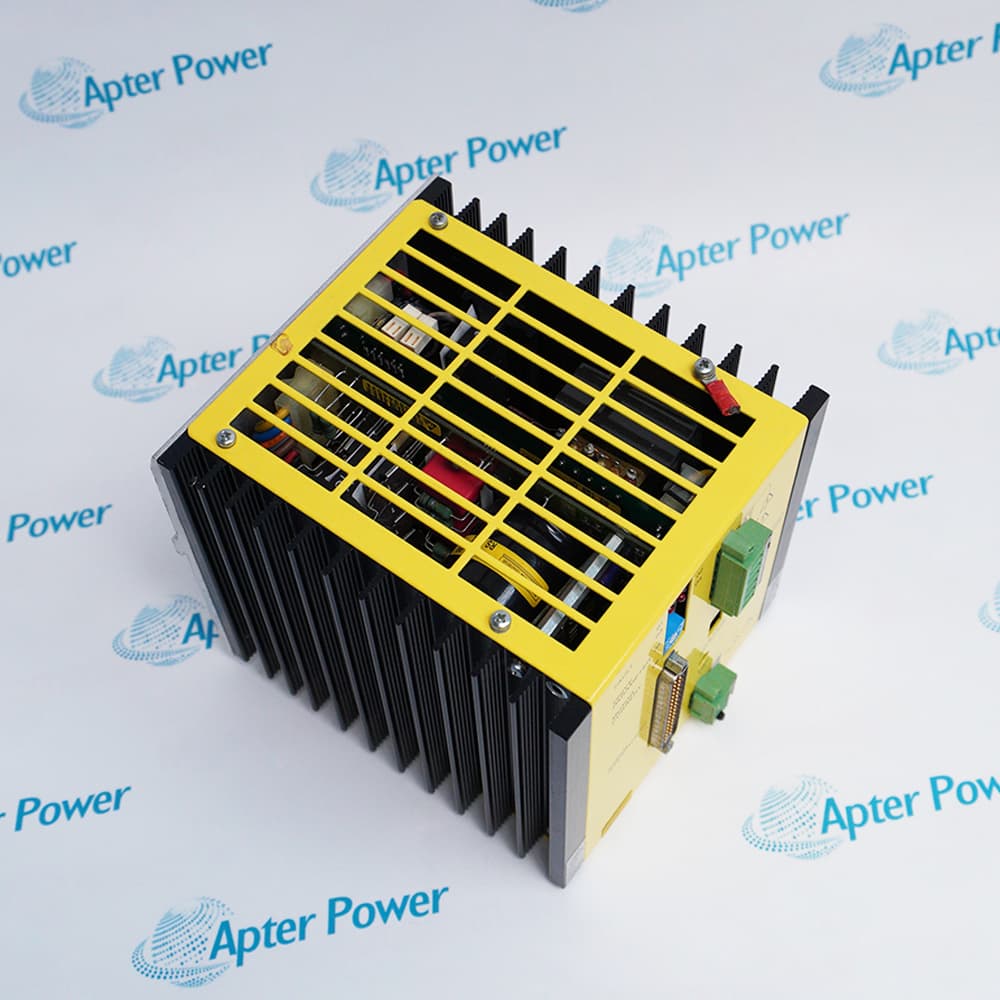

The Berger Lahr WS5-9.081-00 is a rail-mounted power drive for five-phase stepping motors up to 2.8 A per winding, using 24 V control signals and selectable 115 or 230 VAC mains input.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for WS5-9.081-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for WS5-9.081-00

  • Manufacturer:
    Berger Lahr
  • Part Number:
    WS5-9.081-00
  • Product Family:
    Berger Lahr
  • Product Type:
    5-Phase Stepper-Motor Power Drive
  • Stock:
    1
  • Signal Level:
    24 V
  • Mains Input:
    115 VAC or 230 VAC, selectable
  • Mains Tolerance:
    minus 20 percent to plus 15 percent
  • Frequency:
    50 to 60 Hz
  • Maximum Power Consumption:
    600 VA
  • Maximum Power Dissipation:
    80 W
  • Motor Voltage:
    70 V DC
  • Phase Current:
    0.55 to 2.8 A in 16 stages
  • Connection System:
    Five-point
  • Maximum Motor Cable Length:
    50 m
  • Protection Degree:
    IP20
  • Dimensions:
    13.5 × 15.7 × 13.5 cm
  • Operating Temperature:
    0 to 50 °C
  • Storage and Transport Temperature:
    minus 25 to plus 70 °C
  • Weight:
    2.8 kg
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Power Motion Installation Application
  • Rail-mounted power drive for five-phase stepper motors
  • 24 V control-signal version with order number 64690810006
  • Selectable 115 or 230 VAC mains input

WS5-9.081-00 links a positioning controller or PLC-based indexer to a five-phase stepping motor.

The drive accepts 24 V control signals and operates from a selectable 115 or 230 VAC mains supply.

Confirm order number 64690810006, mains selection and motor compatibility before installation or replacement.

Availability, condition, price, and shipping time for WS5-9.081-00 are confirmed during quotation.

Berger Lahr WS 5-9.081-00 Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Select 115 or 230 VAC before energization
  • The power stage generates a 70 V DC motor circuit
  • Maximum documented power consumption is 600 VA
  • Provides 16 current stages from 0.55 to 2.8 A
  • Supports pulse, direction, enable, PWM, half-step and boost inputs
  • Uses a five-point connection for the five-phase motor
  • Install the IP20 unit inside a control cabinet
  • Maintain the specified spacing for heat dissipation
  • Screen motor and signal cables as described in the manual
  • Five-phase stepper positioning axes controlled by a WP-311 or equivalent controller
  • PLC-indexed machine motion requiring 24 V command signals
  • Control-cabinet motion systems requiring selectable phase current and fault feedback
Description
WS5-9.081-00 is a Berger Lahr rail-mounted five-phase stepper-motor power drive with 24 V control inputs.

It generates a 70 V DC motor circuit from selectable 115 or 230 VAC mains and provides 16 phase-current settings from 0.55 to 2.8 A, step-angle selection, boost, current reduction, direction control and monitored READY output.

Install the IP20 unit inside a control cabinet, preserve the required cooling clearance, set the mains selector before energization, and verify the complete .081-00 suffix rather than substituting the TTL-input .181-00 variant.
Alternative Names
WS5-9.081-00 WS 5-9.081-00 WS5908100 Berger Lahr WS5-9.081-00 Berger Lahr WS 5-9.081-00 Berger Lahr 64690810006
Technical notes
WS5-9.081-00 has no space between WS and 5. Confirm the 24 V control signal, mains selector, motor current, screened cabling and cabinet cooling before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the main replacement risk when ordering a Berger Lahr WS5-9.081-00 from the secondary market?
A visually similar .181-00 unit uses a different control-signal level, so customers must match the complete suffix, input logic, mains setting, motor current range and connector arrangement.
What must be checked before applying power to a replacement Berger Lahr WS5-9.081-00?
Confirm the 115/230 VAC selector position against the site supply, inspect protective earth and fusing, verify motor wiring and current selection, and ensure the cabinet is dry, clean and adequately ventilated.
Why might a Berger Lahr WS5-9.081-00 trip only after the machine has run for some time?
Restricted cabinet airflow, insufficient spacing, a failing fan, excessive motor current, high ambient temperature or a deteriorating motor cable can produce delayed thermal or phase-interruption faults.
How should motor current be set after replacing a Berger Lahr WS5-9.081-00?
Use the installed motor nameplate and the previous documented setting, start with the approved phase-current stage and verify motor temperature, torque and positioning under controlled load before production.
What should be investigated when a Berger Lahr WS5-9.081-00 reports intermittent motor-phase interruption?
Inspect motor plugs, cable flex points, terminal tightness and winding continuity, then check for vibration-related contact loss; do not repeatedly reset the drive without finding the open circuit.
Can another WS5 variant replace a Berger Lahr WS5-9.081-00 without rewiring?
Not automatically. Confirm signal voltage, mains selector, phase-current range, connector pinout, monitoring behavior and physical clearance before approving any alternate WS5 variant.
What should be documented before sending a Berger Lahr WS5-9.081-00 for repair?
Record the complete label, selector and current settings, LED or fault behavior, operating time before failure, motor type, cabinet temperature and photographs of all wiring so the repair can reproduce the field conditions.
