KJ1501X1-BC4

/ 4.9
1001 reviews | Need a Specific Revision?

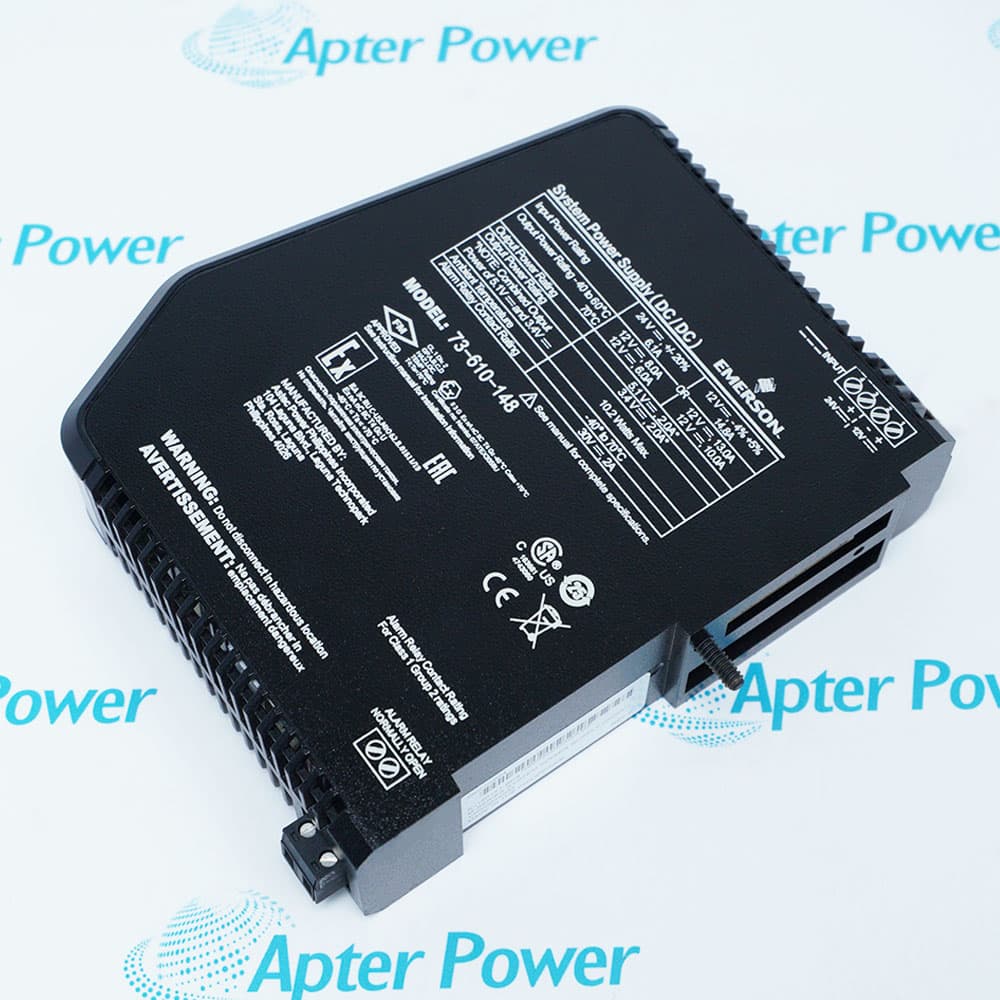

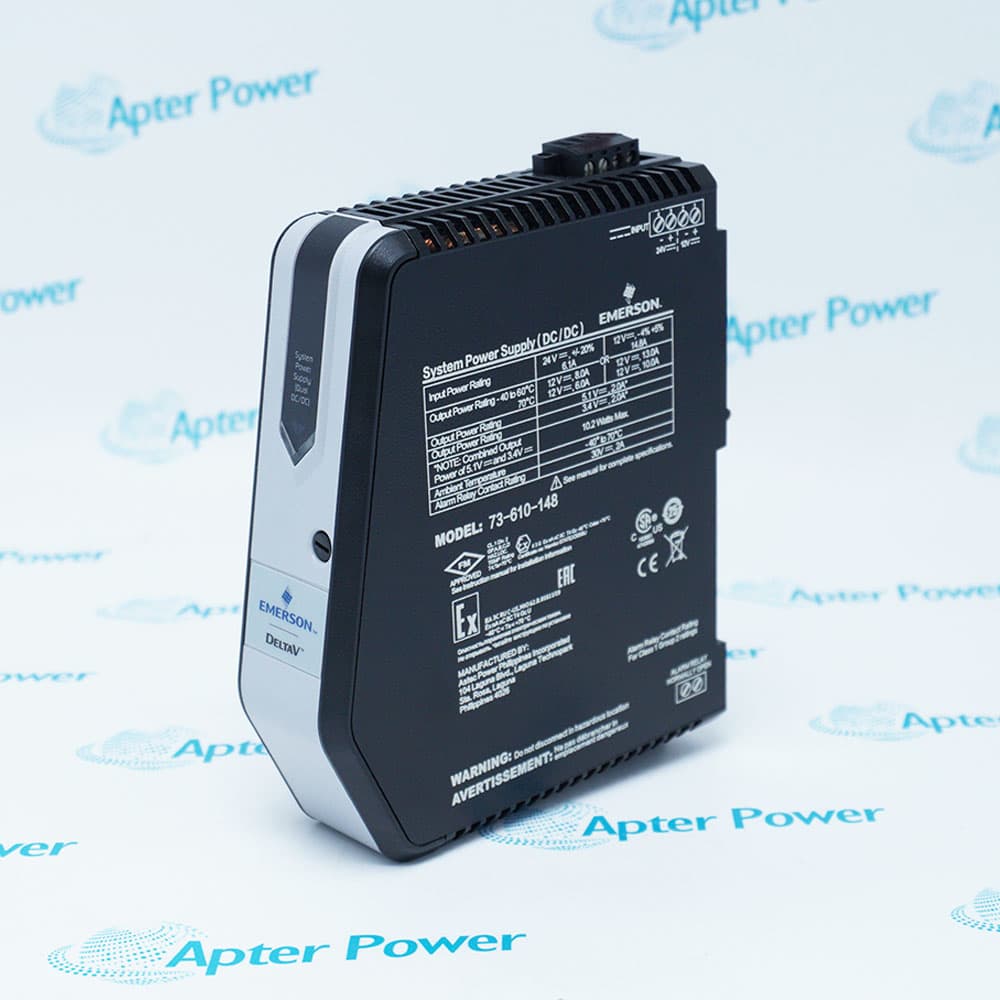

Emerson KJ1501X1-BC4 is a dual-DC DeltaV system power supply for controller and I/O cabinet electronics. It converts the selected plant DC source into the regulated rails required by the supported power assembly.
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for KJ1501X1-BC4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ1501X1-BC4

  • Manufacturer:
    Emerson
  • Part Number:
    KJ1501X1-BC4
  • Product Family:
    DeltaV
  • Product Type:
    dual DC system power supply
  • Input options:
    12 VDC or 24 VDC
  • Input current at 12 VDC:
    14.8 A
  • Input current at 24 VDC:
    6.1 A
  • Primary output rail:
    12 VDC
  • 12 V output from 12 V input:
    13 A
  • 12 V output from 24 V input:
    8 A
  • Secondary output rail:
    5.1 VDC at 2 A
  • Auxiliary output rail:
    3.4 VDC at 2 A
  • Combined 5.1 V and 3.4 V power:
    10.2 W maximum
  • Pass-through source limit:
    12.6 VDC maximum
  • Pass-through current limit:
    16 A maximum
  • Ambient temperature:
    -40 to 70 °C
  • Relative humidity:
    5-95%, non-condensing
  • Shock:
    10 g half-sine wave for 11 ms
  • Low-frequency vibration:
    1 mm peak-to-peak from 2 to 13.2 Hz
  • High-frequency vibration:
    0.7 g from 13.2 to 150 Hz
  • Airborne contaminants:
    ISA-S71.04 Class G3
  • ATEX marking:
    II 3G Ex nA nC IIC Gc
  • ATEX certificate:
    Nemko 07ATEX3058U
  • Field calibration:
    Not required
  • User-serviceable parts:
    None
  • Weight:
    0.75 kg
  • Estimated shipping dimensions:
    4.1x14.5x17.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Efficiency Operating Environment Safety

Features:

  • Accepts 12 VDC or 24 VDC input.
  • Provides regulated 12 VDC, 5.1 VDC and 3.4 VDC outputs.
  • Supports DeltaV controller and I/O system power distribution.
The current ordering configuration is KJ1501X1-BC4, which is a DeltaV dual-DC system power supply that accepts either a 12 VDC or 24 VDC source and feeds the regulated rails used by supported controller and I/O electronics.

Within the installed DeltaV System Power architecture, this configuration generates regulated 12 VDC, 5.1 VDC and 3.4 VDC rails for the supported DeltaV system-power assembly.

Match the plant input voltage, load budget, hazardous-area approval and removal procedure to the installed supply.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for Emerson KJ1501X1-BC4:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerEmerson
  • ModelKJ1501X1-BC4
  • ConditionNew / Surplus / Refurbished
  • Product FamilyDeltaV System Power
  • The supply accepts the documented plant DC source and distributes regulated power to the supported DeltaV assembly.
  • Available rail capacity depends on the selected input arrangement and the complete downstream cabinet load.
  • Controller, carrier and I/O demand must be included in the system power calculation before energization.
  • Cabinet ventilation must keep the power assembly within the approved industrial operating envelope.
  • Prevent condensation and maintain the documented contaminant-control practices around the supply.
  • Use the nameplate approval and project area classification when selecting the installation location.
  • The unit contains no field-serviceable circuitry and is replaced as a complete power-supply assembly.
  • Disconnect the incoming source and verify stored energy is removed before insertion or removal.
  • Match the input-source variant, connectors and approval marking rather than relying on enclosure appearance.
Description
KJ1501X1-BC4 is a DeltaV dual-DC system power supply that accepts the documented plant DC source and feeds the regulated rails used by supported controller and I/O electronics.

It forms part of the cabinet power architecture, distributing stable operating power to the system assembly while allowing the project to use the selected input-source arrangement.

Engineering review must match the input variant, downstream rail demand, connector arrangement, cabinet environment, approval marking and de-energized replacement procedure.
Alternative Names
KJ1501X1-BC4 Emerson KJ1501X1-BC4 KJ1501X1BC4 KJ1501X1-BC4 dual DC system power supply DeltaV System Power KJ1501X1-BC4 Emerson DeltaV System Power KJ1501X1-BC4 Emerson DeltaV System Power dual DC system power supply
Technical notes
Before energizing KJ1501X1-BC4, verify field wiring, power isolation and the validated DeltaV System Power configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What identifies KJ1501X1-BC4 as the dual-DC system-supply configuration?
KJ1501X1-BC4 accepts the documented plant DC source options and feeds the regulated rails used by its supported DeltaV power assembly.
Why must the cabinet load schedule be reviewed for KJ1501X1-BC4?
Available rail capacity changes with the selected source arrangement, so the complete downstream controller and I/O demand must remain within the approved budget.
What system equipment is powered by KJ1501X1-BC4?
It supplies the supported DeltaV controller and I/O electronics through the documented dual-DC system-power assembly.
How should KJ1501X1-BC4 supply be checked for a planned outage?
Give Apter Power the input-voltage configuration, quantity and outage date so stock and sourcing can be confirmed for that schedule.
What prevents a different system power supply from being a direct KJ1501X1-BC4 replacement?
The input voltage, rail-current budget, connector arrangement, ambient rating and hazardous-area approval must all agree.
Which details should accompany a KJ1501X1-BC4 datasheet and pricing request?
Open the KJ1501X1-BC4 Datasheet in Manuals and provide the input voltage, installed load, approval needs, quantity and ship-to destination.
