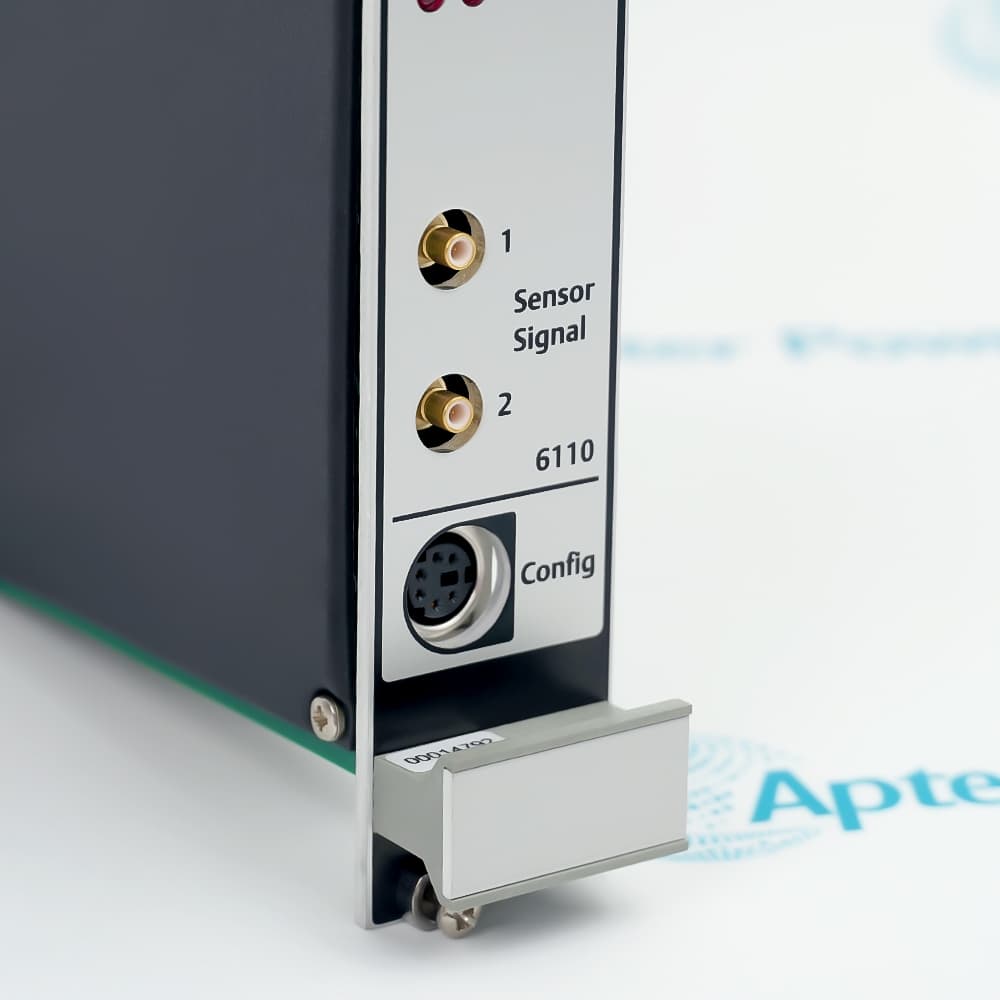

EMERSON A6110

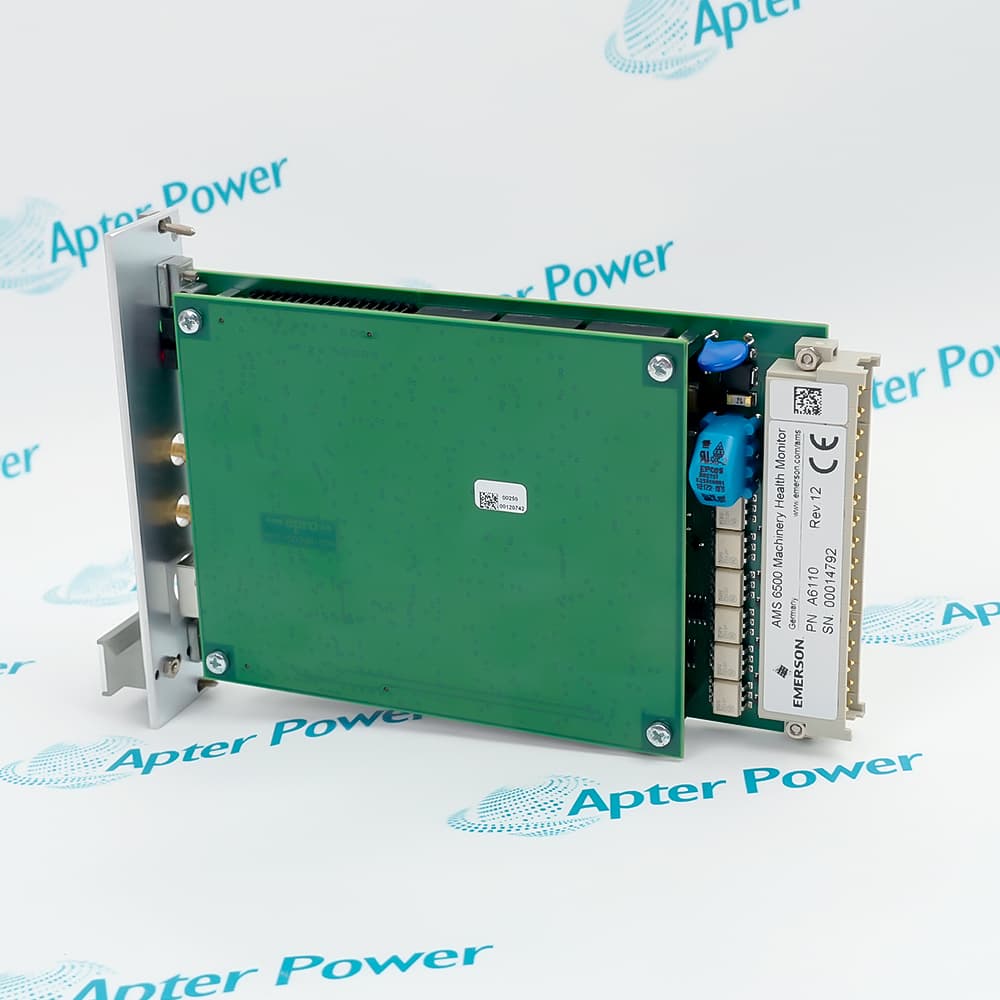

EMERSON A6110
EMERSON A6110
EMERSON A6110
EMERSON A6110
EMERSON A6110
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

A6110

/ 4.9
1001 reviews | Need a Specific Revision?
Emerson A6110 is a dual-channel AMS 6500 shaft-relative vibration monitor for compatible eddy current measuring chains.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for A6110
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A6110

  • Manufacturer:
    Emerson
  • Part Number:
    A6110
  • Product Family:
    AMS 6500 Machinery Health Monitor
  • Product Type:
    Dual-Channel Shaft Relative Vibration Monitor
  • Stock:
    1
  • Channels:
    2, independent or combined monitoring modes
  • Input type:
    Eddy current, differential
  • Compatible sensor families:
    PR6422, PR6423, PR6424 and PR6425
  • Compatible drivers:
    CON011/91, CON021/91 and CON041/91
  • Input voltage range:
    0 to -22 VDC
  • Input resistance:
    >100 kΩ
  • Frequency range:
    Lower cutoff 1 or 5 Hz; upper cutoff 50 to 2000 Hz adjustable
  • Sensor supply:
    Nominal -26.7 VDC, 20 mA; 35 mA maximum
  • Analog outputs:
    0/4 to 20 mA and 0 to 10 V
  • Buffered outputs:
    Front and rear raw-signal outputs
  • Power consumption:
    6 W maximum; 250 mA at 24 VDC
  • Format:
    3U, 1 slot, hot-swappable
  • Dimensions:
    16.0 × 3.0 × 12.84 cm
  • Rack capacity:
    Up to 14 modules in a 19-inch rack
  • Standard:
    API 670 compliant
  • Weight:
    0.32 kg
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Transducer Chain Protection Logic Commissioning Application
  • Use only for shaft-relative vibration with a compatible eddy current chain
  • Preserve both channel modes, filters, alarms and relay assignments before a swap
  • Manage protection bypasses even though the 3U card is hot-swappable

Emerson A6110 is a two-channel AMS 6500 protection monitor for shaft vibration measured relative to the bearing housing.

It accepts supported PR642x eddy current measuring chains, processes channels independently or in combined modes, and provides alarm, buffered and proportional outputs in one 3U rack slot.

Before replacement or commissioning, preserve the channel mode, sensor and converter types, gap and scale, filter settings, alarm and trip logic, relay assignments, bypass state and rack configuration.

Availability, condition, price, and shipping time for A6110 are confirmed during quotation.

Emerson A6110 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match each PR642x probe to its documented CON converter
  • Verify sensor gap and bias before comparing vibration
  • Confirm channel polarity and units from the saved configuration
  • Retain Alert and Danger setpoints and delay behavior
  • Preserve relay voting, limit multiply and trip-bypass assignments
  • Document every active bypass before and after maintenance
  • Check front and rear buffered signals
  • Verify 0/4 to 20 mA and 0 to 10 V assignments
  • Perform controlled alarm-path checks before returning protection to service
  • Relative shaft vibration protection on steam, gas and hydro turbines
  • Sleeve-bearing compressor shaft-vibration monitoring
  • Critical rotating-machine protection integrated into an AMS 6500 rack
Description

A6110 is an Emerson AMS 6500 dual-channel monitor for shaft-relative vibration protection using compatible eddy current measuring chains.

It supports independent and combined channel modes, configurable filters, alarms, relay logic, buffered outputs and proportional outputs in one 3U rack slot.

Before replacement, record probe bias, converter identity, channel polarity, scale, filter settings, alarm and trip logic, relay assignments, bypass state and rack configuration.

Alternative Names
A6110 A 6110 Emerson A6110 Emerson Epro A6110 Epro A6110
Technical notes
A6110 measures shaft motion relative to the probe mounting. Do not treat it as an absolute casing-vibration monitor; confirm the complete eddy current chain and saved AMS 6500 configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When should Emerson A6110 be used instead of a casing-vibration monitor?
Use it when the required protection variable is shaft motion relative to the bearing housing, especially on sleeve-bearing machinery; casing vibration is a different measurement.
Can Emerson A6110 accept an arbitrary proximity probe?
No. Confirm a supported PR6422, PR6423, PR6424 or PR6425 sensor and the documented CON011/91, CON021/91 or CON041/91 measuring chain.
What must be preserved when replacing an Emerson A6110 card?
Save both channel modes, ranges, filters, alarm and danger setpoints, voting or relay logic, current-output assignments, bypass state and the exact slot configuration.
Can the two channels on Emerson A6110 be configured differently?
The monitor supports independent or combined monitoring modes, but the selected mode, transducer chain and machine protection strategy must be recreated exactly.
Why can Emerson A6110 show high vibration immediately after a card replacement?
Check probe bias and gap, converter pairing, channel polarity, scale, filter range, monitor units, grounding and whether the channel was restored in the correct independent or combined mode.
Is hot swapping Emerson A6110 risk-free?
No. Although the module is hot-swappable, machine protection, relay voting, bypass authorization and channel outputs must be managed according to the site procedure before removal.
What acceptance checks matter after installing Emerson A6110?
Verify each bias voltage and buffered signal, simulate or safely compare known vibration, confirm current and voltage outputs, exercise Alert and Danger paths, and document restoration of every bypass.
