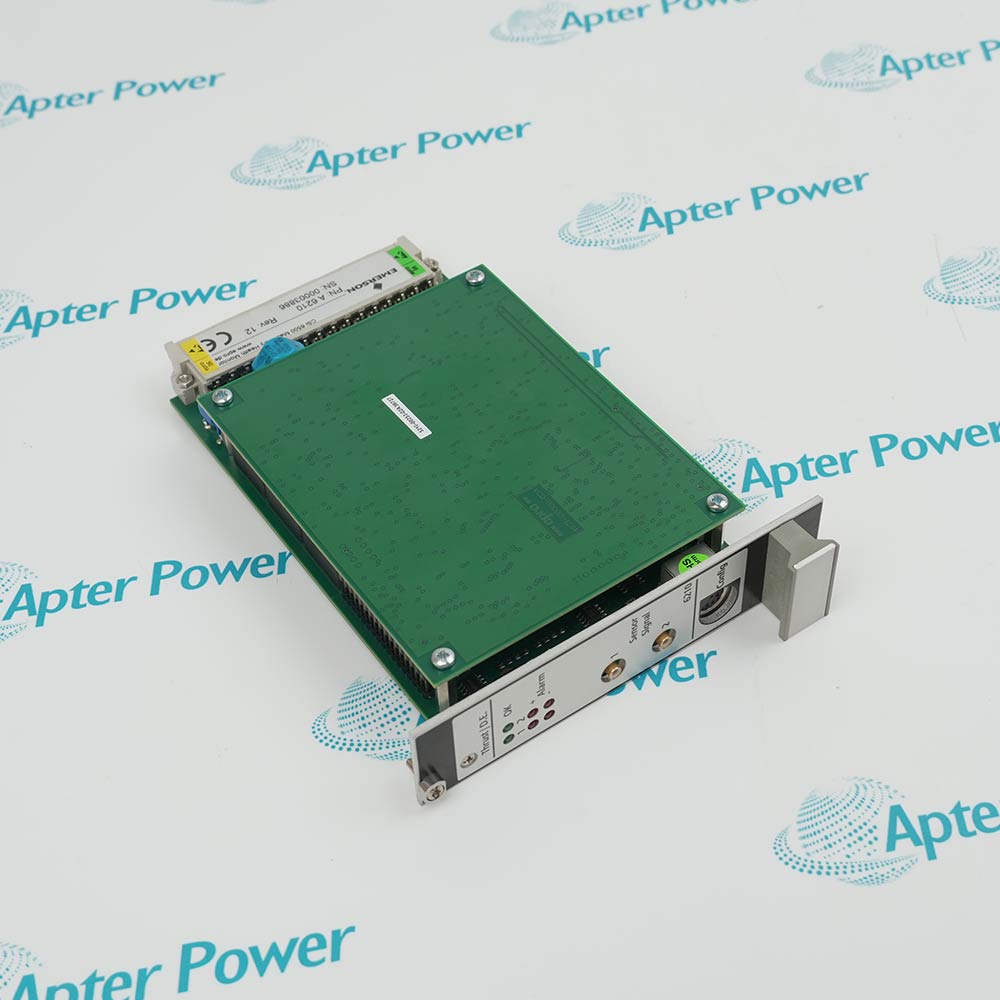

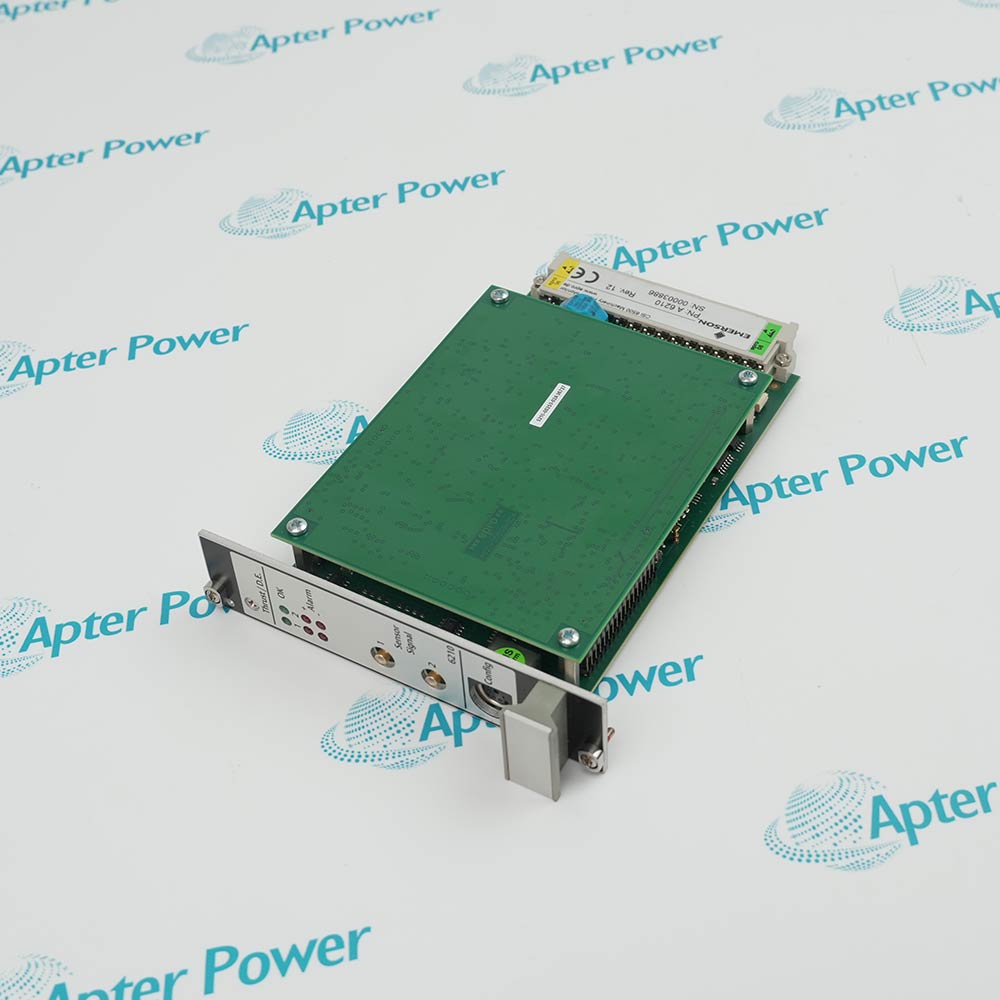

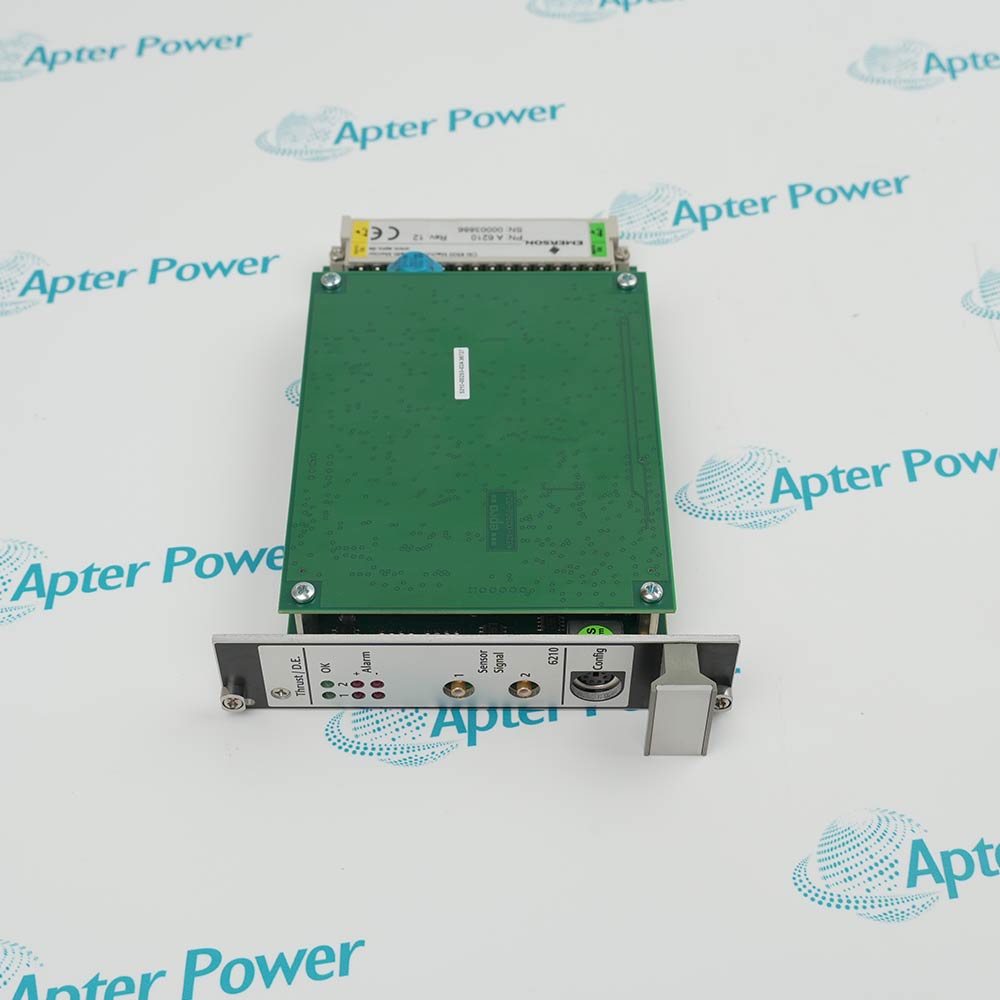

Emerson A6210 is a dual-channel AMS 6500 monitor for thrust position, differential expansion and rod drop.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for A6210
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A6210

  • Manufacturer:
    Emerson
  • Part Number:
    A6210
  • Product Family:
    AMS 6500 Machinery Health Monitor
  • Product Type:
    Dual-Channel Thrust, Differential Expansion and Rod Drop Monitor
  • Stock:
    1
  • Channels:
    2 independent eddy current differential inputs
  • Monitoring modes:
    Thrust position; differential expansion; average rod drop
  • Compatible sensor families:
    PR6422, PR6423, PR6424 and PR6425
  • Input voltage range:
    0 to -22 VDC
  • Input resistance:
    >100 kΩ
  • Input frequency range:
    0 to 8 Hz; 10 Hz at -3 dB
  • Sensor supply:
    Nominal -26.7 VDC, 20 mA; 35 mA maximum
  • Analog outputs:
    0/4 to 20 mA and 0 to 10 V
  • Buffered outputs:
    Front and rear raw-signal outputs
  • Power consumption:
    6 W maximum; 250 mA at 24 VDC
  • Format:
    3U, 1 slot, hot-swappable
  • Dimensions:
    16.0 × 3.0 × 12.84 cm
  • Rack capacity:
    Up to 14 modules in a 19-inch rack
  • Standards:
    API 670 and API 618 application support
  • Weight:
    0.32 kg
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Mode Selection Probe Geometry Protection Test Application
  • Identify the installed monitoring mode before moving or replacing the card
  • Preserve both probe chains, machine geometry, zero and polarity
  • Validate calculated protection values rather than checking only raw probe signals

Emerson A6210 is a two-channel AMS 6500 position monitor configurable for thrust position, differential expansion or average rod-drop measurement.

The card accepts compatible PR642x eddy current chains and supplies alarm, buffered and proportional outputs for turbomachinery or reciprocating-compressor protection.

Before replacement or commissioning, preserve the selected operating mode, probe arrangement and polarity, machine geometry, zero and scale, filters, alarm logic, relay assignments, bypasses and rack configuration.

Availability, condition, price, and shipping time for A6210 are confirmed during quotation.

Emerson A6210 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Configure thrust position, differential expansion or average rod drop
  • Use the mode documented for the actual machine and probe geometry
  • Do not copy settings from a different application type
  • Record both probe gaps, target directions and converter scales
  • Preserve machine dimensions and crank or thermal reference data
  • Verify channel polarity before calculating combined values
  • Compare raw buffered signals with calculated position values
  • Test Alert and Danger paths with bypasses formally controlled
  • Confirm relay voting and current outputs before normal operation
  • Steam-turbine thrust position protection
  • Turbine differential-expansion monitoring
  • Reciprocating-compressor piston-rod position and rod-drop monitoring
Description

A6210 is an Emerson AMS 6500 dual-channel monitor for thrust position, differential expansion and rod-drop protection.

Its two eddy-current inputs support independent or calculated measurements with configurable filters, alarms, relay logic, buffered outputs and proportional outputs.

Before replacement, document both probe chains, machine geometry, channel polarity, zero and scale, operating mode, alarm and relay assignments, bypass state and rack configuration.

Alternative Names
A6210 A 6210 Emerson A6210 Emerson Epro A6210 Epro A6210
Technical notes
A6210 can serve three distinct position-monitoring applications. Restore the exact mode and machine geometry; a card that powers up in the wrong mode can produce plausible but unsafe values.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does a buyer know whether Emerson A6210 is for thrust, differential expansion or rod drop?
The hardware is configurable; the saved rack configuration, channel wiring, probe arrangement and machine documentation determine which of the three functions the installed card performs.
Can Emerson A6210 replace an A6110 without project changes?
No. A6210 is a low-frequency position monitor, while A6110 is a shaft-relative vibration monitor. Measurement processing, filters and protection logic differ.
What probe information is needed before ordering an Emerson A6210 replacement?
Record both PR642x probe and converter models and serial numbers, gap and polarity, channel assignment, target geometry and whether the probes form independent or differential measurements.
Why can rod position look reasonable while the calculated rod-drop protection is wrong?
Check crank reference, probe geometry, channel phase, configured machine dimensions, averaging method, zero reference and whether both channels are assigned to the correct cylinder.
What must be saved before hot-swapping Emerson A6210?
Export the card mode, zero and scale, machine geometry, alarm and danger settings, relay voting, current-output assignments, channel bypasses and the complete slot configuration.
Why can differential expansion run out of range after a cold restart?
The cold mechanical gap or zero reference may not include the full thermal movement, or one probe polarity, converter scale or target path may be incorrect.
How should Emerson A6210 be validated after installation?
Verify both probe biases and buffered signals, apply known position changes or a safe simulation, confirm calculated values and polarity, then test Alert, Danger, relay and bypass recovery paths.
