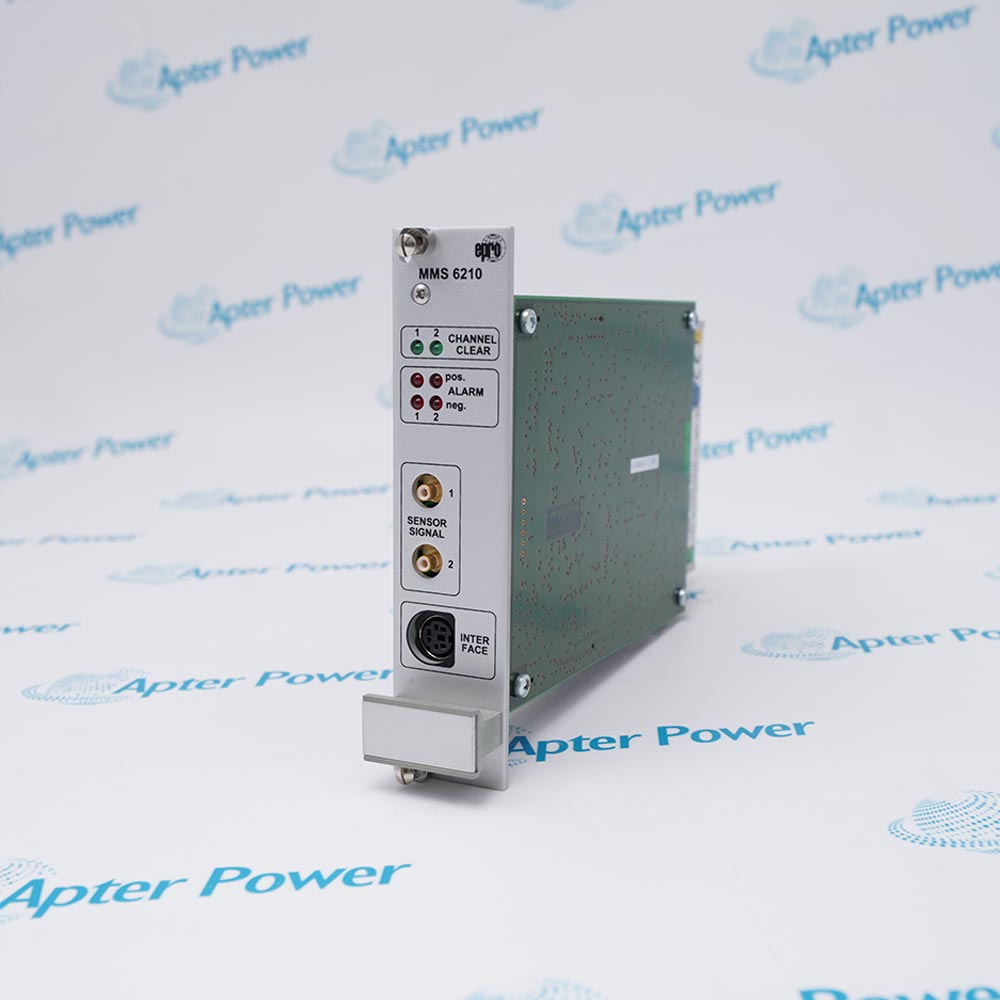

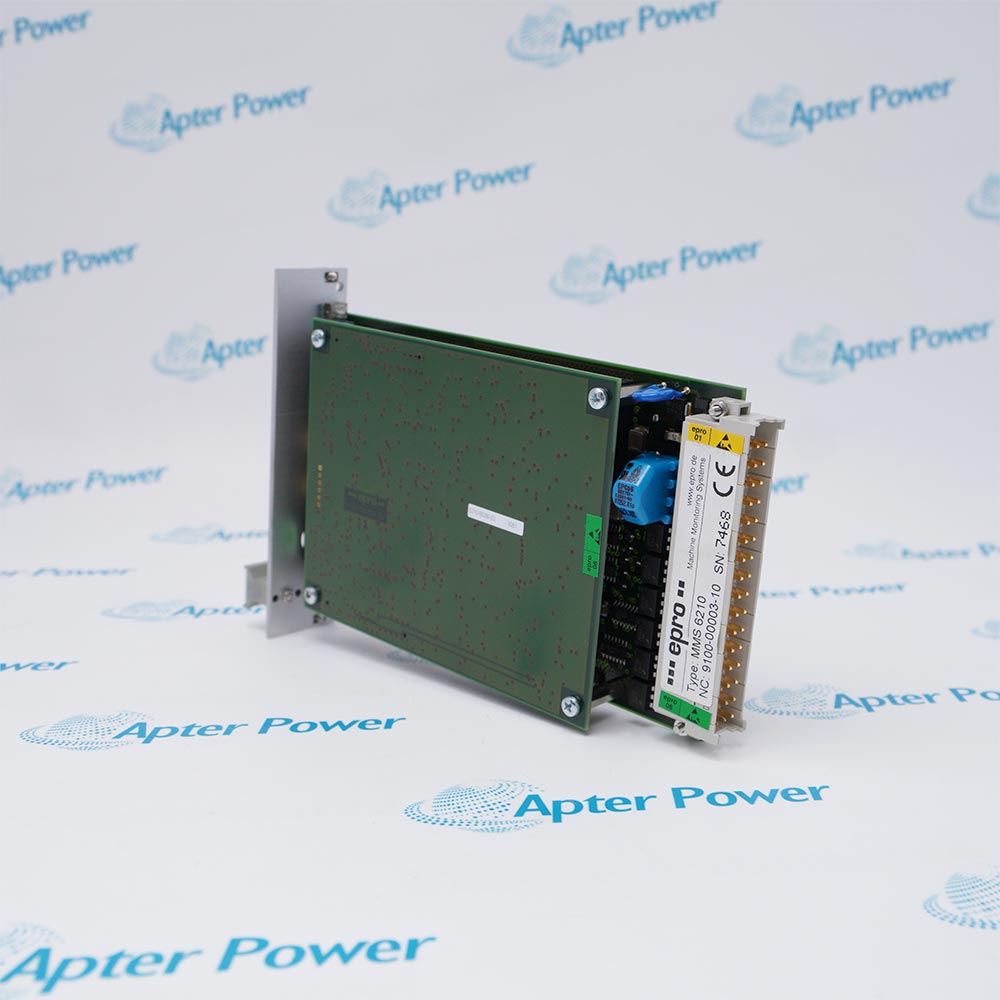

EPRO MMS6210 monitors two eddy-current measuring chains for axial shaft displacement and thrust-position protection in an MMS 6000 machinery-monitoring rack.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for MMS6210
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MMS6210

  • Manufacturer:
    Emerson
  • Part Number:
    MMS6210
  • Product Family:
    Epro
  • Product Type:
    Dual-Channel Shaft Displacement Monitor
  • Stock:
    1
  • Sensor Inputs:
    2 independent eddy-current measuring-chain inputs
  • Operating Arrangements:
    Independent, tandem, and cone measurement configurations
  • Supply Voltage:
    18 to 31.2 V DC; nominal 24 V DC
  • Power Consumption:
    Maximum 6 W; 250 mA at 24 V DC
  • Mating Connector:
    F48M; ordered separately
  • Configuration Interface:
    RS-232 on module front
  • System Interface:
    RS-485; up to 31 modules / 62 channels per bus
  • Module Protection:
    IP00; front plate IP21
  • Operating Temperature:
    0°C to 65°C
  • Storage and Transport Temperature:
    -30°C to 85°C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Dimensions:
    3.0 × 12.84 × 16.0 cm
  • Weight:
    0.32 kg
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Mechanical Reference Channel Logic Return to Service Application
  • Monitors two eddy-current measuring chains for axial shaft position
  • Supports independent, tandem, and cone operating arrangements
  • Integrates configuration, alarms, relays, and rack communications

MMS6210 brings two shaft-position channels into an MMS 6000 protection rack.

Its arrangement options allow the measuring chains to be applied separately or combined according to the documented machine-protection design.

Correct mechanical references and channel logic are essential because the module converts probe-chain signals into alarms, relays, and system values used for thrust supervision.

Availability, condition, price, and shipping time for MMS6210 are confirmed during quotation.

EPRO MMS6210 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Record the approved axial datum before disturbing either probe
  • Restore cold gaps against the correct machine target
  • Allow for the documented thermal shaft movement
  • Match the independent, tandem, or cone configuration
  • Preserve polarity and engineering direction
  • Compare raw gaps before changing alarm settings
  • Verify safe axial travel and the restored zero
  • Prove alarm and relay paths under authorization
  • Document bypass removal and final reference values
  • Turbine thrust-position protection
  • Axial shaft-displacement monitoring on compressors
  • Redundant shaft-position measurement in MMS 6000 racks
Description
MMS6210 is an EPRO two-channel shaft-displacement monitor for thrust and axial-position protection in MMS 6000 systems.

Its two eddy-current inputs can operate independently or in the documented tandem and cone arrangements used to supervise shaft position.

The module provides front-panel configuration access, rack communications, alarm processing and signal outputs for integration with the machinery-protection system.
Alternative Names
MMS6210 MMS 6210 EPRO MMS6210 EPRO MMS 6210 Emerson EPRO MMS6210 MMS 6000 MMS6210
Technical notes
MMS6210 replacement requires matching PR642x sensor chains, mechanical reference, probe gaps, polarity, tandem or cone logic, alarm relays, outputs, and saved rack settings; mismatches can compromise thrust protection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can EPRO MMS6210 replace another two-channel displacement monitor without reviewing the installed probe chains?
No. Confirm the PR642x sensor chains, converter pairing, mechanical datum, signal direction, channel arrangement, alarm logic and rack configuration before replacement.
What should be preserved before removing EPRO MMS6210 from an operating rack?
Record probe locations, cold gaps, channel polarity, zero and range, tandem or cone logic, alarms, relays, outputs, bypasses and the saved module configuration.
Why can EPRO MMS6210 indicate a different shaft position after mechanical work?
Probe-bracket movement, a changed cold gap, target displacement, thrust-bearing reference, polarity or converter pairing can shift the measured position even when the electronics remain functional.
When is the tandem arrangement relevant to EPRO MMS6210?
Use it only where the documented machinery-protection design employs two measuring chains for the same axial movement; both channels must share the intended mechanical reference and direction.
Can one EPRO MMS6210 channel be tested while protection remains active?
Only under the site's approved bypass and voting procedure. Testing one channel can change thrust-protection coverage and comparison logic.
What should be checked when the two EPRO MMS6210 channels disagree?
Compare raw gap values and mechanical references, then verify polarity, scale, target condition, bracket security and the selected independent, tandem or cone arrangement.
How should EPRO MMS6210 be returned to service after replacement?
Restore the approved mechanical zero, confirm safe travel and direction, prove the configured channel logic, and test alarms, relays and outputs before removing bypasses.
