PR9268/301-000

/ 4.9
1001 reviews | Need a Specific Revision?

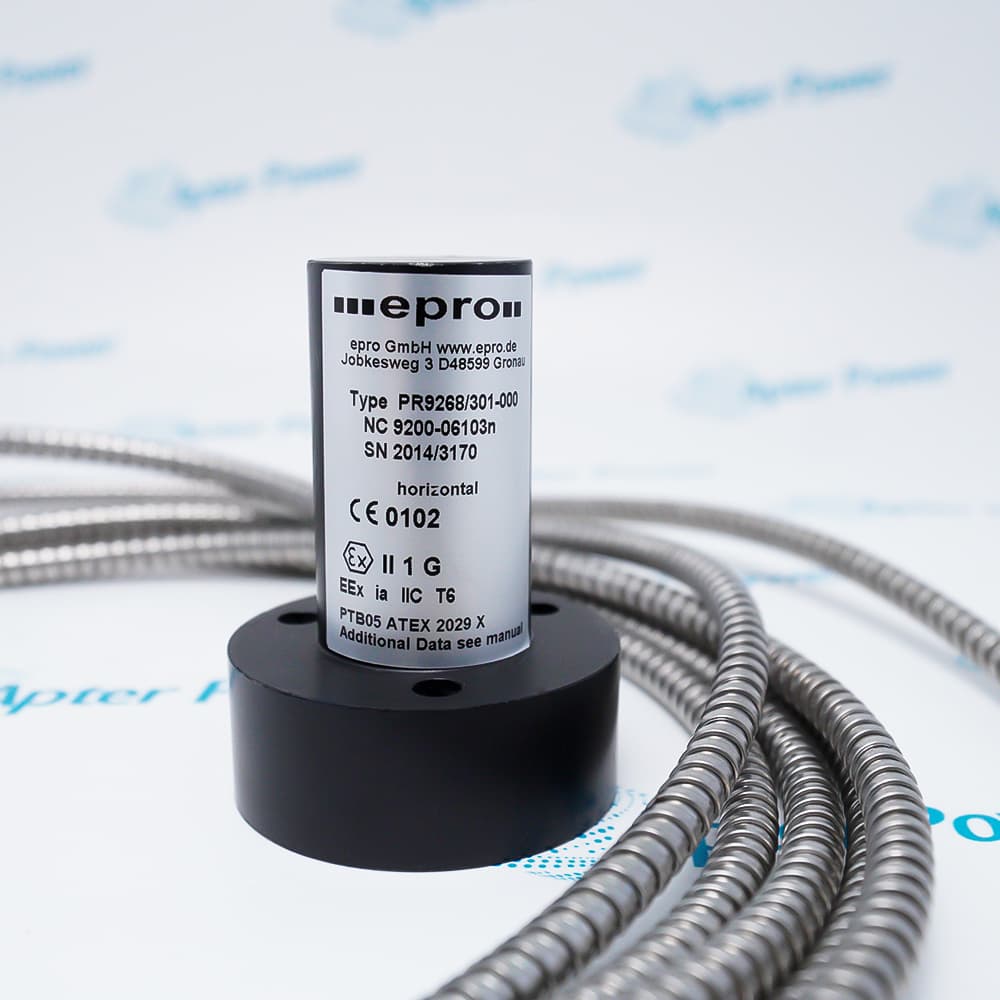

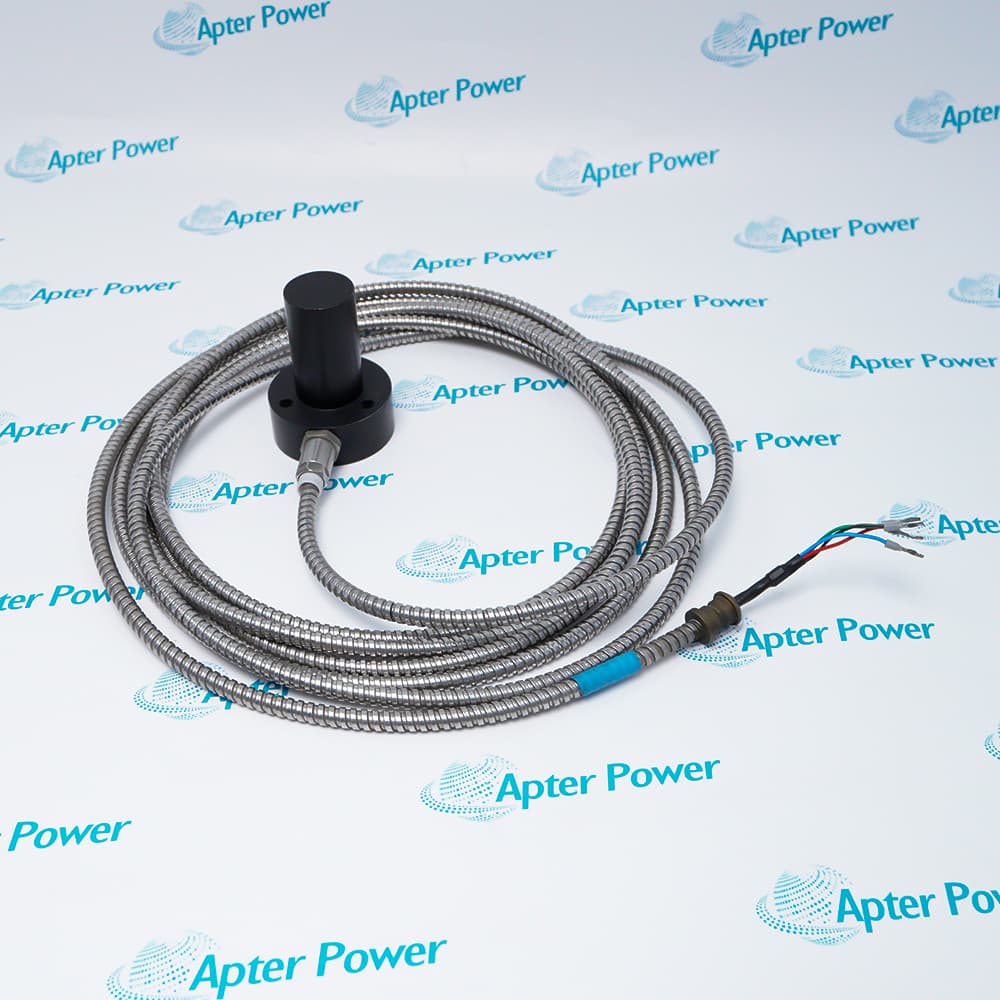

The Emerson PR9268/301-000 is an absolute vibration transducer that converts mechanical vibration into proportional voltage signals, enabling accurate condition monitoring in industrial environments up to 100°C.
Get a quick price for PR9268/301-000
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR9268/301-000

  • Manufacturer:
    Emerson
  • Part Number:
    PR9268/301-000
  • Product Family:
    Epro
  • Product Type:
    Absolute Vibration Transducer
  • Measurement:
    30=Horizontal ≤100°C
  • Cable:
    1=5 m
  • Cable End:
    000=HARTING
  • Mounting angle range:
    -80° to -100°
  • Test voltage:
    500 V AC
  • Frequency range:
    4 Hz to 1000 Hz
  • Natural frequency:
    4.5 Hz ±0.75 Hz (at 20°C and 100 kΩ load)
  • Transverse sensitivity:
    0.13 at 110 Hz (PR 9268/20x-x00; vertical mounting), 0.27 at 110 Hz (PR 9268/30x-x00; horizontal mounting)
  • Sensitivity:
    28.5 mV/(mm/s) ±5 % (nominal value at 20°C, 80 Hz, and 100 kΩ load), Damping factor 0.56 (at 20°C and 100 kΩ load), 0.42 (at 100°C and 100 kΩ load)
  • Resistance measuring circuit:
    1875 Ω ±10 % (resistive load)
  • Insulation resistance:
    >1 MΩ (test voltage 500 V AC)
  • Inductance:
    <90 mH
  • Capacity against housing inclusive cable without corrugated hose:
    <1.2 nF
  • Recommended maximum lifting current for installation deviating from nominal measuring direction:
    1.8 mA (PR 9268/20 maximum: 60° and PR 9268/30 maximum 30°)
  • Temperature range for storage and transport:
    -40 to +100°C without packing, -40 to +70°C with packing
  • Connection cable:
    3 x 0.5 mm2, shielded, coating PTFE
  • Metal protection hose:
    Stainless steel
  • Minimum bending radius for cable and protection hose:
    35 mm
  • Operating temperature range:
    Transducer without connector: -20 to +100°C, For connector: -40 to +125°C
  • Protection class:
    IP 55
  • Housing Material:
    Al Mg Si Pb F28
  • Weight:
    0.75 kg
  • Estimated shipping dimensions:
    25x22x8cm
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Connection Use Cases Certification

Features:

  • High sensitivity measurement enables accurate vibration monitoring across a wide frequency range.
  • Robust IP55 housing with stainless steel protection supports operation in harsh environments.
  • Flexible mounting and installation options ensure reliable performance in various orientations.
Emerson PR9268/301-000 delivers precise vibration measurement for rotating machinery in industrial systems. Its electro-dynamic design allows accurate detection of vibration velocity, supporting predictive maintenance strategies. Emerson PR9268/301-000 operates across a wide frequency range, ensuring compatibility with various monitoring requirements. The device is particularly effective in high-temperature environments where reliability is critical. Its robust construction ensures consistent performance under mechanical stress. Emerson PR9268/301-000 is widely used in power generation and heavy industry.

Reliable signal generation is a key advantage of Emerson PR9268/301-000. The transducer converts mechanical vibration into electrical signals with stable sensitivity and low distortion. Its electrical characteristics support consistent data transmission for monitoring systems. Emerson PR9268/301-000 integrates easily with industrial measurement equipment due to standard connection interfaces. The device maintains accuracy even under varying environmental conditions. These features support efficient condition monitoring and system diagnostics.

Emerson PR9268/301-000 also offers strong adaptability in installation and operation. Flexible mounting options allow deployment in different machine configurations. The transducer performs reliably within specified temperature and humidity ranges. Its durable materials and protective design ensure long service life. Emerson PR9268/301-000 supports safe operation in hazardous environments when installed correctly. These qualities make Emerson PR9268/301-000 a practical solution for industrial vibration monitoring applications.

The PR9268/301-000 Emerson Absolute Vibration Transducer may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Emerson PR9268/301-000 Absolute Vibration Transducer Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Emerson PR9268/301-000 Absolute Vibration Transducer Specs

General

  • Manufacturer Emerson
  • Model PR9268/301-000
  • Condition New Original ready stock
  • Product Family PR9268/302-000,PR9268/203-000,PR9268/201-100
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal Output: Transmits microampere-level current signals via a dual-core shielded cable.
  • Interface Type: Standard aviation connector is provided on the top of the sensor.
  • Preamplifier: Must be connected to an MMS6000 or vibration monitor preamplifier module.
  • Grounding Protection: The housing and shielding cable must be grounded at one end to prevent electromagnetic interference.
  • Steam Turbine Monitoring: Used for absolute vibration measurement of bearing housings in large industrial steam turbines.
  • Fan Diagnostics: Provides all-weather casing vibration monitoring for large induced draft fans in power plants.
  • Compressor Protection: Provides real-time vibration overload alarm and shutdown during high-speed unit rotation.
  • Hydropower turbine maintenance: Predicting imbalance and misalignment faults in hydroelectric generator sets.
  • Explosion-proof Certification: Obtained ATEX/IECEx Zone 0 and Zone 1 core explosion-proof certification.
  • Environmental Protection: The housing has IP65-level industrial-grade dust and water resistance certification.
  • Quality Standards: Manufacturing fully complies with the ISO 9001 international quality management system.
  • Safety Level: SIL2 functional safety certification supports high-reliability systems.
Description
Emerson PR9268/301-000 is an electro-dynamic absolute vibration transducer designed to measure vibration velocity using the seismic measurement principle. A suspended measuring coil acts as the seismic mass, remaining stationary above the resonance frequency while the housing follows machine movement. This relative motion generates a voltage signal proportional to vibration velocity, ensuring reliable monitoring of rotating equipment. Emerson PR9268/301-000 operates within a frequency range of 4 Hz to 1000 Hz, making it suitable for a wide spectrum of industrial applications. Its nominal sensitivity of 28.5 mV/(mm/s) provides consistent signal output for precise diagnostics. The transducer supports horizontal measurement orientation for applications up to 100°C.

Mechanical robustness is a key aspect of Emerson PR9268/301-000, featuring a durable housing made from Al Mg Si Pb F28 and stainless steel protection hose. The device is designed with IP55 protection, allowing operation in harsh and splash-prone environments. Emerson PR9268/301-000 includes a 5 m shielded cable with PTFE coating and a Harting connector, ensuring secure and reliable connections. The minimum bending radius of 35 mm supports flexible installation without damaging the cable. These structural features enable Emerson PR9268/301-000 to maintain stable performance under demanding industrial conditions.

Electrical characteristics of Emerson PR9268/301-000 ensure reliable signal transmission and system compatibility. The transducer offers insulation resistance greater than 1 MΩ at 500 V AC and a measuring circuit resistance of 1875 Ω ±10%. Inductance remains below 90 mH, while capacitance does not exceed 1.2 nF, ensuring stable electrical behavior. Emerson PR9268/301-000 produces voltage signals typically between 1 V and 2 V AC depending on vibration levels. The damping factor varies with temperature, ensuring accurate response under different operating conditions. These parameters contribute to consistent and dependable measurement accuracy.

Installation flexibility is supported through multiple mounting options using M6 or M4 screws, allowing secure attachment to machinery. Emerson PR9268/301-000 supports mounting angle deviations within specified ranges, with lifting current compensation available when installed outside nominal orientation. Proper installation ensures optimal measurement accuracy and avoids signal distortion. Emerson PR9268/301-000 is designed for operation with safety low voltage devices compliant with EN/IEC standards, ensuring safe integration into industrial systems. Attention to installation guidelines is essential to maintain measurement reliability.

Emerson PR9268/301-000 is suitable for a wide range of applications including turbines, compressors, and rotating machinery in power generation and process industries. The transducer performs reliably in environments with temperatures from -20°C to +100°C during operation and up to +125°C at the connector. It supports operation in explosive hazardous areas when installed according to specified guidelines. Emerson PR9268/301-000 ensures accurate vibration monitoring, enabling predictive maintenance and reducing downtime. Its combination of mechanical durability and precise measurement capability makes Emerson PR9268/301-000 a dependable choice for industrial condition monitoring systems.
Alternative Names
PR9268/3O1-OOO PR9268/30I-000 PR9268/301000 PR9268/302-000 PR9268/203-000 PR9268/201-100 PR6426/010-140 PR6426/010-030
Technical notes
Emerson PR9268/301-000 provides 28.5 mV/(mm/s) sensitivity with a 4–1000 Hz frequency range and operates reliably up to 100°C for industrial vibration monitoring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What measurement principle does Emerson PR9268/301-000 use?
Emerson PR9268/301-000 operates on the seismic measurement principle, generating voltage based on relative motion between the housing and internal coil.
How does Emerson PR9268/301-000 handle harsh environments?
Robust housing, IP55 protection, and stainless steel protection hose enable Emerson PR9268/301-000 to operate reliably in demanding conditions.
What frequency range is supported by Emerson PR9268/301-000?
Emerson PR9268/301-000 measures vibrations from 4 Hz to 1000 Hz, covering most industrial applications.
How can Emerson PR9268/301-000 be installed?
Mounting is possible using M6 or M4 screws, with attention to angle requirements for accurate measurement.
