5X00070G04

/ 4.9
1001 reviews | Need a Specific Revision?

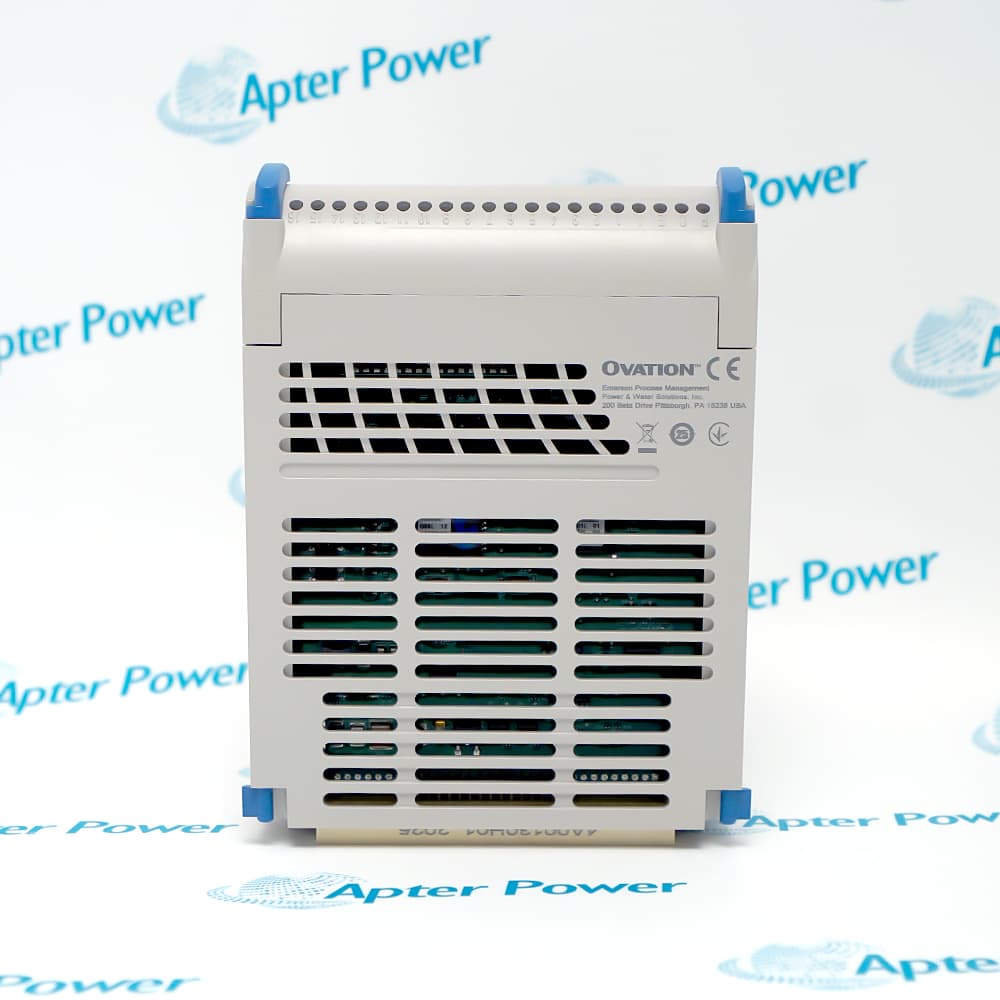

Emerson 5X00070G04 is an Ovation eight-channel high-speed analog input electronics module for documented thermocouple and millivolt signal ranges.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 5X00070G04
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5X00070G04

  • Manufacturer:
    Emerson
  • Part Number:
    5X00070G04
  • Product Family:
    Ovation
  • Product Type:
    Ovation 8-Channel Thermocouple/mV Input Module
  • Stock:
    1
  • Input channels:
    8
  • Input signal family:
    Thermocouple / millivolt
  • Measurement resolution:
    14 bit including polarity

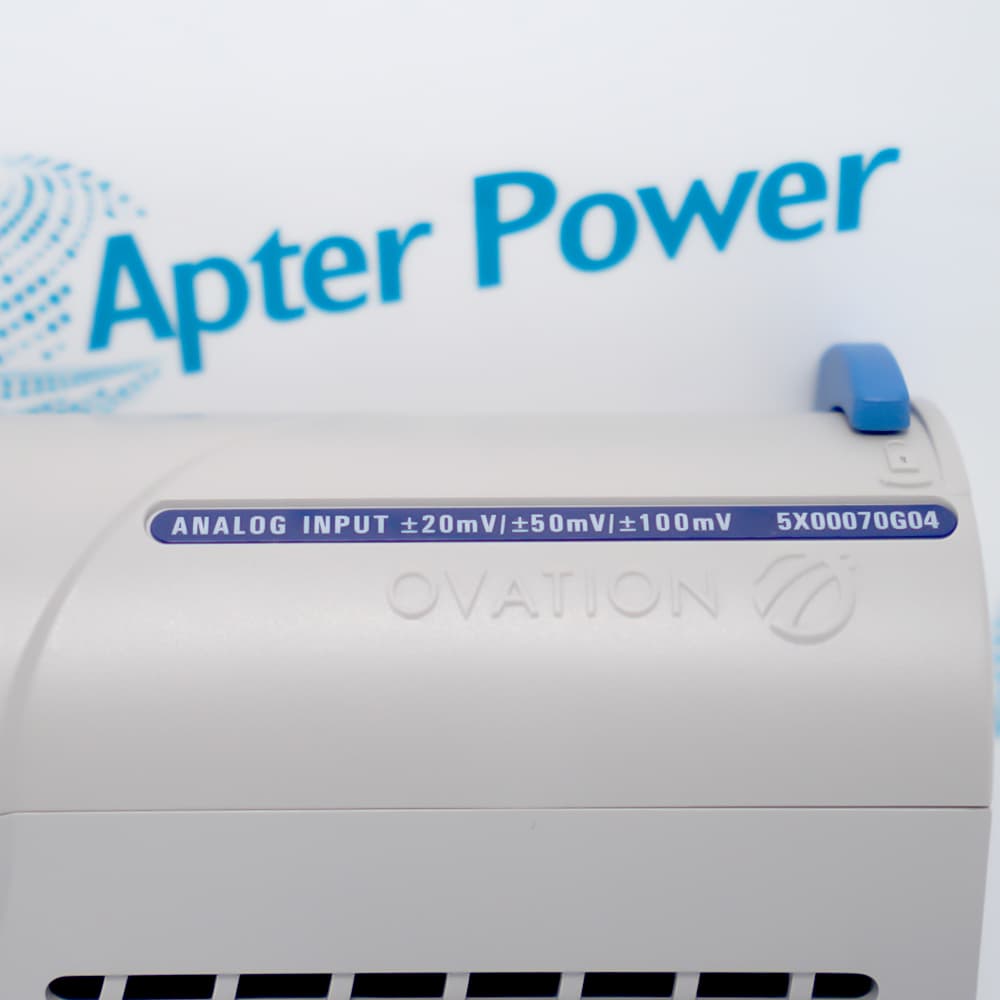

  • Documented millivolt ranges:
    ±20 mV, ±50 mV, ±100 mV
  • Associated personality module:
    1C31227G04
  • System family:
    Ovation
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    12.1x5.2x16.6cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Low-Level Inputs Field Interface Service Channel Product Applications

Features:

  • Eight low-level channels: one module gathers documented thermocouple or millivolt signals
  • Ovation field interface: the electronics and personality module form a controlled measurement path
  • Factory-certified service route: Emerson lists the exact code in its current Ovation lifecycle channel
Emerson 5X00070G04 is an Ovation electronics module for a defined set of low-level temperature and millivolt measurements.

Its measurement path depends on the associated personality module, terminal arrangement, channel configuration, and controller database.

Selection must keep exact model identity, signal range, polarity, cold-junction treatment, field wiring, and lifecycle-service evidence together.

Apter Power supports document review, quotation, and procurement for the Emerson 5X00070G04 Ovation 8-Channel Thermocouple/mV Input Module.
Emerson 5X00070G04 Ovation 8-Channel Thermocouple/mV Input Module Manuals,Datasheets,Link
Important Notice: No qualified exact-model English PDF is attached. Use the complete product model in every document request.
  • Eight measurements: the electronics module concentrates a defined thermocouple or millivolt channel group.
  • Range selection: the configured millivolt window must agree with the field signal and database.
  • Polarity control: low-level signal reversal can create plausible but incorrect process values.
  • Channel proving: a calibrated input check should confirm each point before automatic control resumes.
  • Personality pairing: the documented 1C31227G04 field interface belongs in the assembly record.
  • Terminal mapping: channel numbers and field leads must stay aligned with the Ovation database.
  • Cold-junction path: thermocouple applications require the installed compensation arrangement to be preserved.
  • Connector stop: similar mating hardware does not prove the correct signal conditioning.
  • Exact-code listing: Emerson includes the item in its Ovation lifecycle parts channel.
  • Factory-certified route: the program supports model-controlled service and parts review.
  • No production inference: channel listing does not promise new manufacture or immediate stock.
  • Quotation boundary: condition, availability, and lead time require current confirmation.
  • Ovation temperature acquisition: bring documented thermocouple channels into the control database.
  • Millivolt process signals: measure approved low-level voltage ranges with channel-specific scaling.
  • Legacy cabinet maintenance: replace an exact electronics module while preserving its personality interface.
  • Lifecycle service planning: use Emerson’s current factory-certified channel for exact-model review.
Description
Temperature and other low-level signals require more than a generic voltage input. In an Ovation cabinet, 5X00070G04 concentrates eight thermocouple or millivolt channels in a high-speed electronics module intended for that measurement task.

The field path for 5X00070G04 includes its documented personality module, terminal arrangement, polarity, cold-junction treatment, configured range, and database scaling. A believable reading can still be wrong when any one of those elements no longer matches the installed project.

Emerson continues to list 5X00070G04 through the Ovation lifecycle and factory-certified parts channel. That route supports exact-model sourcing and repair review, while actual production state, condition, inventory, and delivery remain quotation-specific.
Alternative Names
Emerson 5X 00070 G04 Emerson 5X00070 G04 Emerson 5X 00070G04 Ovation 5X00070G04 module Westinghouse 5X00070G04 Westinghouse Ovation 5X00070G04 Ovation high-speed thermocouple input module Ovation 8-channel millivolt input electronics Ovation thermocouple mV input card
Technical notes
For 5X00070G04 service, preserve the Ovation cabinet and slot record, personality-module identity, channel type, millivolt range, thermocouple polarity, cold-junction arrangement, terminal map, and database scaling. Complete a controlled channel check before process release; an eight-channel outline alone does not establish the correct low-level input configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 5X00070G04 be selected for any eight-channel voltage-input requirement?
No. It is documented for thermocouple and defined millivolt ranges; match the signal family, range, personality module, and database before purchase.
What should stop installation of 5X00070G04 in an Ovation cabinet?
Stop if the personality module, channel wiring, configured range, polarity, cold-junction arrangement, or terminal map differs from the approved installed record.
Why can 5X00070G04 show a believable but wrong temperature after service?
Reversed polarity, incorrect thermocouple type or range, cold-junction changes, or database scaling can create plausible readings; compare each part of the measurement path.
How should an engineer prepare a channel test for 5X00070G04?
Use the approved low-level source and Ovation procedure, isolate the process as required, inject each configured channel, and compare terminal, diagnostics, and operator values.
Does Emerson’s lifecycle listing guarantee that 5X00070G04 is newly manufactured?
No. It establishes a current factory-certified service and parts route; production state, stock, condition, and delivery still need quotation confirmation.
What should a buyer include when requesting 5X00070G04?
Provide the exact code, cabinet and slot, personality-module identity, signal and range configuration, clear photos, required condition, and outage or delivery need.
