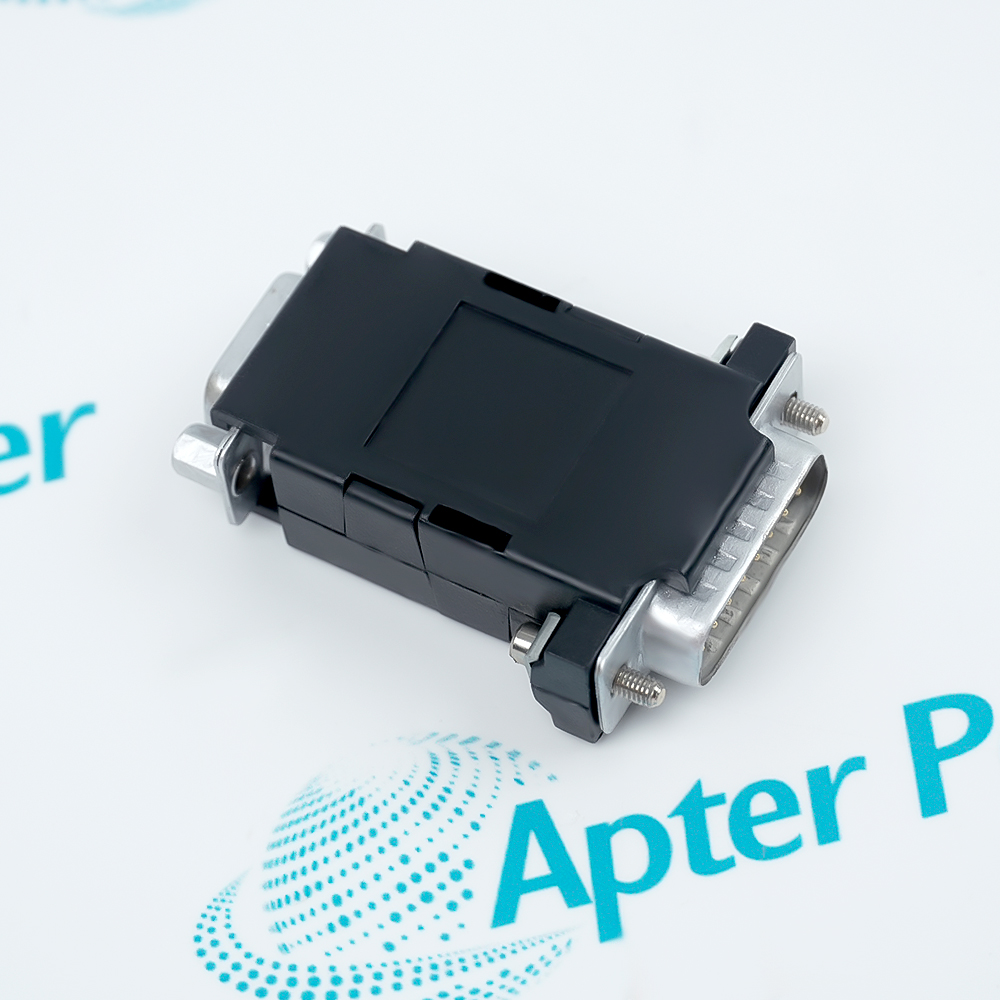

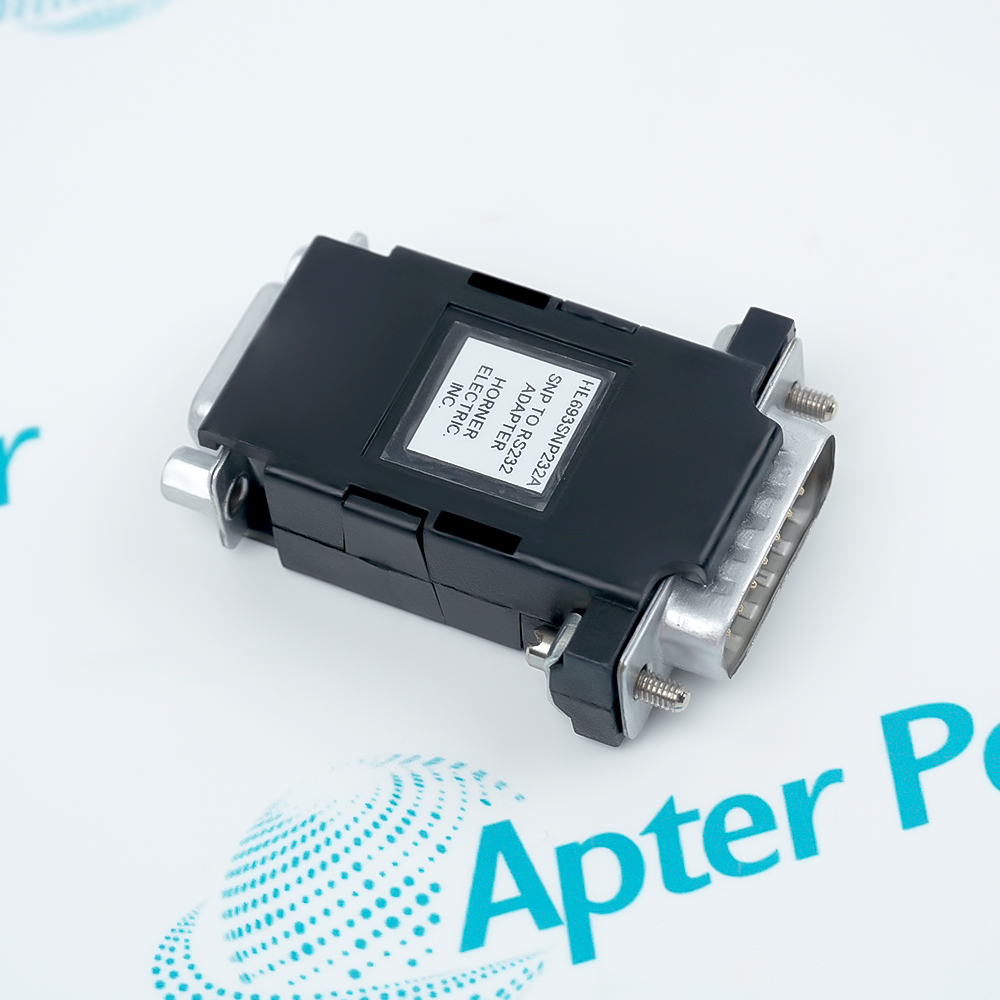

Horner APG HE693SNP232A is an SNP interface converter used to connect compatible RS-232 equipment to a GE Fanuc Series 90-30 RS-422 serial port.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for HE693SNP232A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for HE693SNP232A

  • Manufacturer:
    General Electric
  • Part Number:
    HE693SNP232A
  • Product Family:
    GE 90-30 Series PLC
  • Product Type:
    SNP RS-232/RS-422 Converter
  • Stock:
    1
  • Function:
    RS-232 to RS-422 serial conversion for SNP communication
  • PLC Serial Interface:
    15-pin D-type female connector on the Series 90-30 power supply
  • PLC Port Electrical Standard:
    RS-422 compatible
  • Converter Power Reference:
    +5 V is available on PLC serial-port pin 5 for supported accessories
  • Tariff Code:
    8517629900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connection Serial Setup Diagnostics Application
  • Documented converter for RS-232 equipment connected to a Series 90-30 serial port
  • Used with the PLC's 15-pin RS-422-compatible connector
  • Supports the physical connection required for SNP serial communication

HE693SNP232A is the Horner APG converter referenced for a Series 90-30 PLC serial connection.

It bridges the different RS-232 and RS-422 electrical interfaces while leaving the communicating devices responsible for compatible SNP protocol settings.

Before use, identify the PLC power-supply connector, verify the cable pinout and direction, and match all serial parameters at both endpoints.

Availability, condition, price, and shipping time for HE693SNP232A are confirmed during quotation.
