    Apter Power provides GE IC697ACC724 quotations, manuals, and Series 90-70 model matching.

IC697ACC724

/ 4.9
1001 reviews | Need a Specific Revision?
Three parallel fans in the General Electric IC697ACC724 rack fan assembly move filtered cooling air upward through supported Series 90-70 and listed IC698 racks.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC697ACC724
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697ACC724

  • Manufacturer:
    General Electric
  • Part Number:
    IC697ACC724
  • Product Family:
    GE 90-70 Series PLC
  • Product Type:
    Rack Fan Assembly
  • Stock:
    1
  • Fan count:
    3
  • Operating voltage:
    240 VAC
  • Frequency:
    50/60 Hz
  • Running power per fan:
    16-20 W
  • Running current per fan:
    0.09-0.14 A
  • Locked-rotor current per fan:
    0.12-0.19 A
  • Fan bearing:
    Ball bearing
  • Airflow without filter:
    108 CFM per fan at 60 Hz
  • Airflow with filter:
    71 CFM per fan at 60 Hz
  • Operating temperature:
    -28 to +60 deg C
  • Filter material:
    Polyurethane foam
  • Filter density:
    30 PPI
  • Filter retainer material:
    UL 94V-0 plastic
  • Cooling direction:
    Bottom-to-top through rack
  • Minimum intake clearance:
    23cm
  • Weight:
    5.9304 lbs (2.69 kg)
  • Estimated shipping dimensions:
    43.1x15x6cm
  • Tariff Code:
    8414599099
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rack Fit Power Feed Airflow Path Filter Service

Features:

  • General Electric IC697ACC724 combines three ball-bearing fans in one rack-mounted cooling assembly.
  • The filtered intake directs cooling air upward through supported Series 90-70 and listed IC698 racks.
  • A removable 30 PPI polyurethane element allows the intake filter to be serviced separately.
IC697ACC724 is the 240 VAC member of the rack fan-assembly family rather than the 120 VAC or 24 VDC version.

Its three fan motors share one field source while remaining separate parallel loads inside the assembly.

The bottom-mounted enclosure and filtered intake establish the direction and clearance needed for rack airflow.

The General Electric IC697ACC724 Series 90-70 Rack Fan Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC697ACC724 Series 90-70 Rack Fan Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Rack and revision boundaries

  • Series 90-70 racks: IC697ACC724 fits the rack revisions named in the fan-assembly installation instructions.
  • IC698 support: Listed IC698 racks are included only for the documented hardware revisions.
  • Mounting position: The assembly belongs under the rack so its discharge enters the module area.
  • Clearance boundary: At least 23cm must remain below the intake for unrestricted air entry.

Three-fan field connection

  • Common source: All three fan motors connect to the same 240 VAC supply.
  • Parallel branches: The wiring arrangement gives each motor a branch across the field source.
  • Frequency range: The assembly accepts either 50 Hz or 60 Hz operation.
  • Connection check: Field wiring must be matched to the IC697ACC724 voltage code, not to the 120 VAC or 24 VDC family member.

Cooling flow through the rack

  • Air entry: Room air first passes through the foam element beneath the fans.
  • Fan stage: Three motors distribute airflow across the rack width.
  • Module path: Discharge moves upward through the installed electronics rather than across the rack face.
  • Obstruction risk: A blocked lower opening reduces the air available to all three fan channels.

Intake-filter handling

  • Foam element: The 30 PPI polyurethane media traps debris before it reaches the fan blades.
  • Separate access: The retainer permits filter removal without disturbing the rack modules.
  • Airflow effect: The documented flow is lower with the filter installed, so loading of the media matters.
  • Service trigger: Clean or replace the element when dirt accumulation restricts the intake.
Description
The three fans in IC697ACC724 form a rack-mounted cooling assembly for supported Series 90-70 and listed IC698 installations. Air enters through the removable filter at the bottom and is directed upward across the installed modules.

Each fan is connected in parallel to the same 240 VAC, 50/60 Hz source. This shared feed keeps the three airflow paths operating together while preserving the separate fan motors documented for the assembly.

Rack fit depends on both the catalog-number revision and the installation position. IC697ACC724 mounts below the rack, requires at least 23cm of unobstructed intake space, and must not be placed where the filter opening is blocked.

The 30 PPI polyurethane element is retained behind a UL 94V-0 plastic guard. Routine access to that filter supports cleaning or replacement without changing the fan assembly's rack-cooling layout.
Revisions

Revision Part #

Also known as

IC697ACC724D
IC697ACC724-D, Series D, Rev D

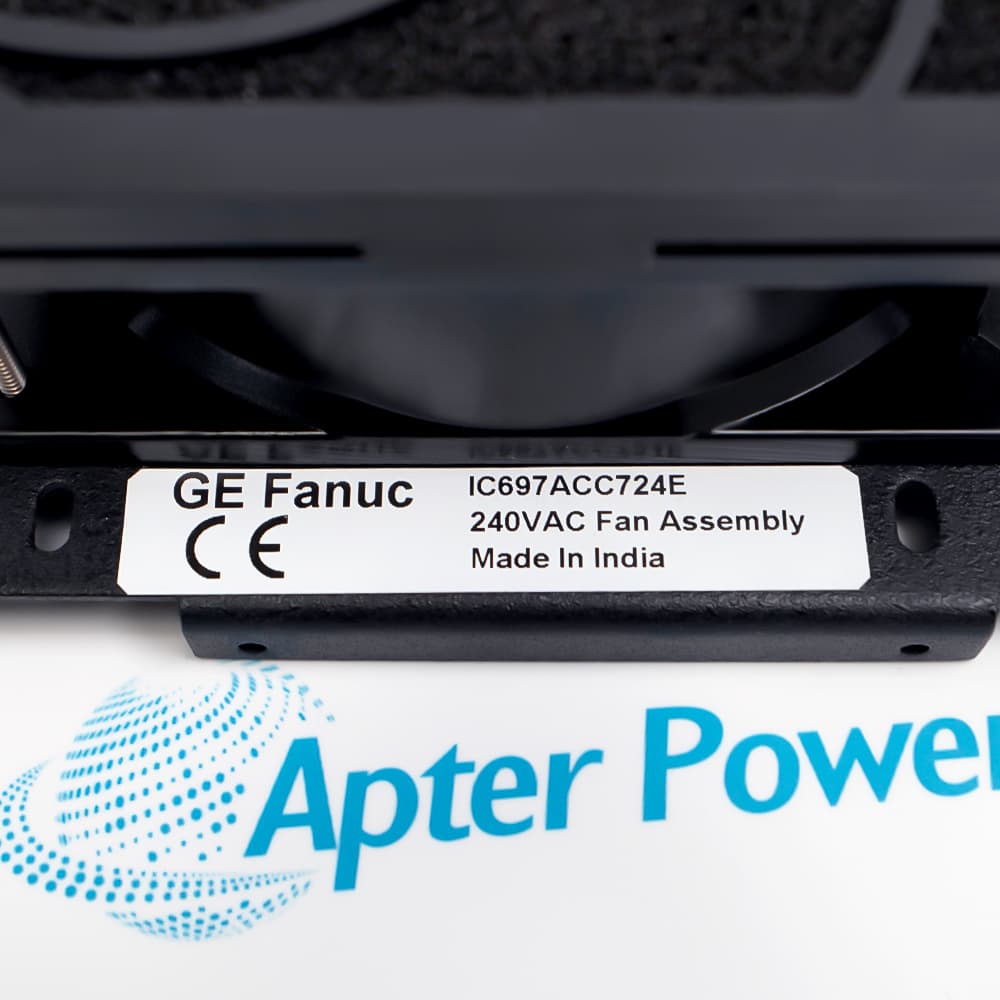

IC697ACC724E
IC697ACC724-E, Series E, Rev E
Alternative Names
General Electric IC697ACC724 GE IC697ACC724 GE Fanuc IC697ACC724 IC697ACC724 Rack Fan Assembly IC697ACC724 240 VAC Fan Assembly Series 90-70 IC697ACC724 IC697 ACC724 IC697-ACC724
Technical notes
Wire all three IC697ACC724 fans to the same 240 VAC source, mount the assembly at the rack bottom, preserve at least 23cm of intake clearance, and clean or replace the filter when airflow is restricted.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a technician confirm that IC697ACC724 is the correct voltage version before wiring the rack fan assembly?
Confirm the complete IC697ACC724 catalog number and a 240 VAC, 50/60 Hz field source; the related 120 VAC and 24 VDC assemblies use different catalog numbers.
Why can IC697ACC724 provide weak rack airflow even when all three fan motors are running?
IC697ACC724 draws air through its lower foam filter, so blocked clearance or a loaded 30 PPI element can restrict the shared intake before air reaches the fans.
What rack detail must be checked before fitting IC697ACC724 to an existing Series 90-70 installation?
Match IC697ACC724 against the rack catalog number and hardware revision listed in the installation instructions instead of assuming every Series 90-70 rack has the same fan mounting.
Should the three fans in IC697ACC724 be supplied from separate field circuits?
No; the documented IC697ACC724 arrangement connects all three fan motors in parallel to the same 240 VAC source.
What mounting mistake can reverse the intended cooling path of IC697ACC724?
IC697ACC724 belongs below the rack with discharge directed upward; mounting it away from that position breaks the documented bottom-to-top airflow path.
When can the IC697ACC724 filter be serviced without removing the PLC rack modules?
IC697ACC724 uses a separate filter retainer, allowing the polyurethane element to be removed for cleaning or replacement while the rack hardware remains mounted.
