DS200TBCAG1AAB

/ 4.9
1001 reviews | Need a Specific Revision?

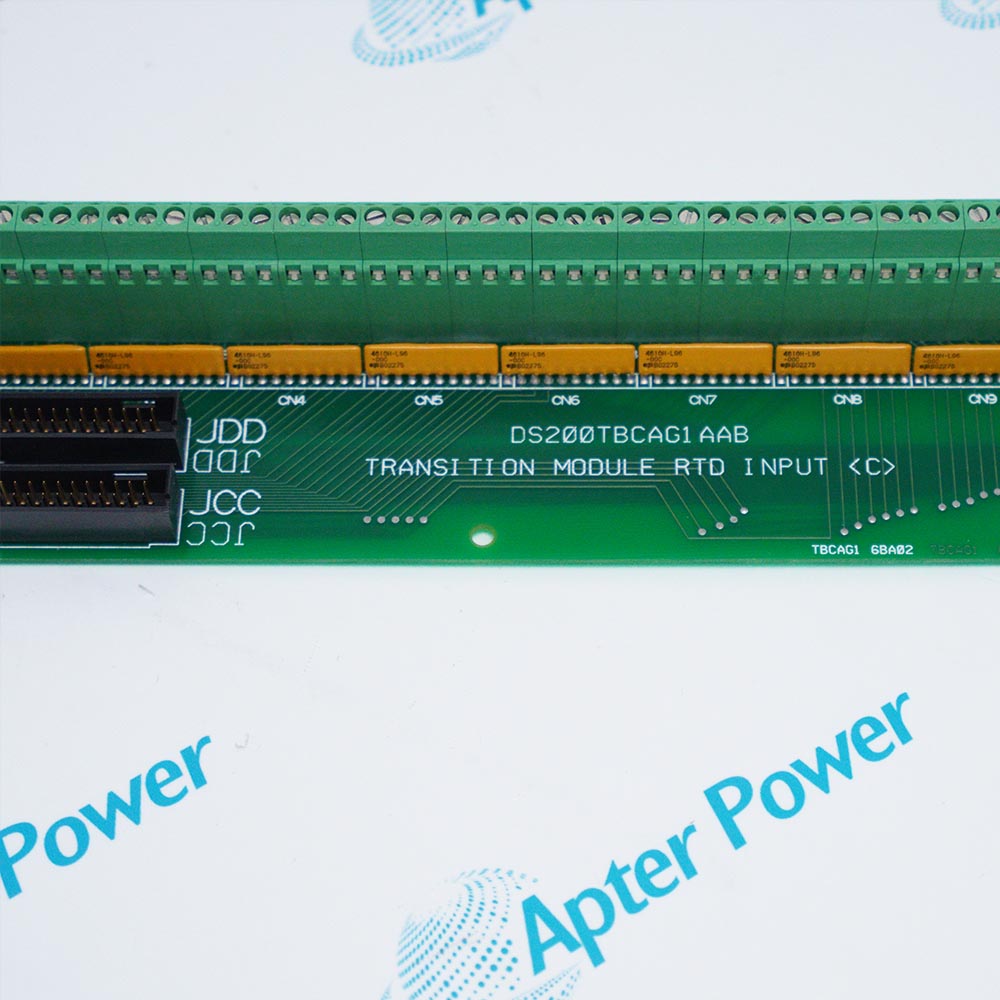

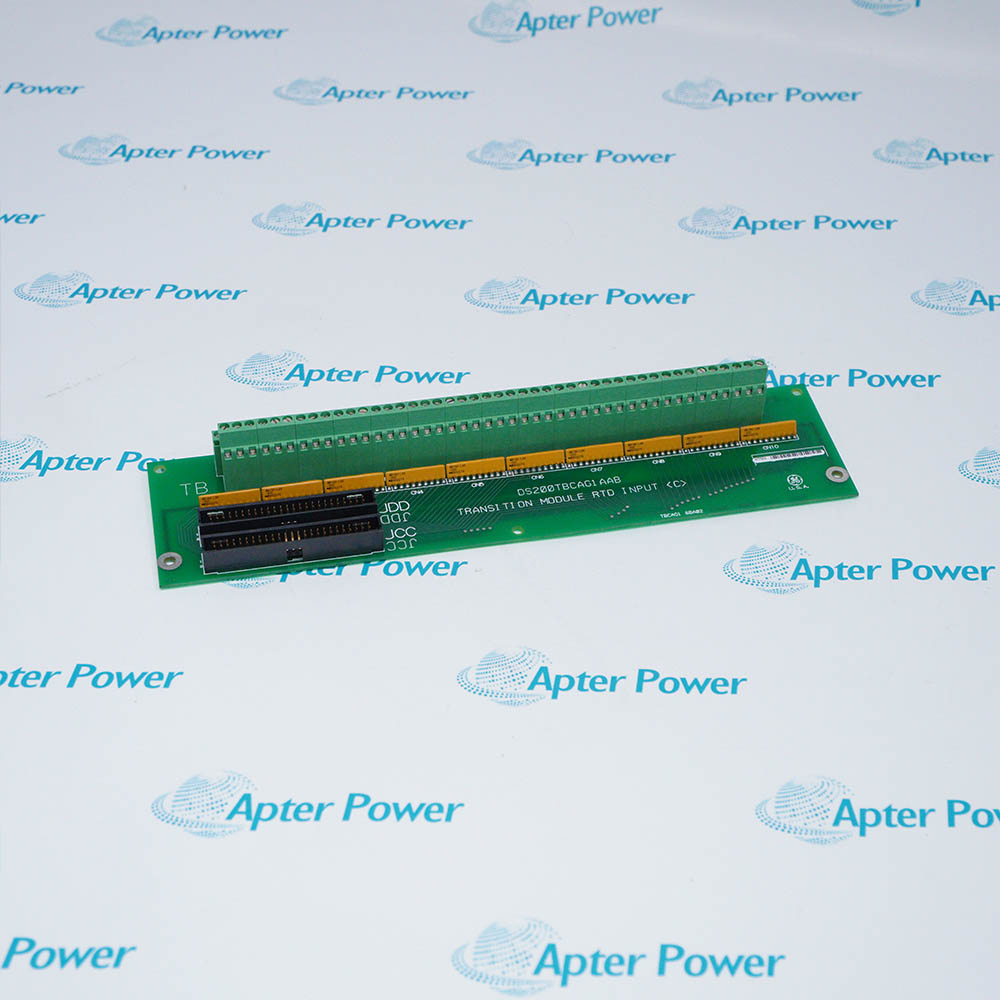

General Electric DS200TBCAG1AAB is an RTD input transition module designed to handle multi-channel signal acquisition with stable electrical isolation. DS200TBCAG1AAB supports precise industrial temperature-related signal processing with a 16-bit conversion architecture and reliable power efficiency.
Get a quick price for DS200TBCAG1AAB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200TBCAG1AAB

  • Manufacturer:
    General Electric
  • Part Number:
    DS200TBCAG1AAB
  • Product Family:
    GE Mark V/VI Driver Board
  • Product Type:
    RTD Input Transition Module
  • Number of Channels:
    30 single-ended
  • Input Types:
    Thermocouple
  • Isolation:
    500 V channel-to-channel
  • A/D Converter:
    16-bit
  • Power Supply:
    +5 VDC
  • Power Consumption:
    5 W typical; 8 W maximum
  • Operating Temperature:
    0 °C to +60 °C
  • Storage Temperature:
    –40 °C to +85 °C
  • Relative Humidity:
    5% to 95% non-condensing
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    28.6x7x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring Application Installation & Upgrade

Features:

  • 30 single-ended input channels designed for structured industrial signal acquisition
  • 500 V channel-to-channel isolation ensures stable electrical separation across inputs
  • 16-bit A/D conversion enables accurate digital processing of analog signals
General Electric DS200TBCAG1AAB integrates multi-channel input processing within a compact transition module structure. DS200TBCAG1AAB supports thermocouple-based signal acquisition, providing stable data handling for industrial control systems. The inclusion of 30 single-ended channels allows DS200TBCAG1AAB to manage multiple input points efficiently within distributed monitoring environments. Electrical isolation up to 500 V channel-to-channel helps maintain signal clarity during operation.

DS200TBCAG1AAB operates with a +5 VDC power supply and maintains controlled power usage between 5 W typical and 8 W maximum. DS200TBCAG1AAB incorporates a 16-bit A/D conversion system that supports precise signal digitization across all input channels. The module structure is optimized for consistent operation under defined electrical and environmental conditions. DS200TBCAG1AAB ensures stable integration within existing industrial automation architectures.

Environmental adaptability is supported through DS200TBCAG1AAB operating between 0 °C and +60 °C, while storage conditions extend from –40 °C to +85 °C. DS200TBCAG1AAB maintains performance reliability under humidity levels ranging from 5% to 95% non-condensing. This range of conditions supports flexible deployment across various industrial settings. DS200TBCAG1AAB remains consistent in performance across standard operational environments.

The DS200TBCAG1AAB General Electric RTD Input Transition Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric DS200TBCAG1AAB RTD Input Transition Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric DS200TBCAG1AAB RTD Input Transition Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model DS200TBCAG1AAB
  • Condition New Original ready stock
  • Product Family DS200TBCBG1A,DS200TBCBG1AZZ,DS200TBCAG1AAA
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Multi-channel Integration: The module supports multiple RTD signal channels, achieving centralized temperature data acquisition in a compact space through high-density terminal block arrangement.
  • Sensor Compatibility: Supports various resistance temperature detectors (such as 100Ω platinum resistance or 10Ω copper resistance) and allows for linearization in software to match specific sensor curves.
  • Environmental Resistance: This precision-drilled and insulated circuit board is designed for installation in standard Mark V cabinets and can withstand typical industrial electromagnetic interference.
  • Redundant Monitoring: In a TMR (Triple Redundancy) system, this board acts as a front-end interface, distributing the same set of RTD data to different control cores to ensure continuous monitoring availability.
  • Gas/Steam Turbine Monitoring: As a key component of the Mark V system, it monitors critical temperature points during turbine operation, such as exhaust temperature, bearing temperature, and lubricating oil temperature.
  • Electric Motor Winding Protection: Connects to RTD sensors installed between the windings of large electric motors or generators to acquire internal thermal status in real time, preventing insulation damage due to overheating.
  • Power Plant Auxiliary Systems: Integrated into heat recovery steam generators (HRSG) or waste heat recovery loops, it monitors temperature changes in fluids and metal surfaces.
  • Harsh Industrial Environments: In applications requiring high reliability and interference immunity, it serves as the physical terminal block and initial conversion layer for RTD signals, ensuring signal integrity.
  • Patchless Design: The DS200TBCAG1AAB typically does not include manually adjustable hardware jumpers, simplifying the installation and configuration process and reducing downtime risks due to human error.
  • Wire Transfer Replacement: During equipment maintenance, qualified technicians can directly transfer signal cables from the old board to the corresponding terminals on the new board, enabling rapid hardware replacement.
  • Console Standardization: Utilizing industry-standard 50-pin ribbon cable connectors, it allows seamless interconnection with other cards in the Mark V control core, such as TCCA adapter cards.
  • Later version iterations: As a later revision of the Mark V series, this module has been optimized in terms of circuit layout and stability, and can directly replace earlier models to improve the long-term performance of the system.
Description
General Electric DS200TBCAG1AAB is engineered as an RTD input transition module featuring 30 single-ended channels for structured signal handling. DS200TBCAG1AAB is designed to support thermocouple input types, ensuring compatibility with industrial temperature measurement systems. With a 500 V channel-to-channel isolation level, DS200TBCAG1AAB maintains electrical separation across input paths for stable signal integrity. The module integrates a 16-bit A/D converter, allowing refined digital conversion of analog inputs in DS200TBCAG1AAB based systems.

Operating on a +5 VDC power supply, DS200TBCAG1AAB delivers consistent performance with a typical power consumption of 5 W and a maximum of 8 W. DS200TBCAG1AAB is structured to maintain efficient energy usage while supporting continuous industrial operation. Its internal design ensures compatibility with control systems requiring stable low-voltage input architecture. DS200TBCAG1AAB also maintains reliable processing behavior under defined electrical conditions.

The operating temperature range of DS200TBCAG1AAB spans from 0 °C to +60 °C, supporting standard industrial environments. DS200TBCAG1AAB also provides storage tolerance from –40 °C to +85 °C, allowing extended handling and logistics flexibility. With a relative humidity range of 5% to 95% non-condensing, DS200TBCAG1AAB is suited for varied environmental conditions. These specifications make DS200TBCAG1AAB stable across typical control system deployment scenarios.
Revisions

Revision Part #

Also known as

DS200TBCAG1AAA
DS200TBCAG1A-AA, Series AA, Rev AA
DS200TBCAG1ABB
DS200TBCAG1A-BB, Series BB, Rev BB
Alternative Names
DS200TBCAG1ABB DS200TBCAG1A DS200TBCAG2A DS200TBCBG1A DS200TBCBG1AZZ DS200TBCAG1AAA
Technical notes
General Electric DS200TBCAG1AAB RTD input transition module features 30 single-ended channels with thermocouple input capability, 500 V channel-to-channel isolation, and a 16-bit A/D converter, operating on +5 VDC supply with 5 W typical and 8 W maximum power consumption, supporting 0 °C to +60 °C operating temperature, –40 °C to +85 °C storage temperature, and 5% to 95% non-condensing relative humidity conditions.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many input channels are included in General Electric DS200TBCAG1AAB?
General Electric DS200TBCAG1AAB provides 30 single-ended input channels for signal acquisition.
What isolation level does DS200TBCAG1AAB provide between channels?
DS200TBCAG1AAB offers 500 V channel-to-channel isolation to maintain signal stability and separation.
What power supply is required for DS200TBCAG1AAB operation?
DS200TBCAG1AAB operates using a +5 VDC power supply for stable module performance.
