Features:
- Precision Digital Regulation with Ultra-Low Ripple
- Hot-Swappable Redundancy with Predictive Diagnostics
- Wide-Temperature Operation for Extreme Environments
The General Electric IS200EPSMG1AEC employs fully digital PWM (Pulse Width Modulation) regulation combined with high-frequency magnetic isolation technology. Output ripple is below 30 mV, and voltage drift is ≤ ±0.2% across 0°C to 55°C ambient temperature. This level of stability is critical for sensitive excitation controllers, preventing oscillations that could destabilize generator output during grid disturbances.
Dual redundant operation is supported without any control interruption. The General Electric IS200EPSMG1AEC can be replaced online while the turbine remains at full load (MTTR < 5 minutes). Embedded temperature and current sensors stream health data via the IONet backbone, providing 7–10 days’ advance warning of capacitor aging. This enables condition-based maintenance rather than reactive repairs, reducing unplanned downtime.
Certified for -40°C cold start and continuous +70°C operation, the General Electric IS200EPSMG1AEC is built for the harshest industrial settings. Whether deployed in desert solar-thermal plants, offshore platforms, or high-altitude hydro stations, this module maintains full electrical specifications without derating. The ruggedized design also withstands vibration and humidity (95% non-condensing) commonly found in turbine enclosures.
The IS200EPSMG1AEC General Electric Excitation Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200EPSMG1AEC Excitation Power Supply Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

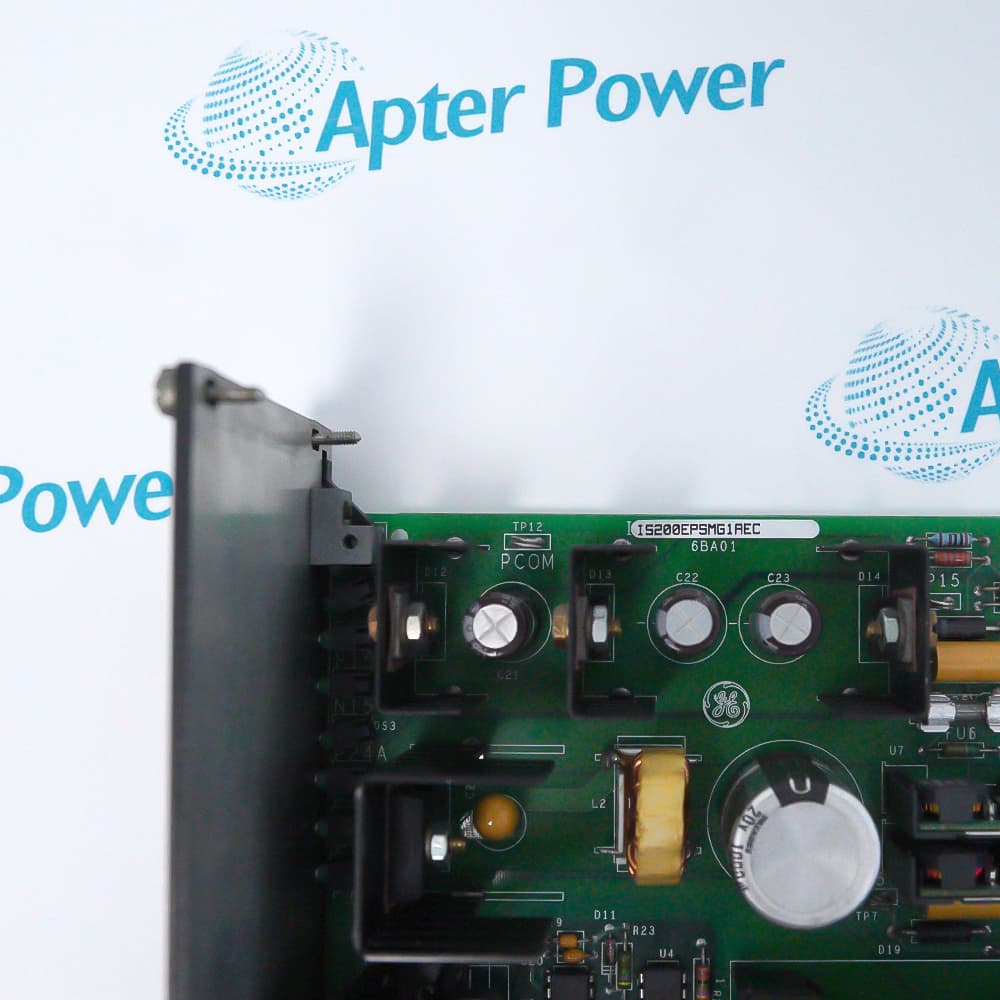

General Electric IS200EPSMG1AEC Excitation Power Supply Module
General
- Manufacturer General Electric
- Model IS200EPSMG1AEC
- Condition New Original ready stock
- Product Family IS200EPSMG1ADC,IS200EPSMG1AED,IS200EMIOH1AFB
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Power Generation – Turbine Excitation Control:The General Electric IS200EPSMG1AEC is primarily deployed in gas, steam, and hydro turbine excitation systems. It powers the EX2100 regulator that controls generator field current, directly impacting reactive power, voltage stability, and grid synchronization.
- Combined-Cycle & Thermal Plants:In 660 MW supercritical units, this module replaces distributed power boards, reducing voltage ripple by over 40% and cutting annual downtime by tens of hours. Field reports show it can prevent turbine trips caused by excitation power instability.
- Industrial DCS & Process Control:Beyond power generation, the General Electric IS200EPSMG1AEC supplies logic power to Mark VIe controllers in large compressors, pump stations, and metallurgical processes. Its redundant configuration keeps critical processes running through single power supply failures.
- Remote & Harsh Environment Installations:Offshore platforms, desert solar farms, and high-altitude hydro plants benefit from its -40°C to +70°C operating range and vibration-resistant construction. The module continues to deliver full output without derating at temperature extremes.
- IONet-Based Real-Time Telemetry:The General Electric IS200EPSMG1AEC continuously reports input voltage, output current, internal temperature, and capacitor health over the Mark VIe IONet. Operators view this data directly in ToolboxST without additional sensors.
- Predictive Failure Warning:Embedded aging algorithms track capacitor equivalent series resistance (ESR) drift. The module triggers a maintenance alert 7–10 days before end-of-life, allowing scheduled replacement during planned outages rather than emergency shutdowns.
- Redundancy Status & Automatic Failover:In dual-redundant configurations, the General Electric IS200EPSMG1AEC monitors its peer’s output. If the primary fails, the secondary assumes full load within microseconds, and the front-panel Redundancy Status LED changes from green (active/healthy) to amber (backup active). No control program intervention is required.
- Fault Logging & Event Correlation:All power-related faults (overvoltage, overcurrent, overtemperature) are logged in the Mark VIe event history with timestamps. Engineers can correlate these with turbine trips or grid events, identifying whether excitation power was the root cause or a secondary symptom.
- No Onboard User Firmware – But System Compatibility Matters:The General Electric IS200EPSMG1AEC is a hardware power supply and does not run end-user firmware. However, its compatibility with Mark VIe controllers depends on the controller‘s firmware version. GE recommends Control ST V07.02 or higher for full telemetry support.
- ToolboxST Configuration for Redundancy:While the power module itself has no configurable firmware, redundant operation is enabled via ToolboxST at the system level. Users assign each General Electric IS200EPSMG1AEC a “primary” or “backup” role in the power supply group configuration.
- IONet Backplane Protocol Updates:The module communicates over the IONet using GE’s proprietary deterministic protocol. Backplane firmware updates (distributed via Mark VIe controller updates) do not require removing or reflashing the power supply — updates are transparent to the General Electric IS200EPSMG1AEC.
- Obsolescence Migration Path:When GE releases a revision change (e.g., from AEC to BEC or REC), the physical dimensions, pinout, and output specifications remain identical. No control logic or wiring changes are needed — only the model number on the purchase order and spare parts list is updated. Always confirm revision compatibility via GE‘s product notification bulletins.
