IS200EISBH1AAB

/ 4.9
1001 reviews | Need a Specific Revision?
IS200EISBH1AAB is a GE Mark VI/EX2100 exciter ISBus communication board with 6 ST fiber optic ports, 2.5 Mbps data rate, -40°C to +85°C operation, and TMR redundancy support.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IS200EISBH1AAB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200EISBH1AAB

  • Manufacturer:
    General Electric
  • Part Number:
    IS200EISBH1AAB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Communication Board
  • Stock:
    1
  • Fiber Optic Ports:
    6 x ST (3 Transmit, 3 Receive)
  • Communication Rate:
    2.5 Mbps / 3 kHz carrier
  • Input Signals:
    ±10 V (Voltage & Current)
  • RS-232C Ports:
    Tool Port & Keyboard Port for diagnostics
  • Operating Temperature:
    -40°C to +85°C
  • Storage Temperature:
    -55°C to +125°C
  • Power Supply:
    24V DC (typical), 10W consumption
  • Isolation Voltage:
    2 kV RMS (Signal-Power-Frame)
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    2x18.6x12.8cm
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostic & Protection Upgrade Procedures

Features:

  • Features 6 ST ports (3 Tx/3 Rx) using 3 kHz carrier modulation, eliminating electrical interference for long-distance (>20 km) transmission
  • Acts as the ISBus master for M1, M2, and C controllers, ensuring data synchronization and high availability in TMR configurations
  • Operates in Conjunction with the M Series and Standard 3500 Monitors
The IS200EISBH1AAB functions as the dedicated fiber-optic communication hub within the EX2100 excitation system . It utilizes six ST-style optical ports (3 transmitting, 3 receiving) operating with a 3 kHz carrier modulation scheme . By converting analog electrical signals (voltage and current feedback from the generator field) into light pulses, the board achieves complete galvanic isolation, eliminating electromagnetic interference (EMI) from high-power cables.

Within the Mark VI architecture, the IS200EISBH1AAB is the critical interface for the ISBus (Internal Synchronization Bus) . In TMR systems, three identical IS200EISBH1AAB boards work in parallel with the M1, M2, and C controllers. The board continuously exchanges data across these three channels, allowing the system to perform "2oo3" (two-out-of-three) voting on excitation parameters . If one controller or communication path fails, the remaining two healthy channels maintain control without any process interruption.

The IS200EISBH1AAB is built to survive the harsh conditions typical of power generation facilities, such as temperature extremes, humidity, corrosive gases, and vibration . The printed circuit board (PCB) is treated with a specialized conformal coating (lacquer) that protects the sensitive electronics from moisture, dust, and chemical contaminants.The board utilizes high-grade components rated for extended temperature ranges, allowing the IS200EISBH1AAB to function reliably in ambient temperatures spanning from -40°C to +85°C.

The IS200EISBH1AAB GE Communication Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

GE IS200EISBH1AAB Communication Board Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IS200EISBH1AAB Communication Board Specs

General

  • Manufacturer GE
  • Model IS200EISBH1AAB
  • Condition New Original ready stock
  • Product Family IS200EXAMG1A,IS200EXHSG4A,IS200TBACIH1B,IS200TGENH1A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation Plants: Deployed in thermal, gas, steam, and hydroelectric power plants. It ensures accurate generator field excitation and voltage regulation.
  • Synchronous Generator Redundancy: Functions in triple-modular redundant (TMR) or dual-redundant control systems to link M1, M2, and C controllers, keeping redundant processors in perfect lock-step.
  • Industrial Microgrids & Co-generation: Used in heavy process industries (e.g., steel mills, large petrochemical complexes) where stable, localized grid frequency and voltage regulation are required.
  • Fiber-Optic Signal Isolation: Bridges the gap between high-voltage power bridges and low-voltage digital control modules using noise-immune fiber-optic telemetry.
  • ISBus Telemetry Diagnostics: Continuously monitors the high-speed internal communication bus (ISBus). It isolates transmission jitter or packet loss before it can cause a controller desynchronization.
  • Signal Fault Isolation (EDCF Interface): Collects and validates critical inputs—such as generator field DC voltage, ground detector status, and exciter current—and flags data corruption through hardware-level cyclic redundancy checks (CRC).
  • Fiber-Optic Link Quality Monitoring: Tracks light attenuation and transceiver health on the optical ports, issuing preventative diagnostic alarms to the HMI if signal strength drops below operating thresholds.
  • Fail-Safe Controller Cross-Checking: If a voting mismatch occurs between the redundant processors (M1/M2), the EISB helps identify which channel is corrupted and assists in a bumpless transfer to the healthy controller, preventing a false system trip.
  • Power Down: Isolate all AC/DC power supplies to the control rack. Never hot-swap the board while the excitation system is energized.
  • ESD Mitigation: Wear a properly grounded Electrostatic Discharge (ESD) wrist strap attached to the cabinet framework to protect sensitive components on the 3U plug-in architecture.
  • Labeling: Document and tag all connected fiber-optic cables and auxiliary wiring prior to removal.
  • Card Alignment: Slide the board into its dedicated slot along the chassis guide rails until the backplane connectors align perfectly.
Description

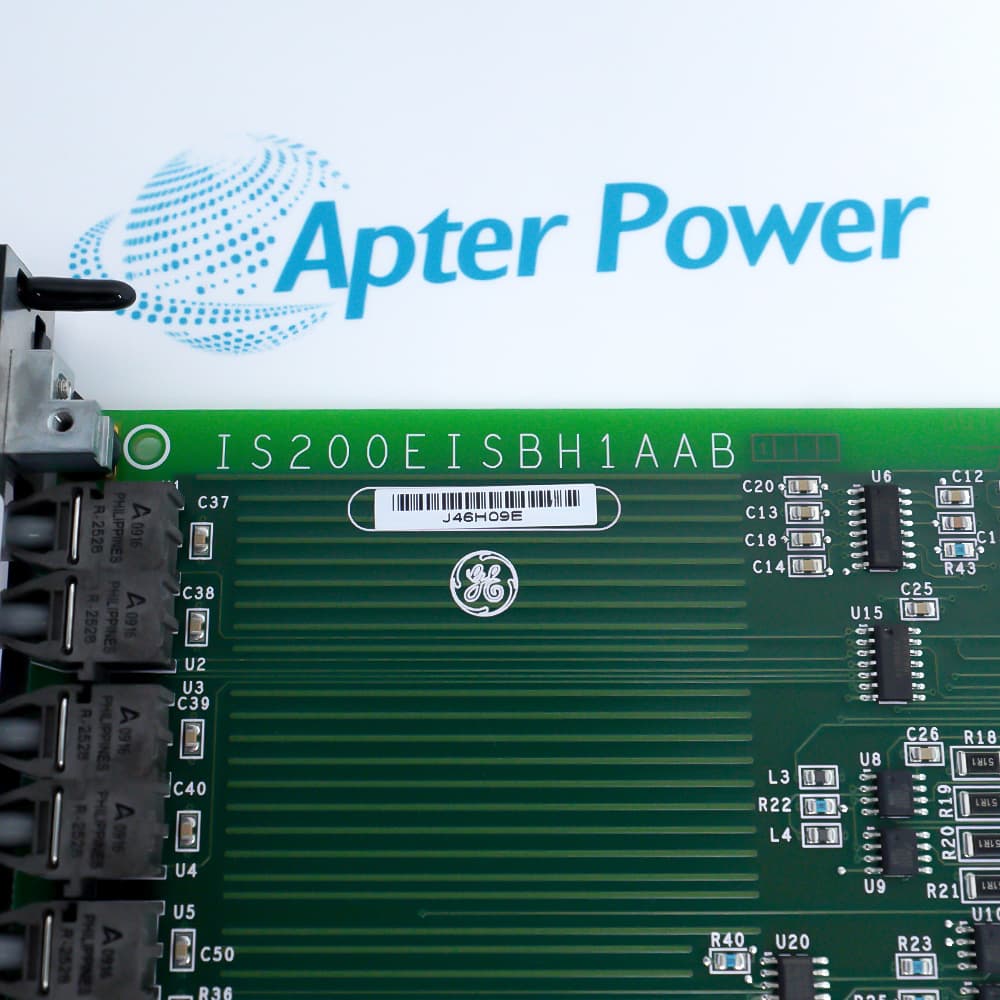

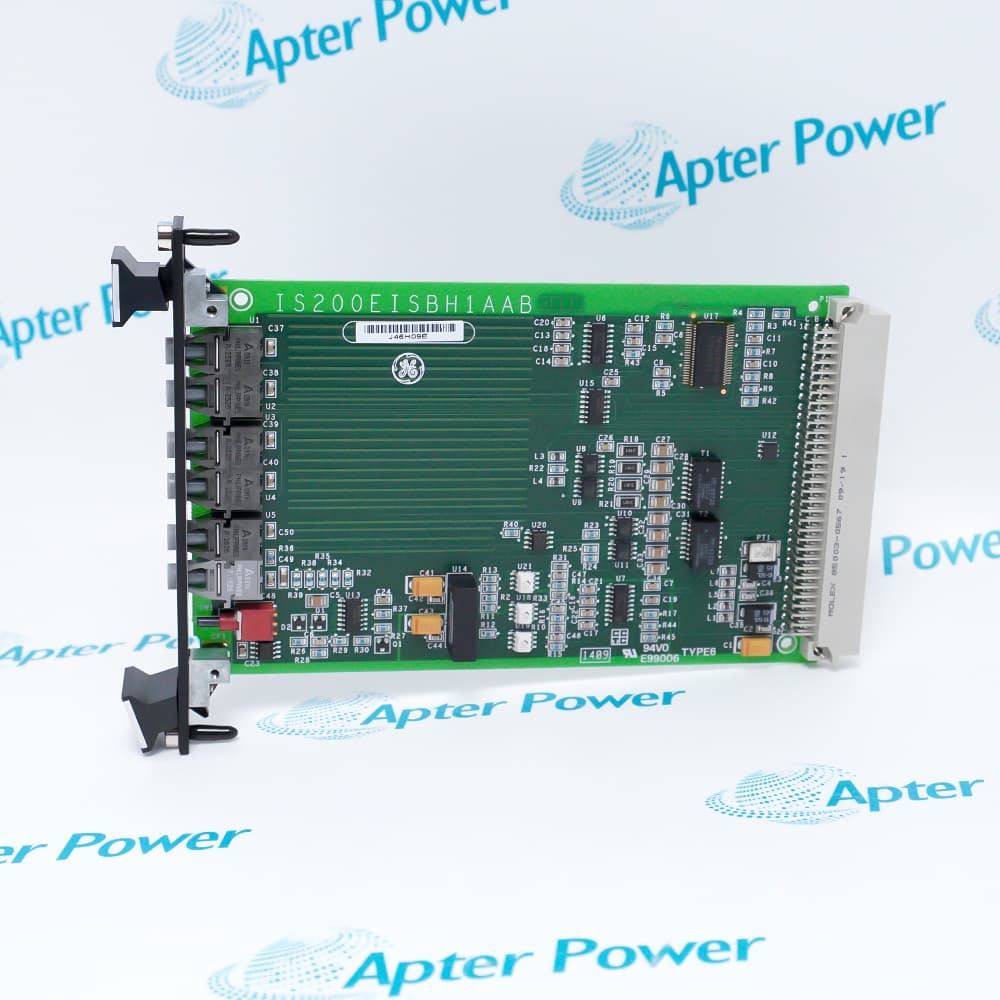

The IS200EISBH1AAB is a critical Exciter ISBus Board engineered for GE's Mark VI Speedtronic and EX2100 excitation control systems . As the system's central fiber-optic communication hub, this board manages all data transmission between the exciter controller and the turbine's main control cabinet.

Functionally, the IS200EISBH1AAB serves as the communication bridge between the M1, M2, and C controllers within the EX2100 system, ensuring synchronization and redundancy across control channels . It interfaces directly with the DSPX processor board via the VME backplane and supports both Simplex and Triple Modular Redundancy (TMR) configurations to meet different turbine control requirements.

Physically, the IS200EISBH1AAB is a 3U-high, single-slot VME board designed for 13- or 21-slot racks . It carries a conformal coating for protection against harsh industrial environments, boasts an MTBF exceeding 150,000 hours, and operates reliably in temperatures ranging from -40°C to +85°C.
Revisions

Revision Part #

Also known as

IS200EISBH1AAA
IS200EISBH1AA-A, Series -A, Rev -A
IS200EISBH1AAC
IS200EISBH1AA-C, Series -C, Rev -C
Alternative Names
IS2OOEISBH1AAB IS200EISBHIAAB IS200BICLH1AED IS200EXAMG1A IS200EXHSG4A IS200TBACIH1B IS200TGENH1A IS200VCRCH1B
Technical notes
The IS200EISBH1AAB is a specialized Exciter ISBus Board for the GE EX2100 and Mark VI systems. It converts 6 analog inputs (±10V) into 2.5 Mbps fiber optic signals, ensuring noise immunity over long distances. It utilizes a 24V DC supply, operates from -40°C to +85°C, and supports TMR redundancy. Its conformal coating protects against harsh environments, making it essential for reliable generator excitation control.
