        IS200SRTDH2ABB

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        IS200SRTDH2ABB is a GE Mark VI RTD input terminal board designed for precise temperature monitoring, offering 8 RTD channels and compatibility with PRTD/VRTD I/O processors.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IS200SRTDH2ABB
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IS200SRTDH2ABB

        • Manufacturer:
          General Electric
        • Part Number:
          IS200SRTDH2ABB
        • Product Family:
          GE Mark VI Gas Turbine Control
        • Product Type:
          Input Terminal Board
        • Stock:
          2
        • Input Type:
          RTD
        • RTD Support:
          2-wire, 3-wire, 4-wire
        • Number of Input Channels:
          8 dedicated RTD channels
        • Input Interface:
          Euro-block terminal blocks (36 total pins)
        • Operating Temperature:
          -40°C to +85°C
        • Storage Temperature:
          -40°C to +85°C
        • Processor (on-board):
          32-bit RISC @ 150MHz
        • Weight:
          0.16 kg
        • Estimated shipping dimensions:
          15.8x10.5x3.5cm
        • Tariff Code:
          8538900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Diagnostics & Protection Upgrade Guide

        Features:

        • 8 RTD input channels with 2/3/4-wire configuration support for PT100/PT1000 sensors
        • 150MHz 32-bit RISC processor with 256MB DDR3 memory and 512MB flash storage
        • -40°C to +85°C wide temperature range with >200,000 hour MTBF and 2500V isolation
        The IS200SRTDH2ABB is engineered as a precision temperature measurement interface for GE Mark VI turbine control systems, providing 8 dedicated RTD input channels . This high-density design allows simultaneous monitoring of multiple temperature points across turbine stages, including bearing temperatures, exhaust temperatures, and inlet air temperatures. The module supports 2-wire, 3-wire, and 4-wire RTD configurations, accommodating both PT100 and PT1000 sensor types . The 3-wire and 4-wire configurations are particularly valuable for long cable runs, as they compensate for lead resistance errors that would otherwise corrupt temperature readings. Each channel connects via high-density Euro-block terminal blocks, with the board featuring a total of 36 pins for secure field wiring .

        The IS200SRTDH2ABB incorporates significant onboard processing power to handle real-time temperature data acquisition and conditioning. At its core is a 32-bit RISC processor operating at 150MHz, capable of deterministic control response within 2ms for critical power generation applications . This processing capability ensures that temperature changes are detected and reported to the turbine controller without delay, enabling rapid protective actions such as load shedding or turbine trips when temperature limits are exceeded.

        The IS200SRTDH2ABB is designed for continuous operation in the harsh environments typical of power generation facilities. With an operating temperature range of -40°C to +85°C and storage capability to the same extremes, the board performs reliably in both the freezing conditions of outdoor turbine enclosures in winter and the intense heat of operating turbine decks . Military-grade components contribute to a Mean Time Between Failures (MTBF) exceeding 200,000 hours (approximately 22.8 years), reducing spare parts inventory and maintenance frequency .

        The IS200SRTDH2ABB GE Input Terminal Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        GE IS200SRTDH2ABB Input Terminal Board Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        GE IS200SRTDH2ABB Input Terminal Board Specs

        General

        • Manufacturer GE
        • Model IS200SRTDH2ABB
        • Condition New Original ready stock
        • Product Family IS200TBCIH1BCD,IS200TGENH1AAA,IS200TRLYH1BGG
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Bearing Temperature: Measures critical bearing temperatures to prevent catastrophic failures from friction and overheating.
        • Stator & Rotor Windings: Monitors generator stator core and winding temperatures to prevent insulation breakdown.
        • Exhaust Hood & Duct: Tracks exhaust gas temperature (EGT) profiles to optimize combustion control.
        • Large Industrial Compressors & Pumps:Monitors motor/turbine frame temperatures, lube oil systems, and process gas inlet/outlet temperatures.
        • Open Circuit Detection: Instantly detects if a field RTD wire or sensor breaks.
        • Short Circuit Detection: Identifies short circuits between RTD leads or to the ground.
        • Electronic ID (EID) Chip: The board contains a write-protected serial ID chip. When the PRTD I/O pack boots up, it reads this chip to verify the hardware type and revision. If it mismatches the software configuration in ControlST, the system blocks initialization to prevent incorrect board insertion.
        • Signal Noise Suppression:Each RTD channel includes high-frequency filtering (diodes and capacitors) to eliminate common-mode and differential-mode electromagnetic interference (EMI).
        • Mounting: Supports standard DIN-rail mounting or direct flat-surface panel mounting inside the cabinet.
        • Terminal Wiring: Features two rows of high-density Euro-style terminal blocks (36 terminals total, numbered 1–36).
        • Shield Grounding: Shielded cables must be used for all RTD signals. The shields must be single-endedly grounded at the designated cabinet ground bar, never multi-point grounded at the terminal board.
        Description
        The IS200SRTDH2ABB is a Simplex RTD (Resistance Temperature Detector) Input Terminal Board engineered for GE's Mark VI and Mark VIe turbine control systems . This high-performance board is responsible for receiving, conditioning, and transmitting analog temperature signals from RTD sensors to the control system.

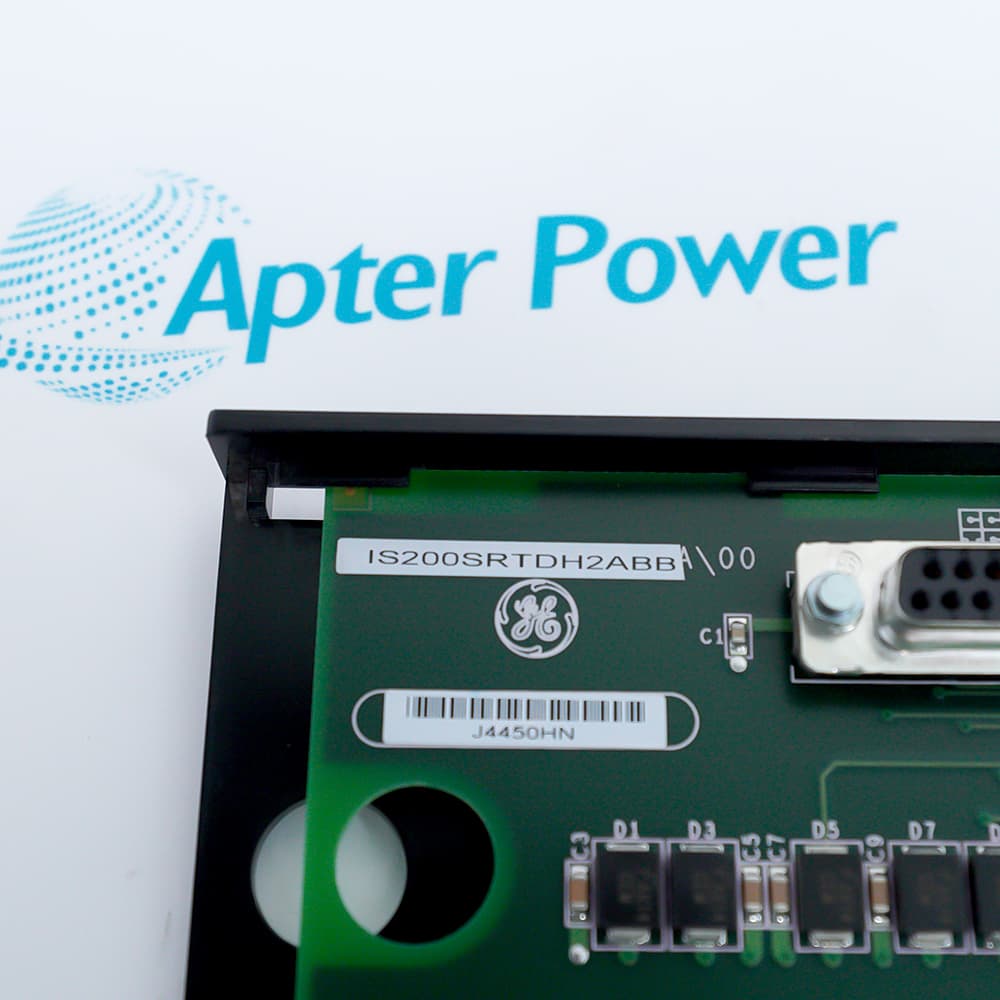

        Physically, the IS200SRTDH2ABB is a compact printed circuit board (PCB). It features a large connector port on the upper edge for connection to I/O processors and two terminal blocks on the bottom edge, each containing eighteen terminals for a total of thirty-six connection points.

        The IS200SRTDH2ABB provides high-accuracy RTD inputs, supporting standard 2-wire, 3-wire, and 4-wire RTD configurations including PT100 and PT1000 sensors . It features channel-to-system electrical isolation to resist industrial electrical interference.

        Applications for the IS200SRTDH2ABB include gas turbine control for combustion optimization, steam turbine systems for bearing and exhaust temperature measurement, power generation plants for multi-point temperature surveillance, and industrial process control.
        Revisions

        Revision Part #

        Also known as

        IS200SRTDH2ABA Ser A
        IS200SRTDH2ABA, Series A, Rev A
        Get Parts Quote
        Alternative Names
        IS2OOSRTDH2ABB IS200TBCIH1BCD IS200TGENH1AAA IS200TRLYH1BGG IS200BICLH1AED IS200EISBH1A IS200EXAMG1A IS200EXHSG4A
        Technical notes
        The IS200SRTDH2ABB is a GE Mark VI RTD input board with 8 channels for PT100/PT1000 sensors. Features 150MHz 32-bit RISC processor, 256MB DDR3, 512MB flash, and 2x Ethernet ports. Offers -40°C to +85°C operation and 2500V isolation. Supports 2/3/4-wire RTD configurations. MTBF exceeds 200,000 hours. Compatible with Mark VIe turbine control systems.
