- Operates as the VME bus master and controller-to-I/O communication interface in a Mark VI rack.
- Uses the H2 arrangement with three 10Base2 IONet BNC ports for network communication.

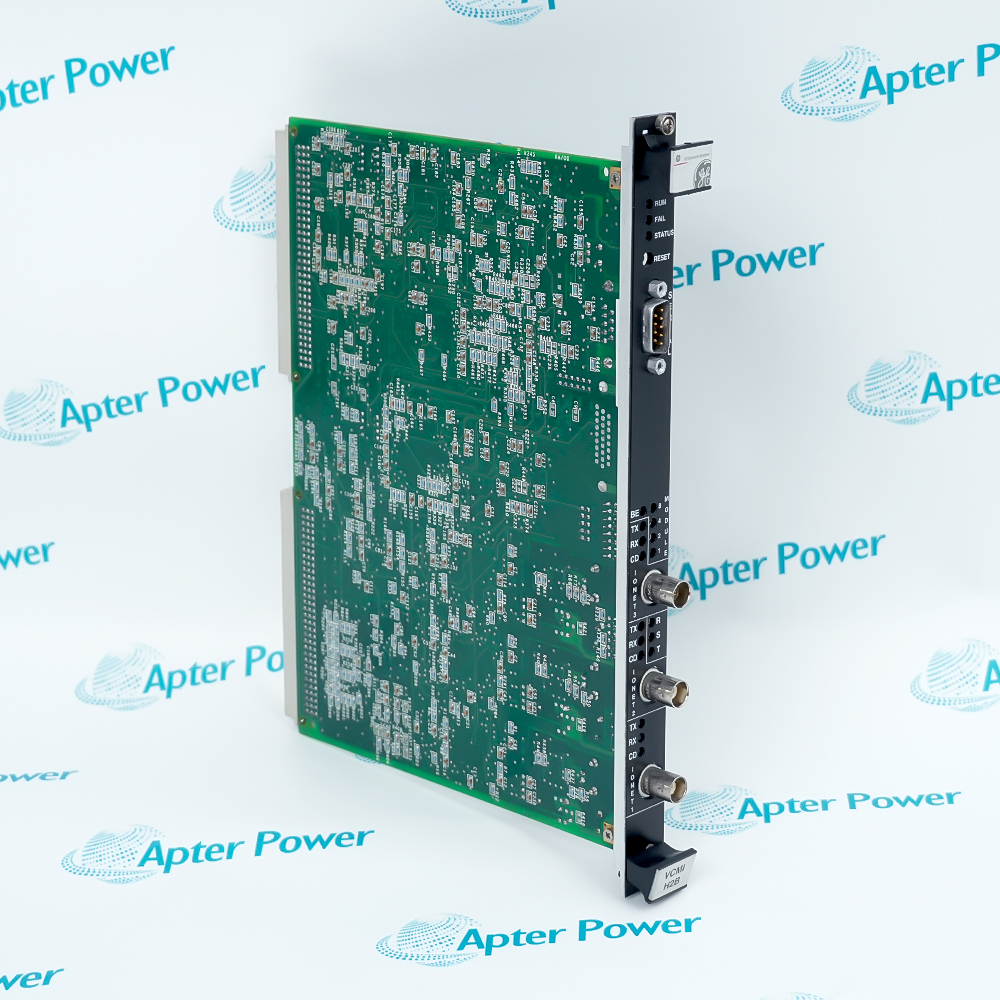

- The supplied assembly photographs retain both IS200VCMIH2BCD and IS215VCMIH2BC identifiers.
IS200VCMIH2BCD IS215VCMIH2BC is a General Electric mark vi vcmi communication interface board assembly designed for its documented industrial platform or application.

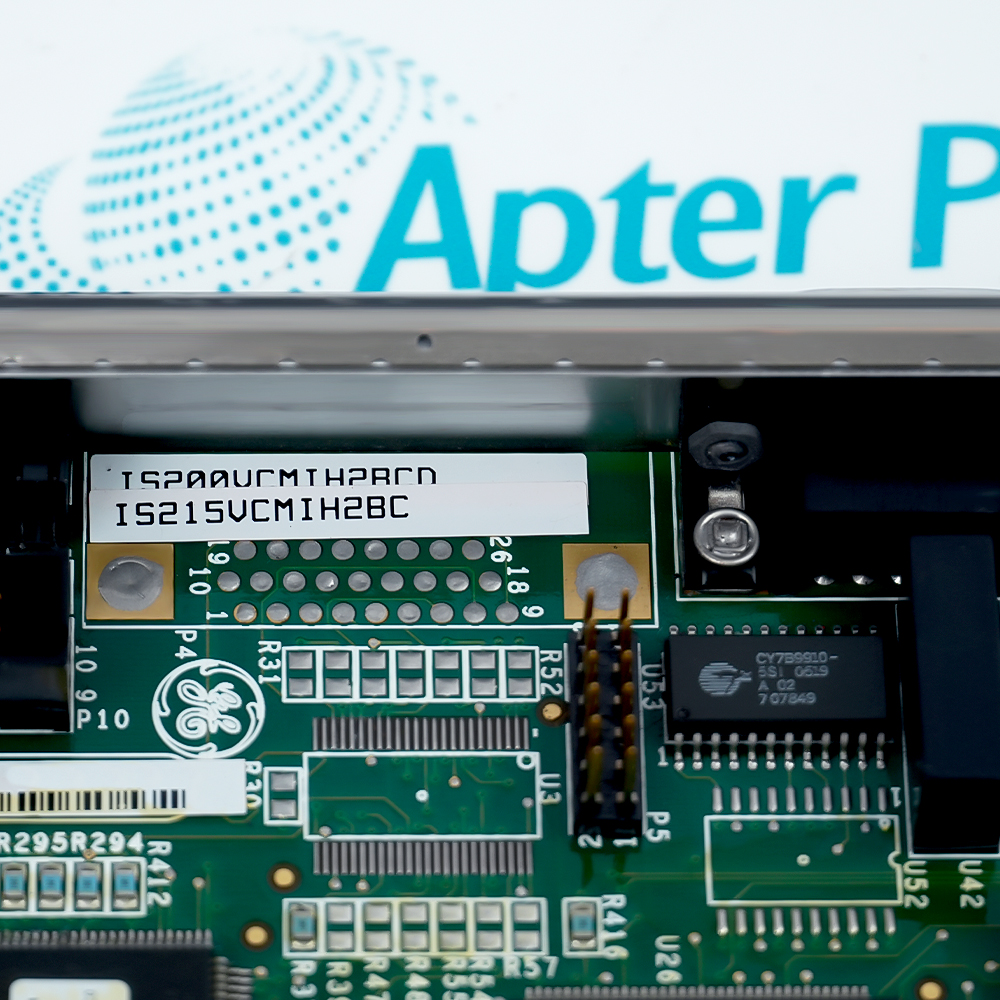

The supplied board photographs show IS200VCMIH2BCD and IS215VCMIH2BC on the same GE VCMI H2 assembly. GEH-6421M documents the H2 VCMI as a VME bus-master and Mark VI IONet communication interface with three 10Base2 ports.
Before installation or replacement, verify the complete catalog number, compatible hardware, wiring, configuration and installed-system requirements.
Availability, condition, price, and shipping time for IS200VCMIH2BCD IS215VCMIH2BC are confirmed during quotation.
General Electric IS200VCMIH2BCD IS215VCMIH2BC Mark VI VCMI communication interface board assembly Manuals, Product Family, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Provides three 10Base2 IONet BNC ports at 10 Mbit/s in the H2 version.
- Provides one RS-232C D-style serial connector fixed at 9600 bit/s.
- Supports VME bus block transfers between the controller, VCMI and I/O boards.
- Monitors IONet communication and reports individual IONet 1, 2 and 3 communication failures.
- Detects VME bus errors, board-ID mismatches and terminal-board compatibility faults.
- Checks SRAM and flash conditions and accepts power-distribution diagnostic inputs through the backplane.
- Acts as VME bus master in control and I/O racks and manages installed board identifiers.
- Supports simplex systems with local or remote I/O racks, each using its own VCMI.
- Supports TMR R, S and T channels with one IONet per channel through the three H2 ports.
- Mark VI control-rack communication between the controller and VME I/O boards
- Mark VI local or remote I/O racks requiring a VCMI bus master
- Mark VI TMR R, S and T IONet communication using the three-port H2 arrangement
