IS200IGPAG2AED

/ 4.9
1001 reviews | Need a Specific Revision?
The GE IS200IGPAG2AED is a gate drive power supply board, a core component of the EX2100 excitation system. Designed to provide reliable power to the gate drive, it delivers precise and controllable power to critical system components.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IS200IGPAG2AED
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200IGPAG2AED

  • Manufacturer:
    General Electric
  • Part Number:
    IS200IGPAG2AED
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Gate Drive Power Supply Board
  • Stock:
    1
  • LED Indicators:
    Two LED sets for operational status monitoring
  • LED Colors:
    Amber and Green LEDs
  • LED Location:
    Positioned on opposite sides of the board
  • Terminal Connectors:
    Multiple field connection terminals
  • Header Connector:
    One vertical 9-pin male header
  • Board Layout:
    Includes reserved component locations for optional configurations
  • Monitoring Capability:
    Visual diagnostic indication through status LEDs
  • Network Interface:
    Ethernet LAN (Unit Data Highway)
  • Configuration Software:
    GE Control System Toolbox
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    19x16.5x5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Monitoring & Control

Features:

  • Power supply for the gate drive within the EX2100 excitation system
  • Integrates controlled DC power delivery with precise gate switching support
  • Works alongside the EX2100 excitation control modules and turbine generator monitoring equipment
The IS200IGPAG2AED functions as the dedicated gate drive power supply in the EX2100 system, converting and regulating power to support stable operation of all gate drive circuits and connected modules. It delivers controlled DC power essential for driving the power semiconductor gates, enabling precise switching and power regulation required for exciter field control.

The IS200IGPAG2AED provides essential power functions specific to the gate drive circuitry, representing a critical component of the excitation power path that directly affects proper operation of the overall EX2100 system. One IS200IGPAG2AED board is typically required per gate drive channel within the excitation system configuration. The board features a right-side configuration hosting the LED indicators, several terminal connectors, and a single vertical 9-pin male header connector, with additional component positions outlined for potential system expansion.

For system reliability applications, the EX2100 excitation system supports redundant configurations that may incorporate multiple IS200IGPAG2AED boards or complementary power supply modules to ensure continuous gate drive operation. In addition to standard single-channel operation, redundant system configurations perform automatic monitoring of power supply health. The EX2100 system continually monitors the operational status of all power supply components.

The IS200IGPAG2AED General Electric Gate Drive Power Supply Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200IGPAG2AED Gate Drive Power Supply Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200IGPAG2AED Gate Drive Power Supply Board Specs

General

  • Manufacturer General Electric
  • Model IS200IGPAG2AED
  • Condition New Original ready stock
  • Product Family IS200IGPAG2A,IS200HSLAH1ADE
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Mark VI Turbine Controls: Supplies high-speed gate voltage within heavy-duty gas and steam turbine systems.
  • EX2100 Excitation Systems: Powers phase-controlled SCR bridges to regulate utility-scale generator outputs.
  • Innovation Series Drives: Drives high-power IGCT switching topologies in heavy industrial processing plants.
  • Direct IGCT Mounting: Functions as a Group 2 board designed to mount directly onto a single IGCT semiconductor.
  • Hardware Interface: Connects using 8 plug connectors, 2 terminal blocks, and 1 vertical 9-pin male header.
  • Software Integration: Communicates with CIMPLICITY HMI software and GE Control System Toolbox configurations.
  • Mark VI Architecture: Integrates into triple-modular redundant (TMR) control loops via standard backplane connections.
  • On-Board Diagnostics: Contains dual mirrored LED arrays to verify localized power and gate activation states.
  • 5V/20V DC Tracking: Employs dedicated status indicators (DS3, DS4, DS7, DS8) to confirm rail voltage health.
  • Galvanic Isolation: Protects low-voltage controller modules from high-voltage transients using on-board isolation barriers.
  • Fault Feedback Loops: Sends real-time hardware status metrics to the central core processor for rapid trip protection.
Description
The IS200IGPAG2AED is a Gate Drive Power Supply Board developed by General Electric (GE), designed specifically as an integral component of the EX2100 excitation system. The IS200IGPAG2AED provides essential power supply functionalities to the gate drive, thereby enabling precise and controlled power delivery to the system's critical components. This board's design and functionalities are meticulously crafted to meet the stringent performance requirements and operational demands of the EX2100 excitation system, ensuring reliable operation in high-stakes industrial environments.

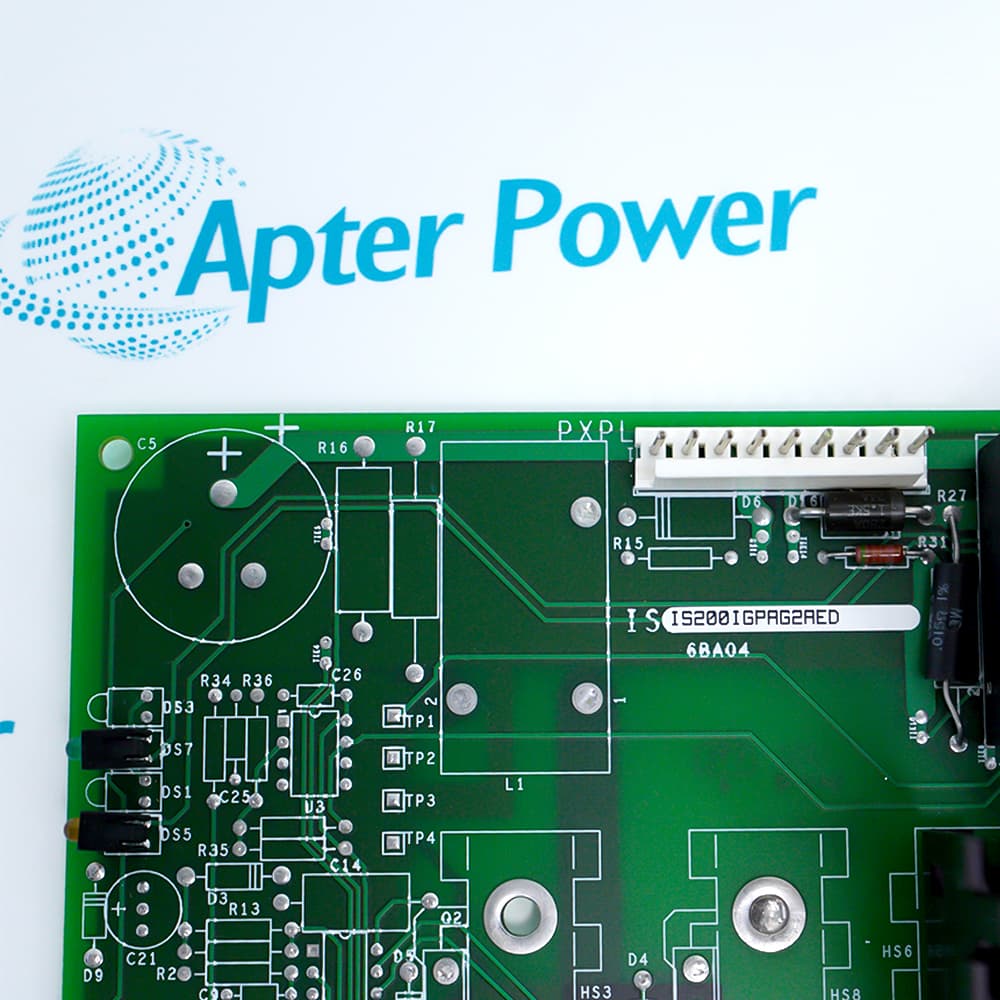

The IS200IGPAG2AED features two sets of LEDs positioned on opposite sides, with each set including one amber LED and one green LED, providing visual status indicators essential for monitoring operational states. The right side of the IS200IGPAG2AED primarily hosts the LEDs, several terminal connectors, and a single vertical 9-pin male header connector, along with outlined positions for additional components. The board also incorporates inductors and capacitors to support its power regulation capabilities.

The IS200IGPAG2AED is designed for application within the EX2100 exciter system, a versatile and adaptable modular system capable of diverse configurations to cater to various output currents and ensure multiple levels of system redundancy. The IS200IGPAG2AED serves as a crucial power supply element that supports the exciter's flexible configurations, which encompass choices such as employing single or multiple bridges, warm backup bridges, as well as the availability of simplex or redundant controls. The exciter system, incorporating the IS200IGPAG2AED, can be powered either from a power potential transformer linked to the generator terminals or via an excitation transformer connected to an auxiliary bus, with feedback mechanisms relying on generator line current and stator output voltage to regulate DC voltage and current output for effective exciter field control.
Revisions

Revision Part #

Also known as

IS200IGPAG2AED
IS200IGPAG2A-ED, Series ED, Rev ED
IS200IGPAG2AAA
IS200IGPAG2A-AA, Series AA, Rev AA
IS200IGPAG2ABC
IS200IGPAG2A-BC, Series BC, Rev BC
Alternative Names
1S200IGPAG2AED IS2001GPAG2AED IS2OOIGPAG2AED IS200IGPAG2A IS200HSLAH1ADE IS200NATPG1CAA
Technical notes
The IS200IGPAG2AED's technical design, electronic architecture, and functional characteristics have been meticulously crafted to meet the stringent performance requirements and operating conditions of the industrial-grade EX2100 exciter.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What industrial problems does the IS200IGPAG2AED help solve?
The IS200IGPAG2AED addresses power delivery fluctuations, gate control instability, and potential system downtime by supplying clean and regulated power to critical gate drive circuits.
What diagnostic features are available on the IS200IGPAG2AED?
The board includes two sets of diagnostic LED indicators positioned on opposite sides. Each set contains one amber LED and one green LED, providing real-time visual status information for system monitoring and troubleshooting.
What hardware interfaces are integrated into the IS200IGPAG2AED?
The IS200IGPAG2AED incorporates terminal connectors, a vertical 9-pin male header connector, inductors, capacitors, and dedicated monitoring components to support communication, power management, and diagnostics.
Does the IS200IGPAG2AED support redundant excitation system configurations?
Yes. The board supports a variety of EX2100 system architectures, including simplex controls, redundant controls, single and multiple power bridges, and warm backup bridge configurations.
