    Apter Power offers this genuine RX3i IC695ALG600-DD analog input module to ensure the accuracy and stability of the control loop.

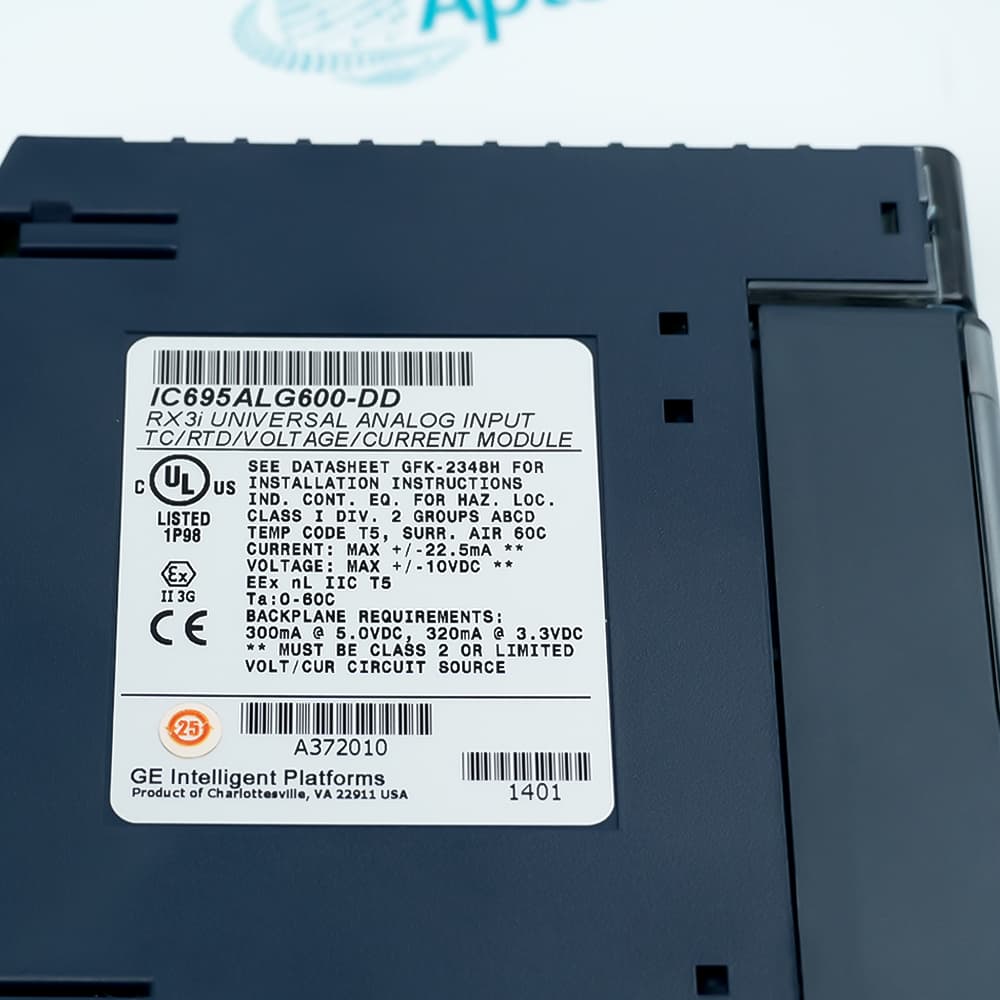

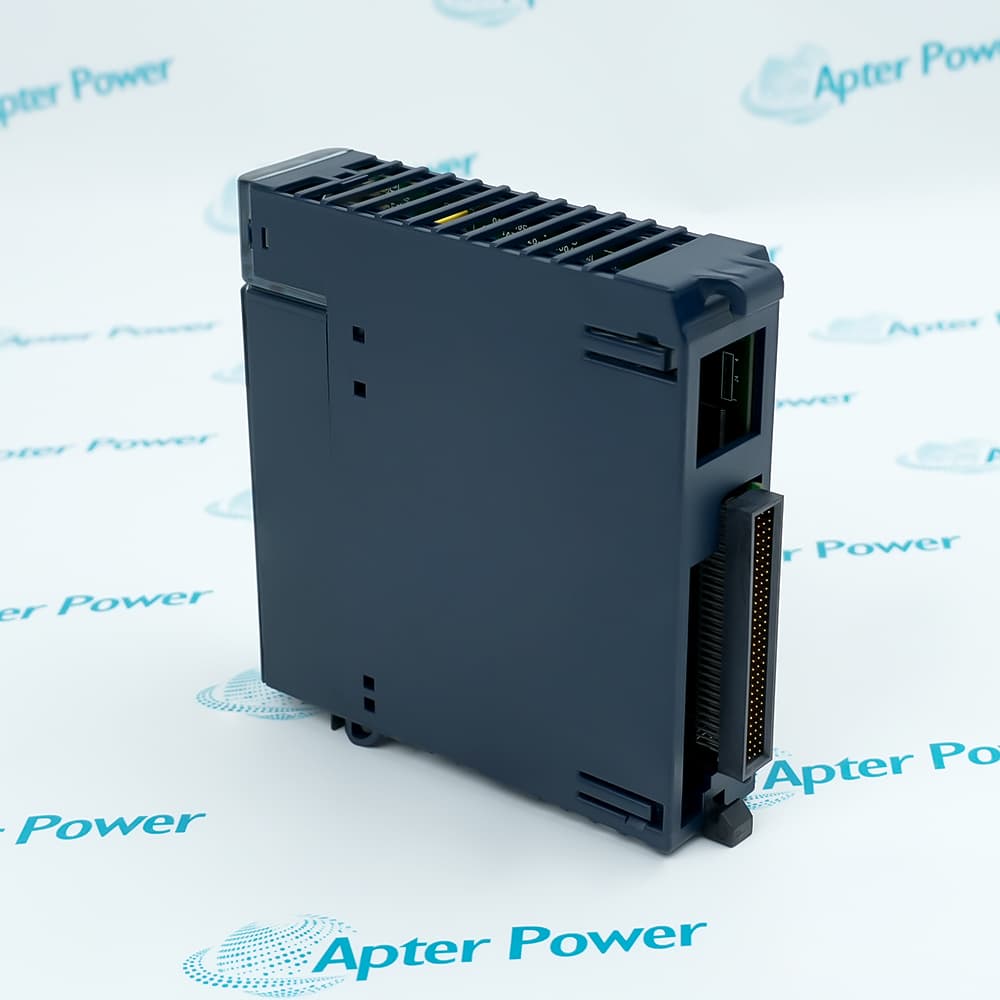

IC695ALG600-DD

/ 4.9
1001 reviews | Need a Specific Revision?
The IC695ALG600-DD general-purpose analog input module solves the key challenge of integrating various sensor types into a single unified platform, simplifying the system architecture by eliminating the need for multiple dedicated modules.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC695ALG600-DD
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695ALG600-DD

  • Manufacturer:
    General Electric
  • Part Number:
    IC695ALG600-DD
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    Universal Analog Input Module
  • Stock:
    1
  • Max Overvoltage:
    +/-14.5VDC continuous
  • Max Overcurrent:
    28 mA continuous
  • Settling time to 5% of Full Scale (notch filter dependent):
    <80 mS
  • General Purpose Input Channels:
    8
  • Cold Junction Compensation (CJC) Channels:
    2
  • Input Group Configuration:
    Two equal groups of four channels
  • Thermocouple Input Types:
    B, C, E, J, K, N, R, S, T
  • Current Input Ranges:
    0–20 mA, 4–20 mA, +20 mA
  • Voltage Input Ranges:
    +50mV, +150 mV, 0–5 V, 1–5 V, 0–10 V, +10V
  • Weight:
    0.18 kg
  • Estimated shipping dimensions:
    3.5x13.5x13.6cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Diagnostics & Protection Installation & Integration

Features:

  • Universal Analog Input Capability with Flexible Channel Configuration
  • Combines Multiple Input Types with Cold Junction Compensation Support
  • Operates in Conjunction with RX3i CPU and PACSystems RX3i Platform
The IC695ALG600-DD operates as the Universal Analog Input Module in an RX3i rack, providing versatile analog signal acquisition for all automation applications within the system. It continuously processes incoming signals from up to eight general-purpose input channels and two dedicated Cold Junction Compensation (CJC) channels, converting diverse sensor inputs into digital data for PLC processing. Seamless integration is standard with the IC695ALG600-DD, however using individually-configurable channels will allow seamless adaptation to any combination of voltage, current, thermocouple, RTD, and resistance inputs in the event of changing application requirements. The IC695ALG600-DD has made improvements in several areas over previous analog input designs in addition to incorporating universal input type capability within the RX3i platform.

The IC695ALG600-DD provides essential analog input functions common to the entire control system, and is a critical component of the data acquisition path, directly affecting the proper, normal operation of the overall monitoring and control system. One IC695ALG600-DD module is required per application depending on the desired channel count. The IC695ALG600-DD occupies a slot in the RX3i Universal Backplane and requires an RX3i CPU with firmware version 2.80 (Build ID 43A1) or later.

For Multi-Channel Analog Input applications, the IC695ALG600-DD supports up to eight individually-configured channels using the Proficy Machine Edition software. In addition to standard voltage and current inputs, the module performs automatic thermocouple type selection and RTD configuration. The IC695ALG600-DD channel configuration executes input processing using the internal circuitry specified in the module options. Using this method, the analog input system continually monitors the health of all channels. If the system detects that a channel input is outside configured range or tolerance levels, it will automatically flag the condition and place an event in the System Event List.

The IC695ALG600-DD GE  Universal Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC695ALG600-DD Universal Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IC695ALG600-DD Universal Analog Input Module Specs

General

  • Manufacturer GE
  • Model IC695ALG600-DD
  • Condition New Original ready stock
  • Product Family IC695ALG600,IC694TBB032,IC694TBB132
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Control: Monitoring flow, temperature, and pressure in automation systems.
  • Mixed-Signal Monitoring: Ideal for systems where space is limited, as it handles diverse sensors like thermocouples (Types B, C, E, J, K, N, R, S, T) and RTDs (PT 385/3916, Ni 618/672) without needing multiple dedicated modules.
  • High-Speed vs. High-Precision: The two isolated groups allow users to separate fast-response inputs (high-frequency filters) from slower, highly-filtered inputs to optimize system update rates.
  • Error Checking: Continuous on-board error checking and full auto-calibration at power-up.
  • Fault Detection: Reports module faults, open-circuits (for most types), and short-circuits (specifically for RTDs).
  • Configurable Alarms: Per-channel reporting for overrange, underrange, and dual-level high/low alarms (High-High, High, Low, Low-Low).
  • Physical Monitoring: Detects the insertion or removal of the terminal block and provides status via dedicated LEDs (Module, Field, and TB).
  • Software Requirement: Requires Proficy Machine Edition (now PAC Machine Edition) for configuration.
  • Terminal Blocks: Requires a separate high-density terminal block such as the Box-style (IC694TBB032) or Spring-style (IC694TBS032). Extended versions are available for shielded wiring.
  • Hot Insertion: Supports hot insertion and extraction, allowing for replacement without powering down the entire system.
  • Wiring: Specific wiring diagrams must be followed for different input types; for example, 2-wire RTDs require tying EXC+ and IN+ together at the terminal block.
Description
The PACSystems* RX3i Universal Analog Input Module IC695ALG600-DD is a high-performance industrial I/O module specifically designed for comprehensive analog signal acquisition in complex automation environments. This module provides eight general-purpose input channels alongside two dedicated Cold Junction Compensation (CJC) channels, with inputs organized into two equal groups of four channels each. The IC695ALG600-DD addresses the critical challenge of integrating diverse sensor types into a single, unified platform, eliminating the need for multiple specialized modules and simplifying system architecture.

Each channel of the IC695ALG600-DD can be individually configured using Proficy* Machine Edition software to support any combination of up to eight channels encompassing voltage, current, thermocouple, RTD, and resistance inputs. For thermocouple applications, the module accommodates types B, C, E, J, K, N, R, S, and T, making it ideal for temperature monitoring across industrial furnaces, chemical processing reactors, and heat treatment systems where precise thermal management is essential. The RTD input capabilities cover PT 385/3916, N 618/672, NiFe 518, and CU 426 configurations, suitable for pharmaceutical manufacturing, food processing, and HVAC systems requiring accurate resistance temperature detection. Additionally, the module handles resistance inputs from 0 to 250/500/1000/2000/3000/4000 Ohms, current ranges of 0–20 mA, 4–20 mA, and +20 mA, plus voltage inputs including +50mV, +150 mV, 0–5 V, 1–5 V, 0–10 V, and +10V, enabling seamless integration with pressure transmitters, flow sensors, level detectors, and position feedback devices.

The IC695ALG600-DD must be installed in an RX3i Universal Backplane and requires an RX3i CPU with firmware version 2.80 (Build ID 43A1) or later, along with Proficy Machine Edition 5.0 SP1A LD-PLC Hotfix 1 or later for configuration. This module is compatible with Box-style terminal block IC694TBB032, Extended Box-style terminal block IC694TBB132, Spring-style terminal block IC694TBS032, or Extended Spring-style terminal block IC694TBS132, where extended terminal blocks provide the additional shroud depth necessary for shielded wiring installations. Terminal blocks are ordered separately. For detailed terminal block specifications, refer to the PACSystems RX3i System Manual GFK-2314 revision B or later.
Revisions

Revision Part #

Also known as

IC695ALG600-CA-DD
IC695ALG600--CA-DD, Series -CA-DD, Rev -CA-DD
IC695ALG600AA
IC695ALG600-AA, Series AA, Rev AA
IC695ALG600AB
IC695ALG600-AB, Series AB, Rev AB
IC695ALG600BC
IC695ALG600-BC, Series BC, Rev BC
IC695ALG600CC
IC695ALG600-CC, Series CC, Rev CC
IC695ALG600DD
IC695ALG600-DD, Series DD, Rev DD
IC695ALG600EE
IC695ALG600-EE, Series EE, Rev EE
IC695ALG600FE
IC695ALG600-FE, Series FE, Rev FE
IC695ALG600GF
IC695ALG600-GF, Series GF, Rev GF
Alternative Names
IC695ALG600 DD IC695ALG600 1C695ALG600-DD IC695ALG6OO-DD IC694TBB032 IC694TBB132 IC694TBS032 IC694TBS132
Technical notes
The General Electric IC695ALG600-DD requires a PACSystems RX3i CPU running firmware version 2.80 or later, and must be configured via Proficy Machine Edition 5.0 SP1A with LD-PLC Hotfix 1 or later. Unused RTD channels must have a jumper physically installed on the terminal block to prevent open-wire conditions from skewing the accuracy of adjacent operational channels.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the PACSystems RX3i Universal Analog Input Module IC695ALG600-DD?
The IC695ALG600-DD is a high-performance industrial analog input module designed for complex automation systems. It enables comprehensive signal acquisition by supporting multiple sensor types within a single module, helping reduce system complexity and eliminating the need for multiple specialized I/O modules.
What RTD configurations are compatible with this IC695ALG600-DD?
The IC695ALG600-DD supports multiple RTD types, including PT 385/3916, N 618/672, NiFe 518, and CU 426. These configurations are commonly used in industries like pharmaceuticals, food processing, and HVAC systems.
What are the minimum software and controller requirements to integrate the General Electric IC695ALG600-DD into an existing system?
The General Electric IC695ALG600-DD requires a PACSystems RX3i Universal Backplane, an RX3i CPU running firmware version 2.80 (Build ID 43A1) or later, and Proficy Machine Edition 5.0 Service Pack 1A with LD-PLC Hotfix 1 or later for full software configuration.
How does the open-circuit behavior of the General Electric IC695ALG600-DD operate when a thermocouple connection breaks?
Thanks to the hardware updates implemented in the firmware version 1.14 of the General Electric IC695ALG600-DD, if a thermocouple channel is left open or gets disconnected, the data value will instantly drop and be held stable at the designated Low Scale Value (Engineering Units) instead of oscillating.
Can the diagnostics on the General Electric IC695ALG600-DD trigger immediate PLC program logic overrides?
Yes, the General Electric IC695ALG600-DD fully supports diagnostic point fault contacts and configurable interrupts directly in the PLC logic program, allowing for rapid software execution based on real-time hardware status changes.
What is the benefit of the dual Cold Junction Compensation (CJC) processing on the General Electric IC695ALG600-DD?
The General Electric IC695ALG600-DD provides two separate CJC tracking lines. While using only one CJC lowers absolute thermal accuracy but shortens specific channel scan speeds, using both CJC1 and CJC2 provides the highest possible cold junction compensation accuracy for critical temperature-tracking apps.
