    Apter Power supports quotations, technical documentation, procurement and system-matching guidance for IC695CPE305.

IC695CPE305

/ 4.9
1001 reviews | Need a Specific Revision?

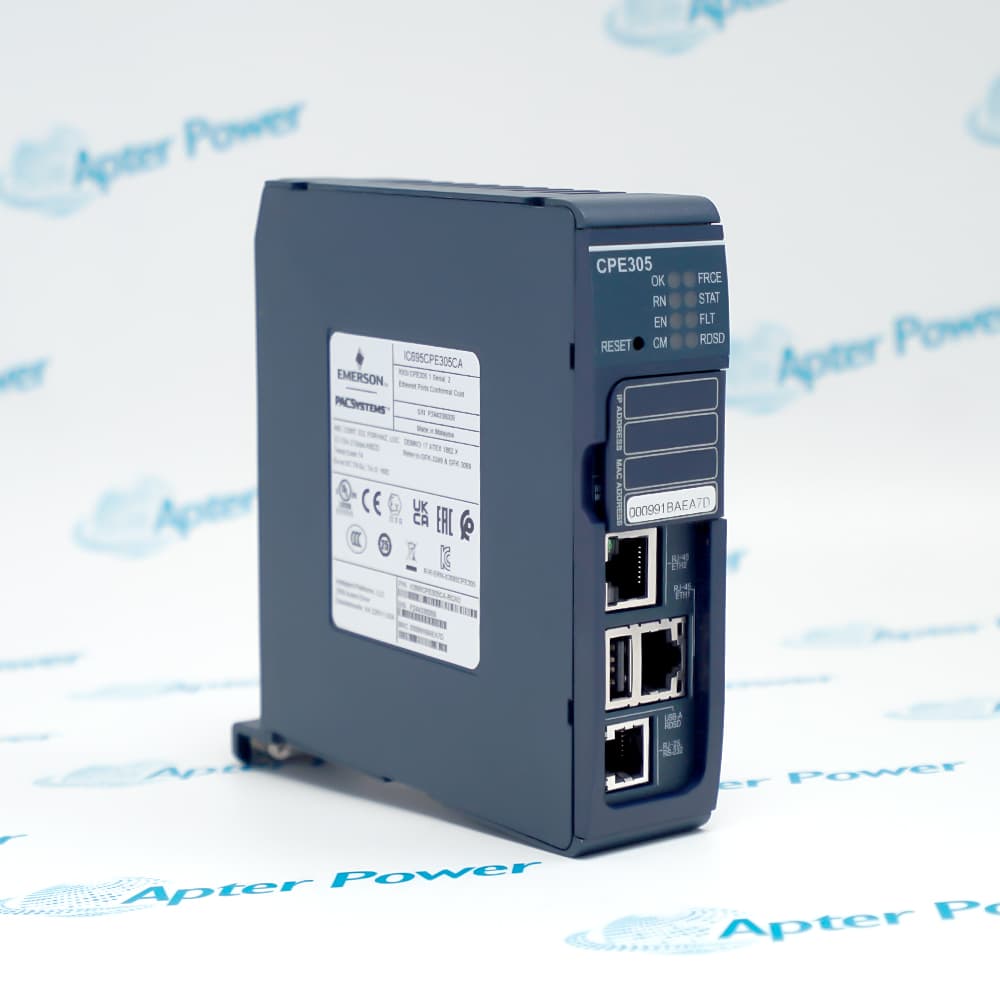

General Electric IC695CPE305 is a PACSystems RX3i controller that combines 6 MB of user memory with rack-based deterministic control for machine and process automation.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for IC695CPE305
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695CPE305

  • Manufacturer:
    General Electric
  • Part Number:
    IC695CPE305
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    CPE305 Controller
  • Stock:
    1
  • Form Factor:
    RX3i backplane controller
  • User Memory:
    6 MB
  • Discrete Inputs:
    32K bits
  • Discrete Outputs:
    32K bits
  • Analog Inputs:
    32K words
  • Analog Outputs:
    32K words
  • Ethernet Ports:
    Two 10/100/1000BASE-T ports in one embedded switch
  • Ethernet Addressing:
    One controller IP address for both switched ports
  • Ethernet Protocols:
    SRTP client/server, Modbus TCP/IP, OPC UA and EGD
  • Industrial Protocols:
    PROFINET, DNP3 Outstation, IEC 61850 client and IEC 60870-5-104 server
  • Media Redundancy:
    MRP through compatible PACSystems network hardware
  • Remote I/O:
    Up to 255 simplex remote I/O devices with compatible PNC001 hardware
  • Serial Interface:
    Isolated RS-232 with ASCII and Modbus RTU support
  • USB:
    USB 2.0 Type-A host for removable data storage

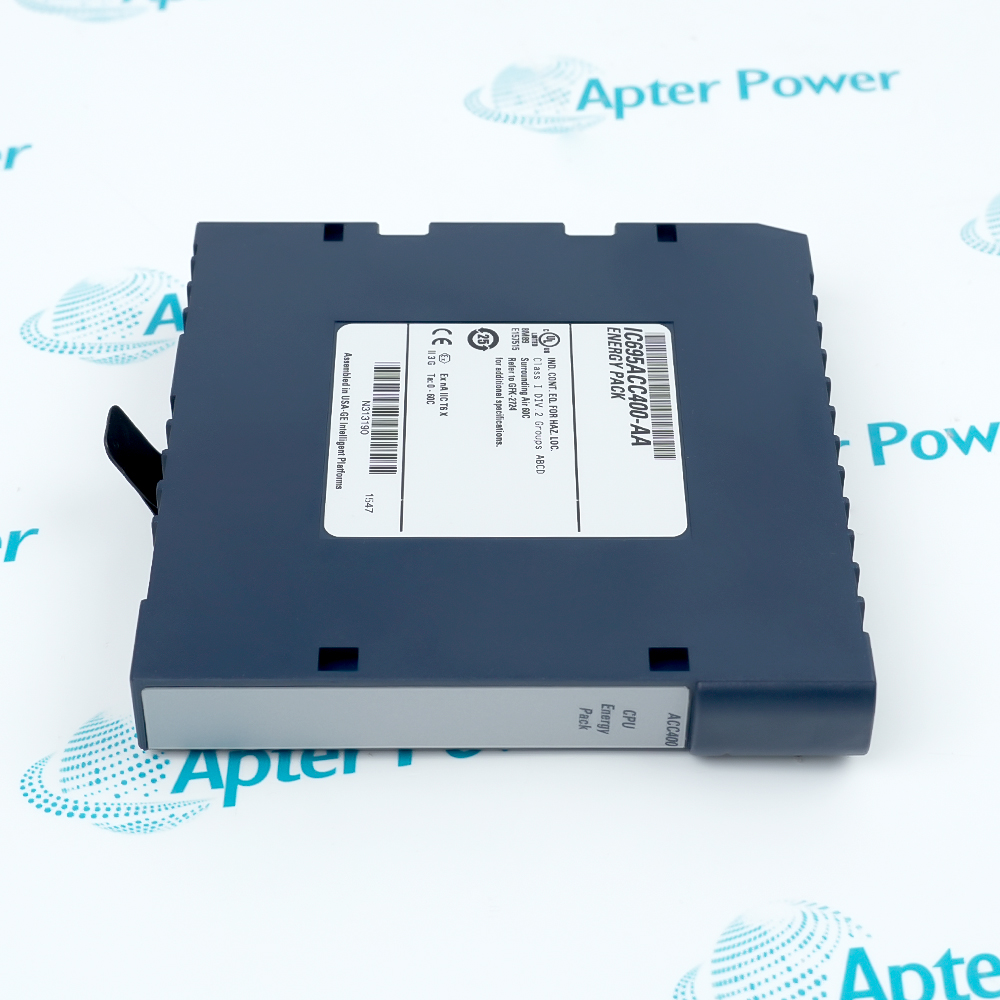

  • Energy Pack:
    IC695ACC400 included
  • Operating Temperature:
    0 to 60 °C
  • General Approvals:
    UKCA, UL, cUL, RoHS, CCC, FCC and REACH
  • Hazardous Locations:
    UL Class I Division 2 and ATEX Zone 2
  • Marine Approvals:
    ABS, BV, LR and DNV GL
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Programming Communication Maintenance

Features:

  • Combines rack-based RX3i control with 6 MB of user memory.
  • Integrates switched Gigabit Ethernet, isolated serial communication and removable-data USB support.
  • Uses an energy pack to support orderly shutdown and preservation of volatile data.
The current ordering family is the IC695CPE305 CPE305 controller, supplied in Axxx and Bxxx hardware configurations documented separately by Emerson.

It executes the RX3i control project and coordinates local modules, networked equipment and supported remote I/O through its backplane and communication services.

Before replacement, match the full suffix, firmware, rack position, power supply, network addresses, serial settings, energy-pack condition and verified application backup.

Availability is subject to Apter Power inventory and sourcing confirmation.

General Electric IC695CPE305 PACSystems RX3i CPE305 Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Runs deterministic sequencing and interlocking for automated production machinery.
  • Coordinates process-control applications that combine RX3i local modules with distributed I/O.
  • Supports material-handling cells that exchange data with HMIs, supervisory hosts and networked devices.
  • Supports Ladder Diagram, Structured Text, Function Block Diagram and C programming for the controller application.
  • Organizes large projects into supported program blocks while retaining controller data according to the project design.
  • Uses PACSystems engineering tools to manage hardware configuration, logic, communications and stored controller data.
  • Both Ethernet connectors belong to one embedded switch and share the controller IP address.
  • Native Ethernet services connect supported controllers, engineering tools, HMIs and external systems without an added CPU Ethernet module.
  • Compatible PACSystems network hardware extends communication to PROFINET remote I/O and supported media-redundancy designs.
  • The included energy pack supports a controlled shutdown sequence when rack power is removed.
  • The replaceable real-time-clock battery is serviced according to the documented interval without treating it as the energy pack.
  • The USB host supports removable data storage for controlled backup, deployment and recovery tasks.
Description
General Electric IC695CPE305 is a PACSystems RX3i rack controller designed for deterministic machine, process and material-handling control. With 6 MB of user memory and a common programming environment, it can coordinate substantial application logic while retaining the modular I/O structure used across scalable RX3i installations.

Two switched Gigabit Ethernet ports, an isolated serial channel and a broad set of industrial protocols connect the controller with engineering workstations, HMIs, peer controllers and compatible remote I/O. These integrated interfaces reduce the need for separate communication modules while supporting data exchange from the control layer to supervisory systems.

An energy pack gives the processor enough time to transfer volatile user data into nonvolatile storage when rack power is lost. The USB host provides a controlled route for removable data storage, backup and deployment, helping maintenance teams recover applications and service installed systems without weakening the controller's normal operating role.
Revisions

Revision Part #

Also known as

IC695CPE305A
IC695CPE305-A, Series A, Rev A
IC695CPE305B
IC695CPE305-B, Series B, Rev B
Alternative Names
IC695CPE305 IC695 CPE305 GE IC695CPE305 General Electric IC695CPE305 PACSystems RX3i IC695CPE305
Technical notes
IC695CPE305 replacement requires the exact Axxx or Bxxx suffix and compatible firmware; verify the project backup and energy-pack state before rack work.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should IC695CPE305 Axxx and Bxxx hardware be distinguished?
Read the complete catalog suffix from the nameplate and use the matching Emerson installation document; the two hardware families are documented separately.
Where can IC695CPE305 be installed in an RX3i rack?
Use an RX3i main rack and follow the current installation instructions; the controller is not installed in slot 0 or the highest numbered slot.
What is the intended use of the IC695CPE305 USB port?
It is a host for removable data storage and controlled project-transfer functions, not a general-purpose programming or network interface.
Does the IC695CPE305 energy pack replace the real-time-clock battery?
No. The energy pack supports orderly data preservation during power loss, while the separate battery maintains the real-time clock when other power is absent.
Can IC695CPE305 participate in an Ethernet ring?
Media redundancy is implemented through compatible PACSystems network hardware; the two CPU Ethernet ports are an embedded switch and should not be assumed to form a ring by themselves.
Which official document should be checked before changing IC695CPE305 firmware?
Use the current IC695CPE302/IC695CPE305 Important Product Information, GFK-2714, for the exact hardware suffix and release history.
What should be included in an IC695CPE305 quotation request?
Provide the full Axxx or Bxxx suffix, firmware, rack and power-supply details, network topology, energy-pack condition, quantity and destination.
