IC695CPU320

/ 4.9
1001 reviews | Need a Specific Revision?

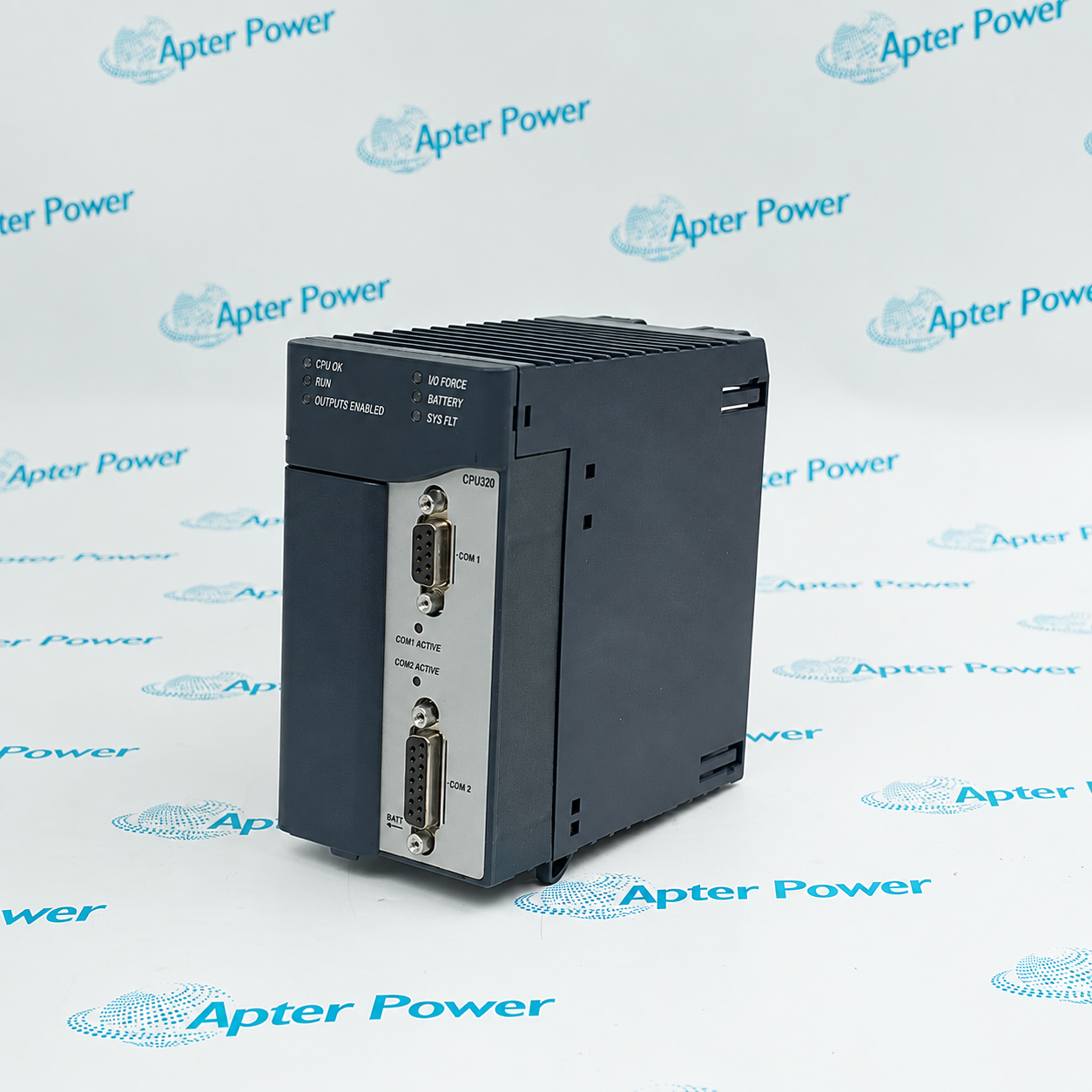

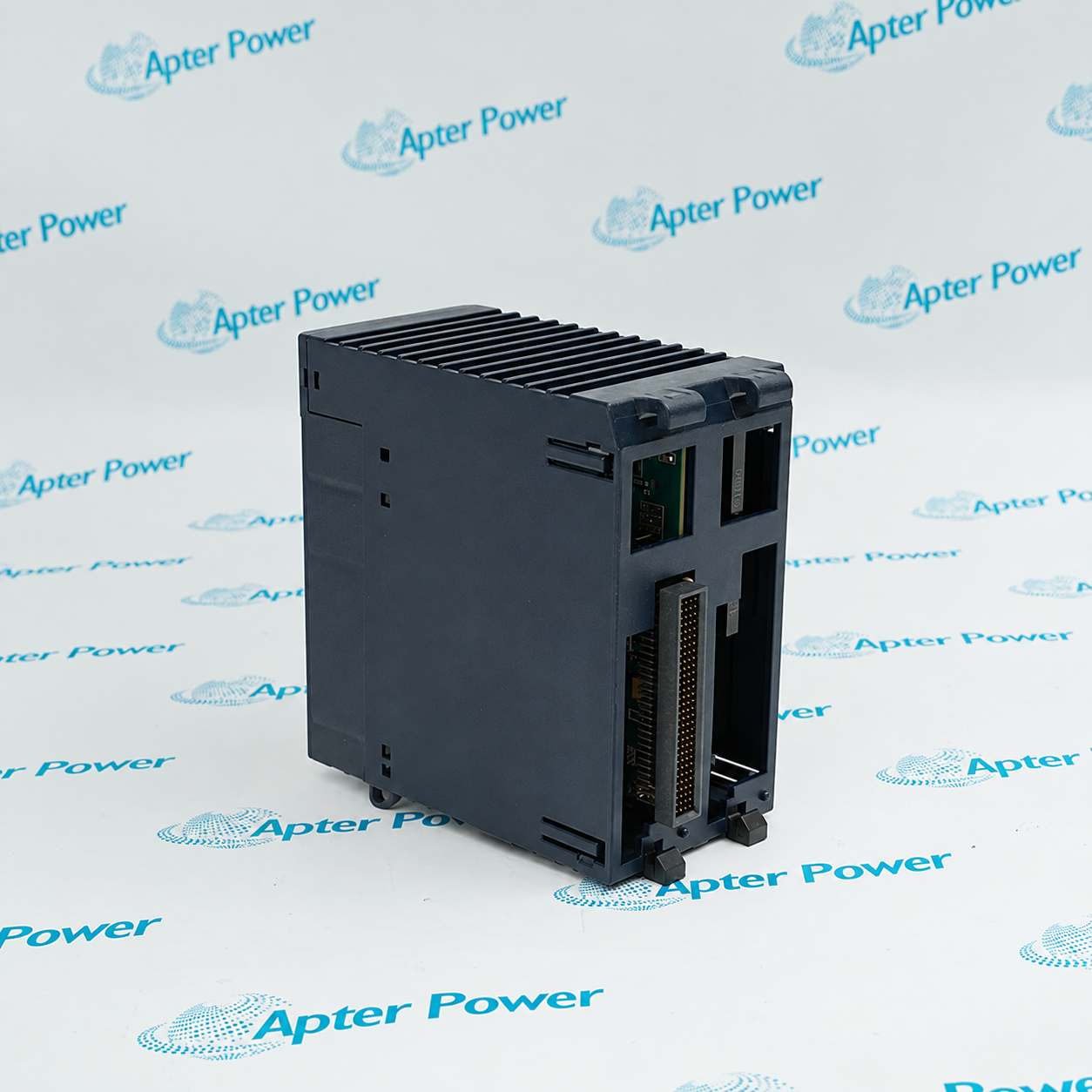

General Electric IC695CPU320 is a PACSystems RX3i 1 GHz controller with 64 MB user memory and built-in RS-232 and RS-485 interfaces.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC695CPU320
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695CPU320

  • Manufacturer:
    General Electric
  • Part Number:
    IC695CPU320
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    PACSystems RX3i CPU320 Controller
  • Stock:
    1
  • Processor:
    1 GHz
  • User memory:
    64 MB battery-backed RAM
  • Nonvolatile flash:
    64 MB
  • Boolean execution:
    0.047 ms per 1000 Boolean instructions
  • Floating point:
    Supported
  • Discrete references:
    32K input bits and 32K output bits
  • Analog references:
    32K input words and 32K output words
  • Program blocks:
    Up to 512 blocks; 128 KB maximum per block
  • Serial interfaces:
    RS-232 and RS-485
  • Serial protocols:
    Modbus RTU slave, SNP, and serial I/O
  • Backplane:
    Dual RX3i PCI and high-speed serial buses
  • Current draw:
    1.0 A at 3.3 V DC; 1.2 A at 5 V DC
  • Operating temperature:
    0...60 °C
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Programming Configuration Service Application
  • High-memory rack-based RX3i CPU for complex deterministic control projects
  • Dual RX3i backplane buses coordinate compatible I/O and communications modules
  • Separate serial interfaces support legacy and current documented device connections

IC695CPU320 is a General Electric PACSystems RX3i CPU320 Controller for high-capacity rack-based automation.

It executes IEC 61131-3 application logic and uses compatible RX3i modules for Ethernet, PROFINET, Genius, and other system communications.

Before installation or replacement, verify memory use, firmware, rack power, serial settings, communications modules, battery condition, and the complete project archive.

Availability, condition, price, and shipping time for IC695CPU320 are confirmed during quotation.

General Electric IC695CPU320 PACSystems RX3i CPU320 Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Supports Ladder Diagram, Structured Text, Function Block Diagram, and C programming
  • Provides up to 512 program blocks with a maximum size of 128 KB per block
  • Supports symbolic, array, and structured variables for large control projects
  • Ethernet and PROFINET functions are added through compatible RX3i communication modules
  • Serial settings for RS-232 and RS-485 are stored with the hardware configuration
  • The controller project must include the installed rack, I/O, and communications-module definitions
  • Logic and hardware configuration should be saved together to nonvolatile flash
  • Battery-backed memory and the real-time clock require periodic battery inspection
  • Firmware compatibility must be checked before restoring a project to replacement hardware
  • Large rack-based machine-control projects with PACSystems RX3i I/O
  • Process-control systems requiring extensive retained controller data
  • Industrial automation using separately selected Ethernet, PROFINET, or Genius communications
Description
IC695CPU320 is a General Electric PACSystems RX3i CPU320 Controller for high-capacity machine and process control.

The 1 GHz CPU provides 64 MB of battery-backed user memory, 64 MB of nonvolatile flash, floating-point support, separate RS-232 and RS-485 interfaces, and RX3i dual-backplane communications.

Before installation or replacement, confirm the complete catalog number, firmware, rack and power supply, communications modules, serial settings, battery condition, retained data, and saved controller project.
Revisions

Revision Part #

Also known as

IC695CPU320A
IC695CPU320-A, Series A, Rev A
IC695CPU320B
IC695CPU320-B, Series B, Rev B
IC695CPU320C
IC695CPU320-C, Series C, Rev C
IC695CPU320D
IC695CPU320-D, Series D, Rev D
IC695CPU320E
IC695CPU320-E, Series E, Rev E
IC695CPU320F
IC695CPU320-F, Series F, Rev F
IC695CPU320G
IC695CPU320-G, Series G, Rev G
IC695CPU320H
IC695CPU320-H, Series H, Rev H
Alternative Names
IC695CPU320 IC695 CPU320 GE IC695CPU320 General Electric IC695CPU320 PACSystems RX3i IC695CPU320
Technical notes
IC695CPU320 replacement requires verification of memory use, rack power, firmware, serial settings, battery-backed data, external communications modules, and the complete saved project.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be assessed before migrating an IC695CPU315 project to IC695CPU320?
Compare firmware, project memory use, rack power, I/O and communication modules, serial settings, retained variables, and application timing. Validate the converted project before production use.
Does IC695CPU320 provide embedded Ethernet?
No embedded Ethernet port is documented for this CPU. Use a compatible RX3i Ethernet or PROFINET module selected for the installed network.
Can IC695CPU320 communicate on a Genius bus?
Yes, through a compatible IC695GCG001 Genius Communications Gateway. Emerson lists CPU320 firmware 8.15 or later for the gateway.
How should IC695CPU320 retained data be preserved?
Save logic and hardware configuration to nonvolatile flash, retain a validated external project archive, and document the battery condition and retained-variable requirements before removal.
What serial communication caution applies to IC695CPU320?
Official installation information warns that heavy interrupt activity at 115.2 kbit/s can corrupt serial data. Use 57.6 kbit/s or lower unless the application and firmware are validated at the higher rate.
Can an IC695CPU320 replacement be commissioned with only a logic file?
No. Restore and verify the complete hardware configuration, communication-module settings, serial parameters, retained data, and firmware compatibility together with the logic.
What details should a buyer verify for IC695CPU320?
Verify the exact catalog number, firmware, rack and power-supply models, communications modules, serial network details, battery condition, and the version of the validated project archive.
